PelletMasters Customer Sample Photos and Videos

Pellet Masters has run many samples over the years.
Here are photos and a few videos of some samples we have run.
Note: We are not at liberty to share information of some customer samples.

Pellet Mill Customer Samples Wood Samples Hemp Samples Hay/Straw Samples Leaves Samples

Hammer Mill Customer Samples Wood Samples Hemp Samples Hay/Straw Samples Leaves Samples

Fine Grinder Customer Samples Wood Samples Spices Samples Hay/Straw Samples Wheat Bran Samples

American Rotary and Gentec visit Pellet Masters, a Wisconsin based company who
offers 20 different models of electric, diesel, and PTO driven pellet & hammer mills.
Pellet Masters shares how pellets are made and the numerous applications for pellet products.

Pellet Mill Samples

Click on the photos for a larger image. Click on the video links for videos.

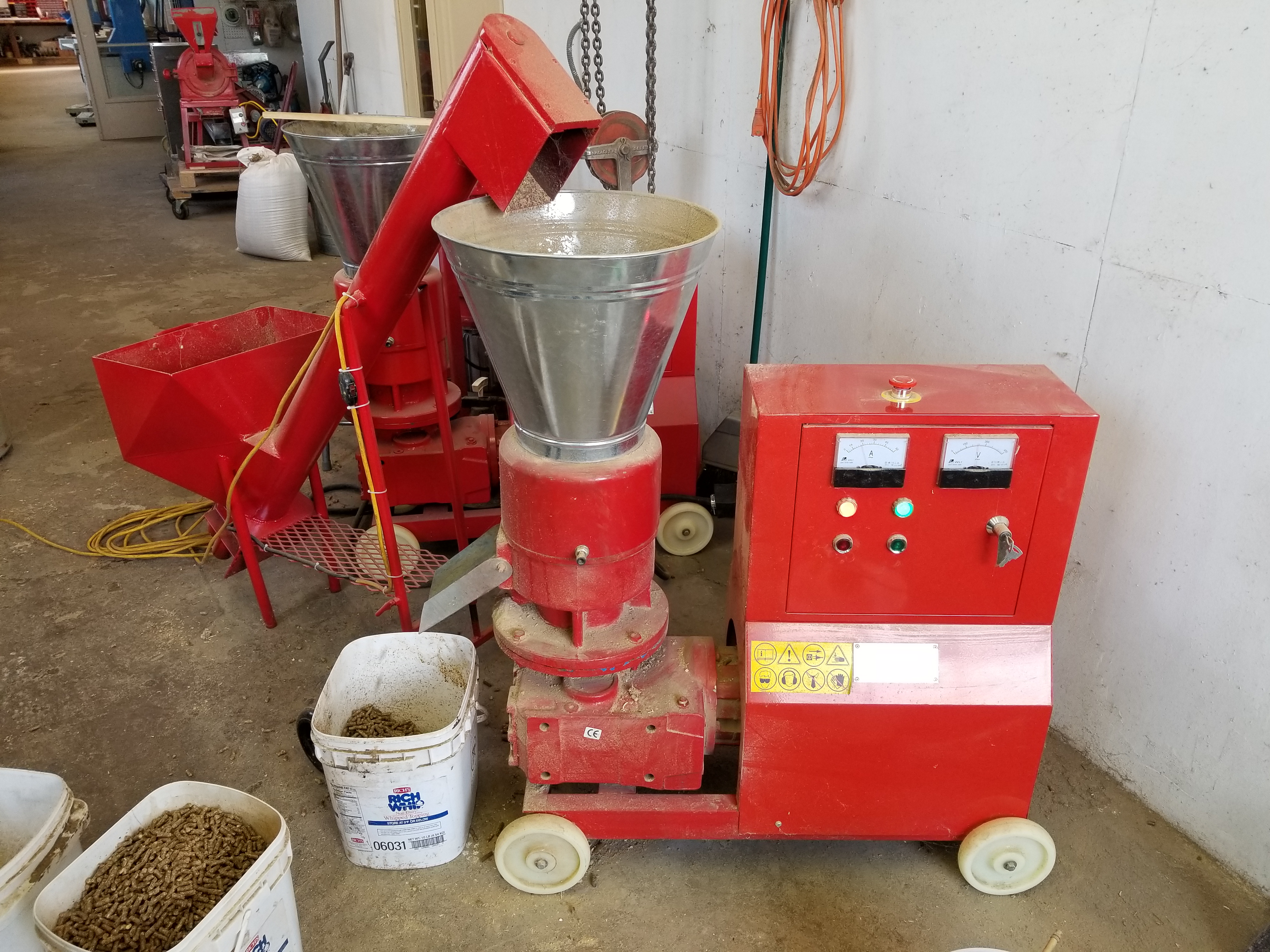

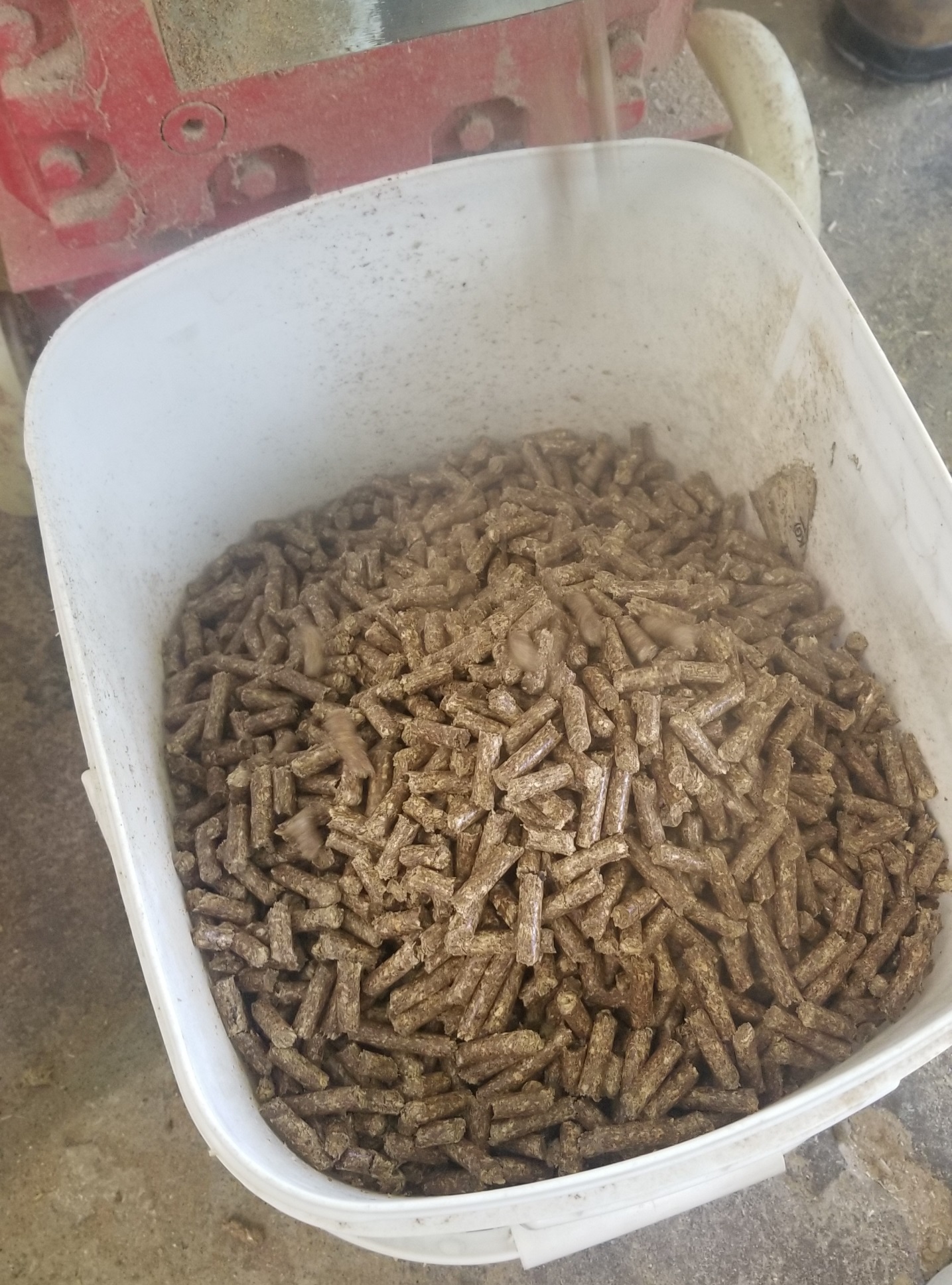

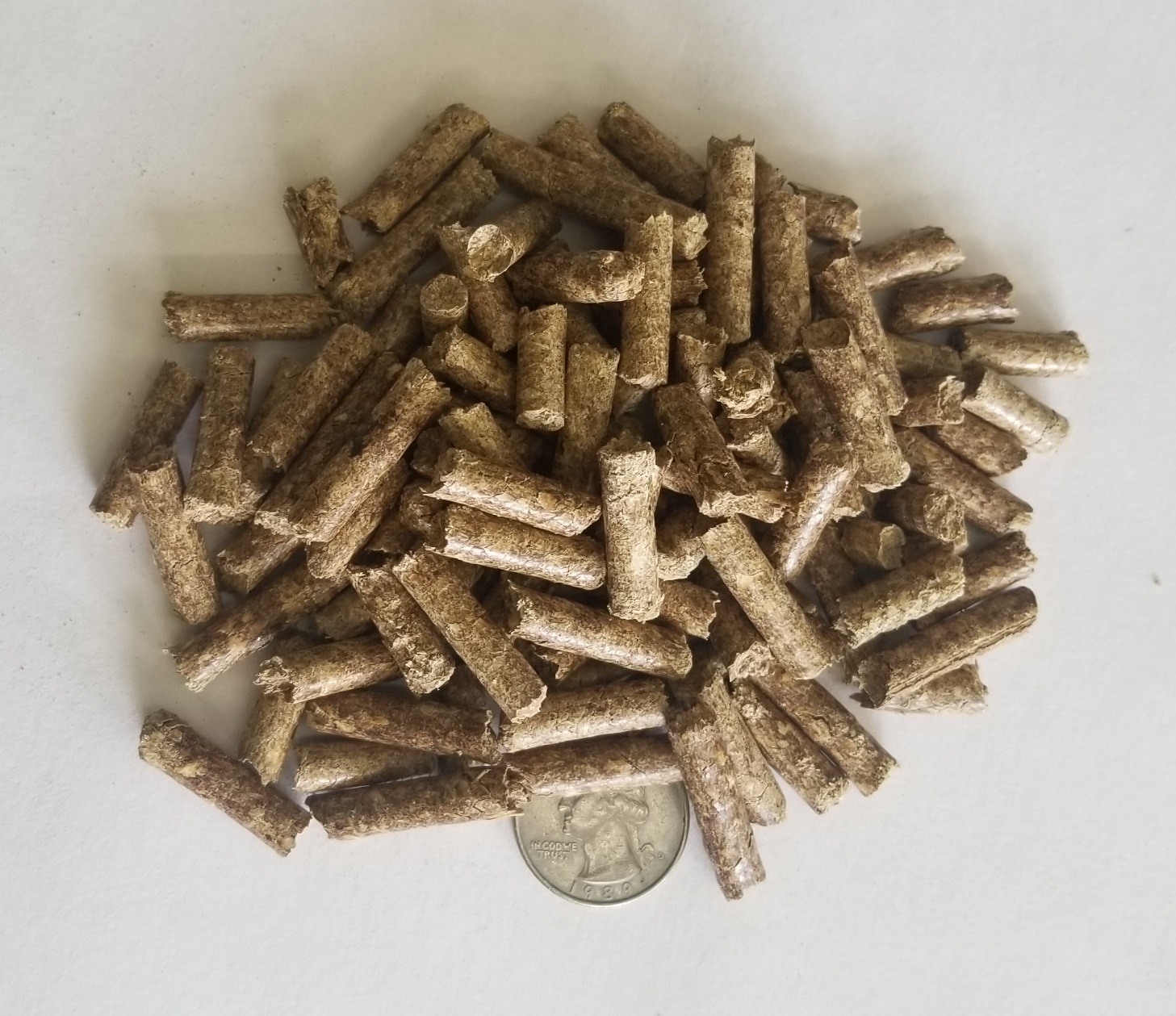

Our Demonstrator Machine - 9" 2-Roller 10hp 220v Three-Phase Pellet Mill. (woodPM)

Wood Pellet Mill	Wood Pellet Mill	Wood Pellet Mill	Wood Pellet Mill

---

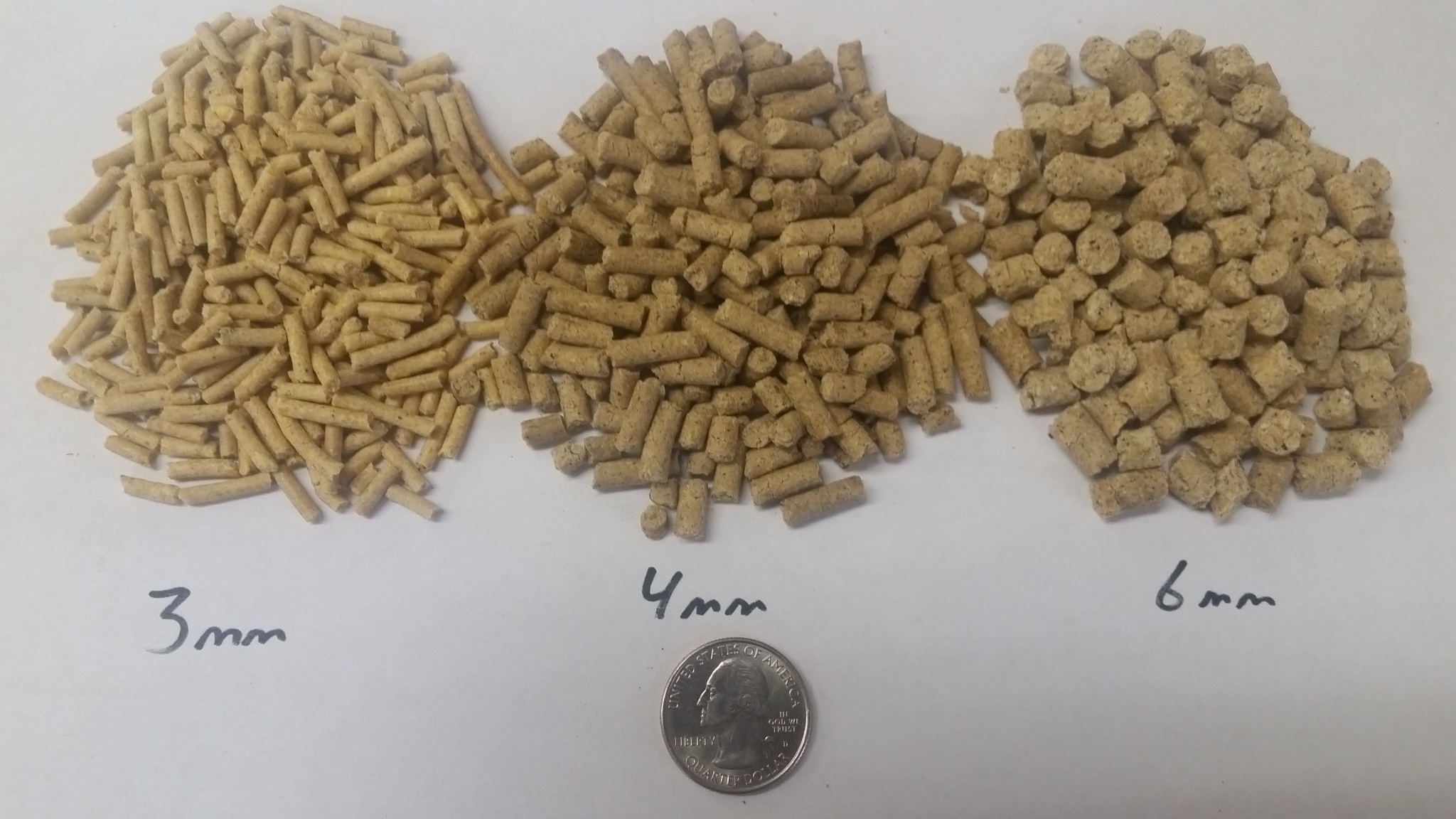

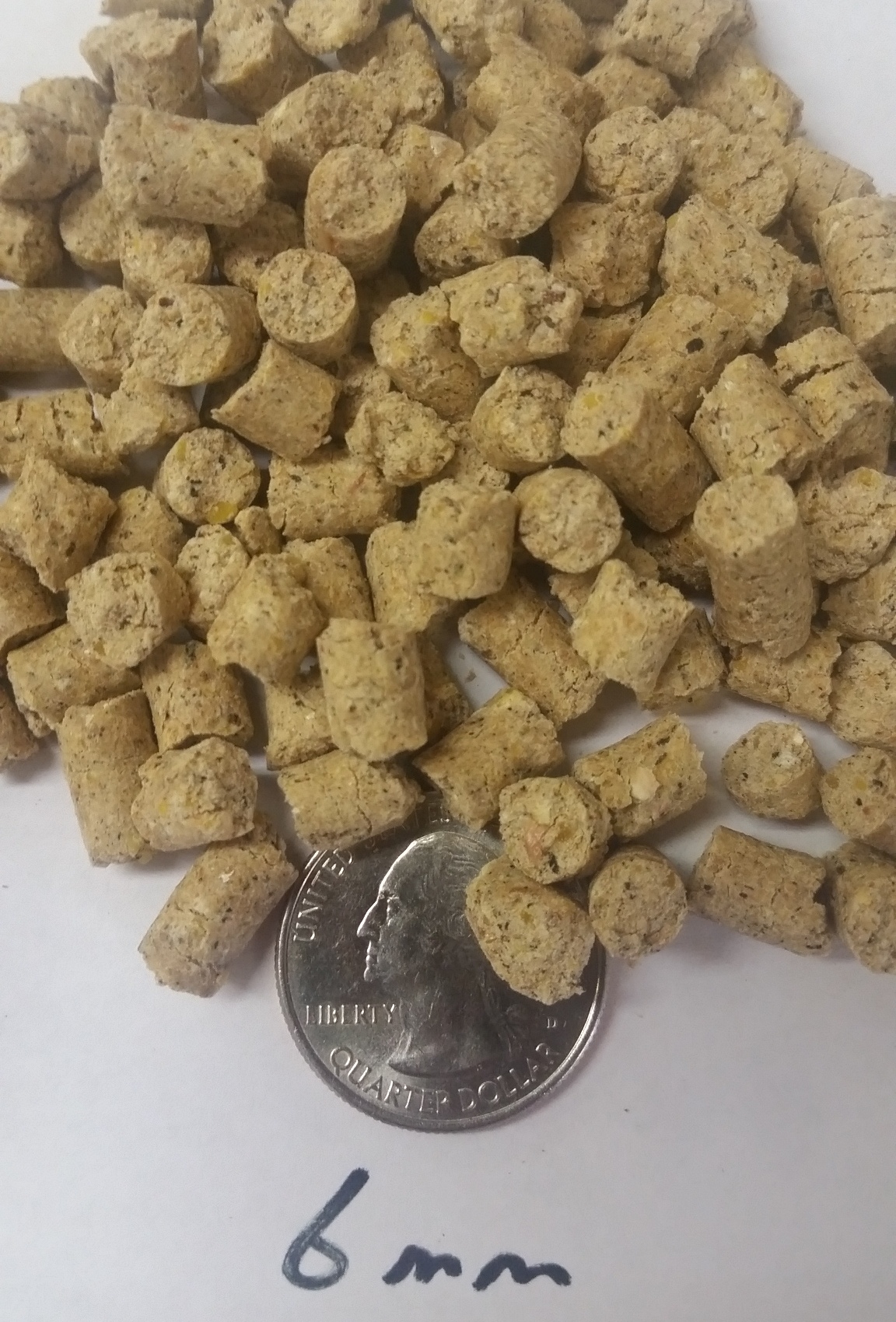

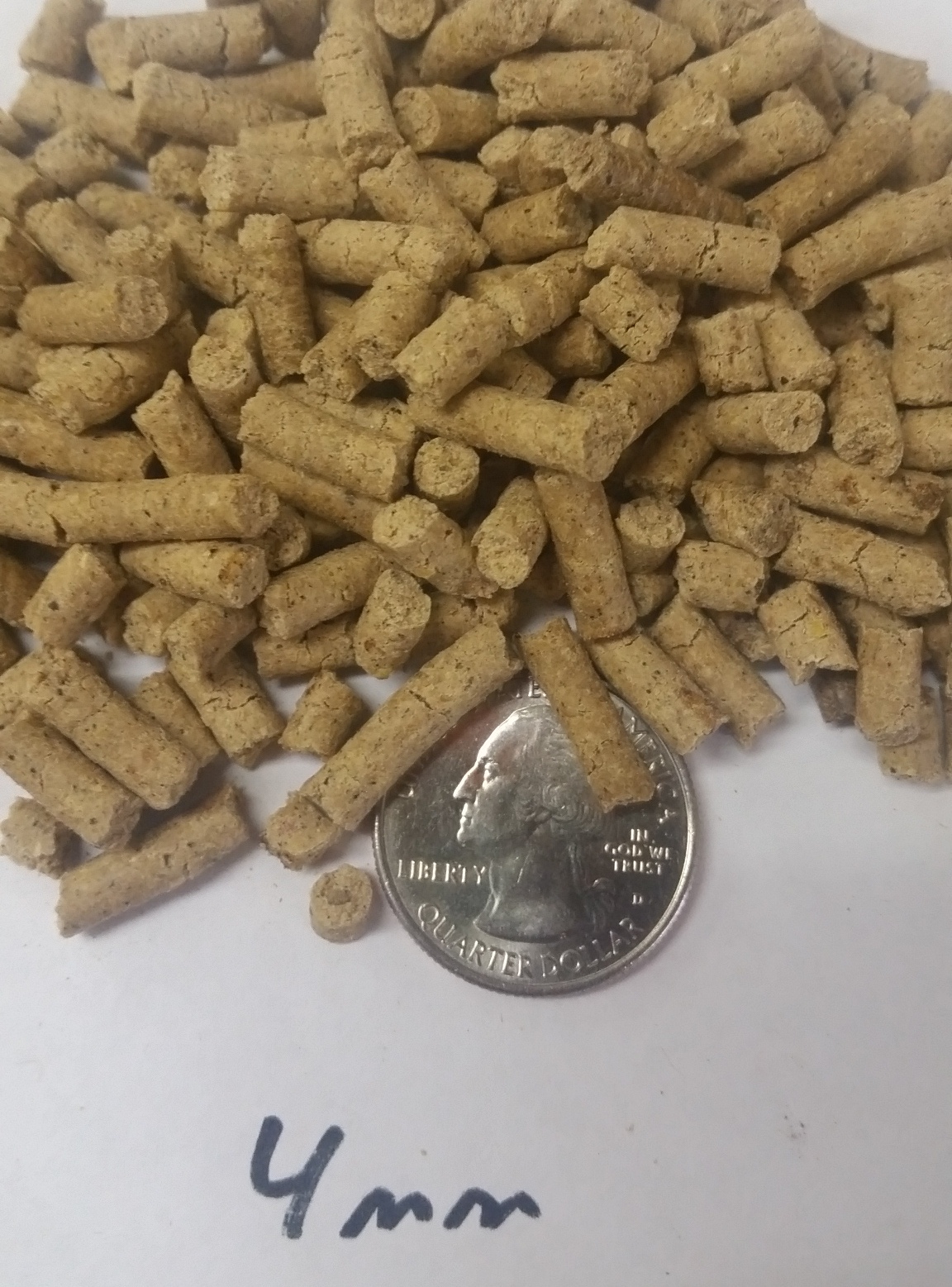

Examples of material run through 3mm, 4mm, and 6mm die hole sizes (examplesPM).

3mm Pellets	4mm Pellets	6mm Pellets	3, 4, and 6mm Pellets
Please note the 6mm photo was a soft material sample resulting in shorter pellets.

---

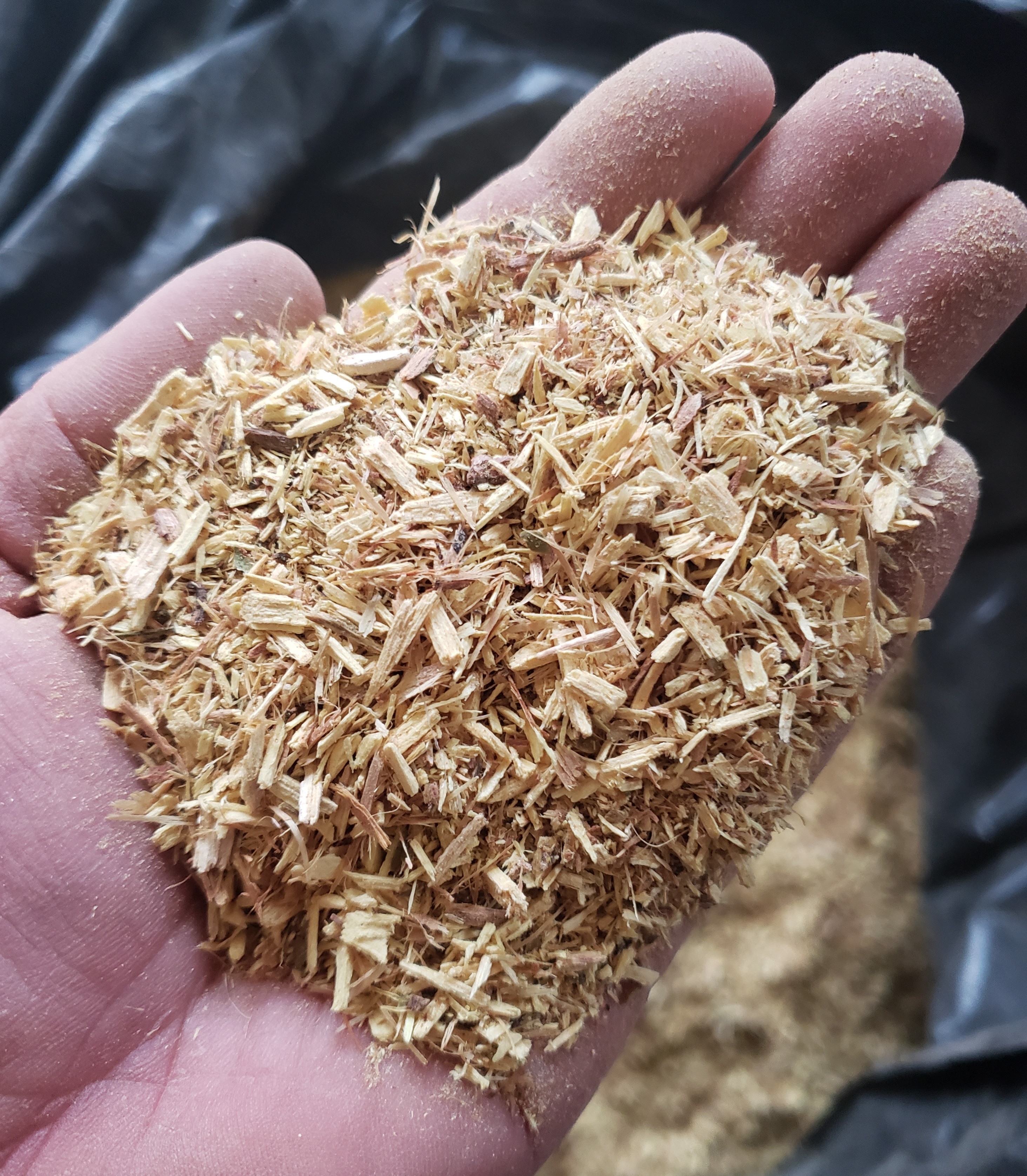

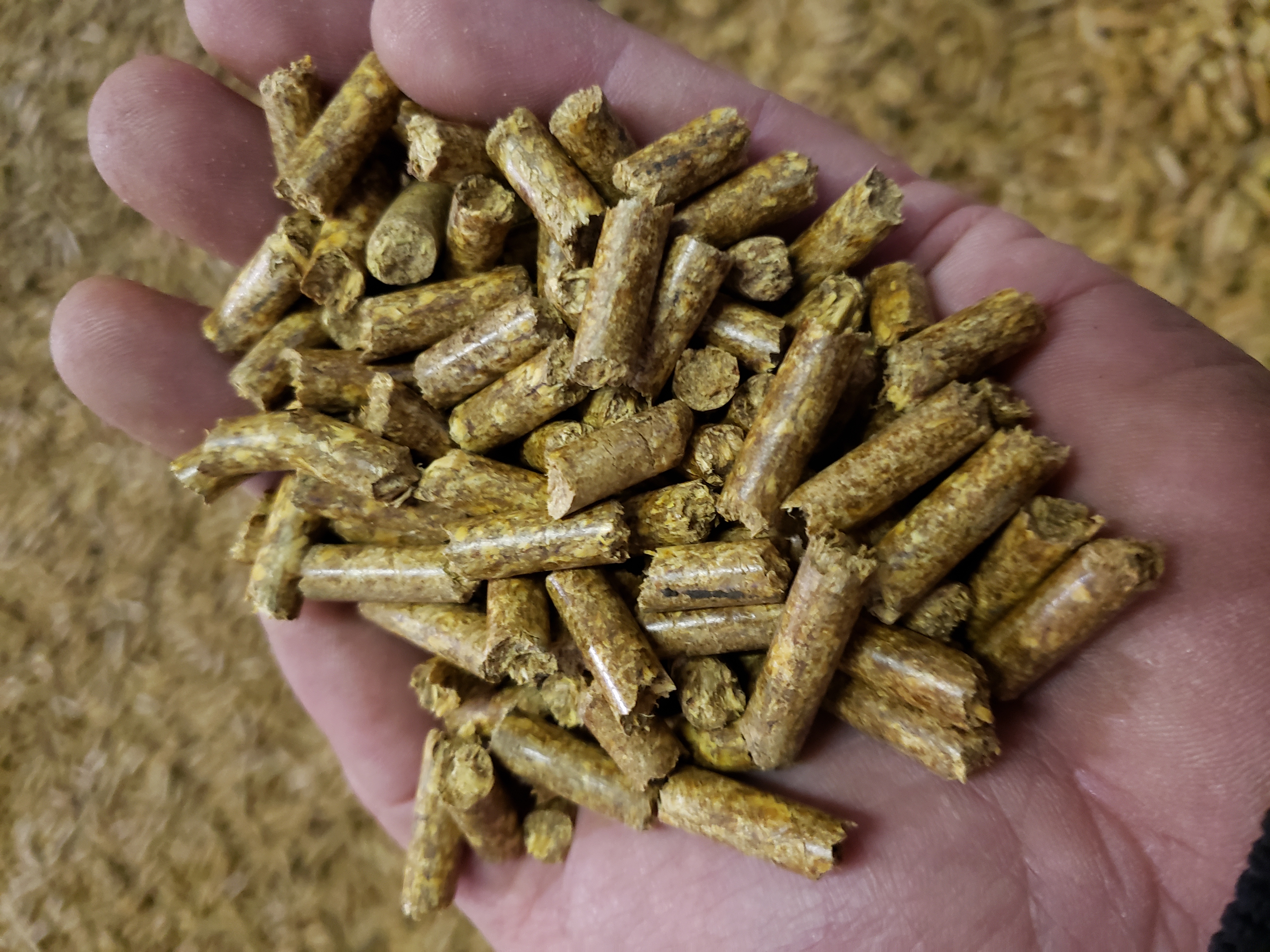

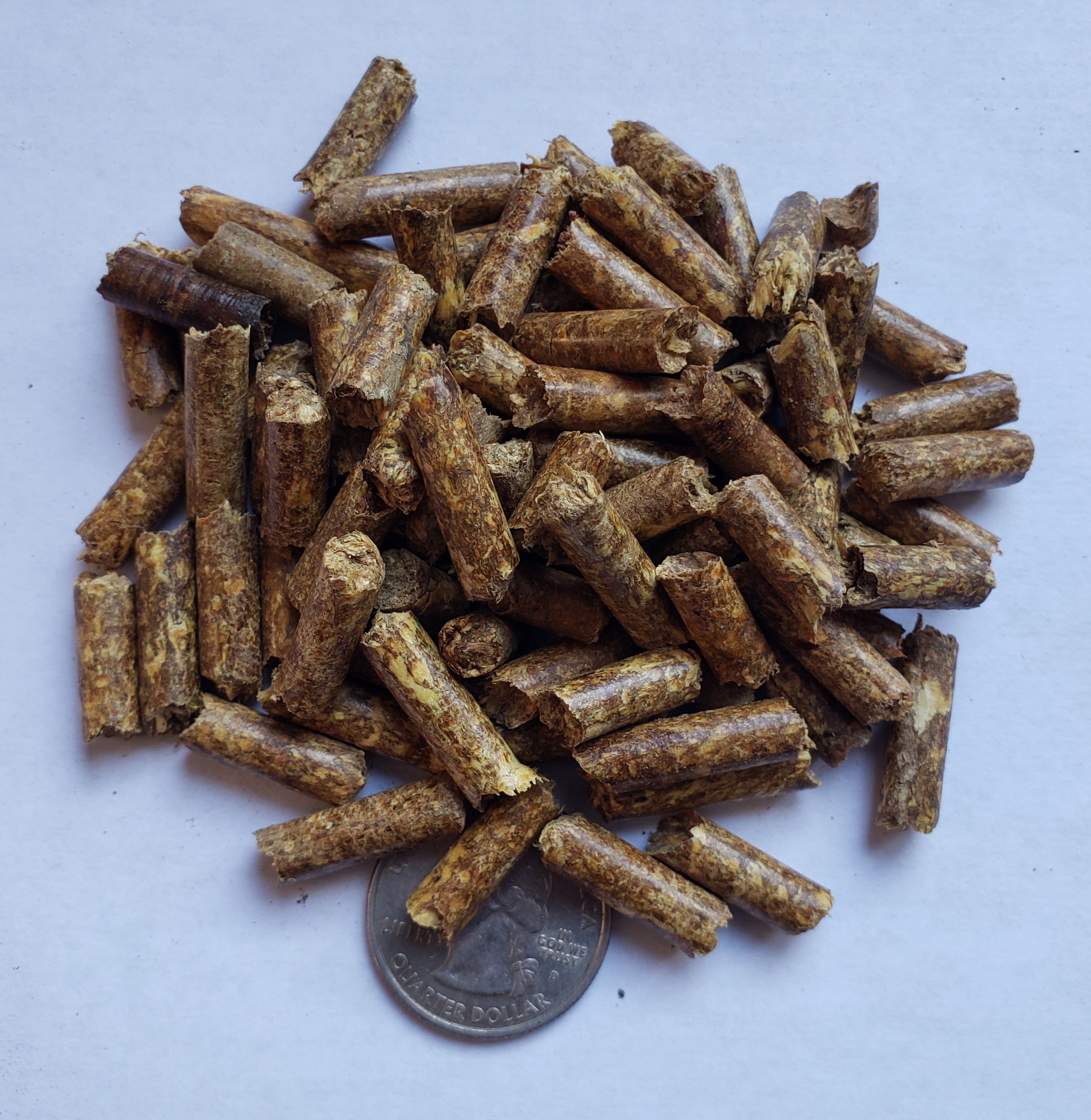

Example of Hard Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. (hardwoodPM)

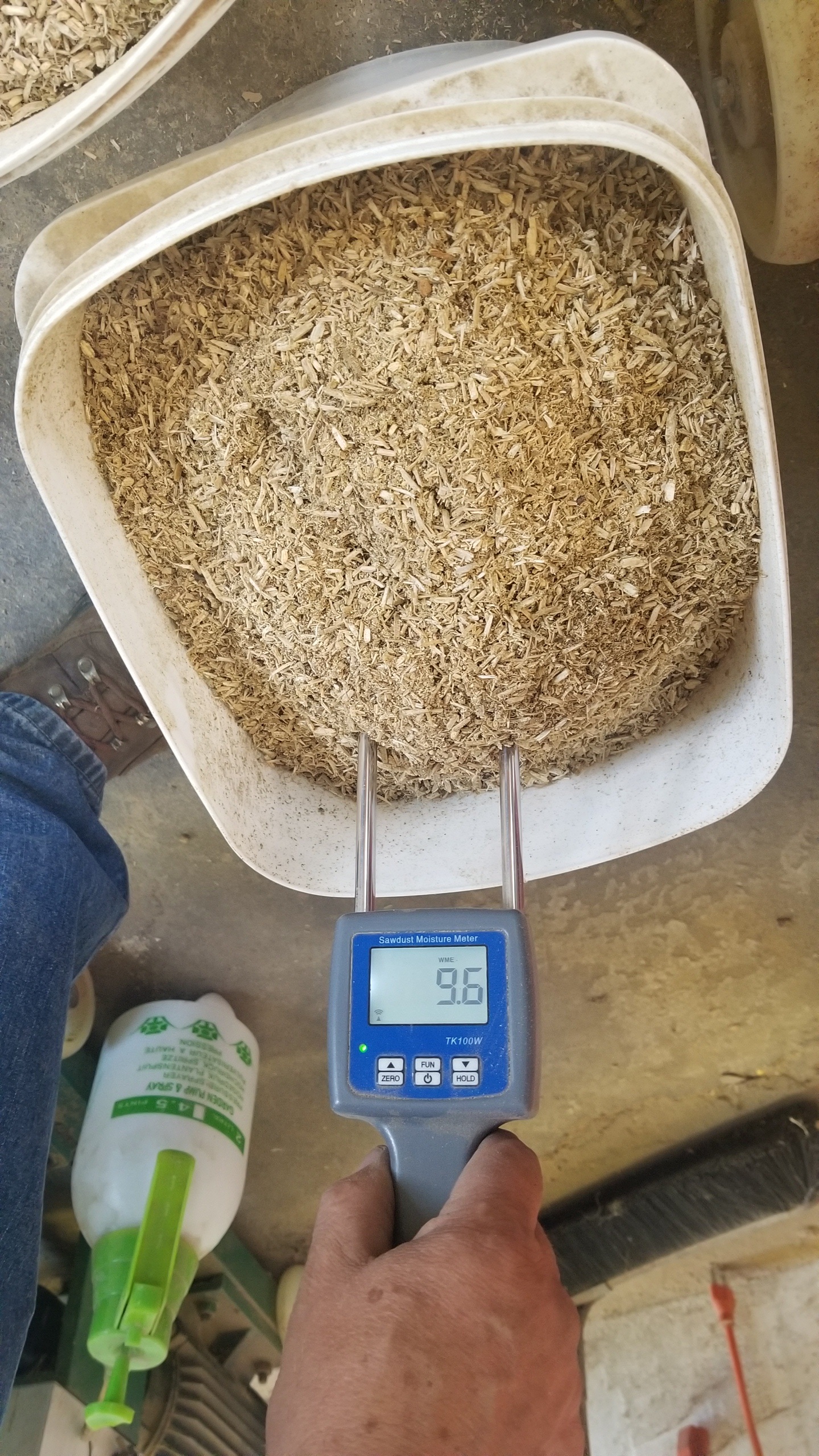

Hammer Milled Wood	Moisture Content	Hard Wood - 6mm Die	Hard Wood - 6mm Die
Click here for a video of Hard Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Hard Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Hard Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Hard Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. We first ran this material through our Model 198 5.3hp 220v Single Phase Hammer Mill.

---

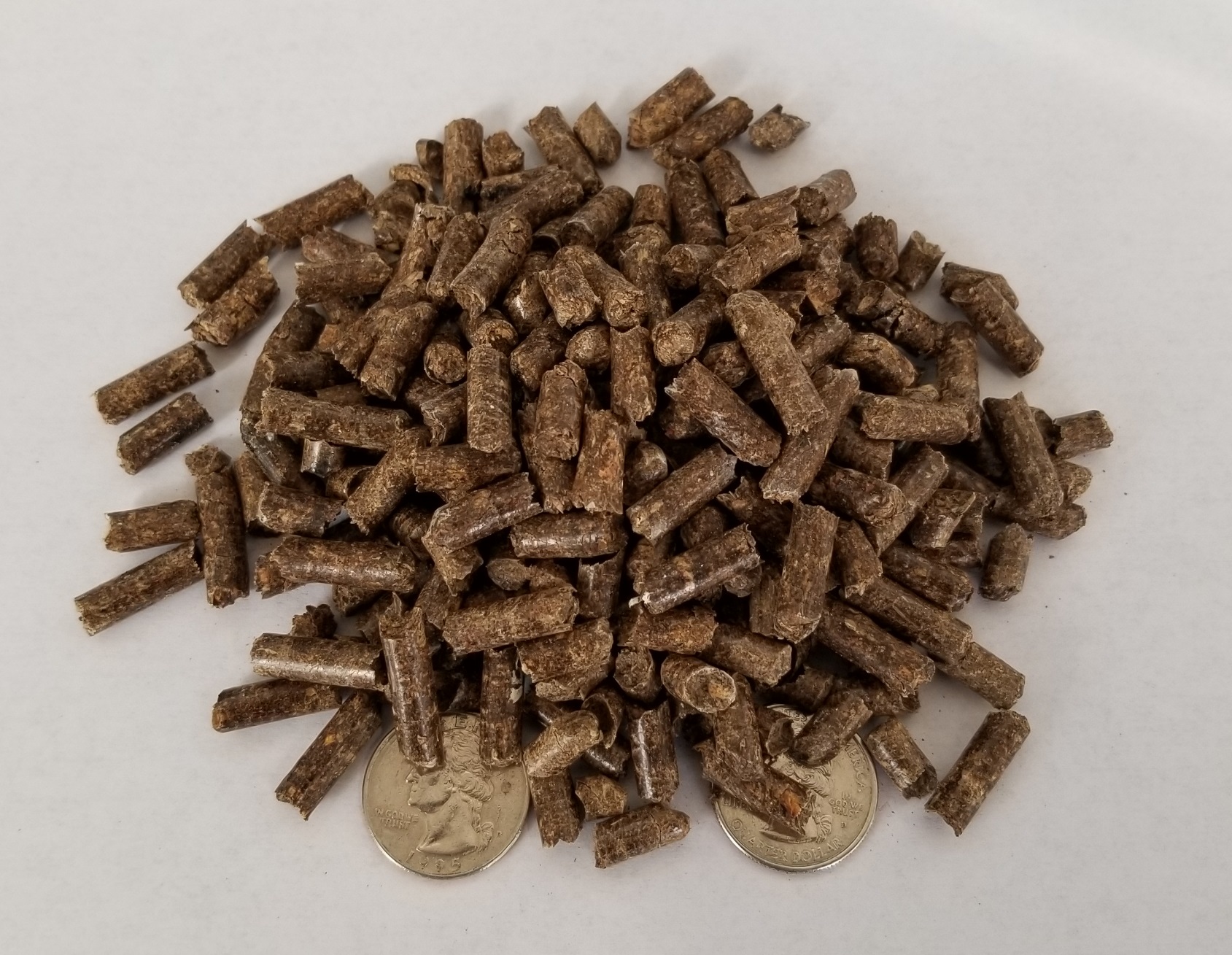

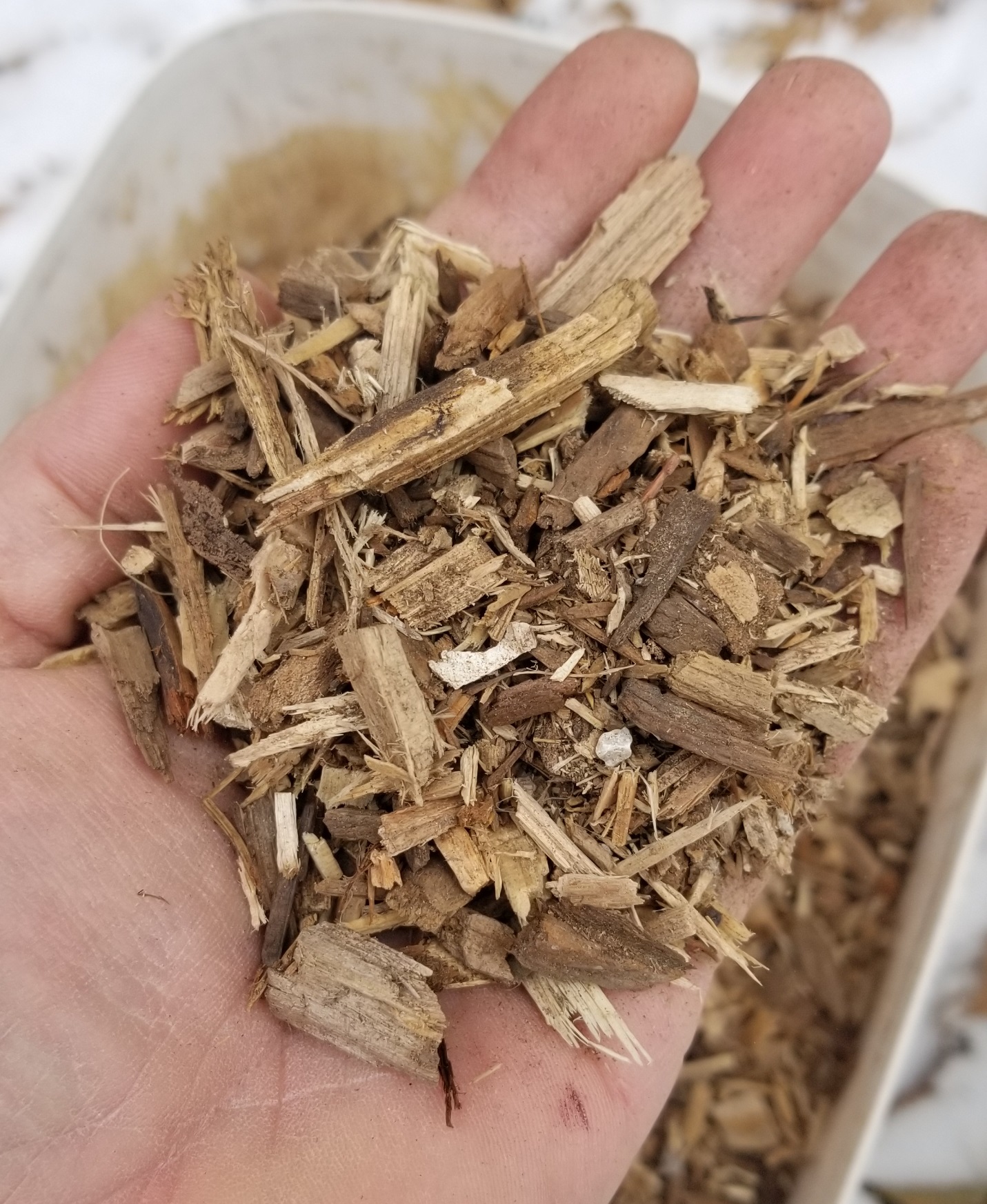

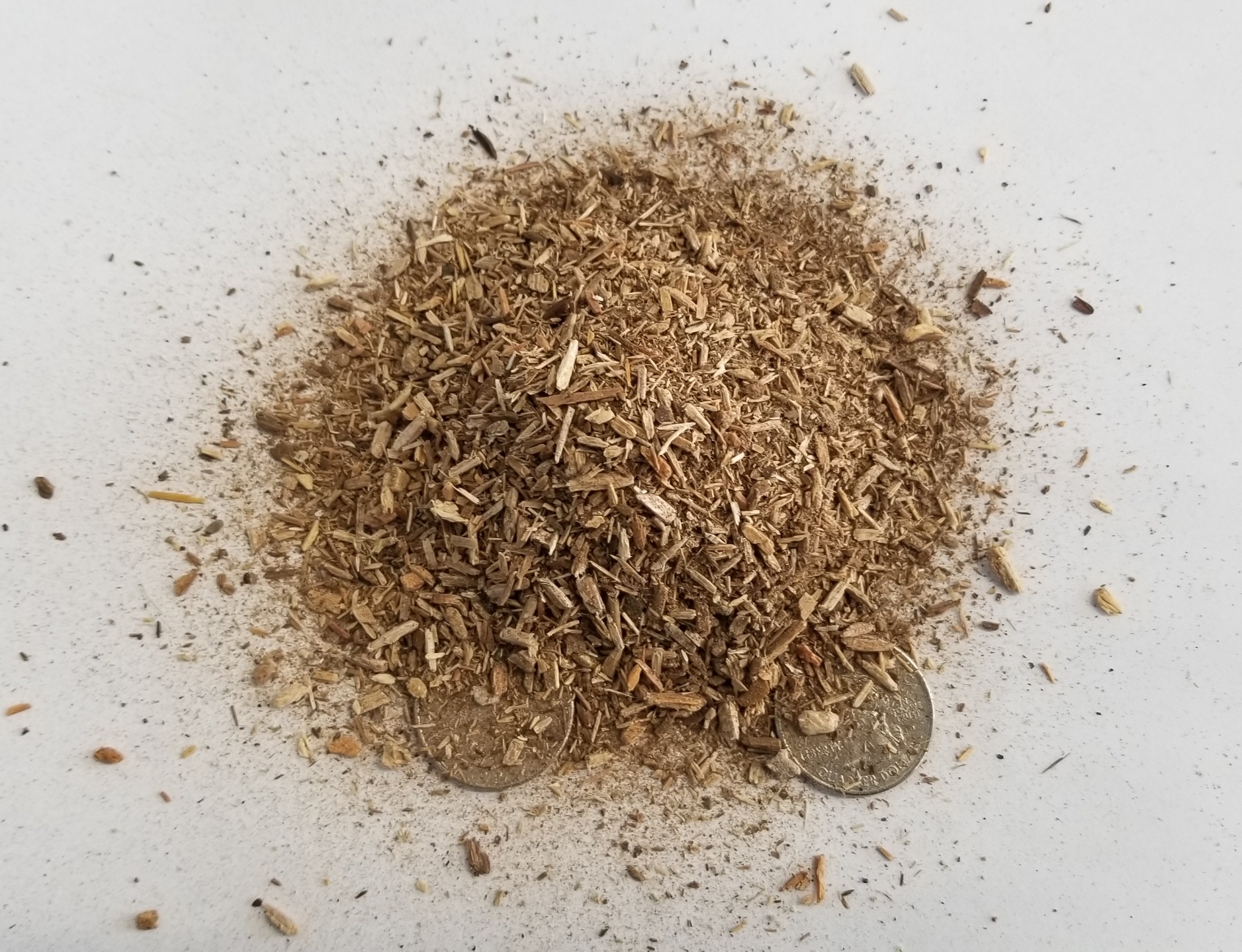

Example of Hammer Milled Wood Chips running through a 9" 10hp 220v Three-Phase Pellet Mill. (woodchipsPM)

Wood Chunks Before	6mm Screen	6mm Pellets	6mm Pellets
Click here for a video of wood chips running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of wood chips running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of wood chips running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of wood chips running through a 9" 10hp 220v Three-Phase Pellet Mill. * We added 1 1/2 cups of water to this material to bring the moisture content up to 12%. We first ran this material through our Model 198 5.3hp 220v Single Phase Hammer Mill.

---

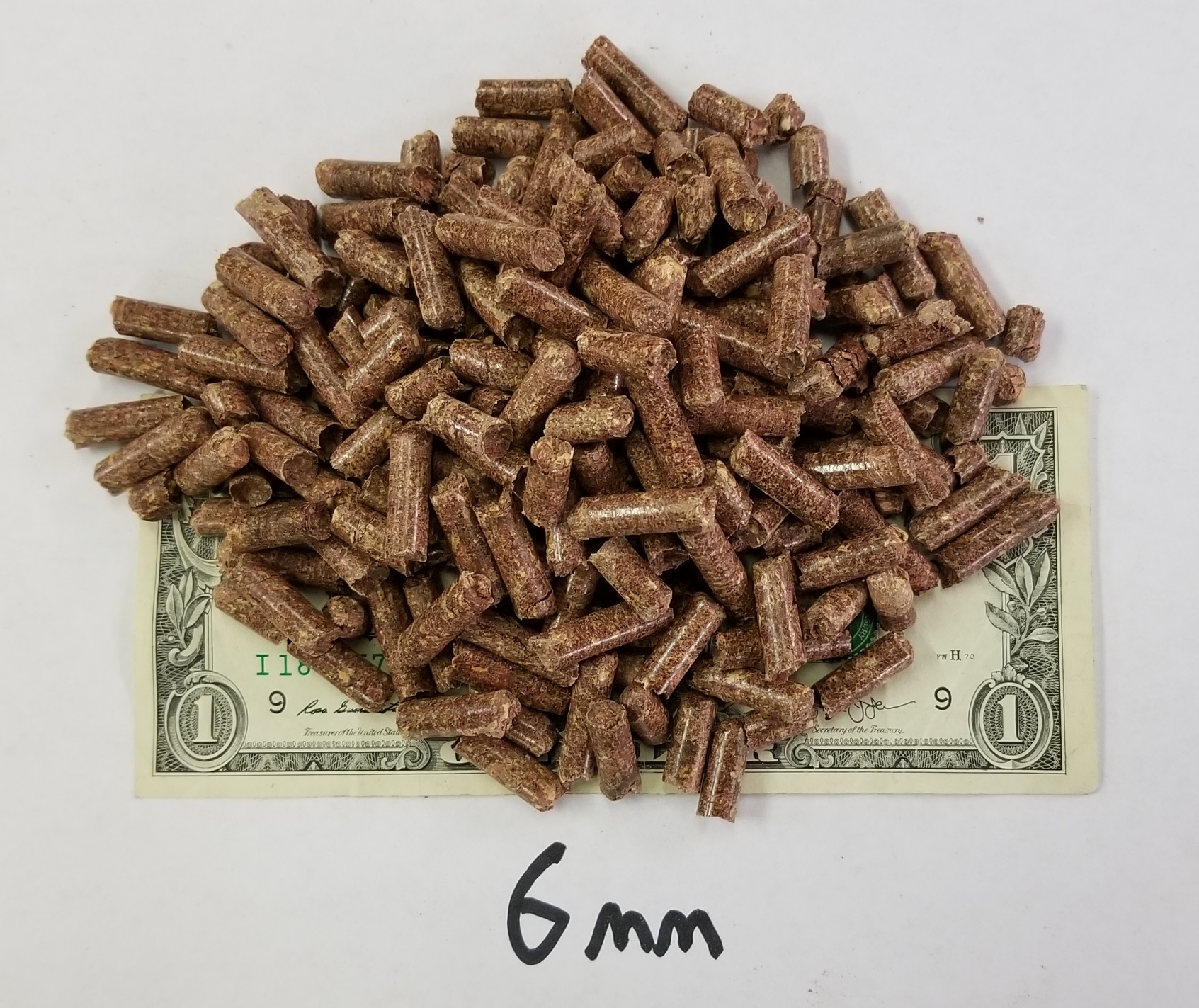

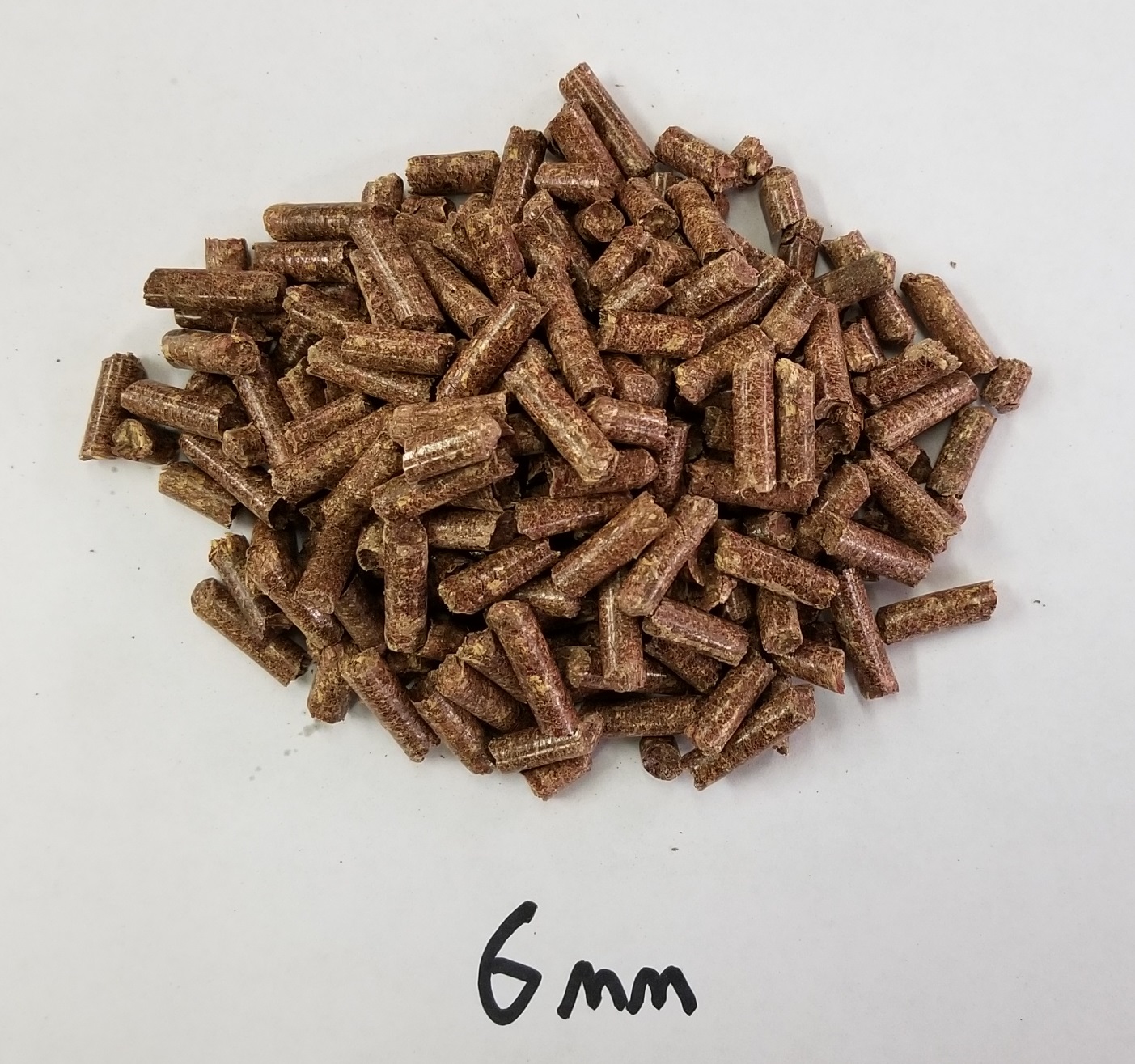

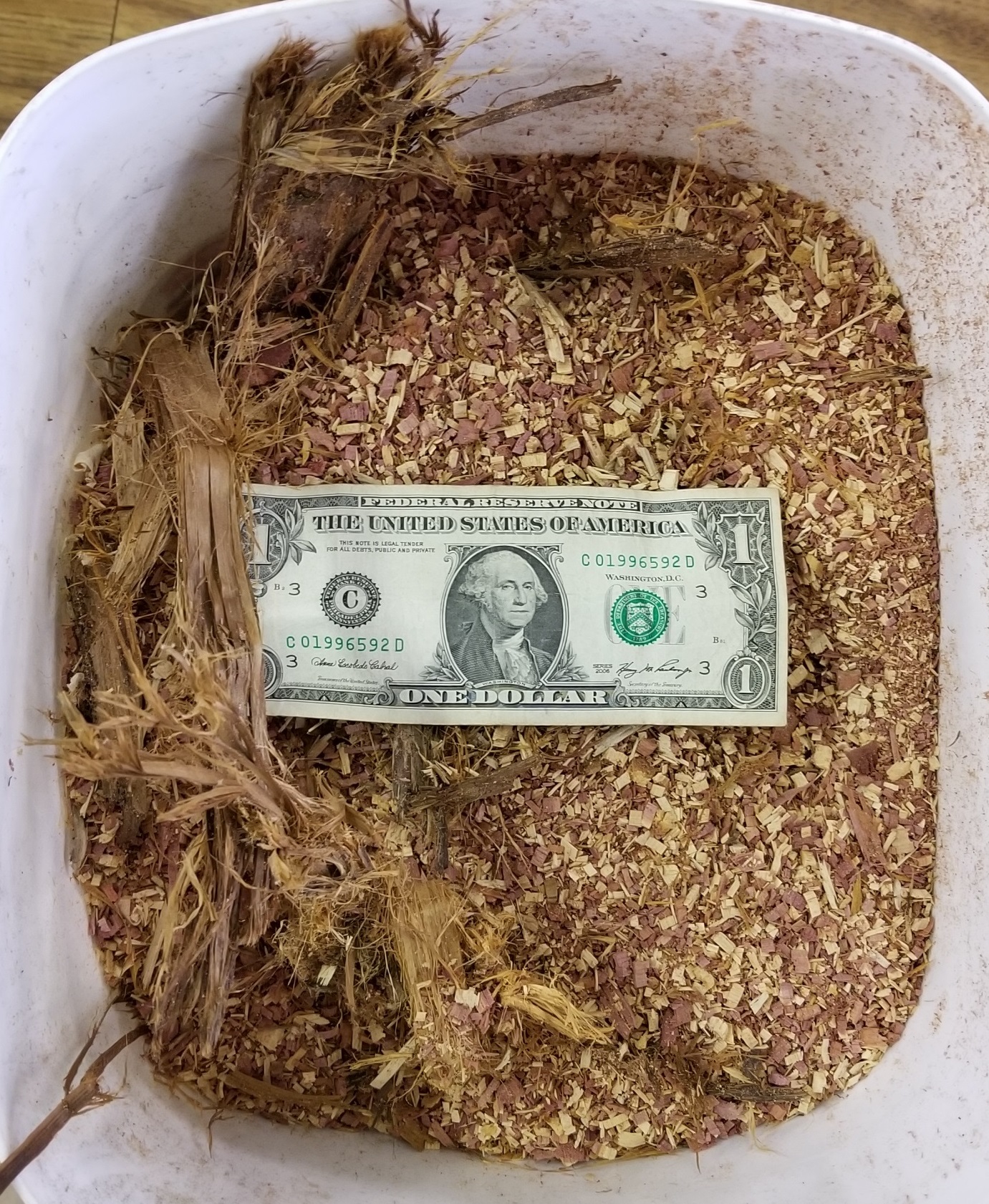

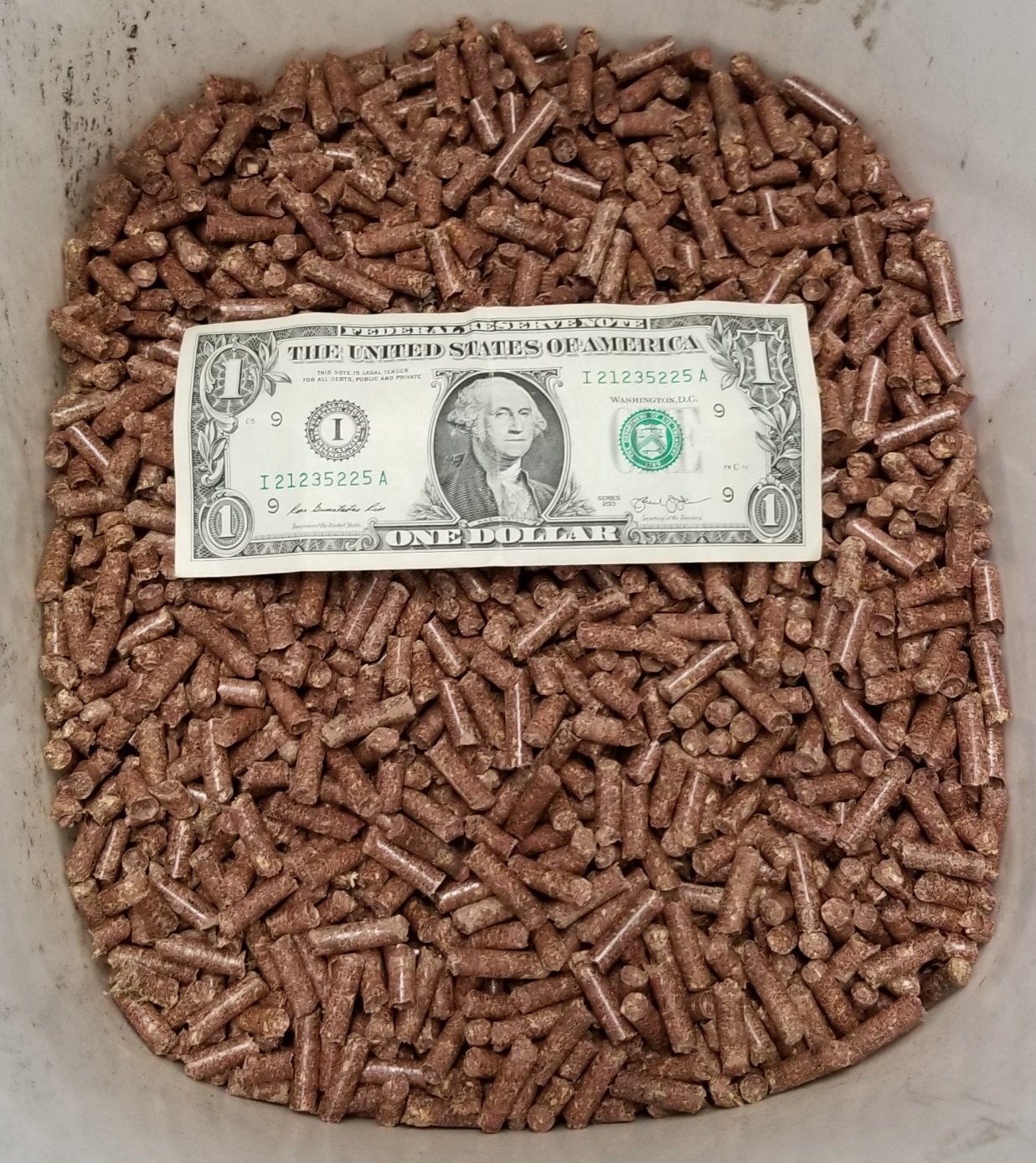

Example of Cedar running through a 9" 10hp 220v Three-Phase Pellet Mill. (cedarPM)

Hammer Milled Cedar	Cedar - 6mm Die	Cedar - 6mm Die	Cedar - 6mm Die
Click here for a video of Cedar running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Cedar running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Cedar running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Cedar running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Cedar running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Cedar running through a 9" 10hp 220v Three-Phase Pellet Mill. We first ran this material through our Model 158 3hp 220v Single Phase Hammer Mill.

---

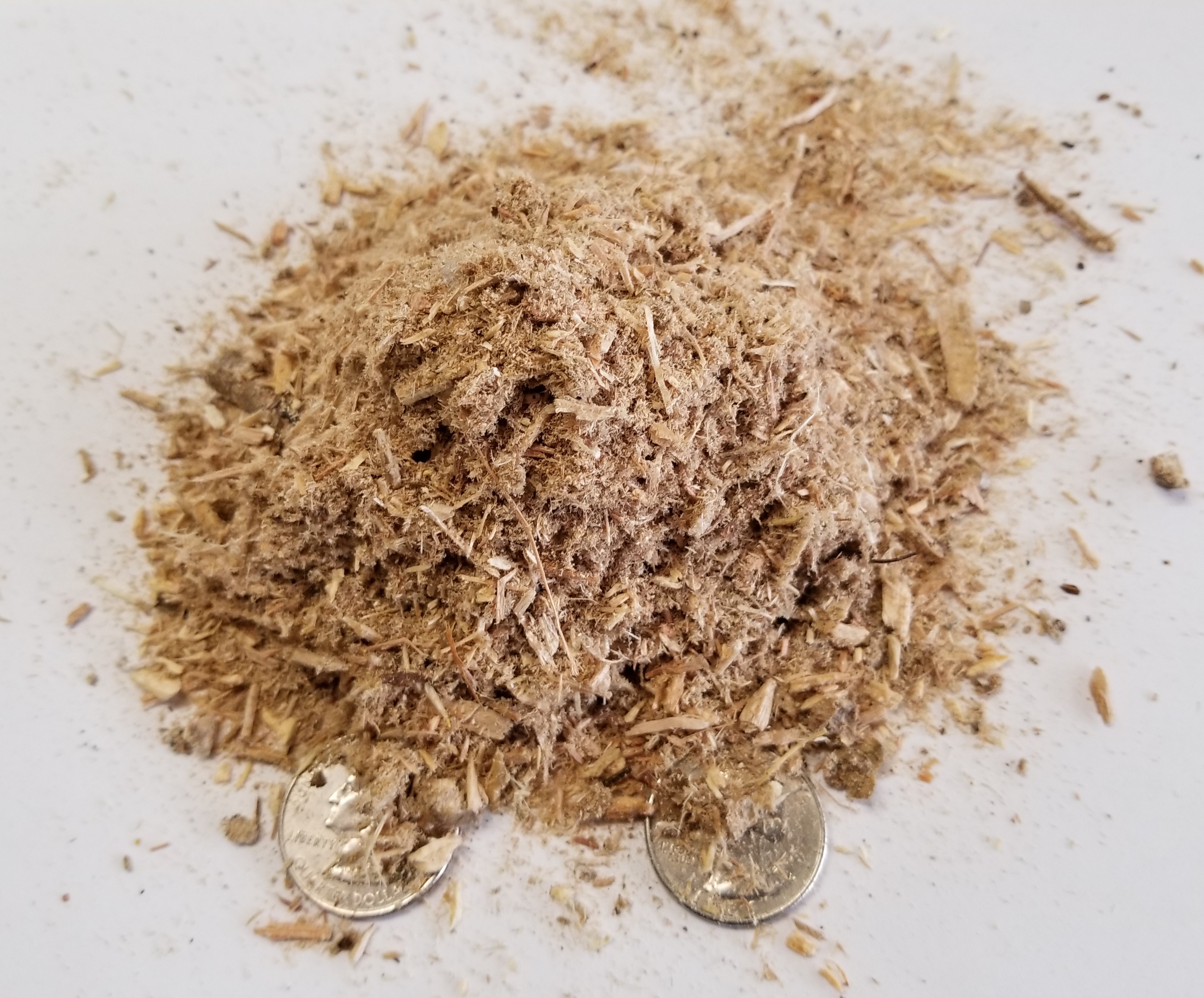

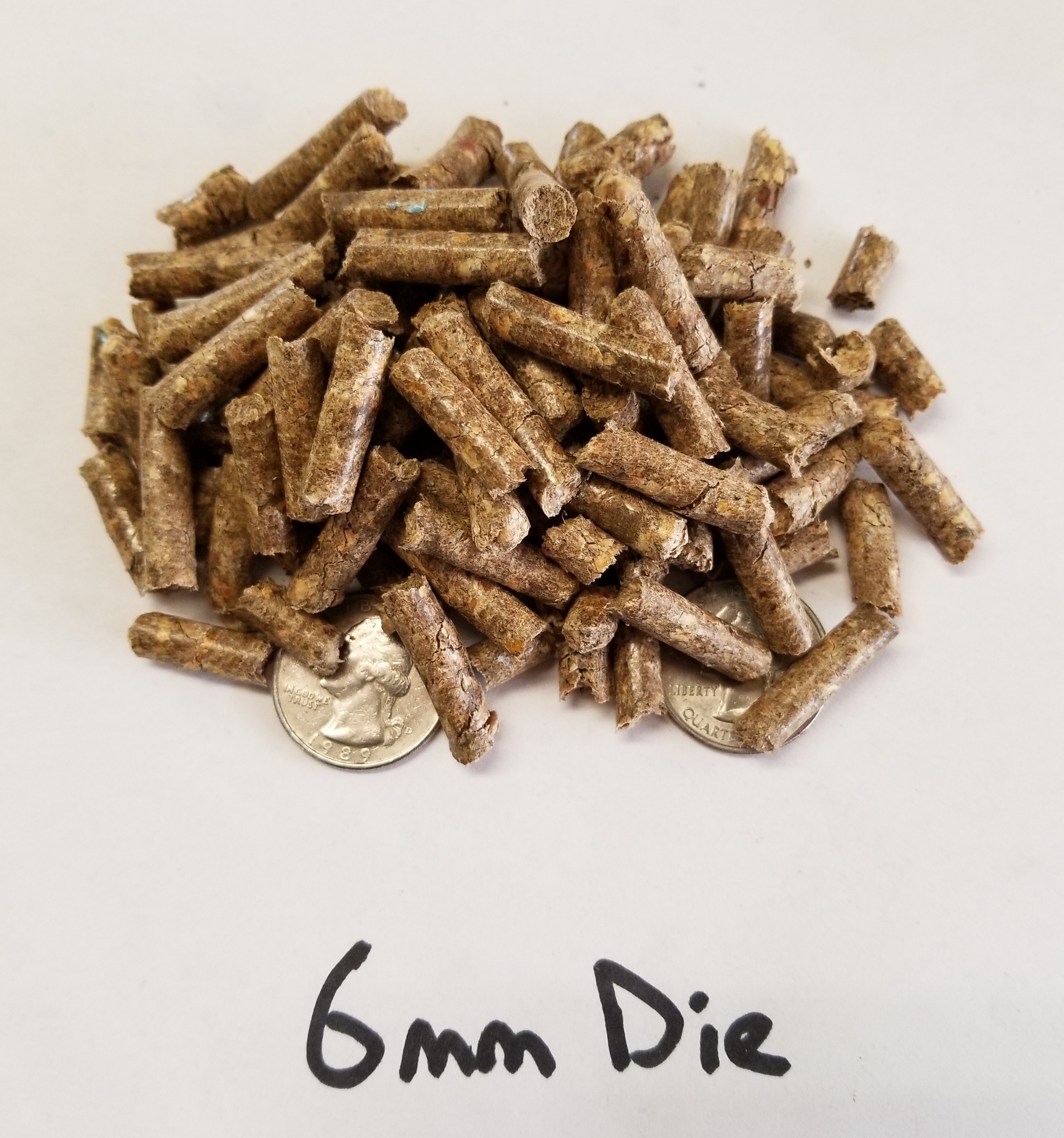

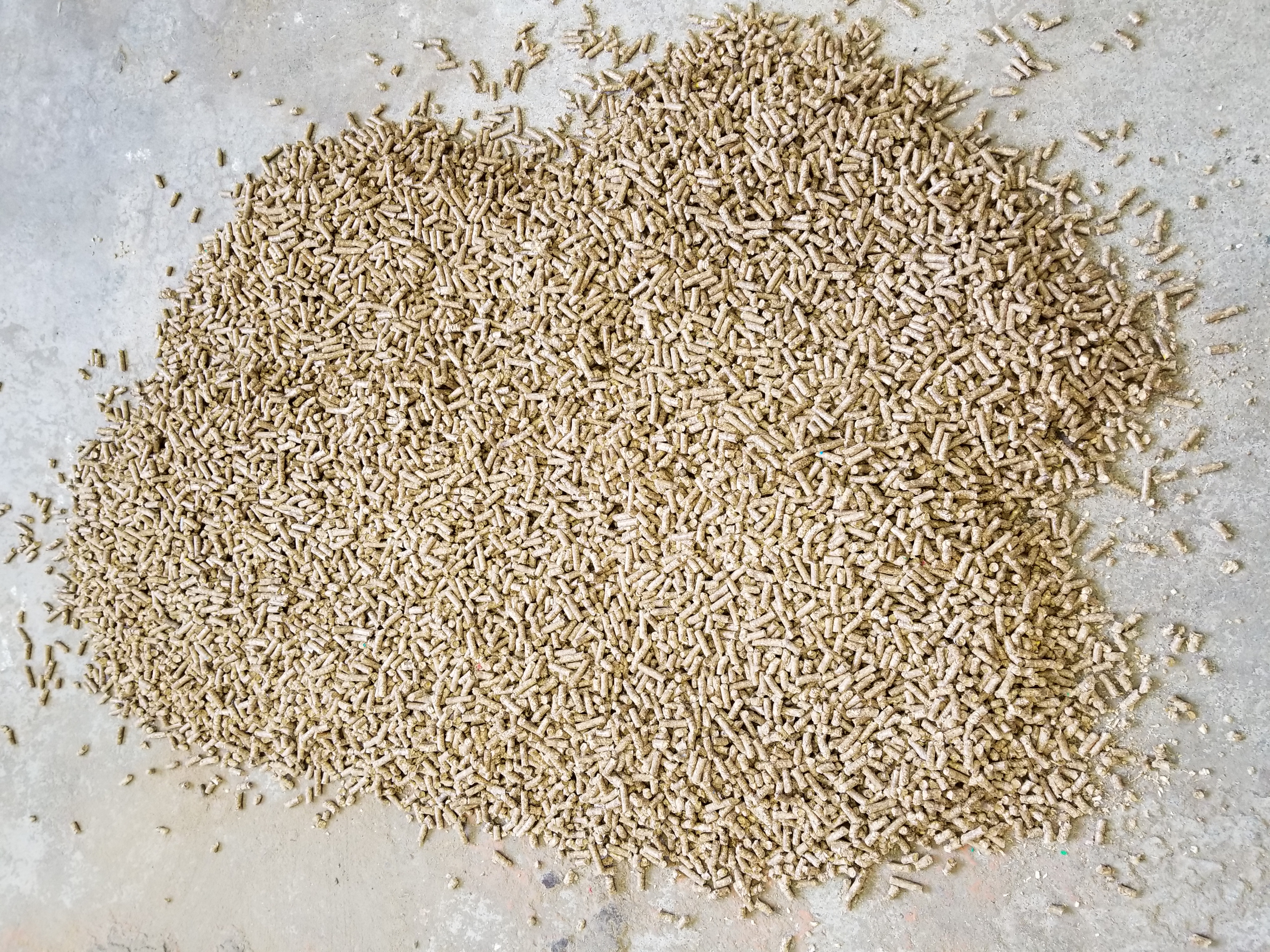

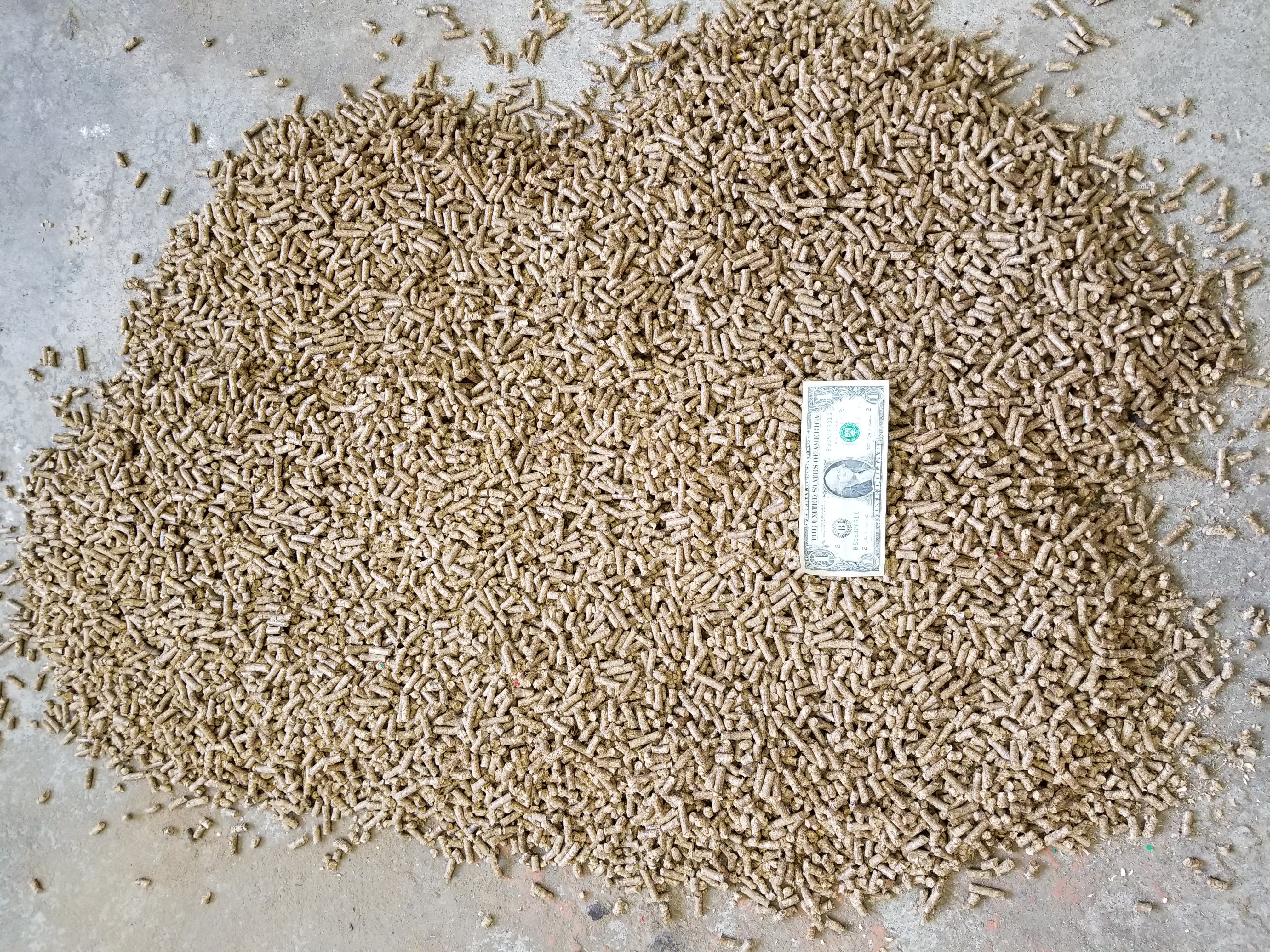

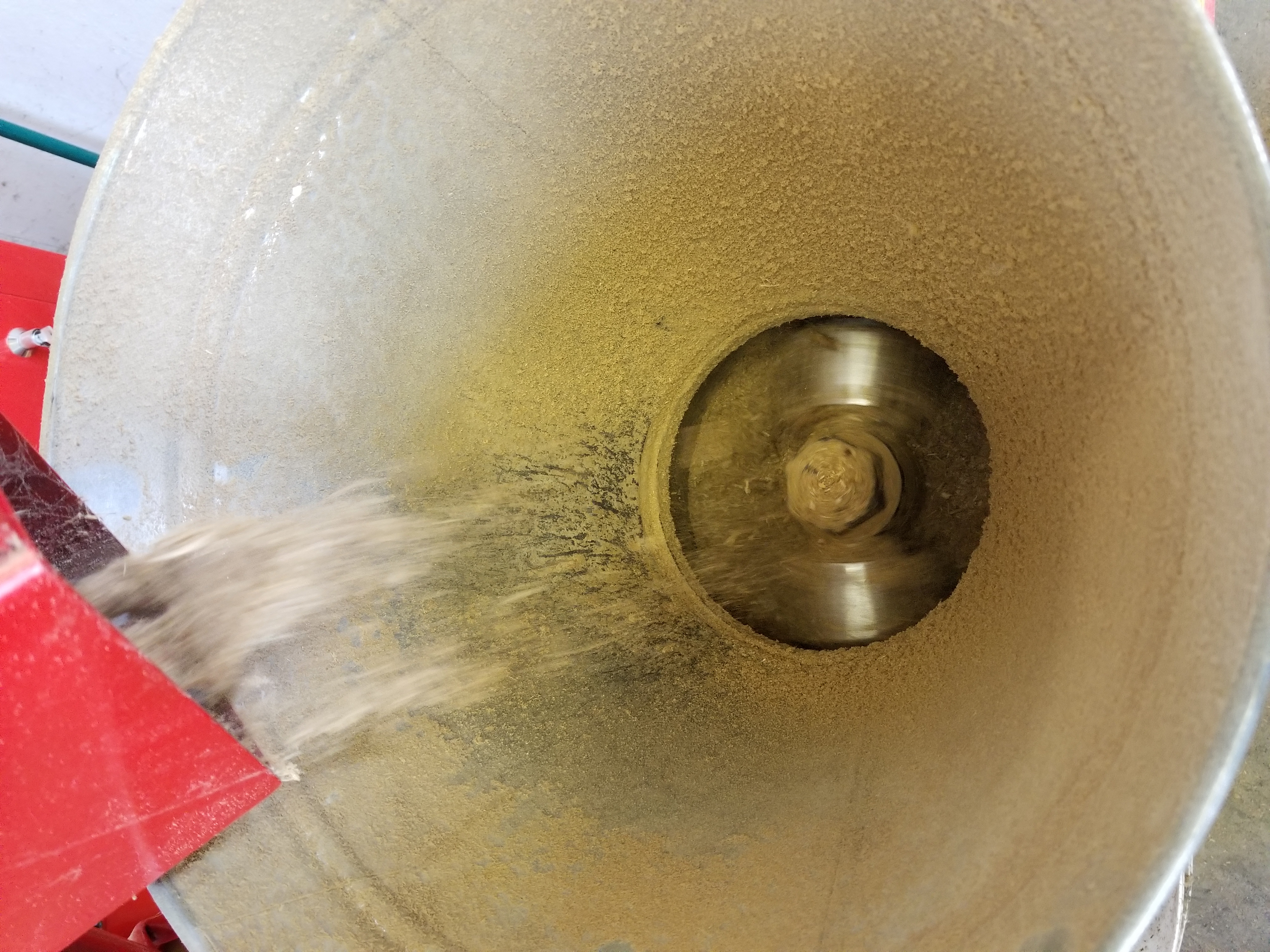

Example of Red Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. (redwoodPM)

Hammer Milled Red Wood	Red Wood - 6mm Die	Red Wood - 6mm Die	Red Wood - 6mm Die
Click here for a video of Red Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Red Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Red Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Red Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Red Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Red Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Red Wood running through a 9" 10hp 220v Three-Phase Pellet Mill.

---

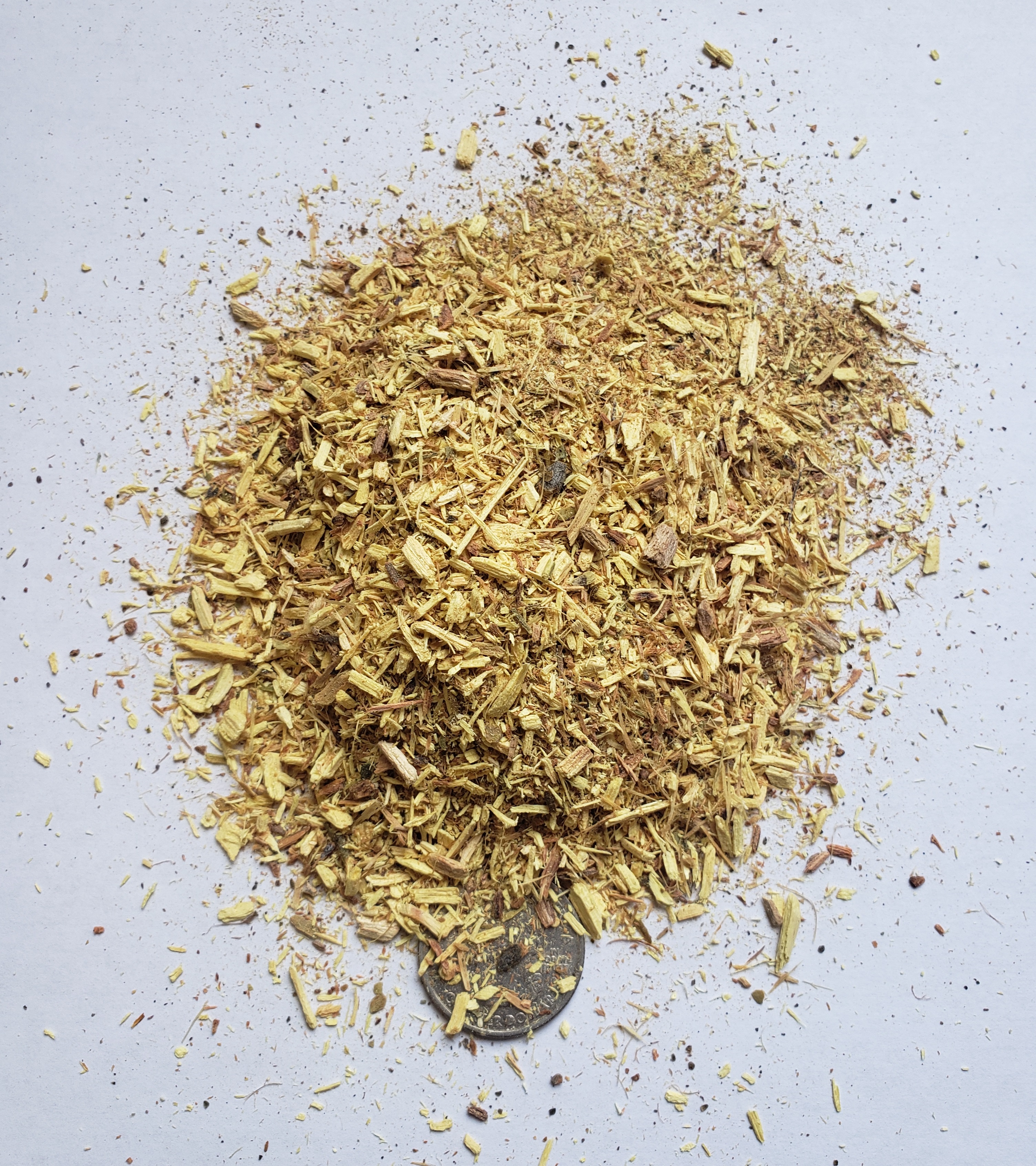

Example of Kiawe Wood from Hawaii running through a 9" 10hp 220v Three-Phase Pellet Mill. (HWoodPM)
Kiawe Wood is species of mesquite tree; bearing spines, spikes, and long pods filled with small brown seeds.

Hammer Milled Wood	Hammer Milled Wood	Wood - 6mm Die	Wood - 6mm Die
* We ran 60 pounds of this material in around 15 minutes for a production rate of just above 200 pounds an hour. * This material was on the dry side and could use some water or oil added to increase moisture content and increase production. Click here for a video of Kiawe Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiawe Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiawe Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiawe Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiawe Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiawe Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiawe Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiawe Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. We first ran this material through our Model 198 5.3hp 220v Single Phase Hammer Mill.

---

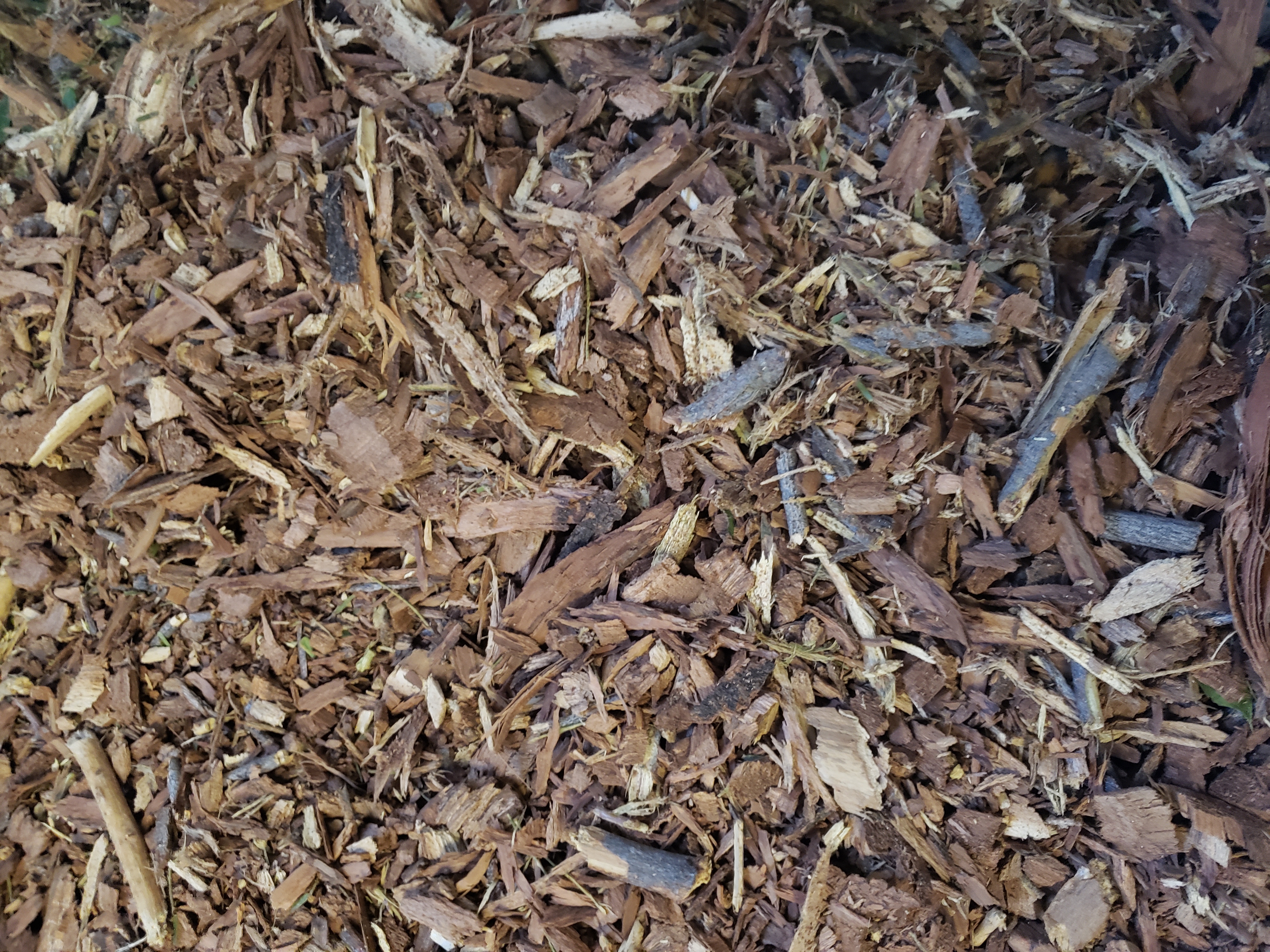

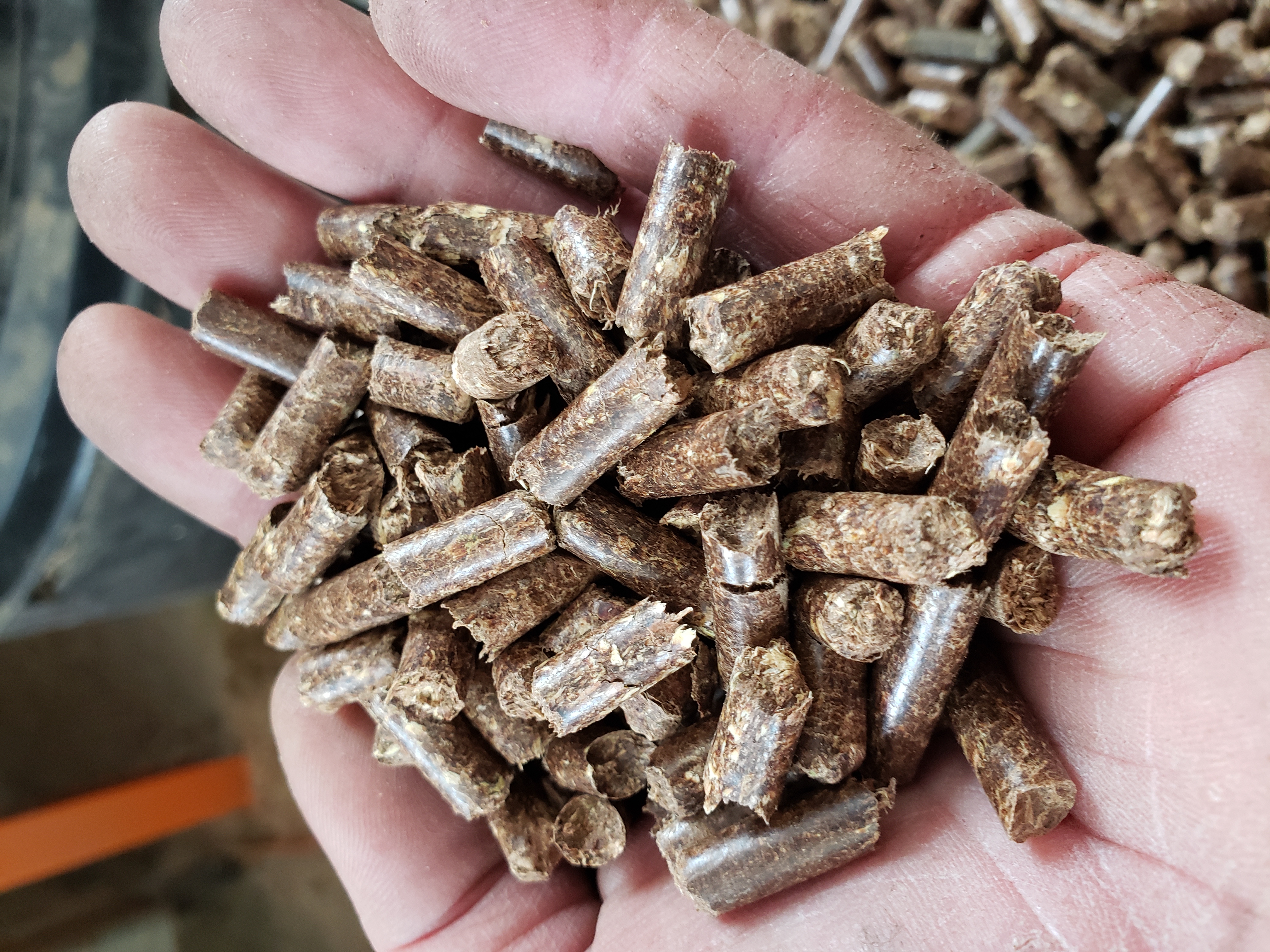

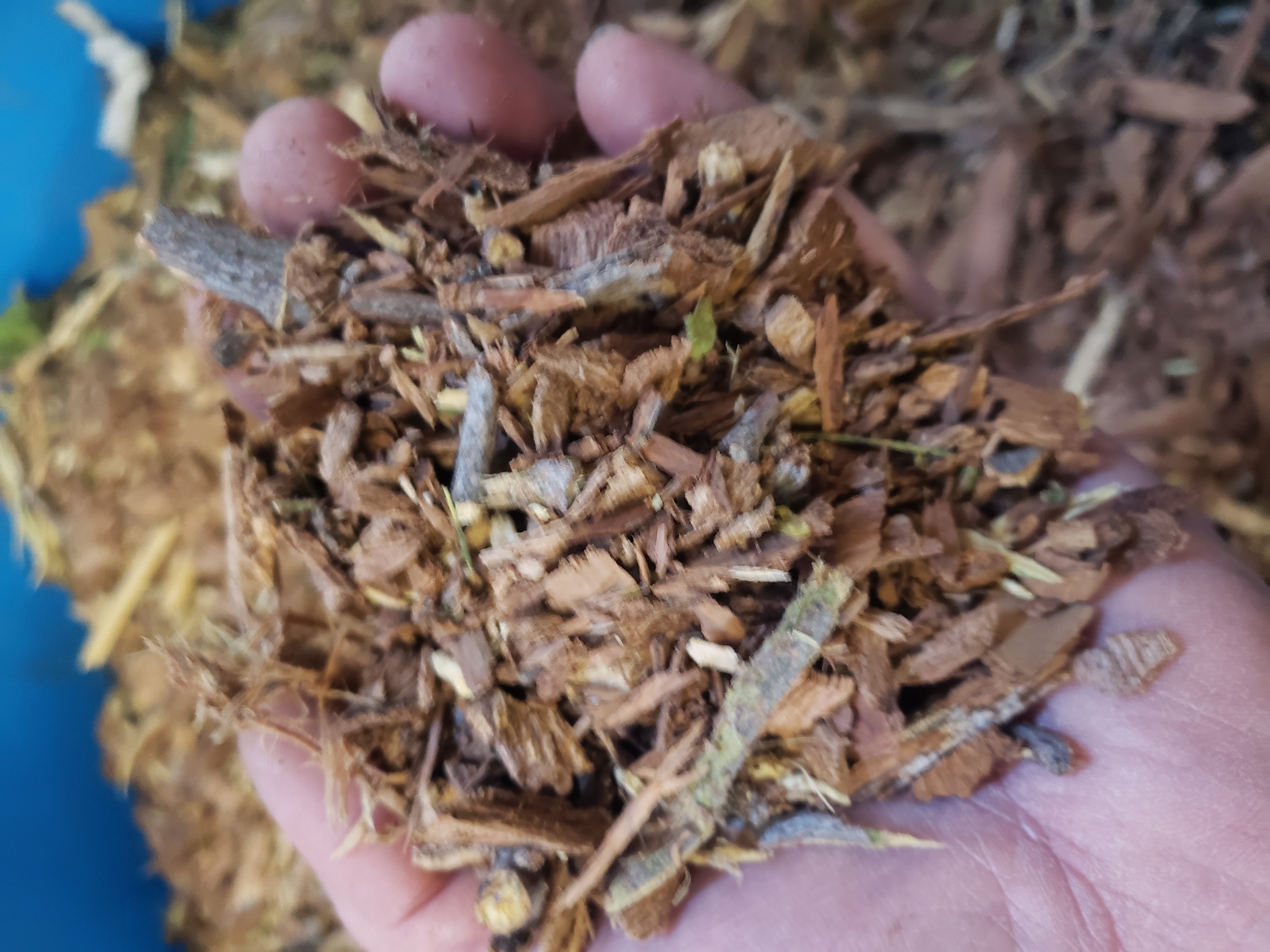

Example of Wood (sticks and pieces) running through a 9" 10hp 220v Three-Phase Pellet Mill. (WWoodPM)

Before Hammer Mill	Before Hammer Mill	After Hammer Mill	Pellets - 6mm Die
* We ran 50 pounds of this material in around 15 minutes for a production rate of just above 200 pounds an hour. * This material was on the dry side and we were adding some water to increase moisture content and increase production. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Wood running through a 9" 10hp 220v Three-Phase Pellet Mill. We first ran this material through our Model 198 5.3hp 220v Single Phase Hammer Mill.

---

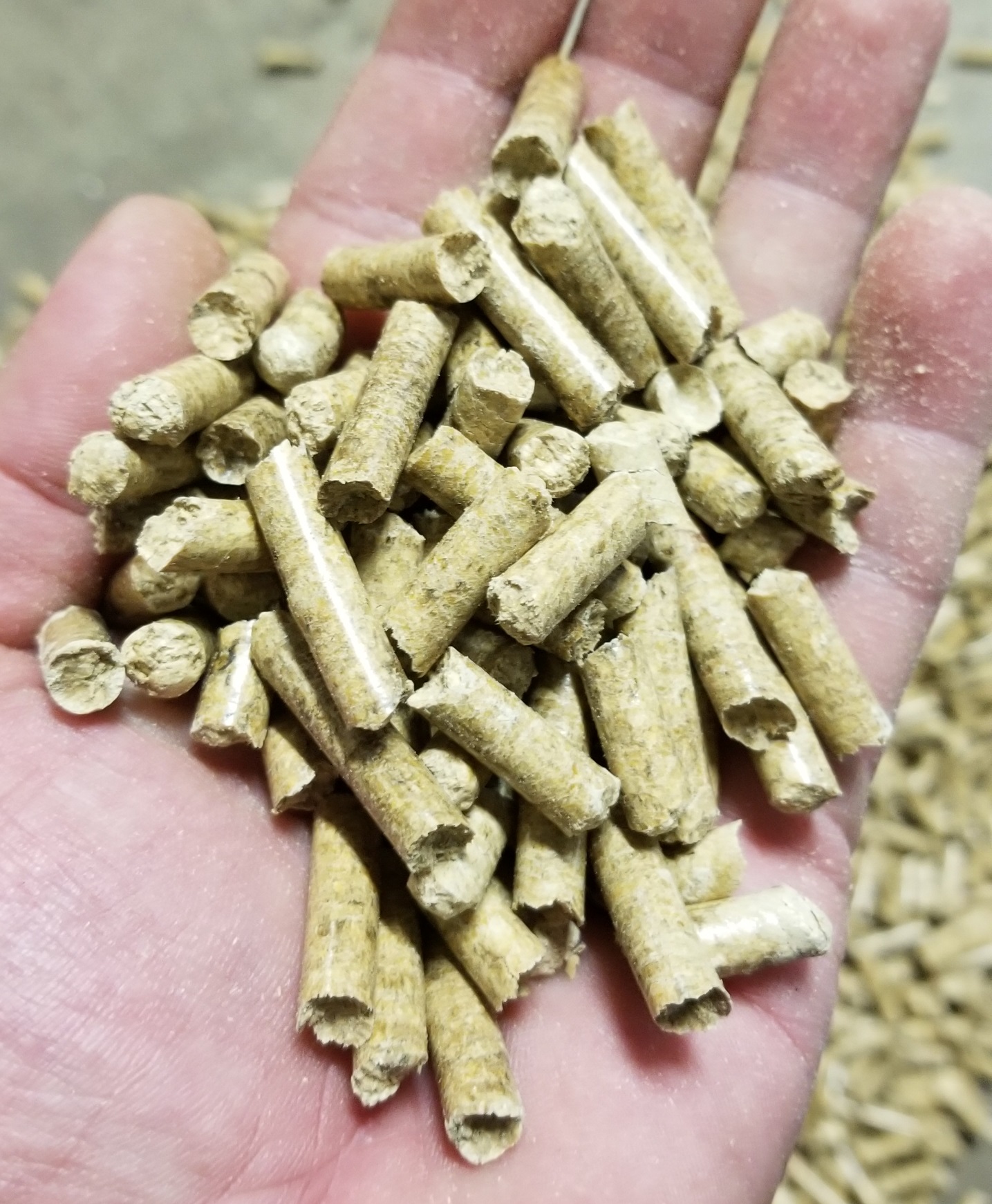

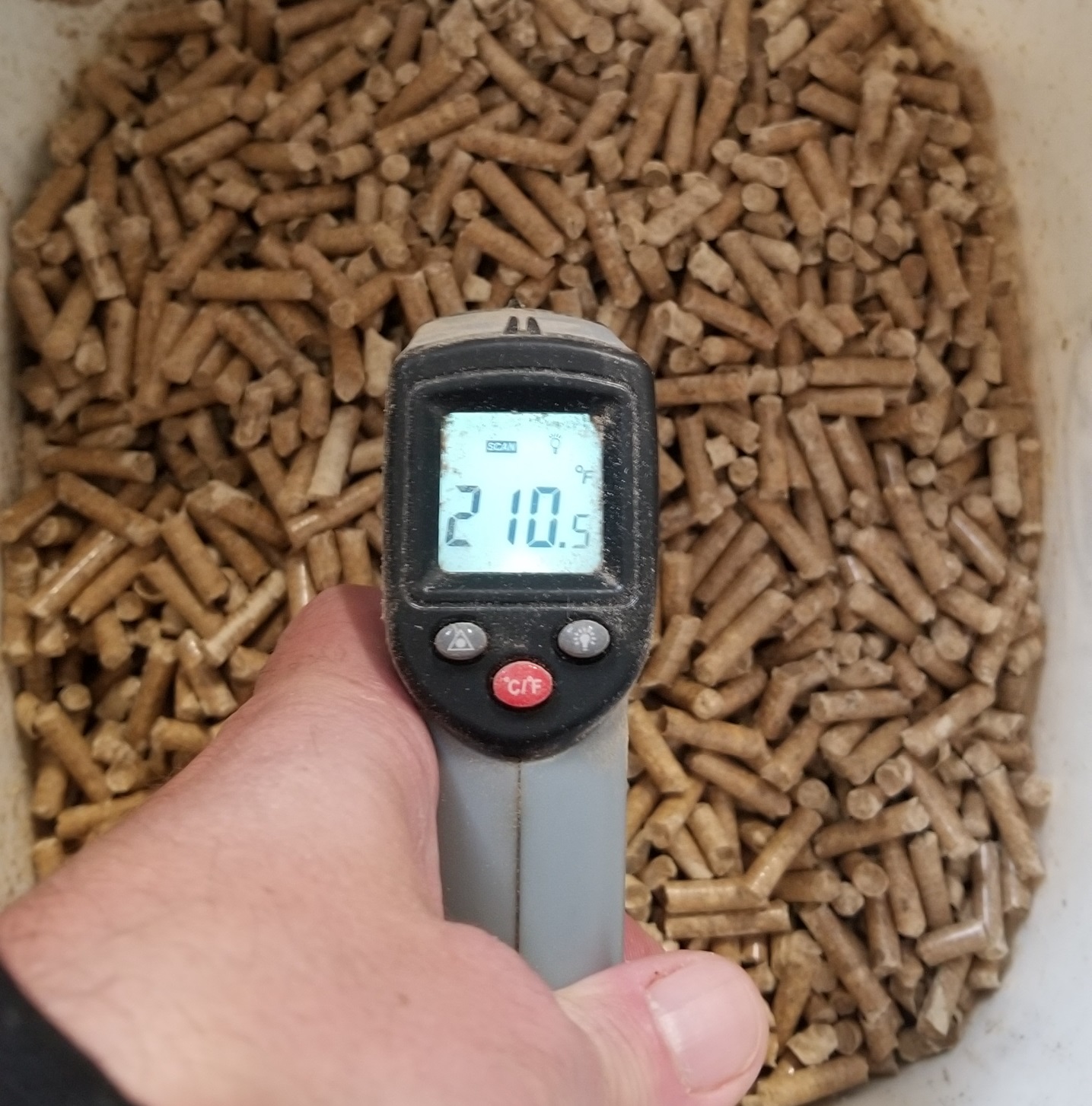

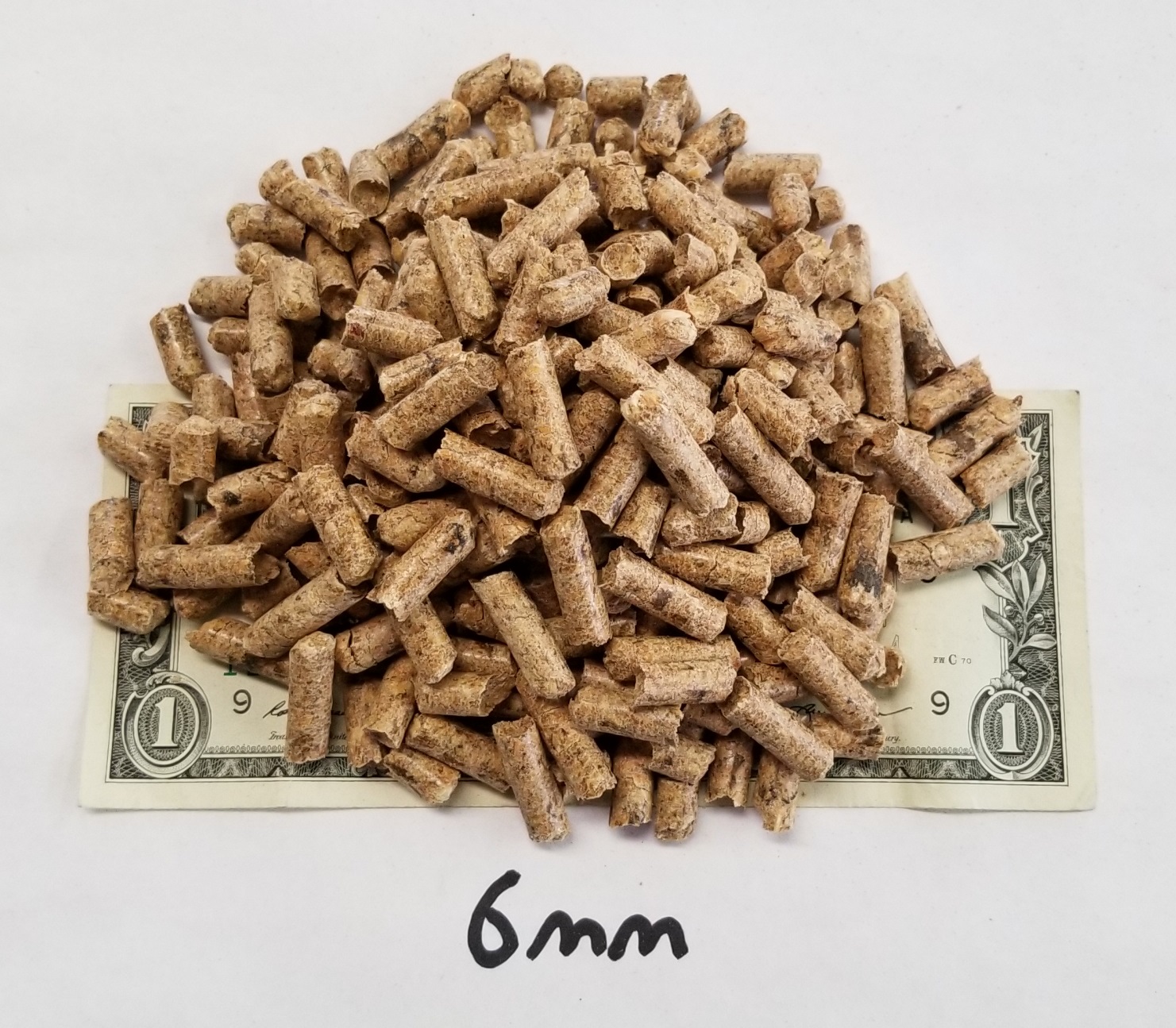

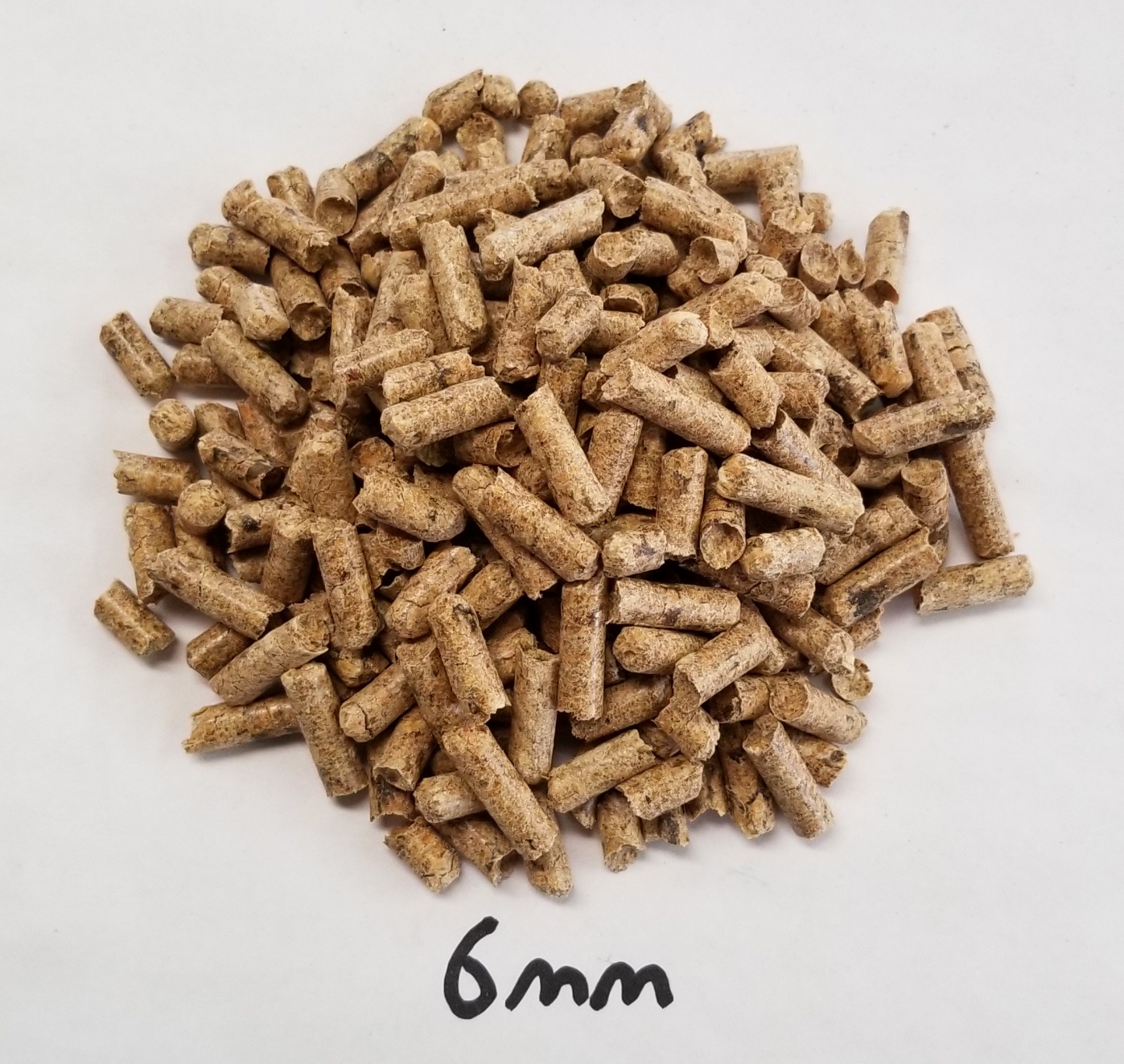

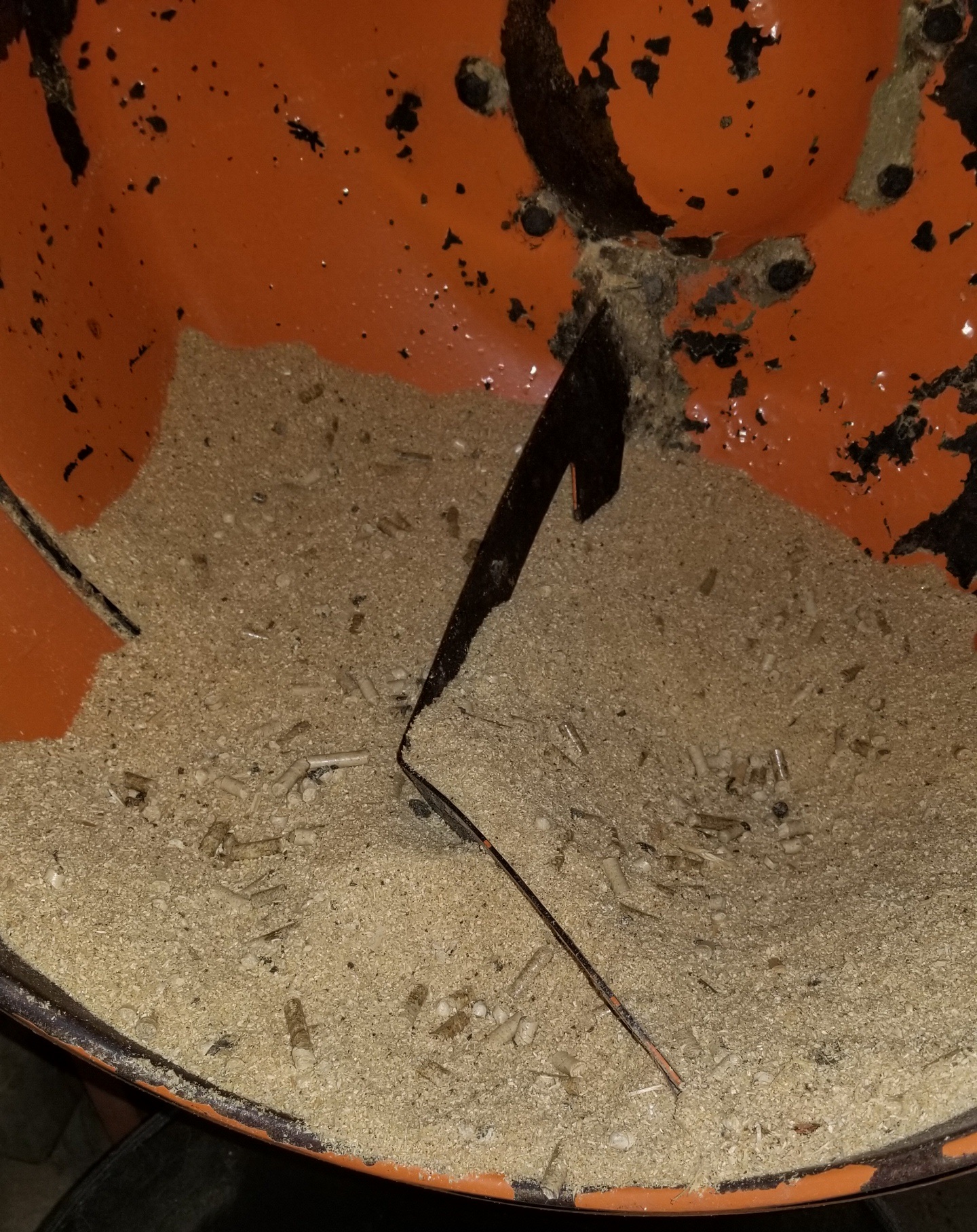

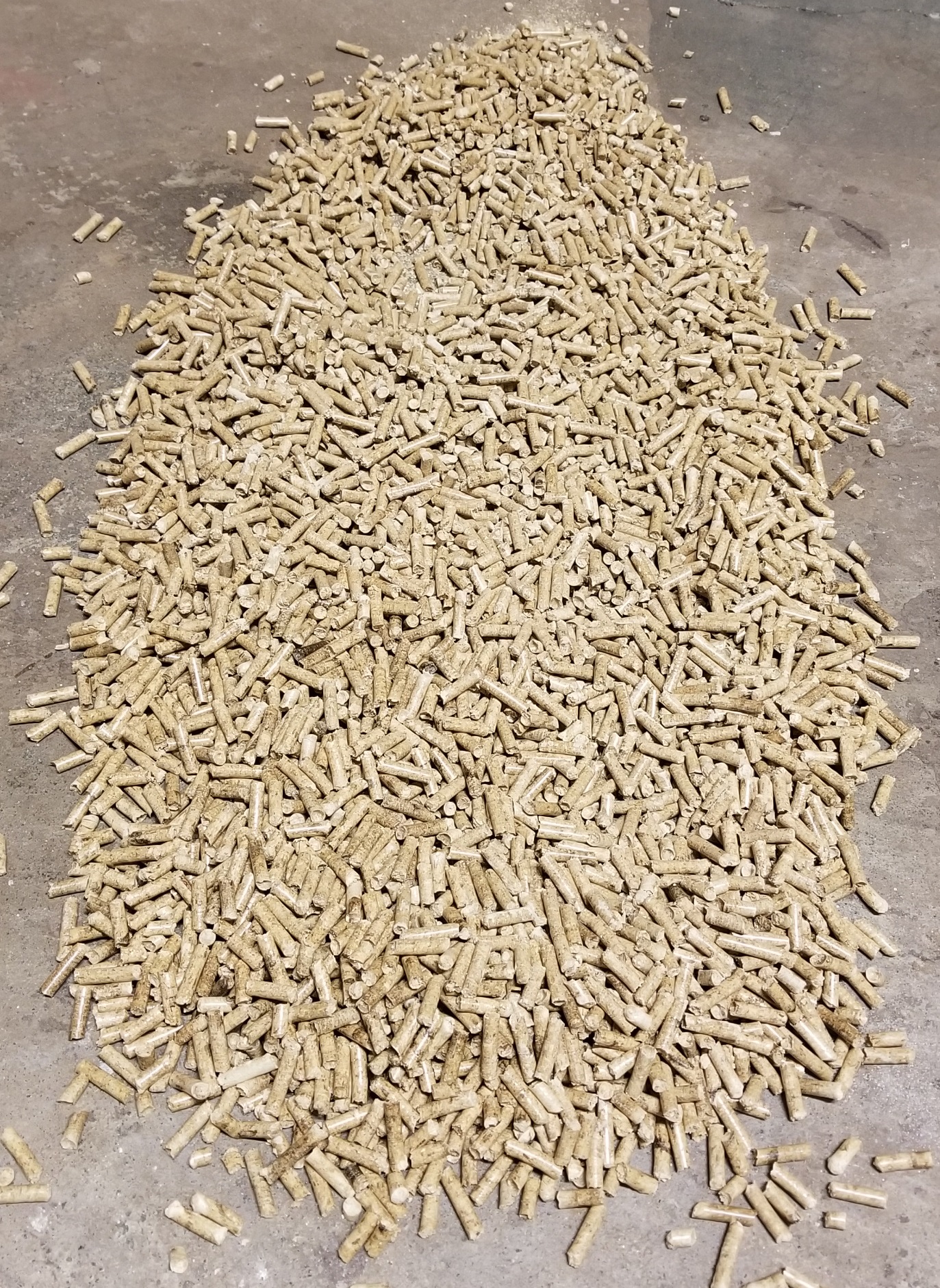

Example of Kiln Dried Pine running through a 9" 10hp 220v Three-Phase Pellet Mill. (kilnpinePM).
WE WOULD NOT RECOMMEND TRYING TO PELLETIZE KILN DRIED WOOD.

Hammer Milled Pine	Pine - 6mm Die	Pine - 6mm Die	Pine - 6mm Die
Click here for a video of Kiln Dried Pine running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiln Dried Pine running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiln Dried Pine running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiln Dried Pine running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiln Dried Pine running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiln Dried Pine running through a 9" 10hp 220v Three-Phase Pellet Mill. We first ran this material through our Model 158 3hp 220v Single Phase Hammer Mill.

---

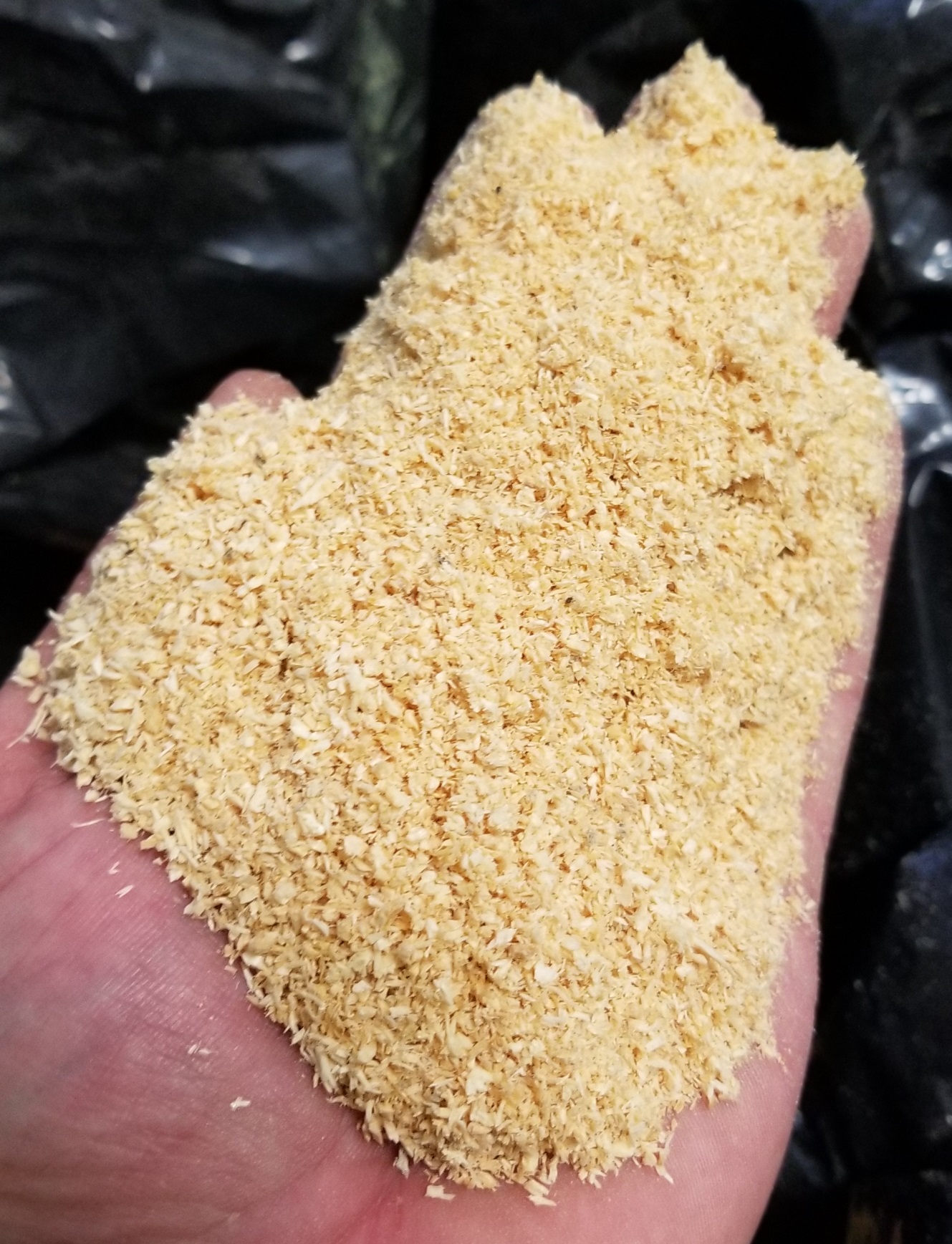

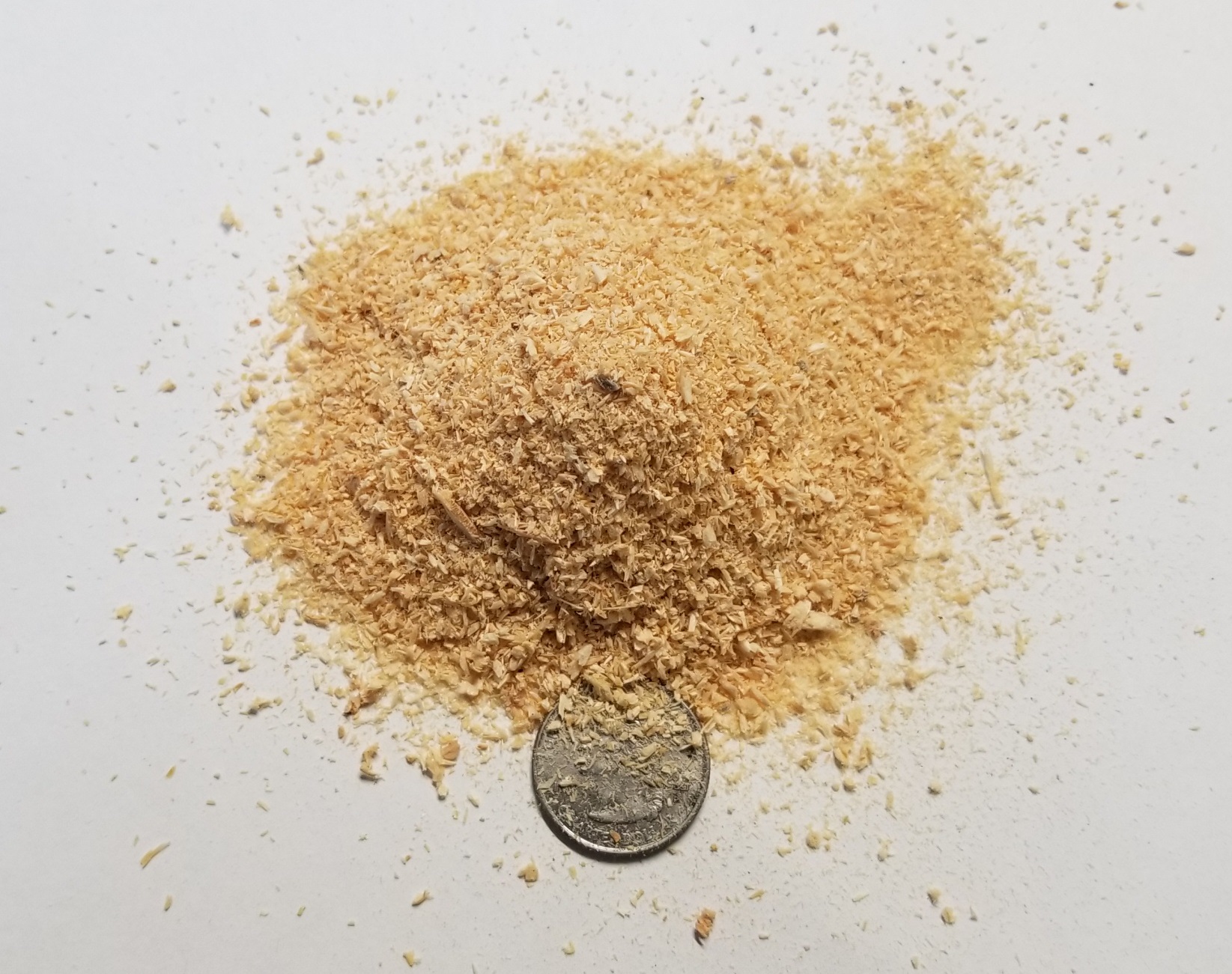

Example of Kiln Dried Furniture Sawdust running through a 9" 10hp 220v Three-Phase Pellet Mill. (kilnsawdustPM)
WE WOULD NOT RECOMMEND TRYING TO PELLETIZE KILN DRIED WOOD.

Kiln Dried Sawdust Kiln Dried Sawdust	Kiln Dried Sawdust Kiln Dried Sawdust	Kiln Dried Sawdust Kiln Dried Sawdust	Kiln Dried Sawdust Kiln Dried Sawdust
Binders Lignin and Distiller Grain were added to separate samples to make pellets. Click here for a video of Kiln Dried Furniture Sawdust running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiln Dried Furniture Sawdust running through a 9" 10hp 220v Three-Phase Pellet Mill. Click here for a video of Kiln Dried Furniture Sawdust running through a 9" 10hp 220v Three-Phase Pellet Mill.

---

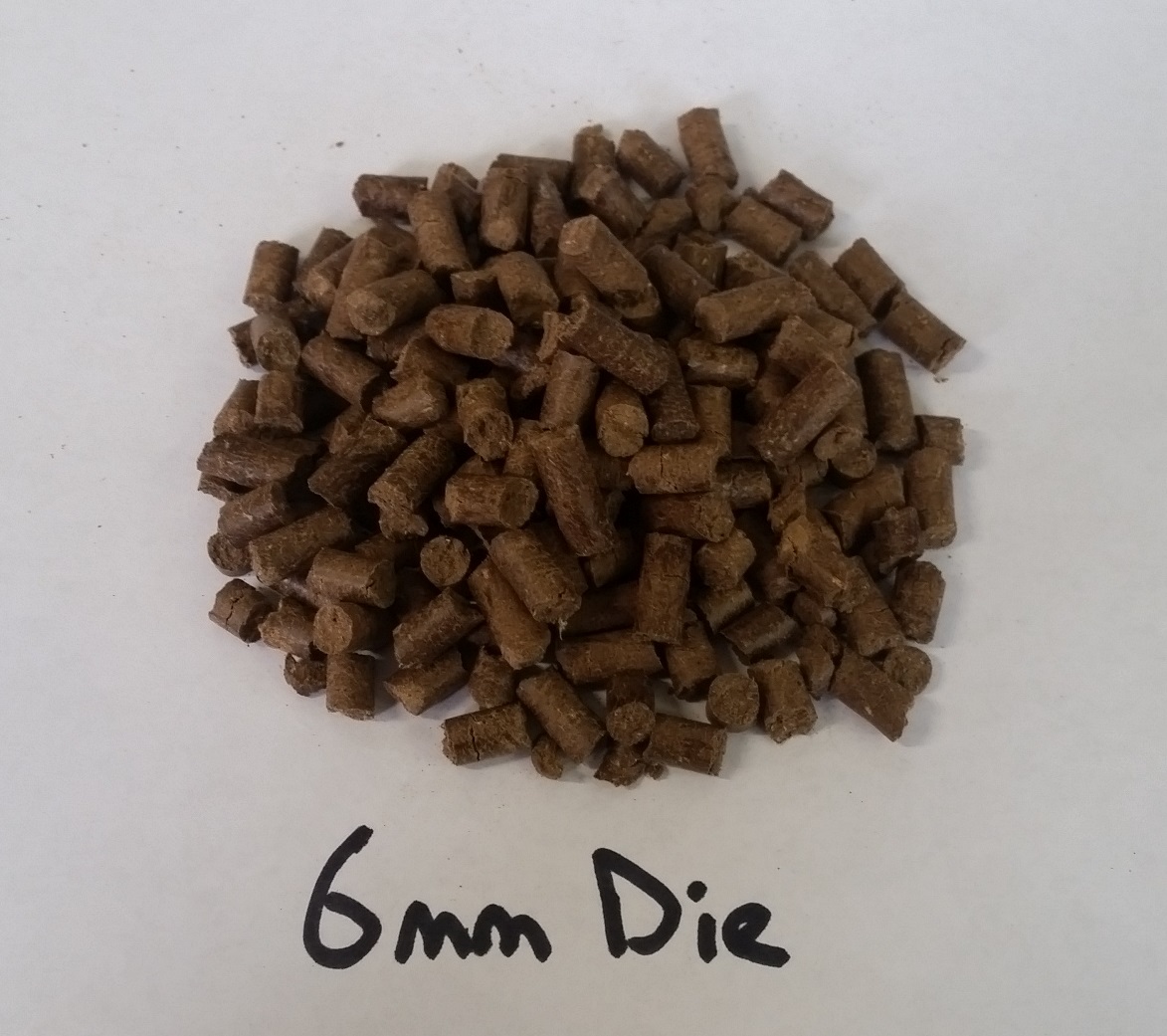

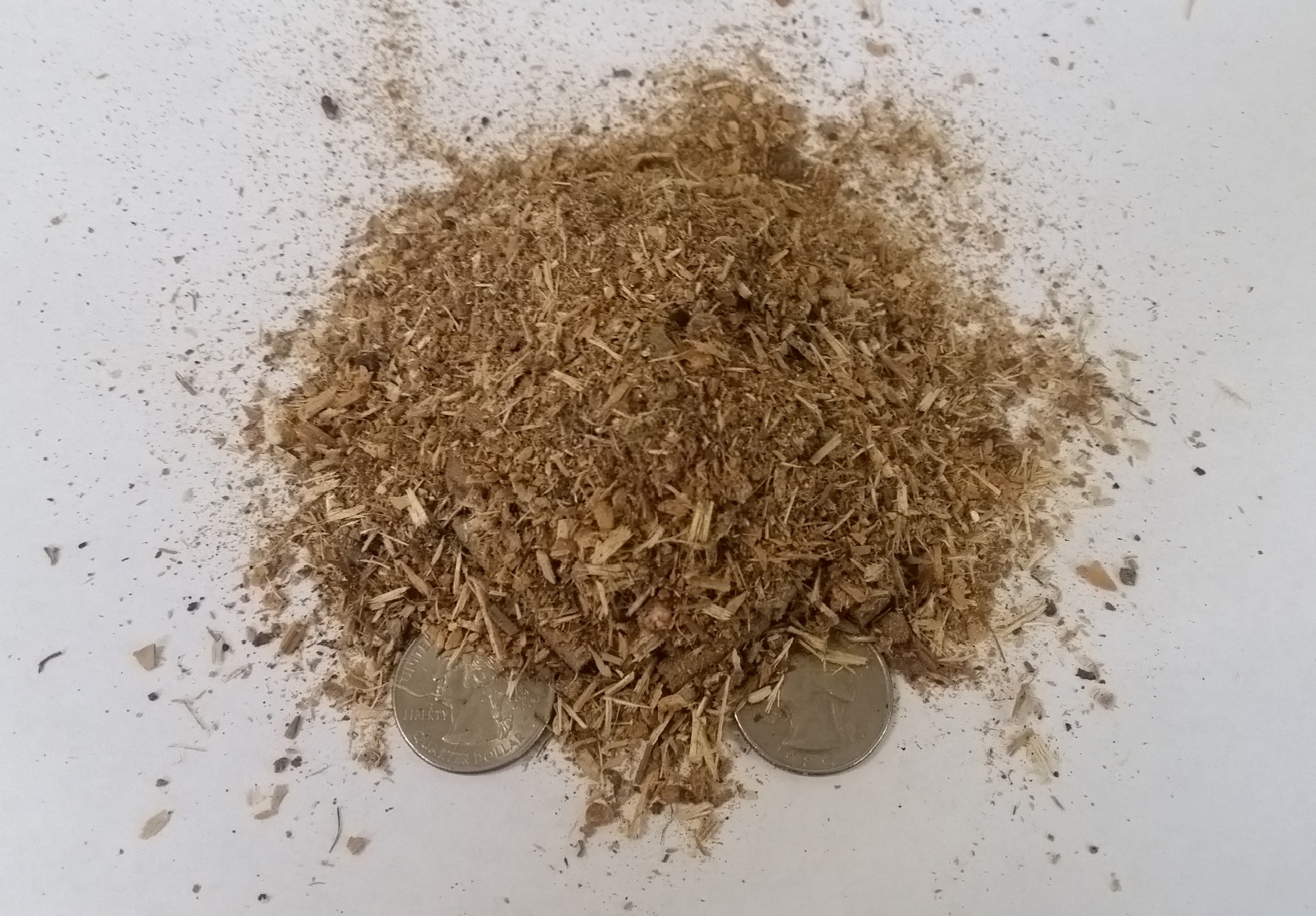

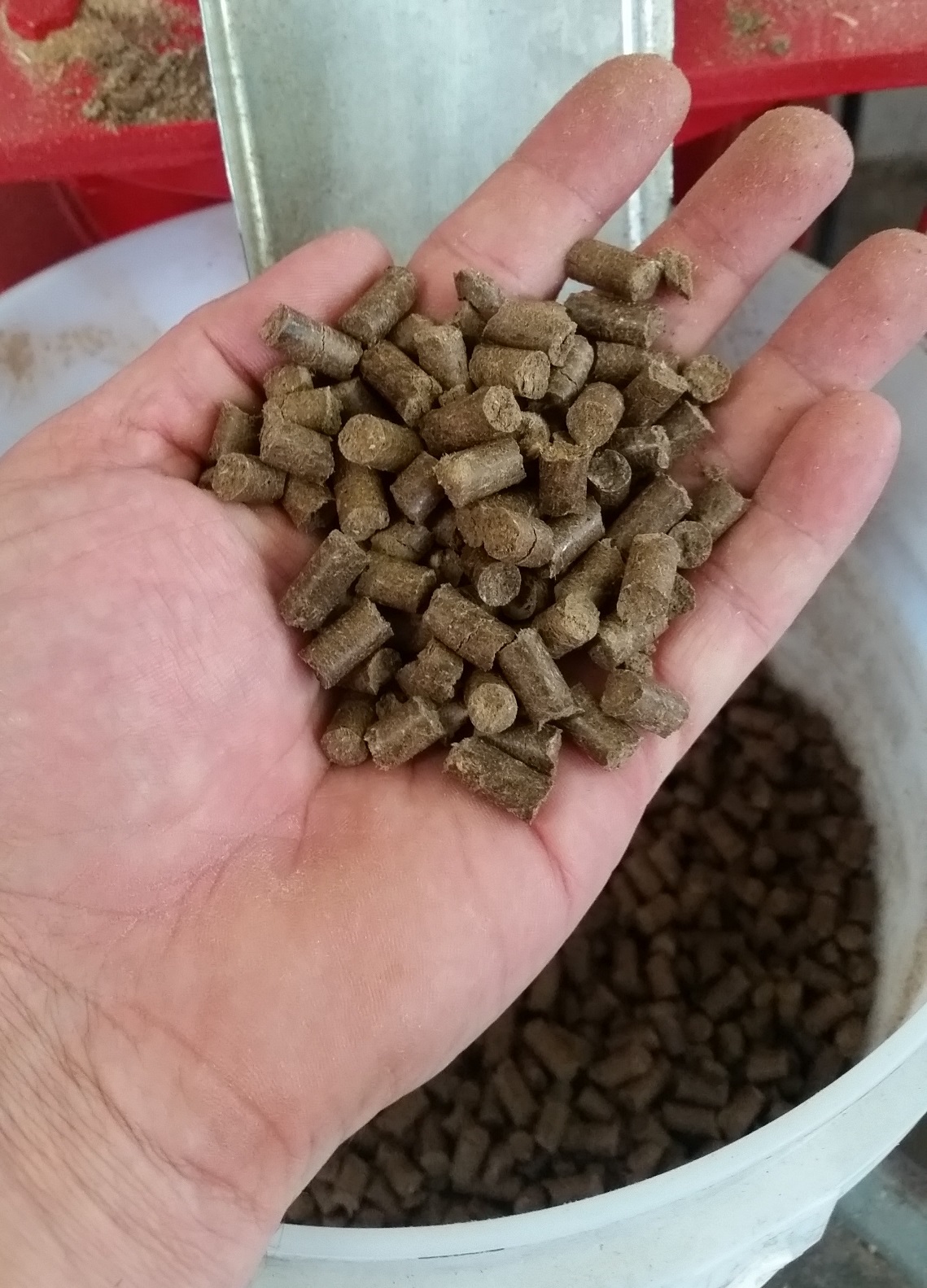

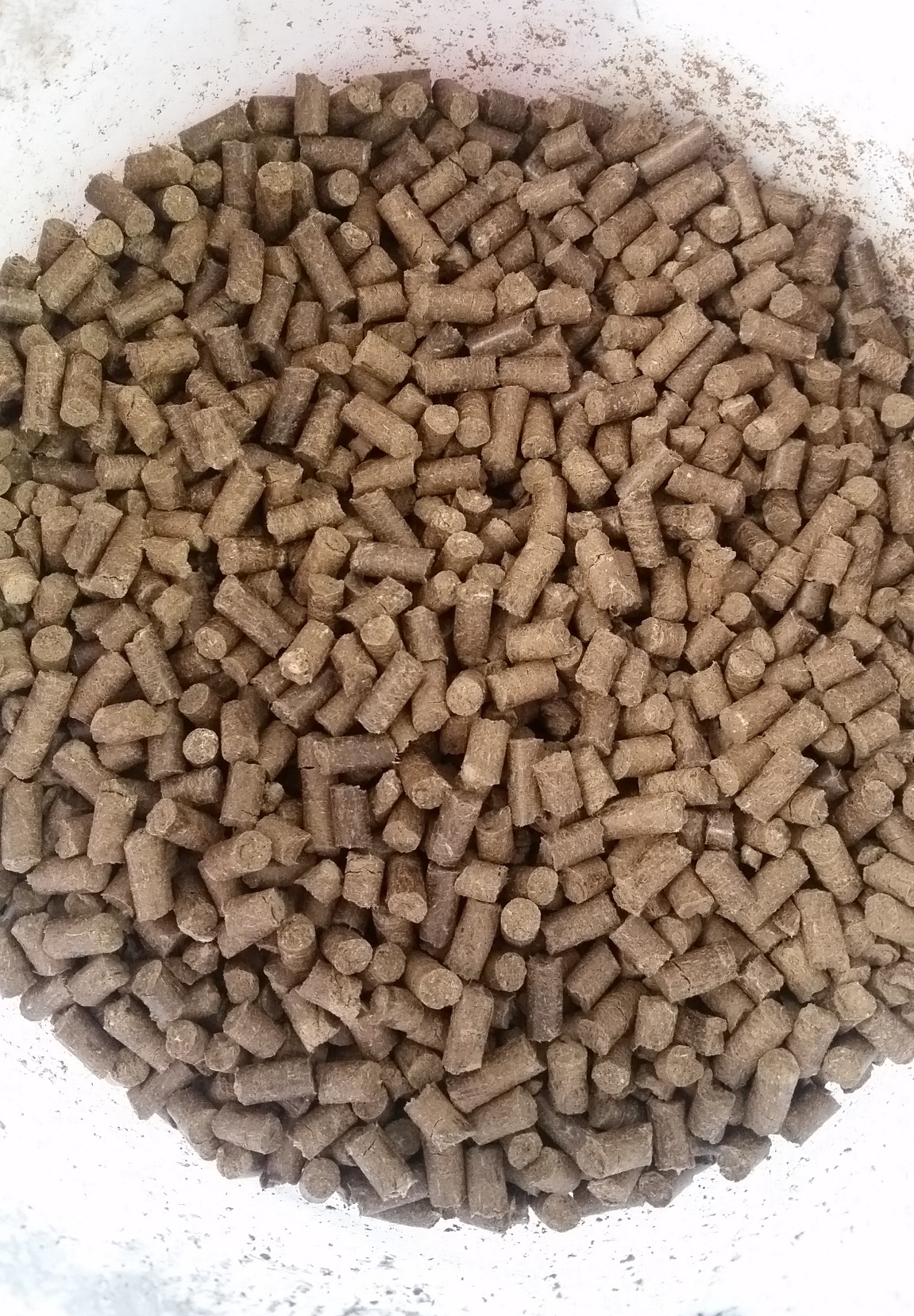

Example of Hammer Milled brush run through a 6" Vertical Pellet Mill with a 6mm die. (brushvertical)

Brush - Before	Brush Pellets	Brush Pellets	Brush Pellets
Click here for a video of brush run through a 6" vertical Pellet Mill. Click here for another video of brush run through a 6" vertical Pellet Mill.

---

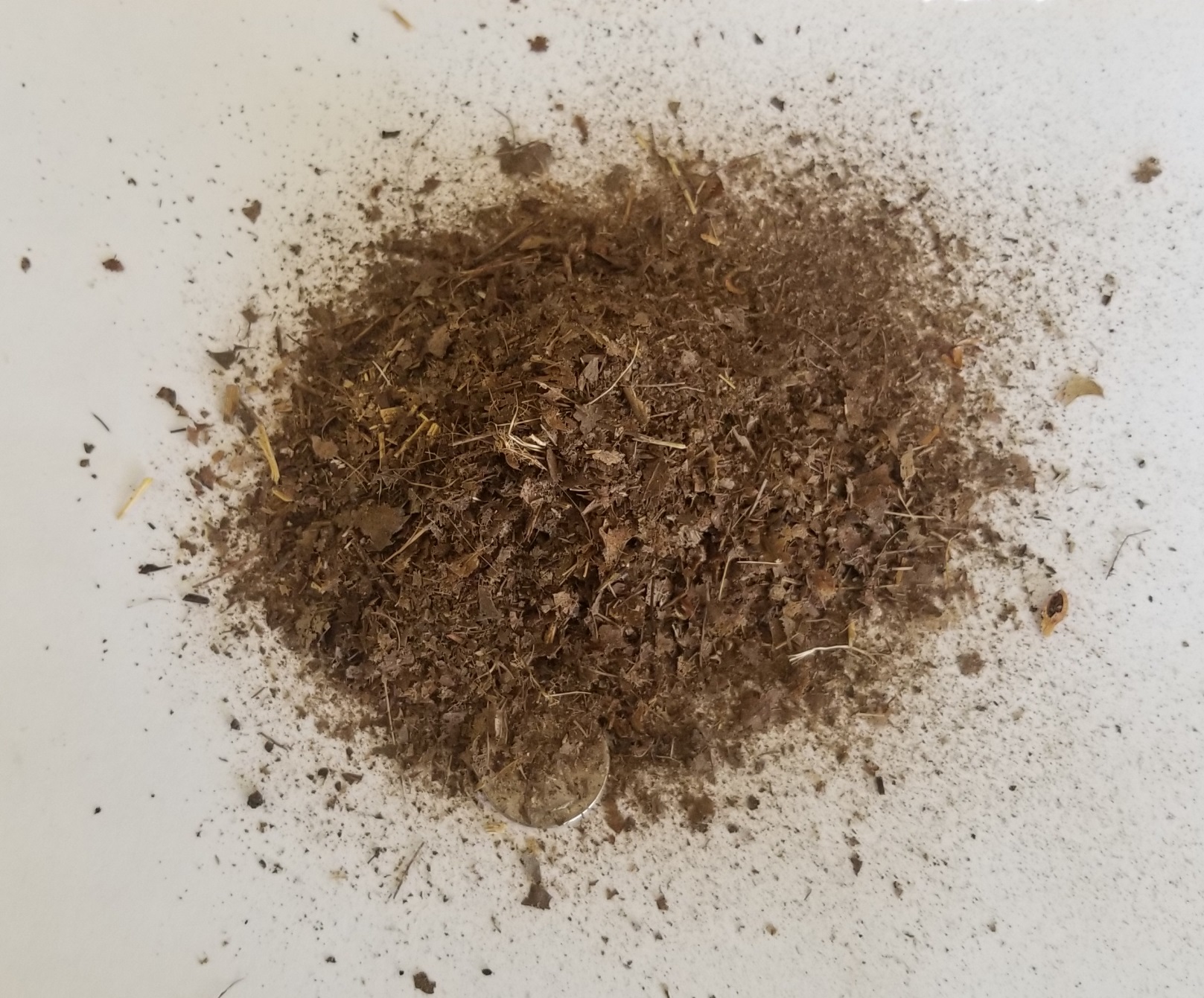

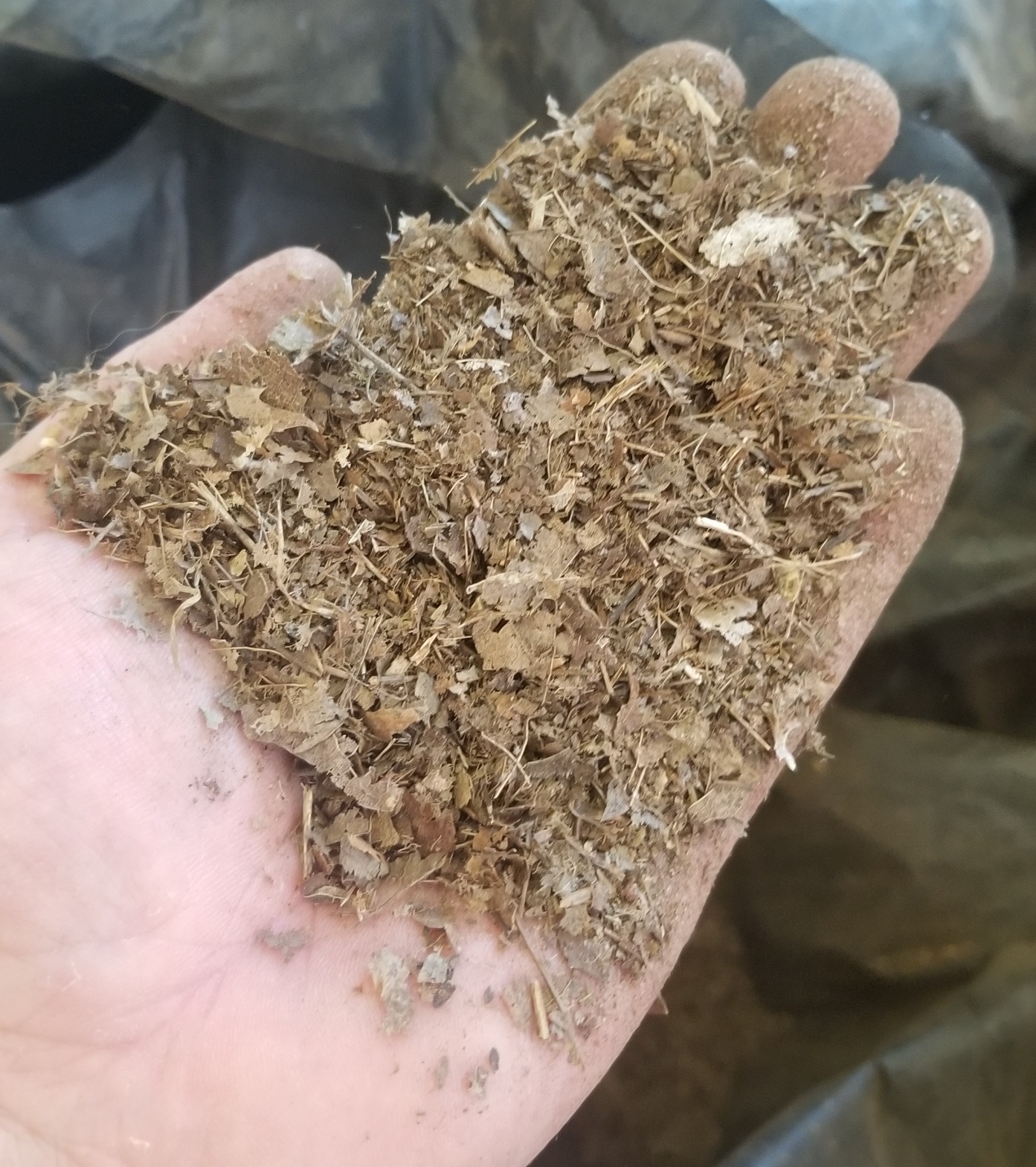

Example of Hammer Milled leaves run through a 6" Pellet Mill with a 6mm die. (leavesPM)

Leaves Before	Leaves Before	Leaves - 6mm Die	Leaves - 6mm Die
Click here for a video of leaves run through a 6" Pellet Mill. Click here for another video of leaves run through a 6" Pellet Mill. We first ran this material through our Model 420 15hp 220v Three Phase Hammer Mill.

---

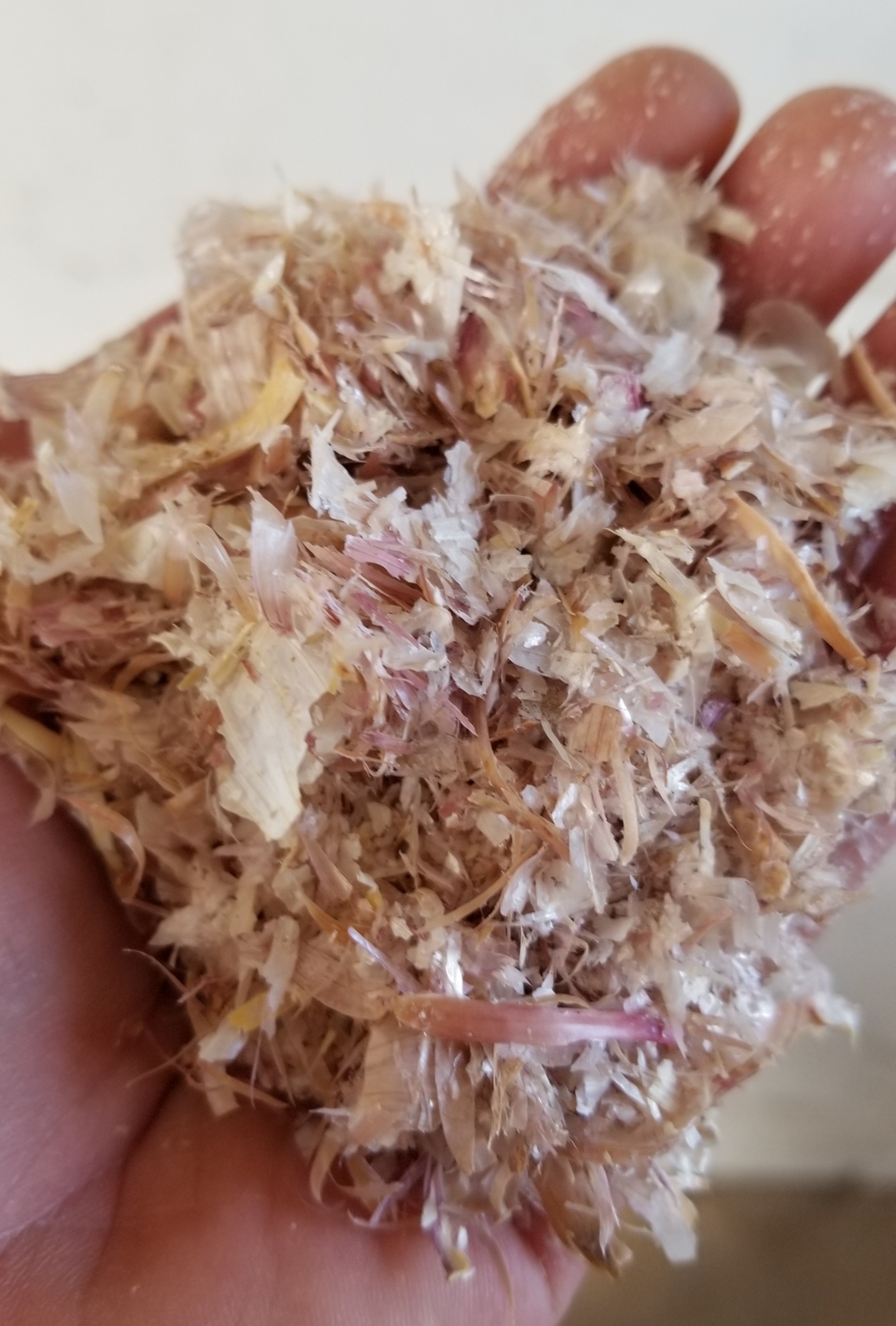

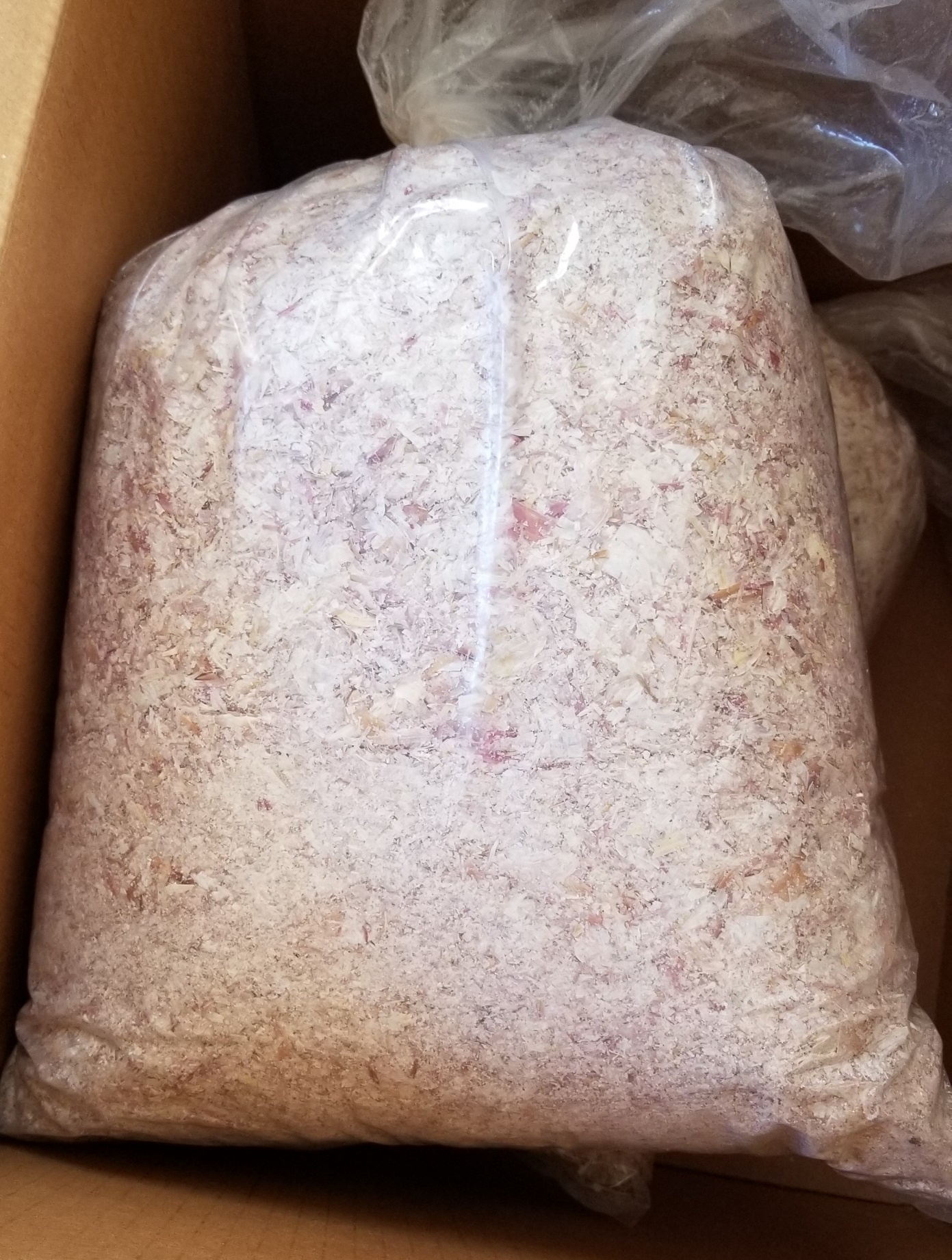

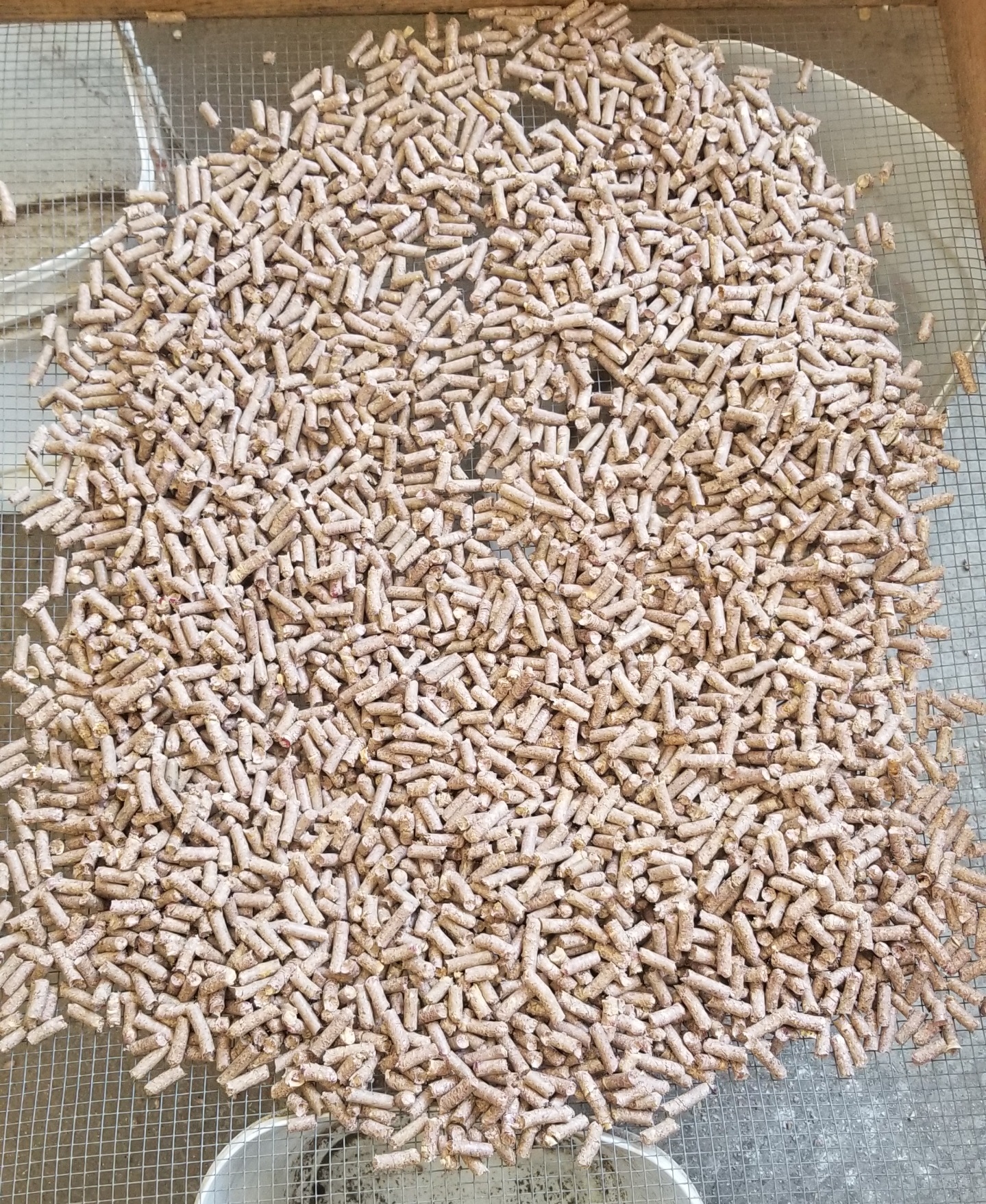

Example of dried garlic skins run through a 9" Wood Pellet Mill with a 6mm die. (garlicPM)

Garlic Skins - Before	Garlic Skins - Before	Garlic Skins Pellets	Garlic Skins Pellets
Pellet Photos are from the 9" Wood Pellet Mill. No binder was added. Click here for a video of Garlic Skins run through a 9" Wood Pellet Mill. Click here for a video of Garlic Skins run through a 9" Wood Pellet Mill. Click here for a video of Garlic Skins run through a 9" Wood Pellet Mill. Click here for a video of Garlic Skins run through a 9" Wood Pellet Mill. Click here for a video of Garlic Skins run through a 6" Vertical Pellet Mill. Click here for a video of Garlic Skins run through a 6" Vertical Pellet Mill. Click here for a video of Garlic Skins run through a 6" Vertical Pellet Mill. Click here for a video of Garlic Skins run through a 6" Feed Pellet Mill. Click here for a video of Garlic Skins run through a 6" Feed Pellet Mill. Click here for a video of Garlic Skins run through a 6" Fee Pellet Mill.

---

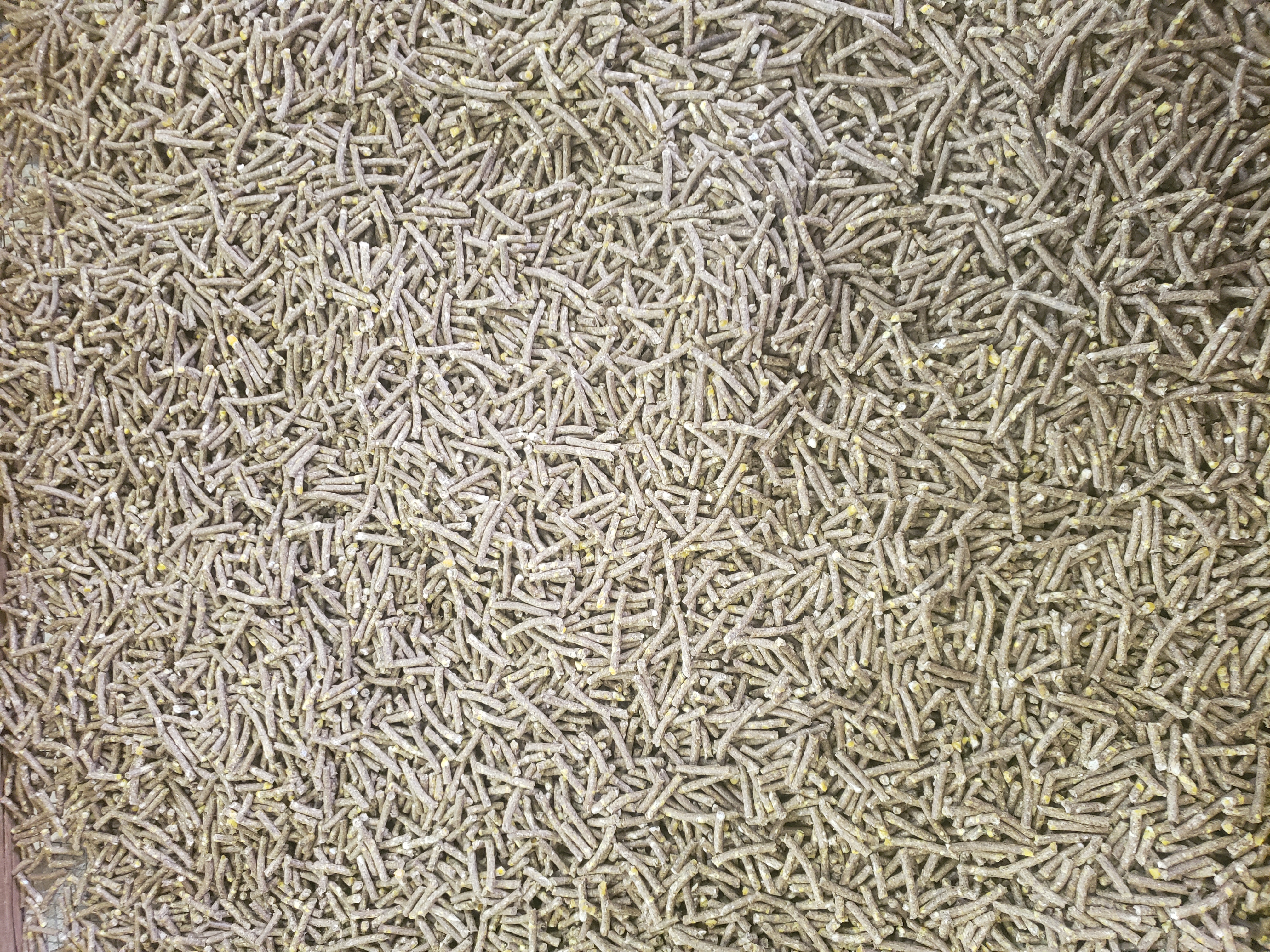

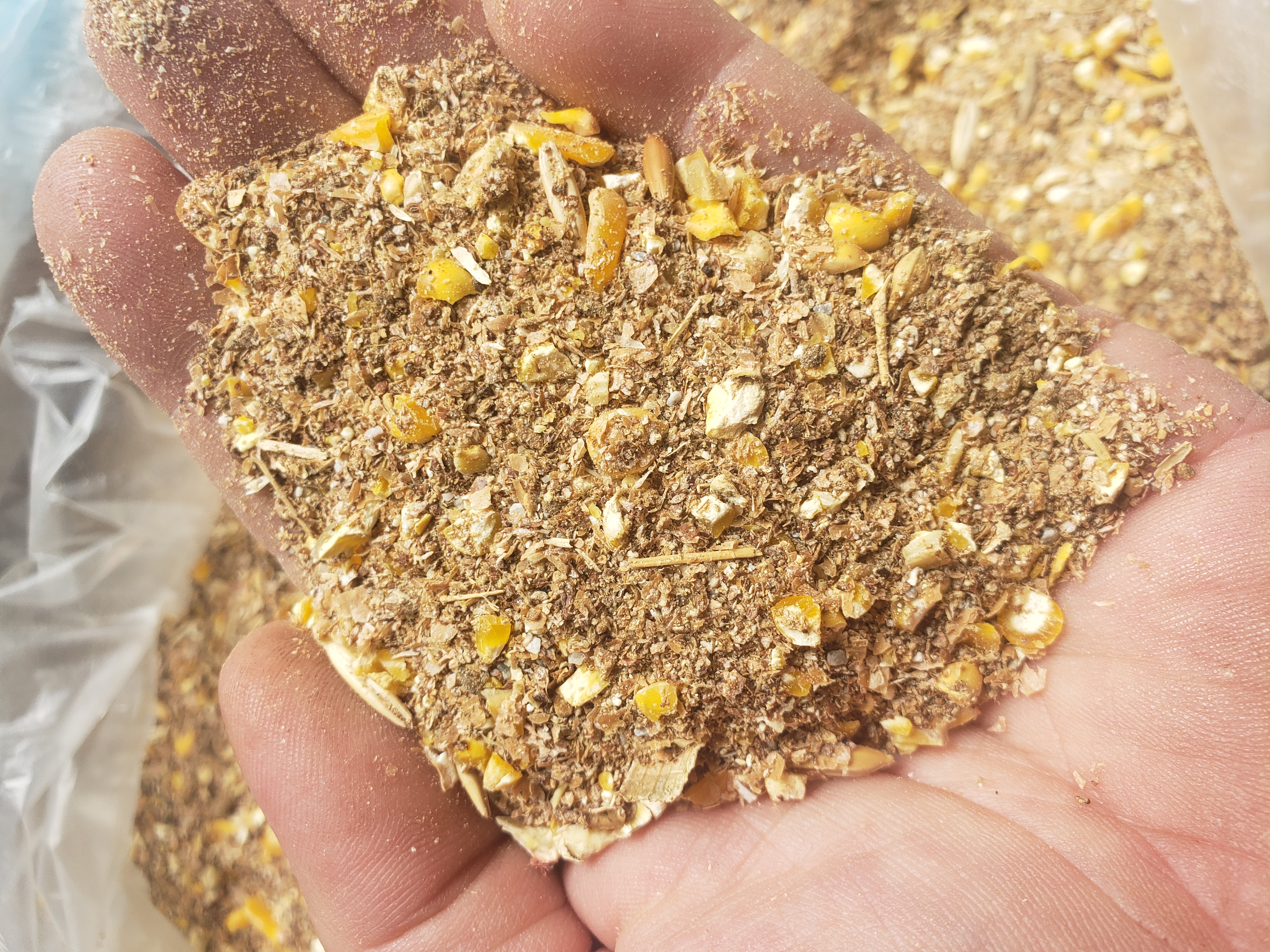

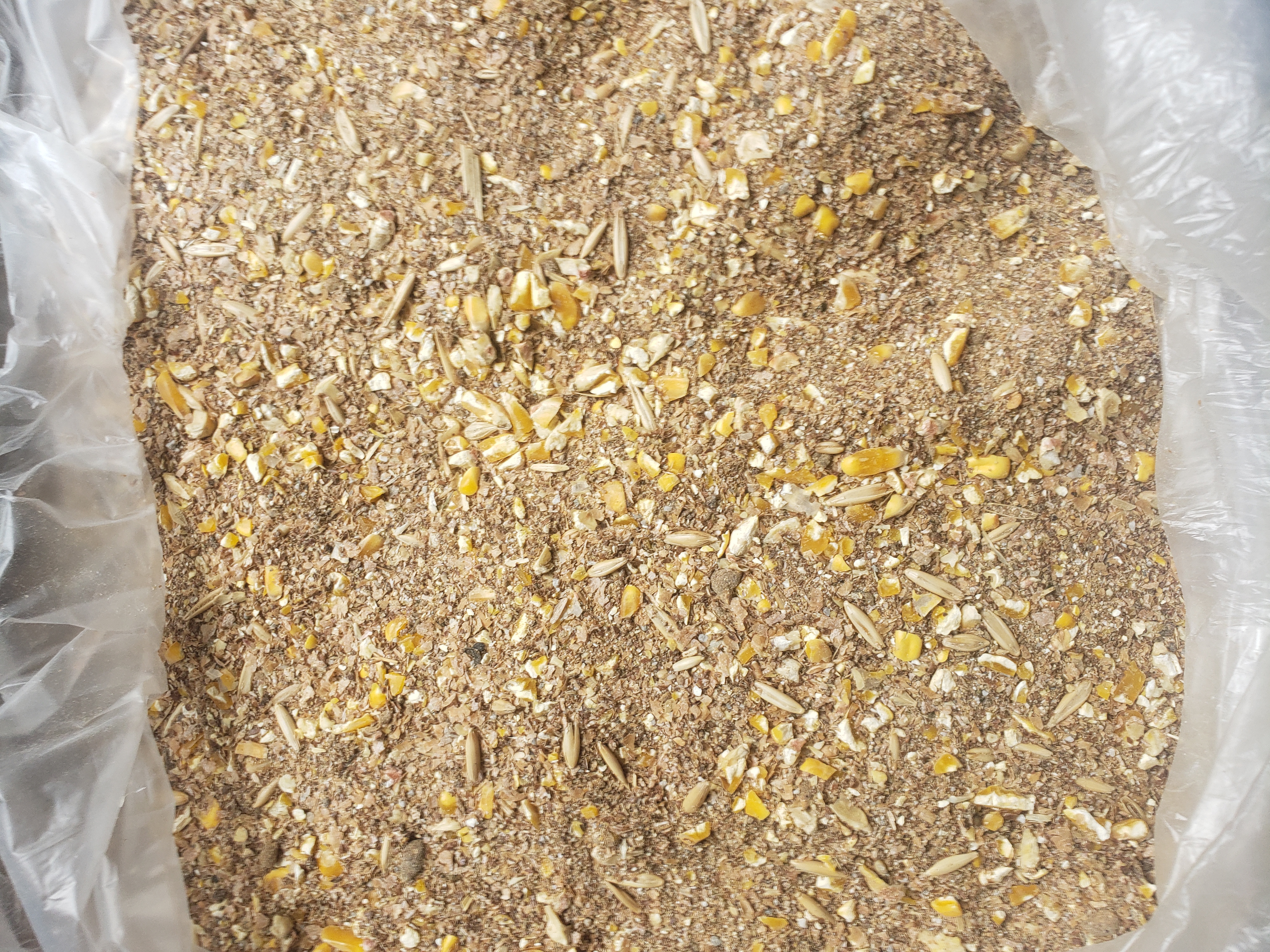

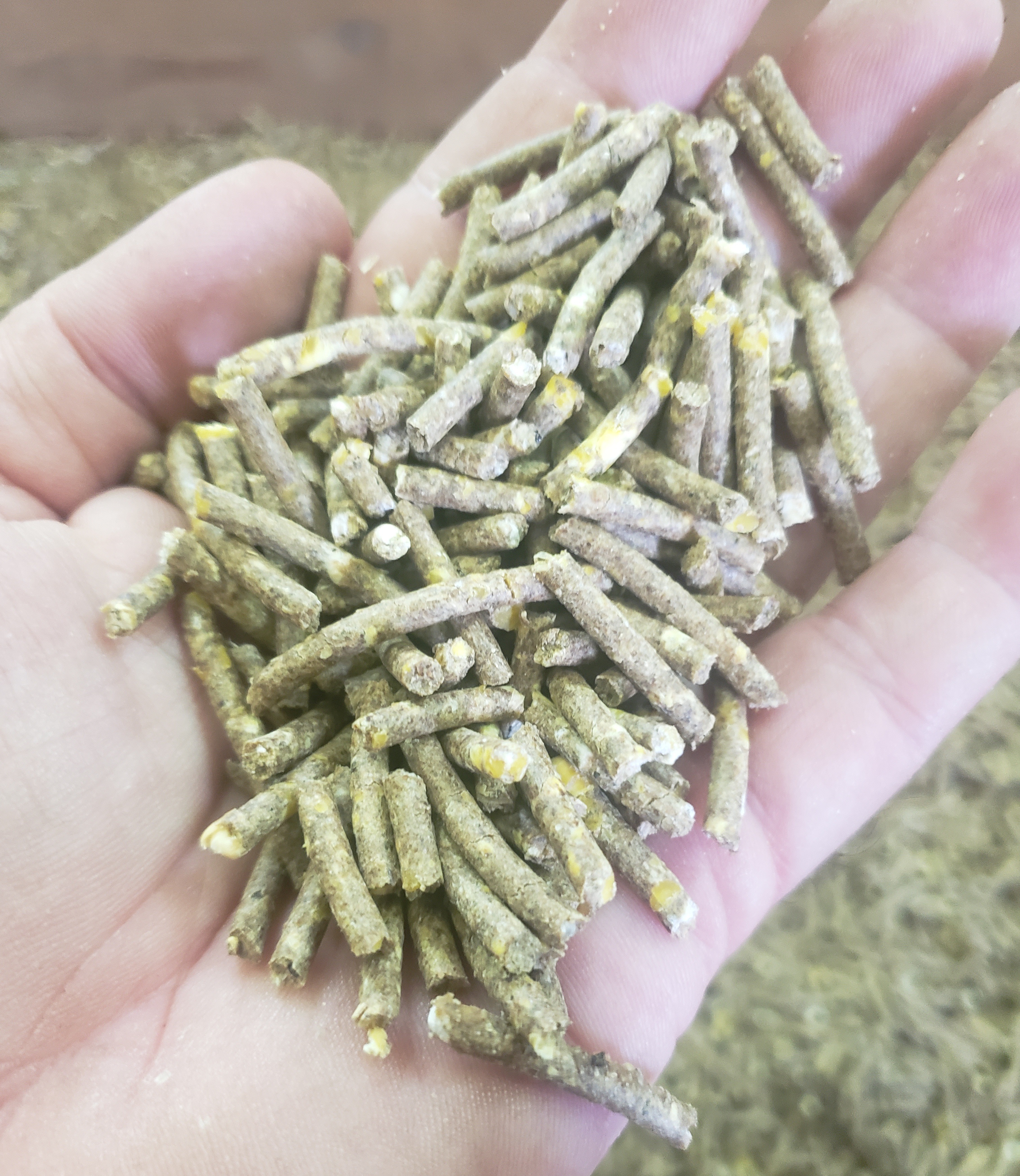

Animal Feed Mix run through a 6" 5.3hp 220v Single Phase Feed/Fertilizer Pellet Mill. (FeedPM)

Feed - Before	Feed - Before	Feed - 3mm Pellets	Feed - 3mm Pellets
*Normally we do not want to fill up the funnel with material, but this was an exception. Click here for a video of Animal Feed Mix run through a Feed Pellet Mill. Click here for a video of Animal Feed Mix run through a Feed Pellet Mill. Click here for a video of Animal Feed Mix run through a Feed Pellet Mill.

---

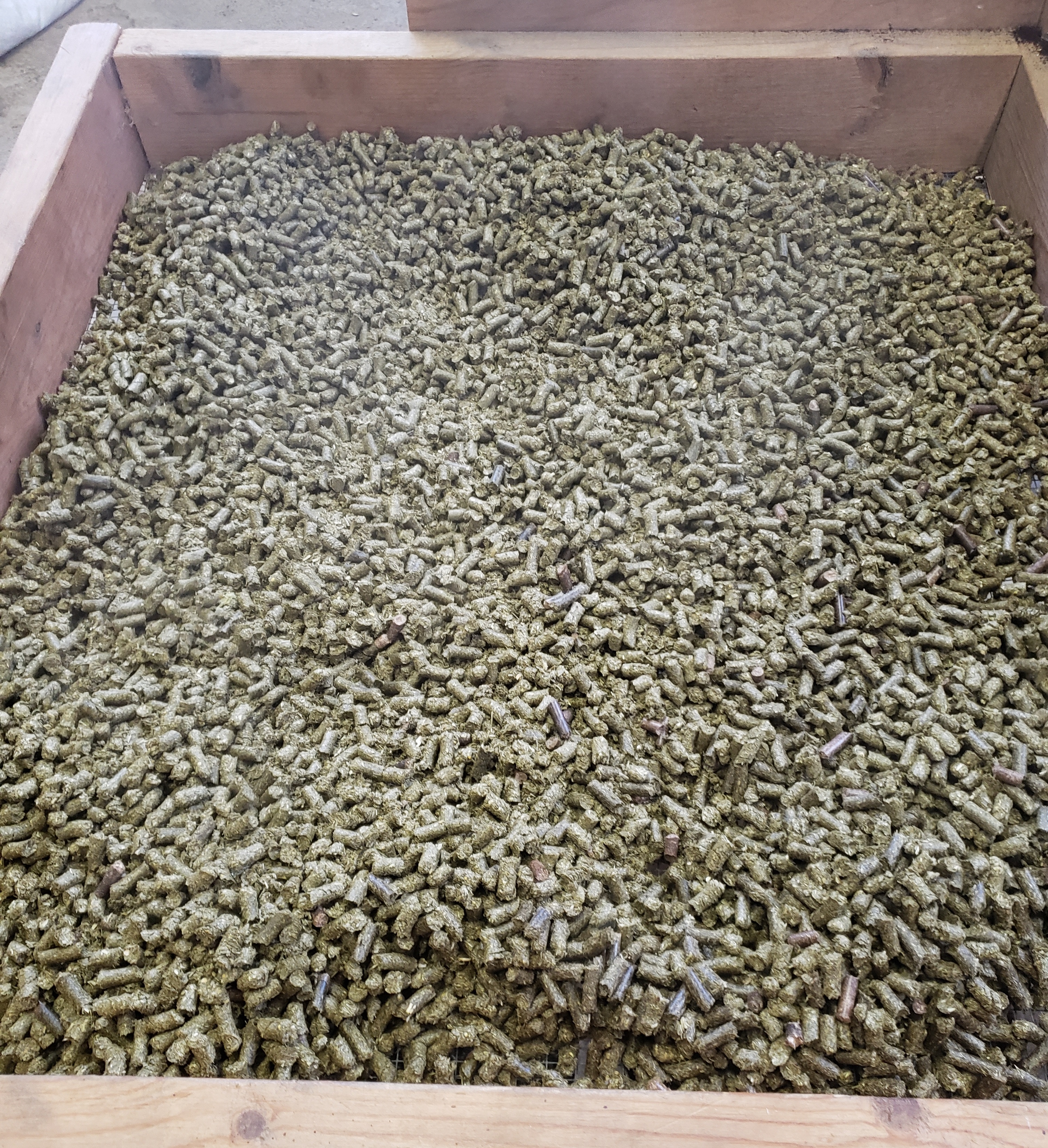

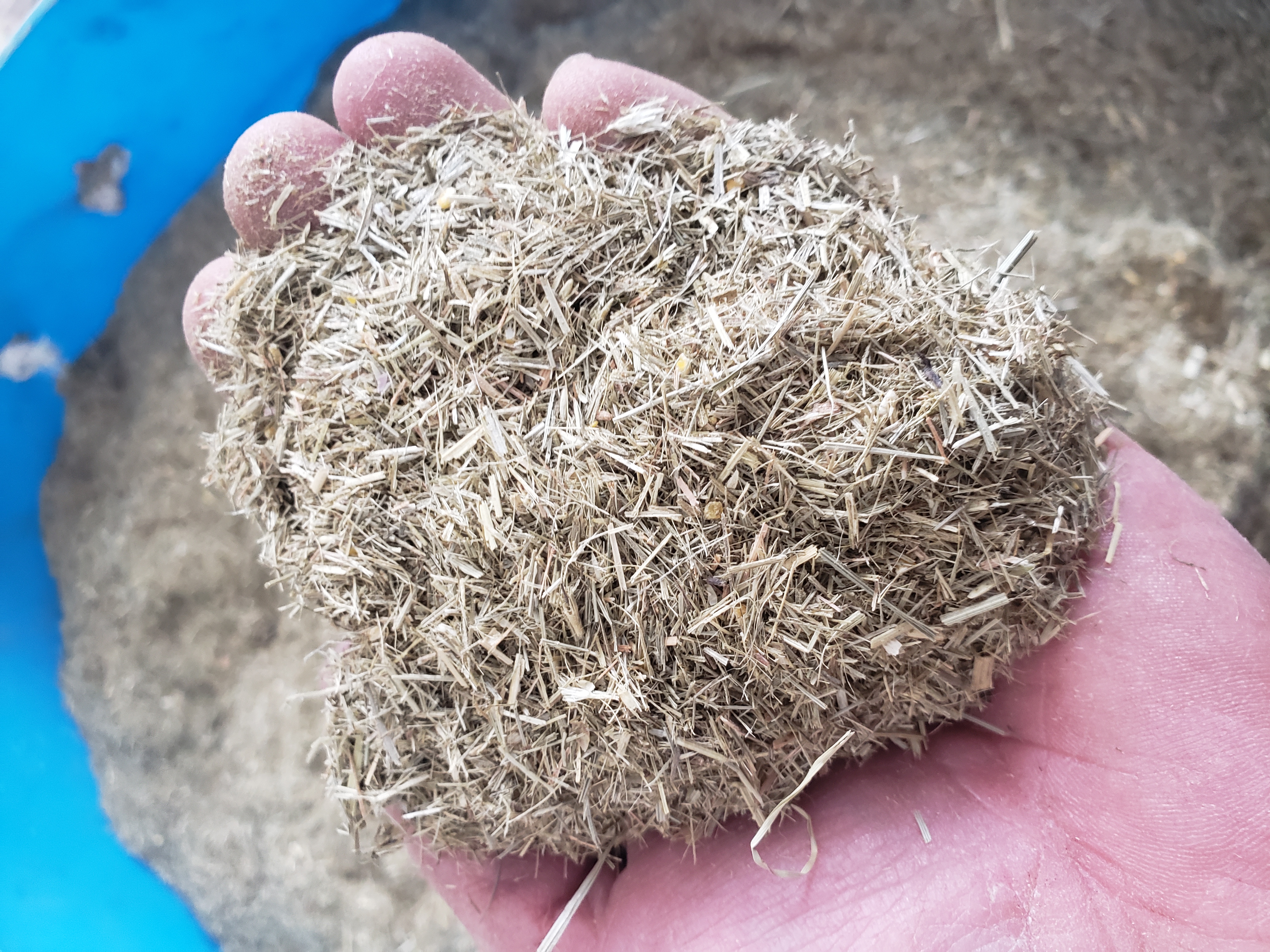

Alfalfa run through a 9" 2-Roller 10hp 220v Three Phase Red (wood) Pellet Mill. (AlfalfaPM)

Alfalfa - Before	Alfalfa - Before	Alfalfa - 6mm Pellets	Alfalfa - 6mm Pellets
Click here for a video of Alfalfa run through a Red (wood) Pellet Mill. Click here for a video of Alfalfa run through a Red (wood) Pellet Mill. Click here for a video of Alfalfa run through a Red (wood) Pellet Mill. Click here for a video of Alfalfa run through a Red (wood) Pellet Mill. Click here for a video of Alfalfa run through a Red (wood) Pellet Mill. Click here for a video of Alfalfa run through a Red (wood) Pellet Mill.

---

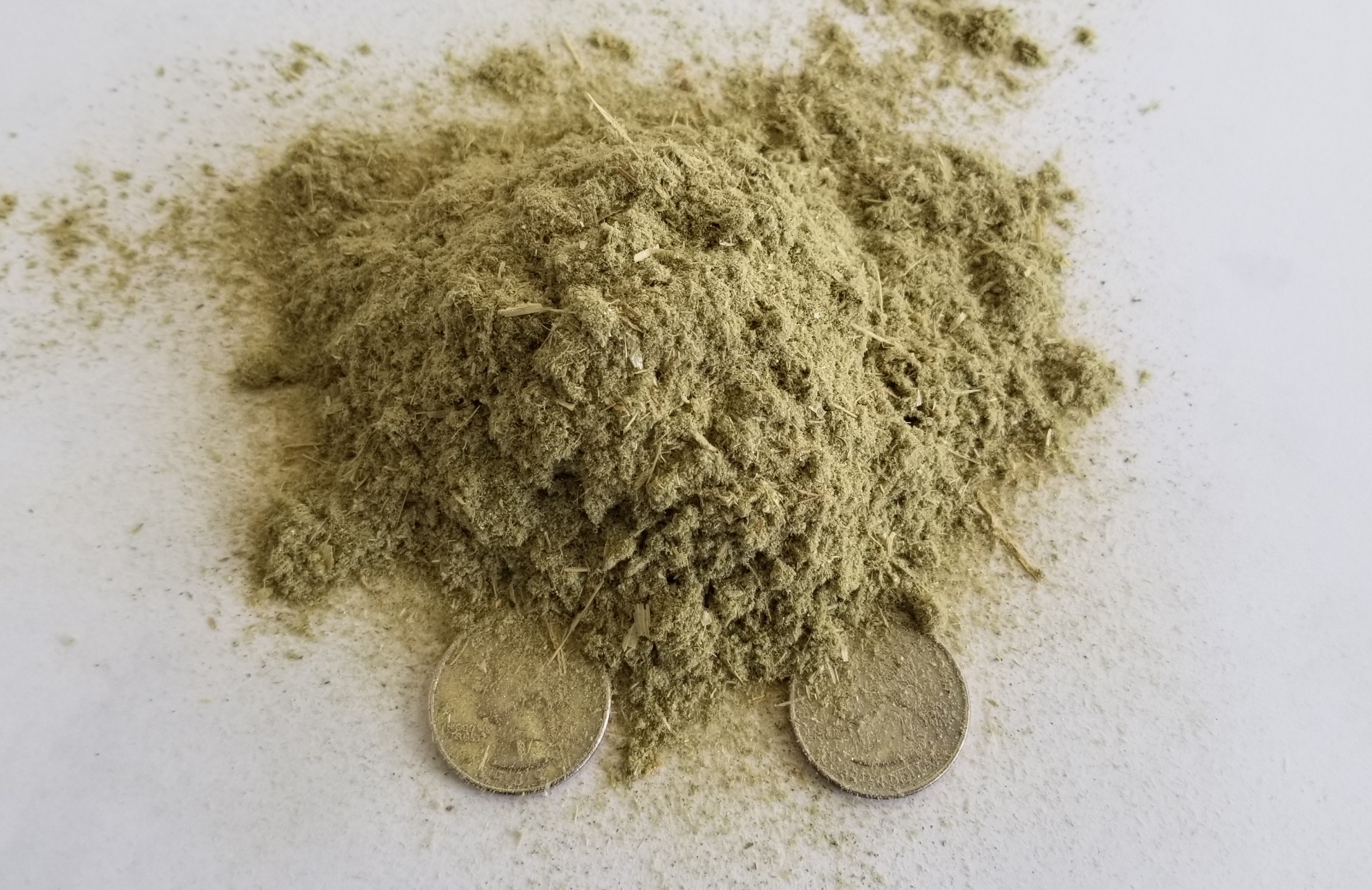

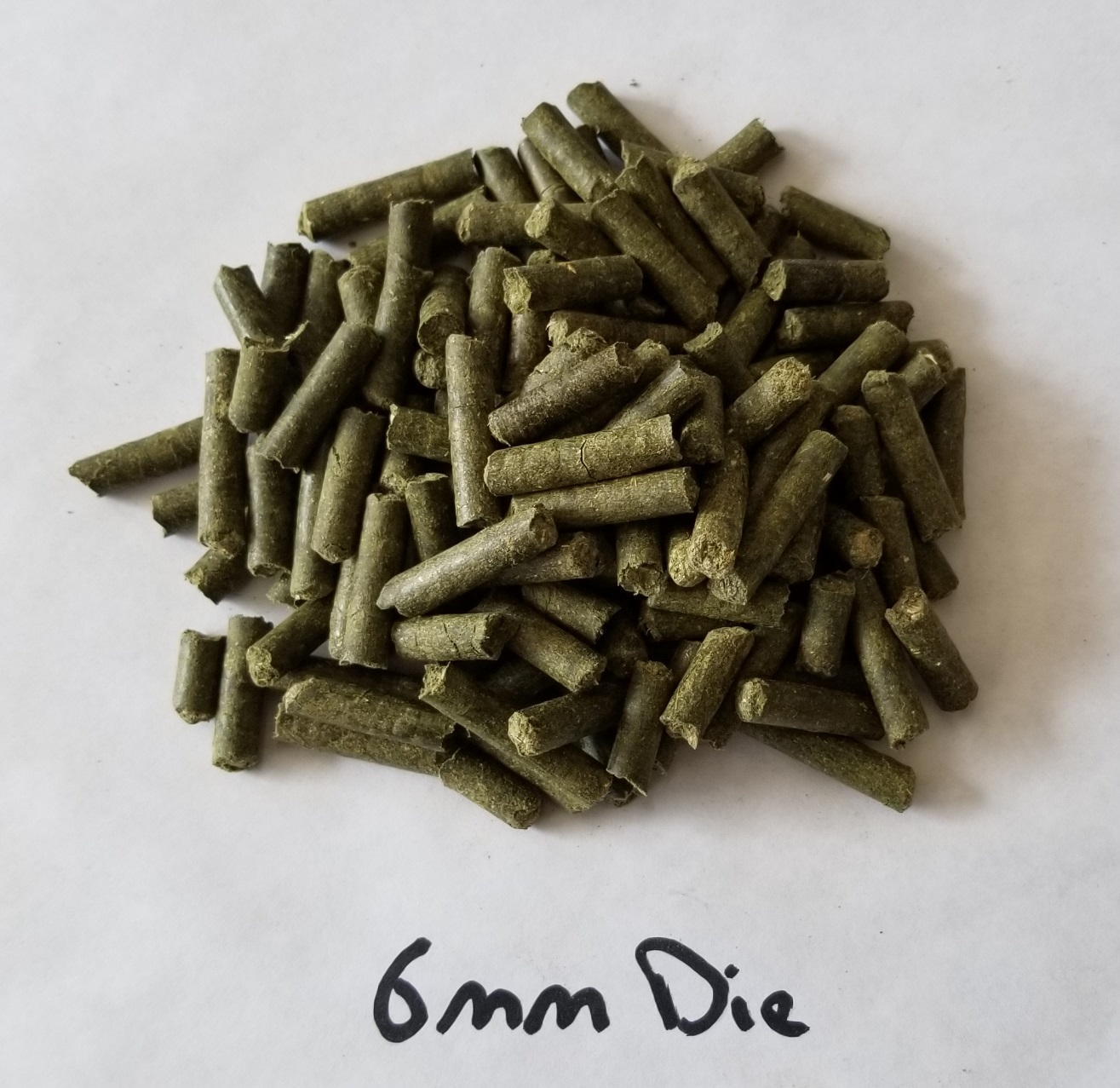

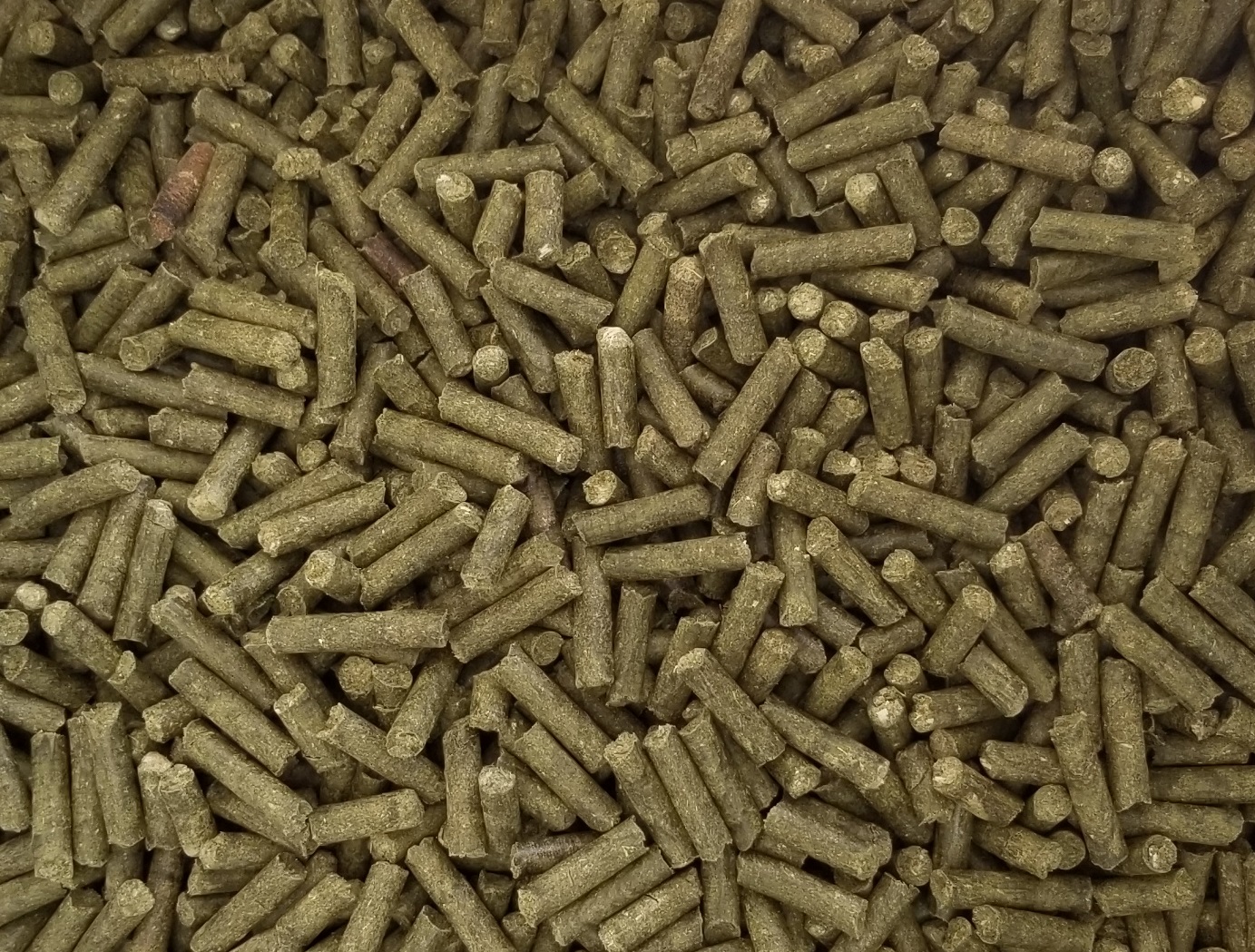

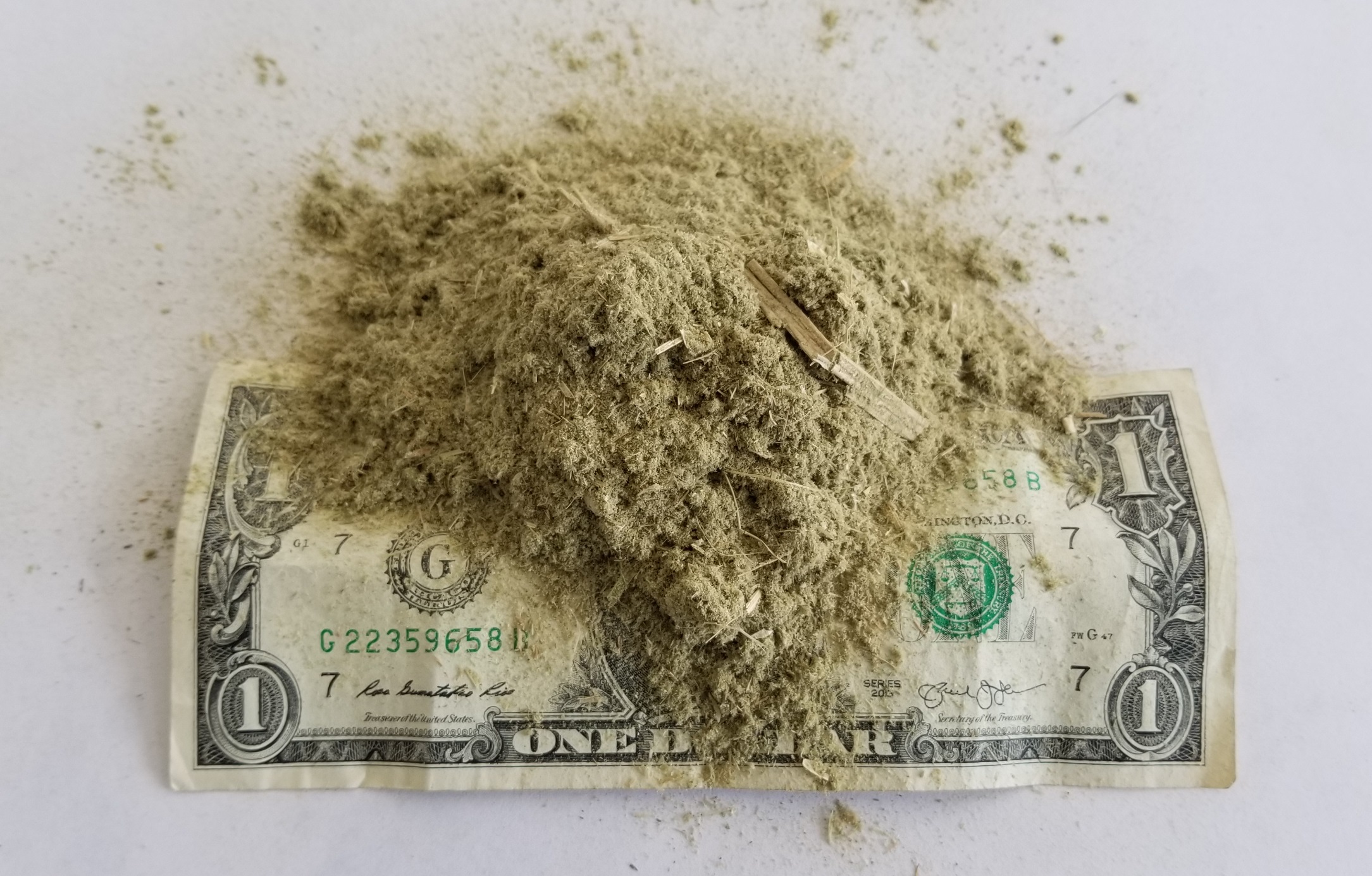

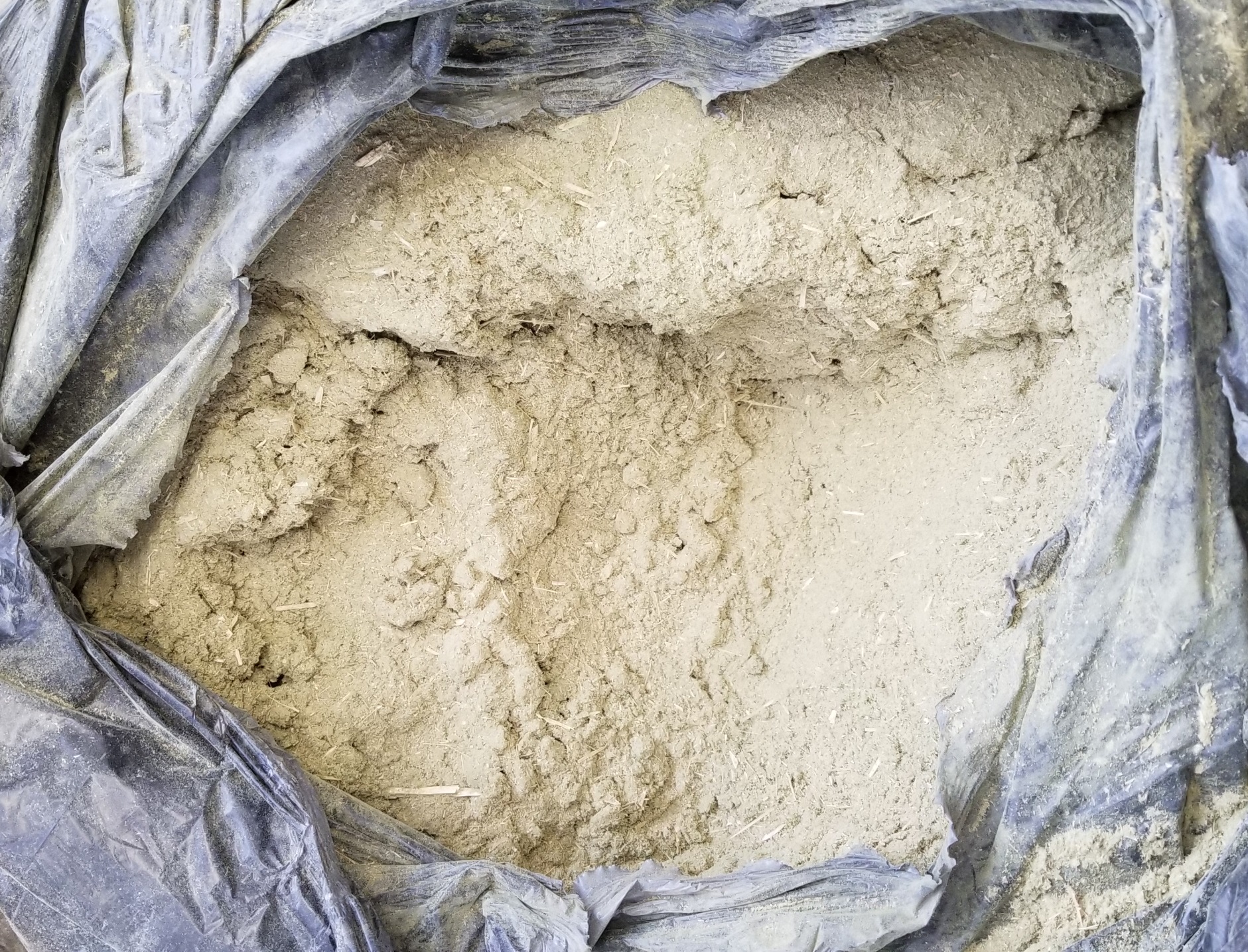

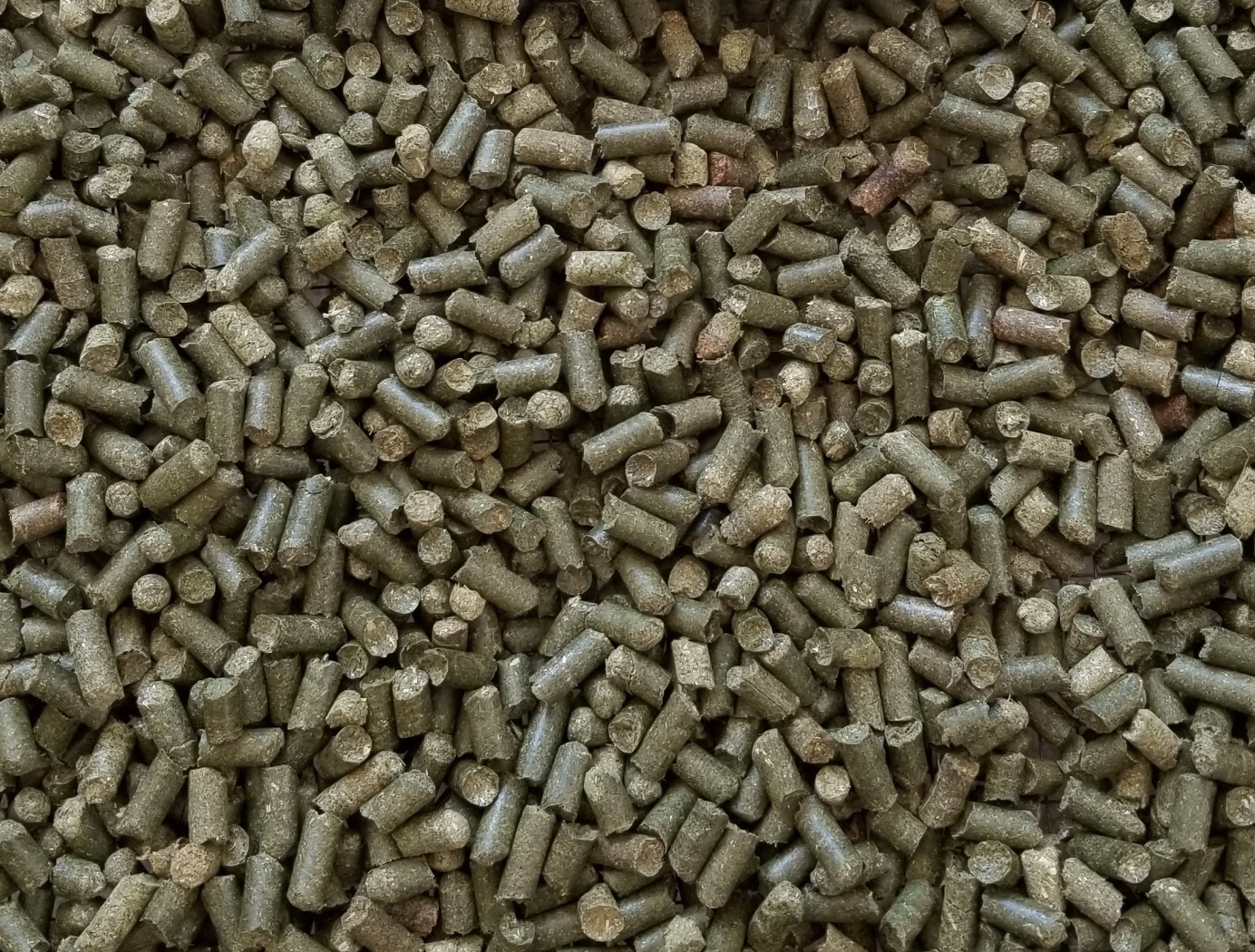

Alfalfa Hay Dust run through a Red (wood) Pellet Mill and a Vertical (feed) Pellet Mill. (haydustPM)

Alfalfa - Before Wood Mill - Pellets	Alfalfa - Before Wood Mill - Pellets	Alfalfa - Before Feed Mill - Pellets	Moisture Content 8% Feed Mill - Pellets
*Water was added to the Alfalfa Hay Dust to increase the moisture content to 8%. Click here for a video of Alfalfa Hay Dust run through a Red (wood) Pellet Mill. Click here for a video of Alfalfa Hay Dust run through a Red (wood) Pellet Mill. Click here for a video of Alfalfa Hay Dust run through a Red (wood) Pellet Mill. Click here for a video of Alfalfa Hay Dust run through a Red (wood) Pellet Mill. Click here for a video of Alfalfa Hay Dust run through a Red (wood) Pellet Mill. Click here for a video of Alfalfa Hay Dust run through a Vertical (feed) Pellet Mill. Click here for a video of Alfalfa Hay Dust run through a Vertical (feed) Pellet Mill. Click here for a video of Alfalfa Hay Dust run through a Vertical (feed) Pellet Mill. Click here for a video of Alfalfa Hay Dust run through a Vertical (feed) Pellet Mill. Click here for a video of Alfalfa Hay Dust run through a Vertical (feed) Pellet Mill.

---

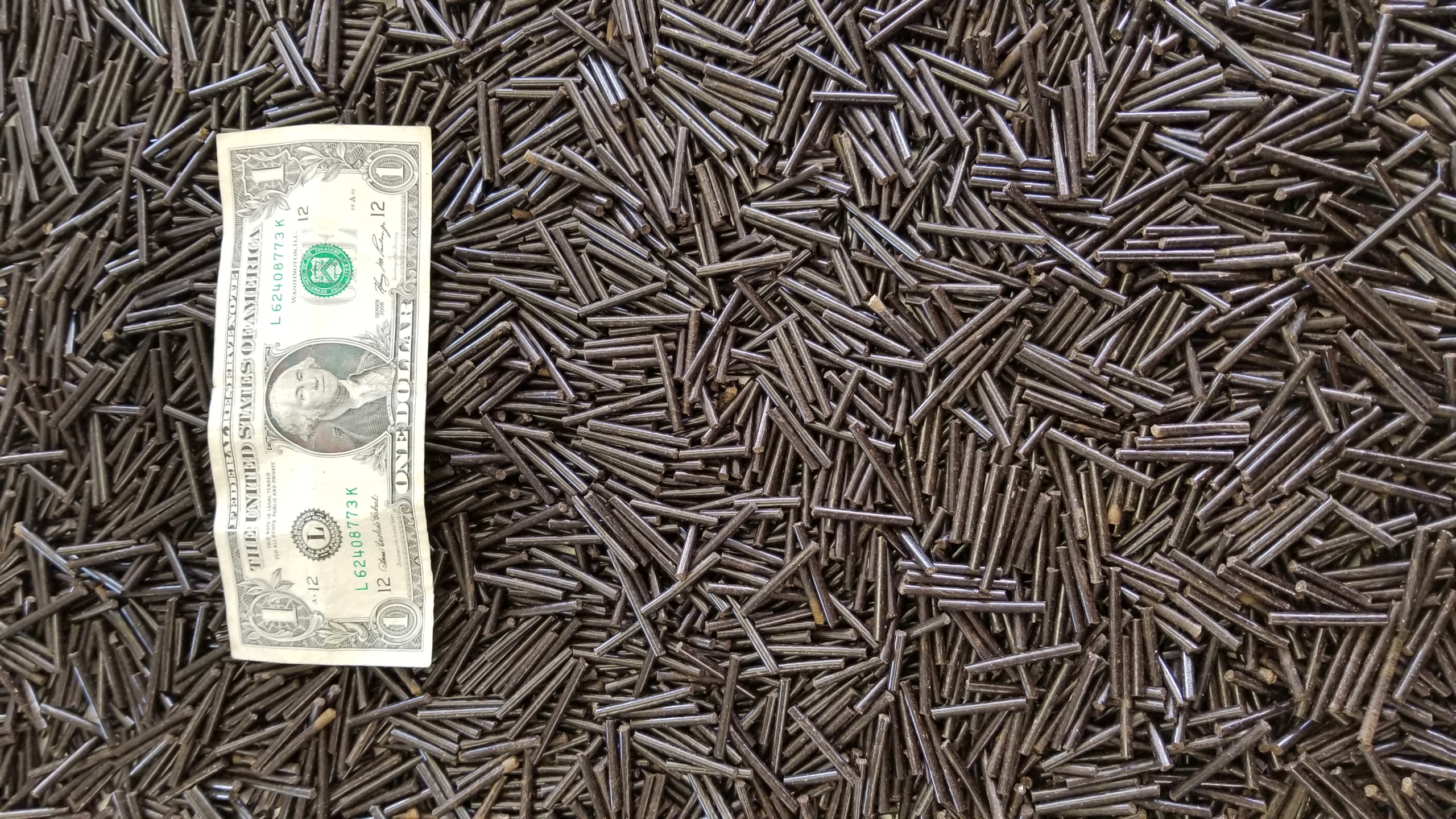

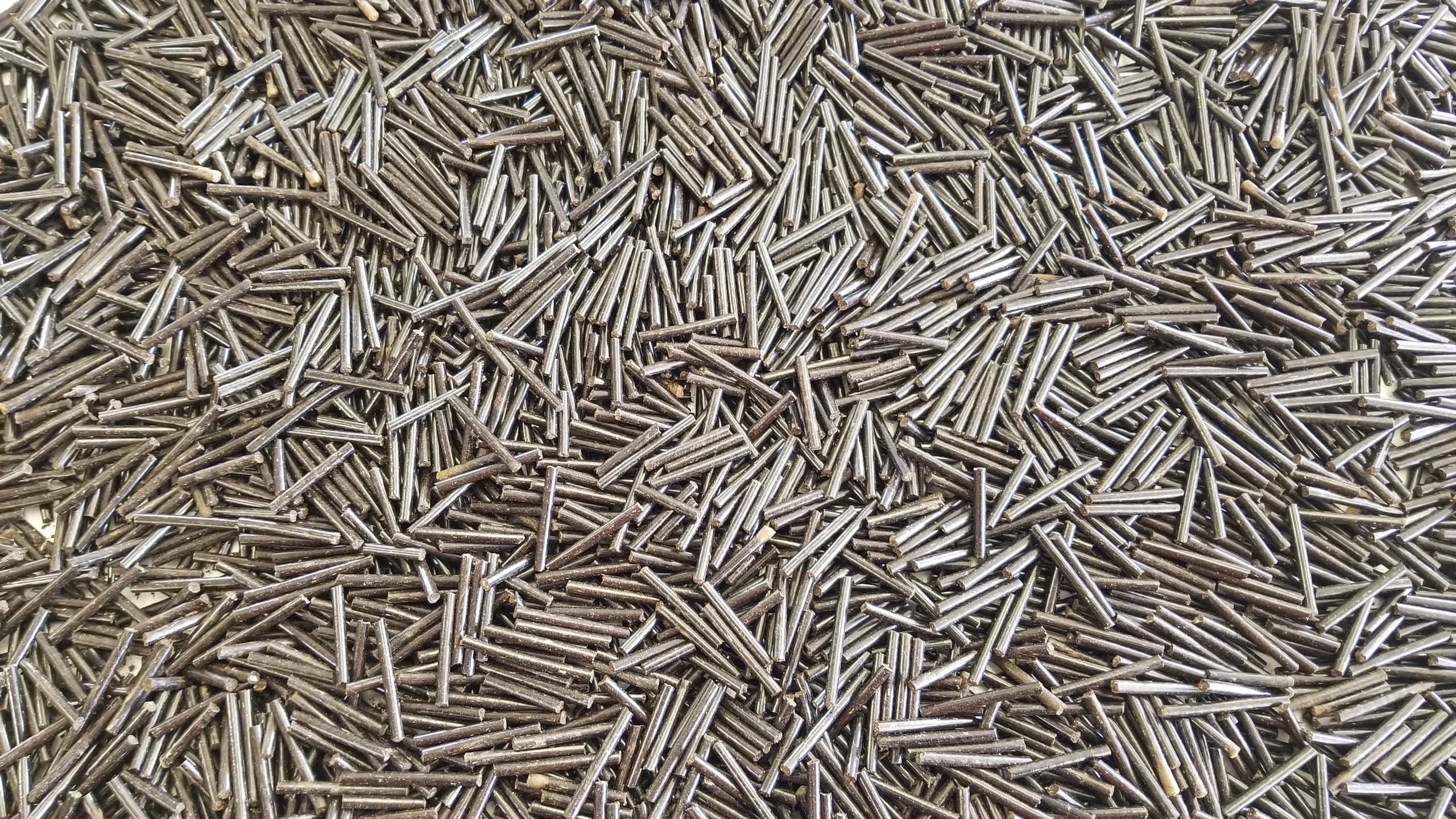

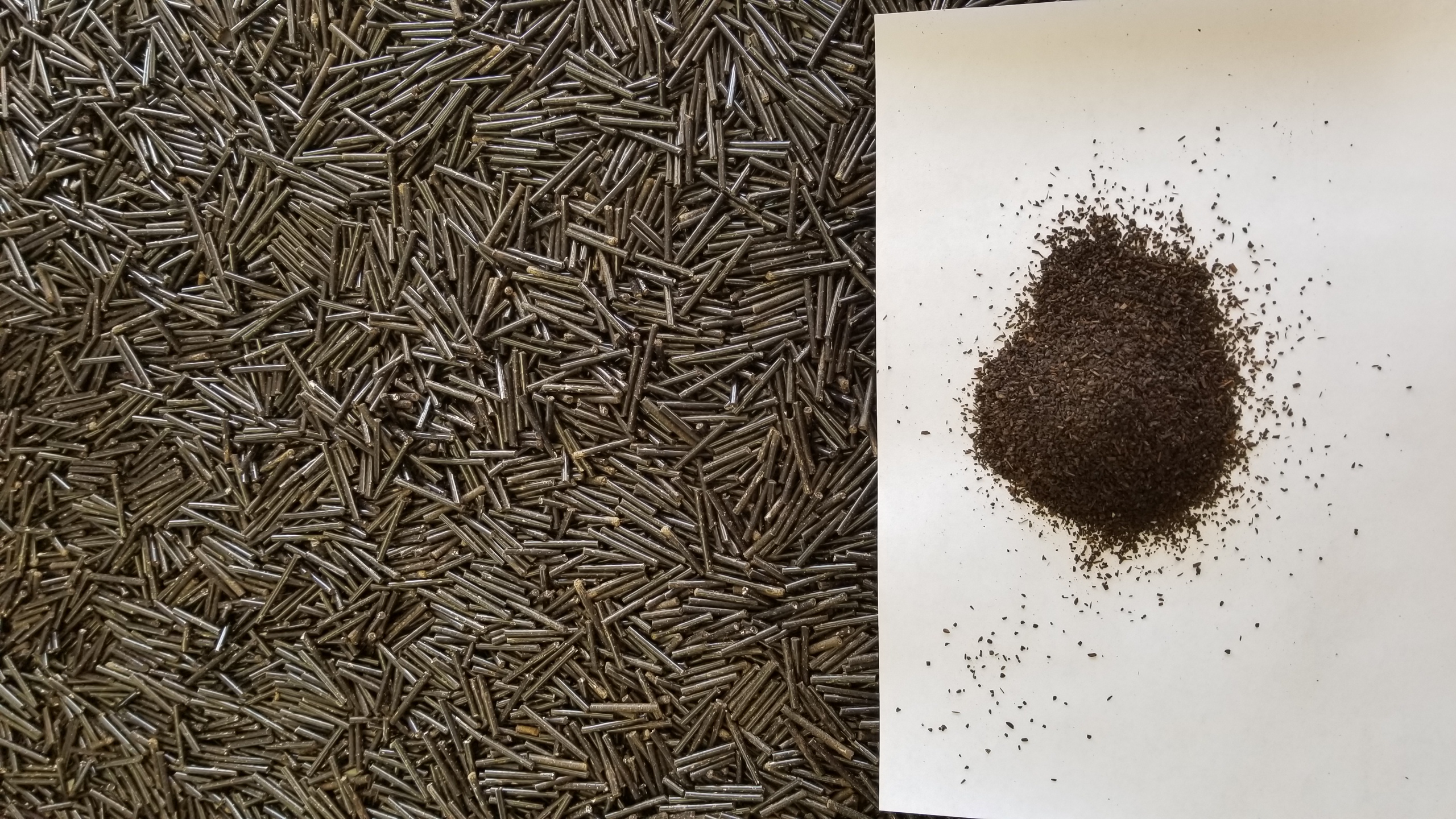

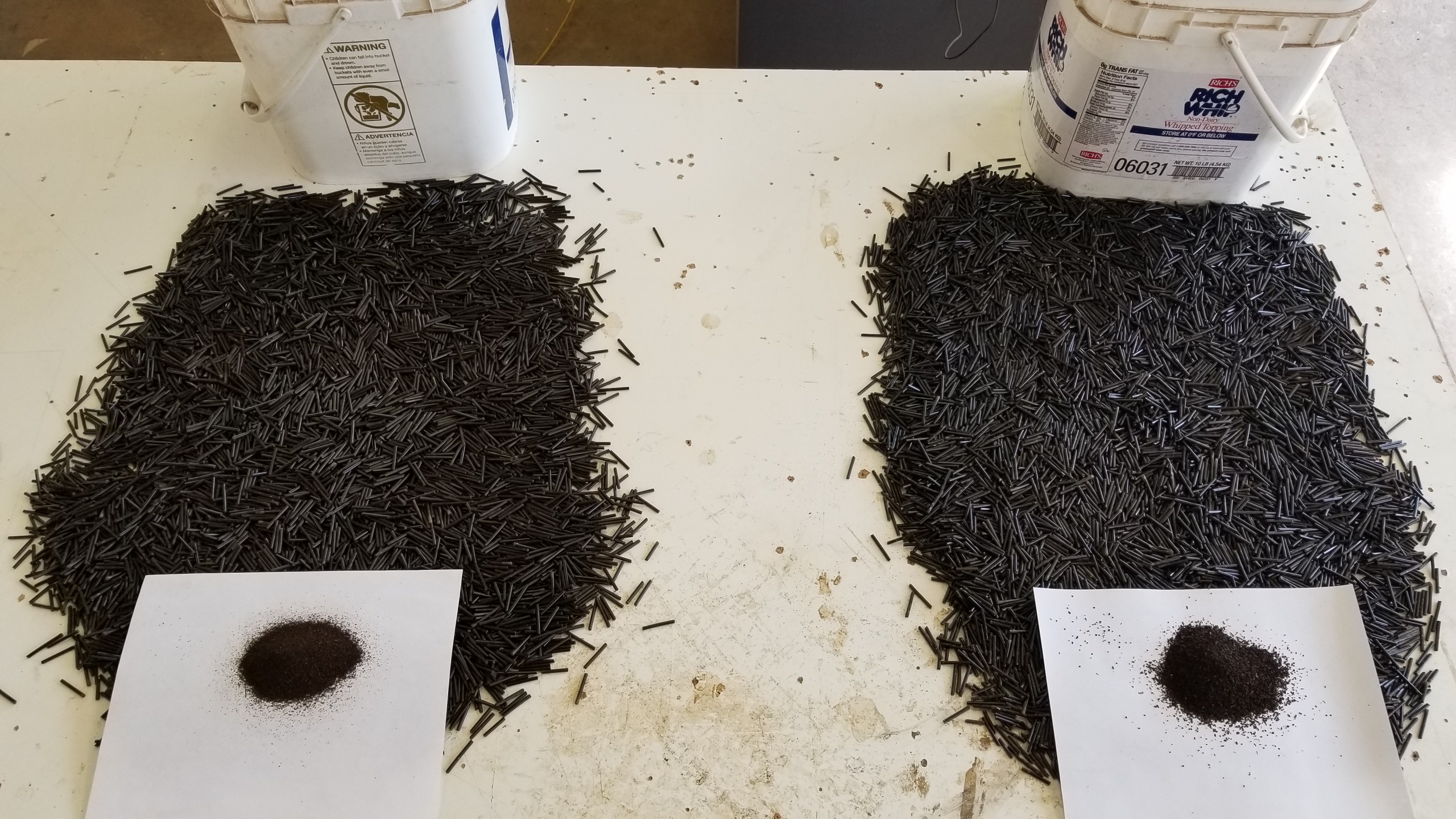

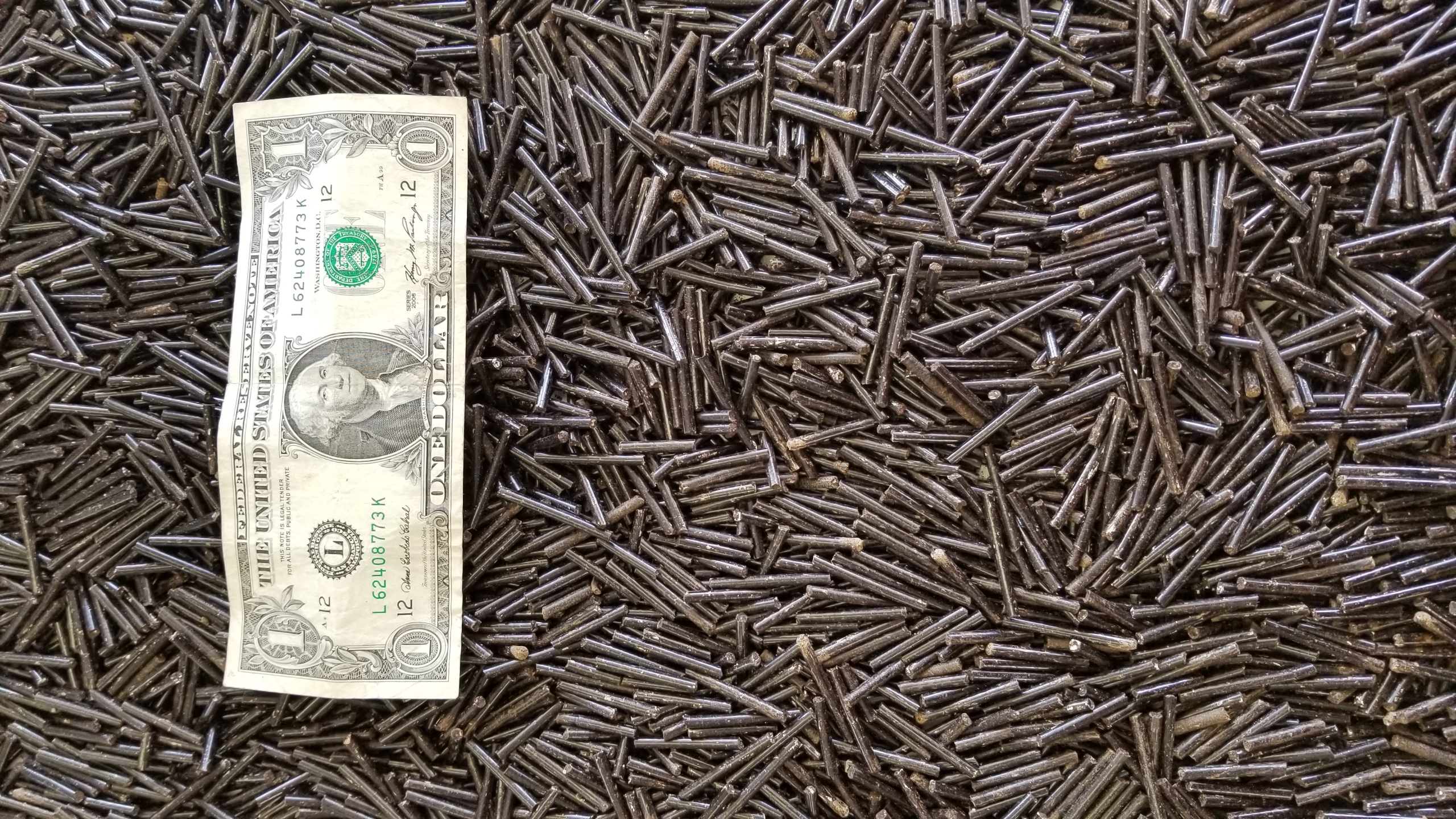

Dehydrated Turkey Compost run through a Red (wood) Pellet Mill with a 3mm die. (turkeyPM)

Turkey Compost Turkey Compost	Turkey Compost Turkey Compost	Turkey Compost Pellets Turkey Compost Pellets	Turkey Compost Pellets Turkey Compost Pellets
*No water or binder was added to the turkey compost to affect the moisture content. Click here for a video of Turkey Compost run through a Red (wood) Pellet Mill. Click here for a video of Turkey Compost run through a Red (wood) Pellet Mill.

---

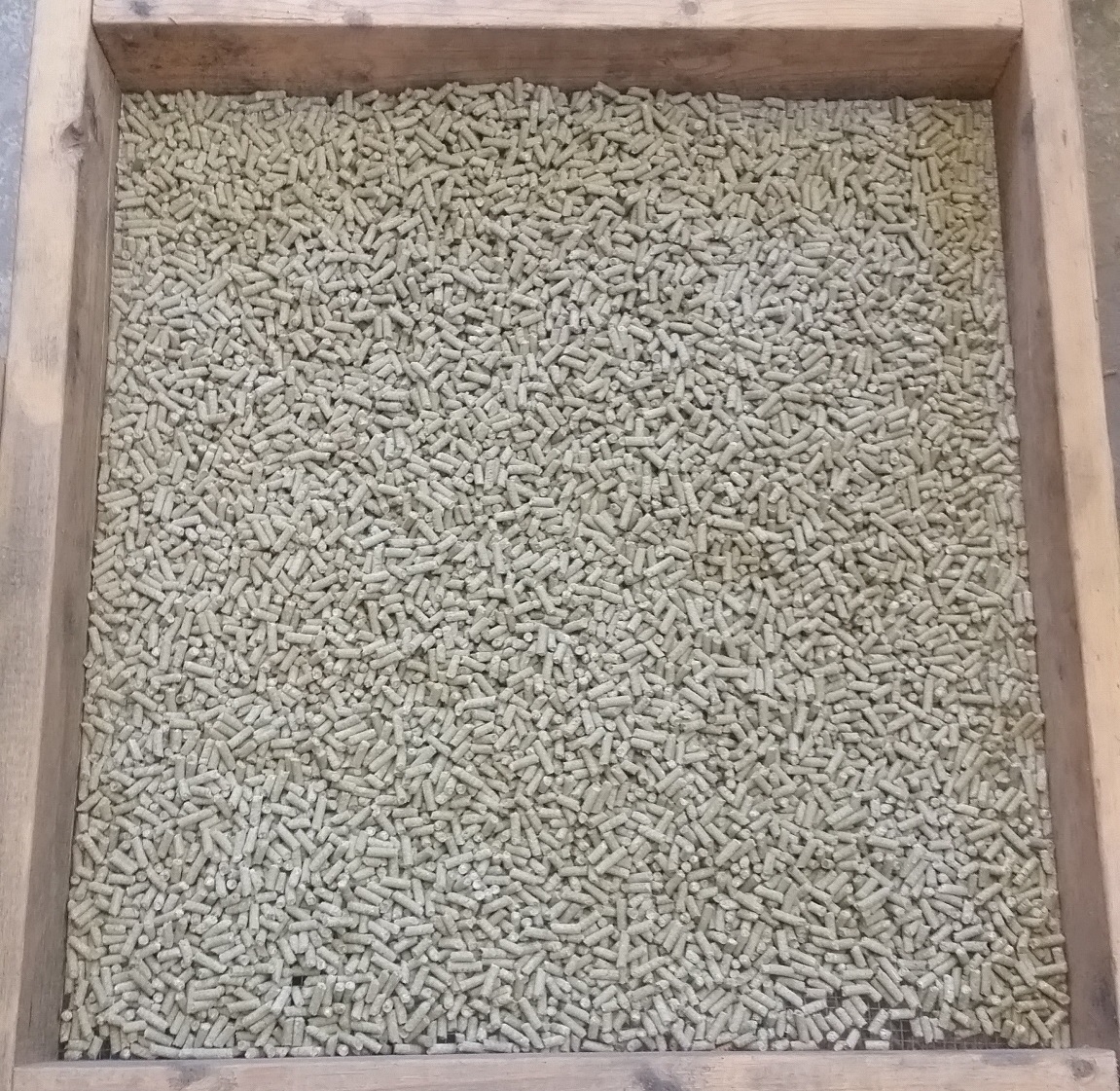

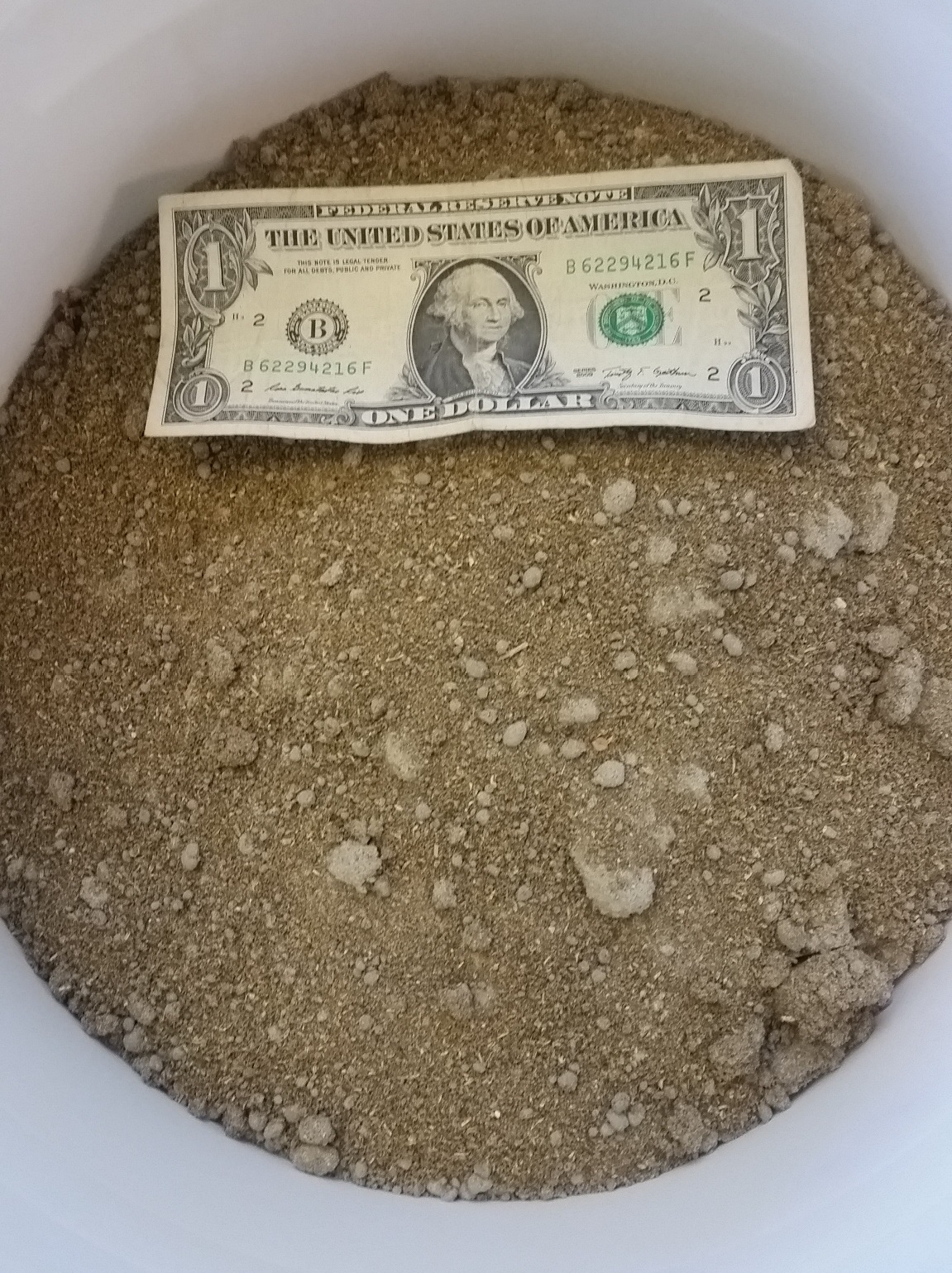

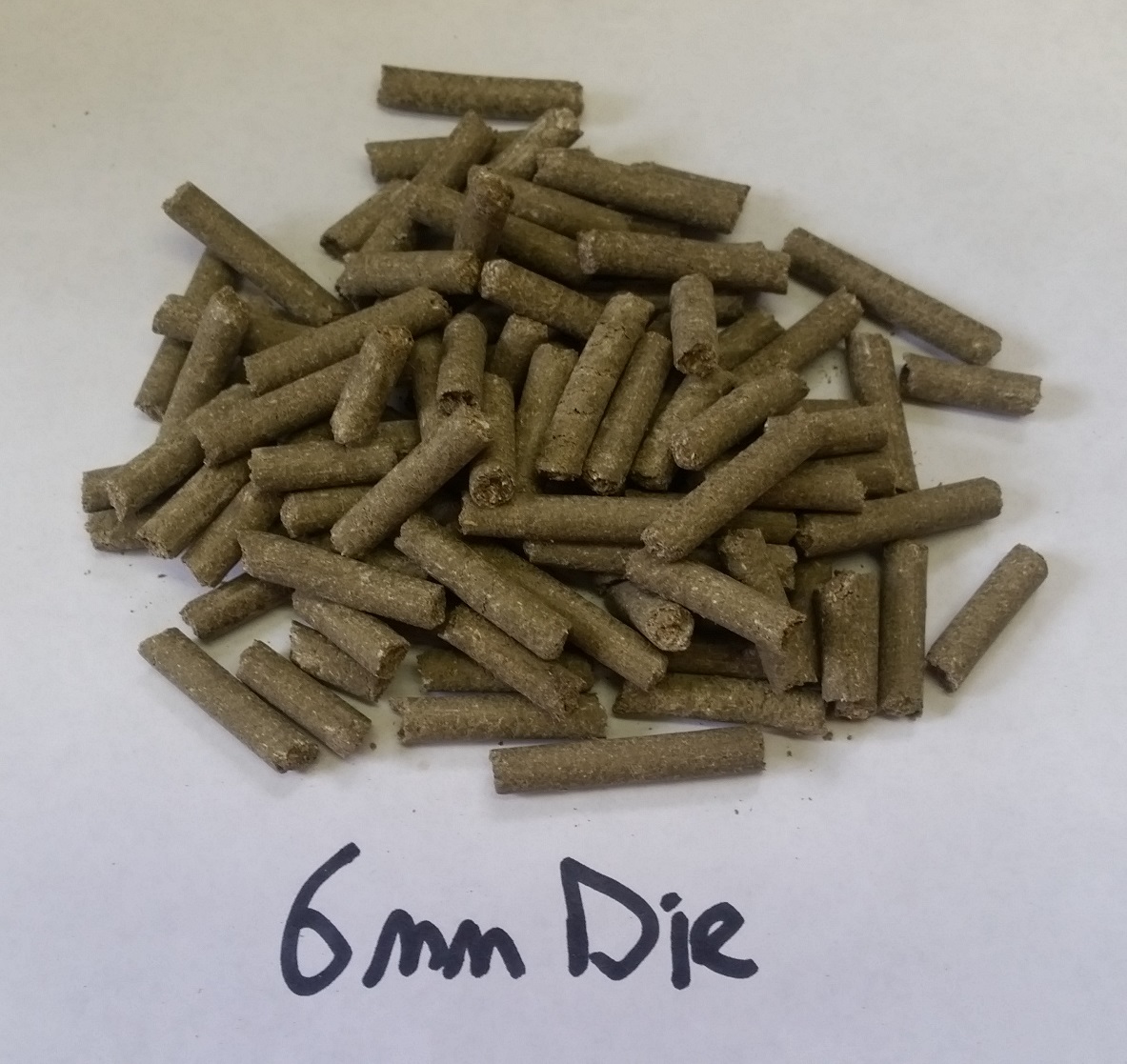

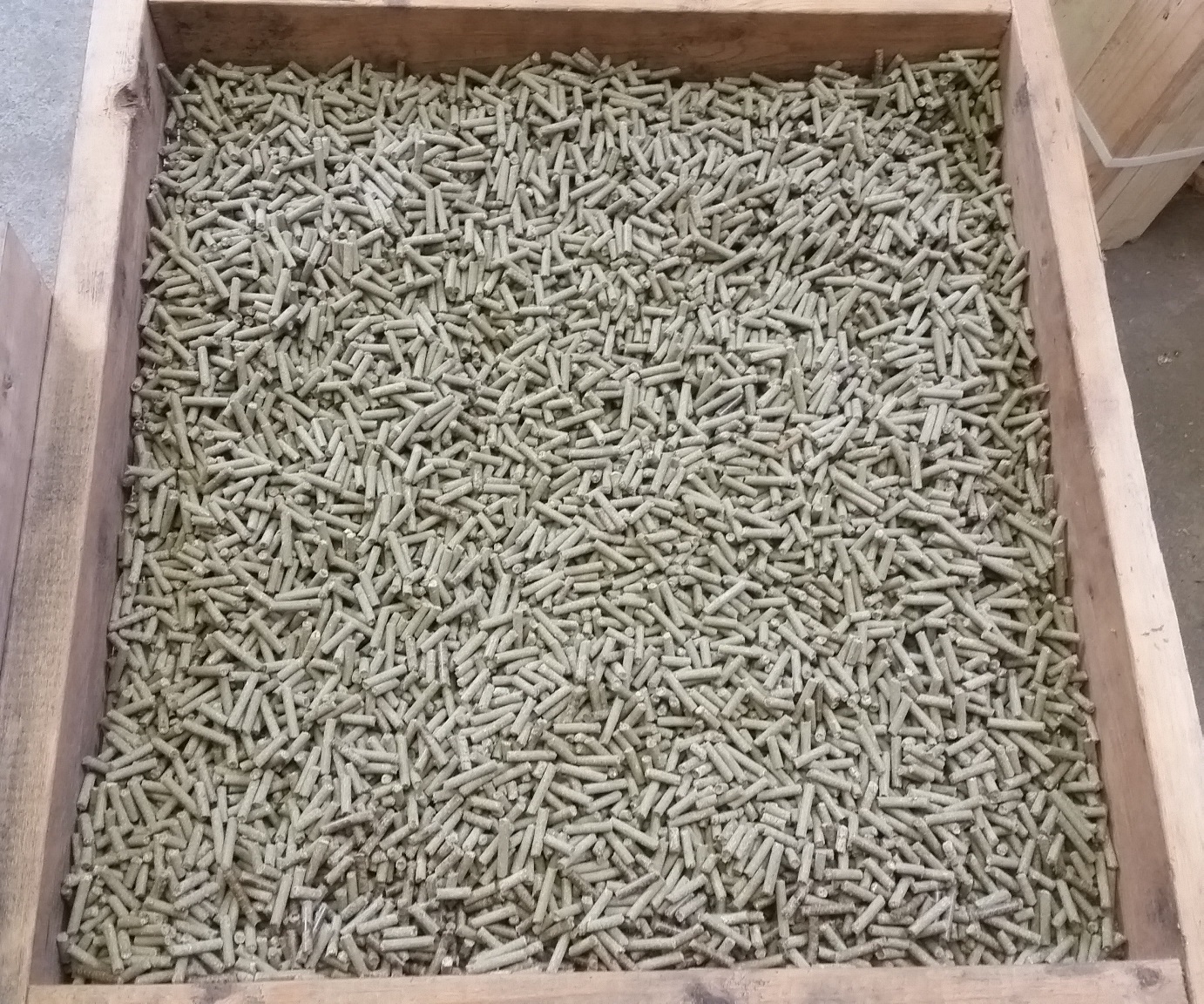

Zeolite powder run through a Red (wood) Pellet Mill with a 6mm die. (zeolitered)

Zeolite Powder - Before	Zeolite Powder Pellets	Zeolite Powder Pellets	Zeolite Powder Pellets
Click here for a video of Zeolite powder through a Red (wood) Pellet Mill. Click here for a video of Zeolite powder through a Red (wood) Pellet Mill. Click here for a video of Zeolite powder through a Red (wood) Pellet Mill. Click here for a video of Zeolite powder through a Red (wood) Pellet Mill. Click here for a video of Zeolite powder through a Red (wood) Pellet Mill. Click here for a video of Zeolite powder through a Red (wood) Pellet Mill.

---

Zeolite powder run through a Green (feed and fertilizer) Pellet Mill with a 6mm die. (zeolitegreen)

Zeolite Powder - Before	Zeolite Powder Pellets*	Zeolite Powder Pellets*	Zeolite Powder Pellets*
*The customer asked us to reduce the pellet length from 30mm down to 20mm. These pellets could have been longer. Click here for a video of Zeolite powder through a Green (feed and fertilizer) Pellet Mill. Click here for a video of Zeolite powder through a Green (feed and fertilizer) Pellet Mill. Click here for a video of Zeolite powder through a Green (feed and fertilizer) Pellet Mill. Click here for a video of Zeolite powder through a Green (feed and fertilizer) Pellet Mill. Click here for a video of Zeolite powder through a Green (feed and fertilizer) Pellet Mill.

---

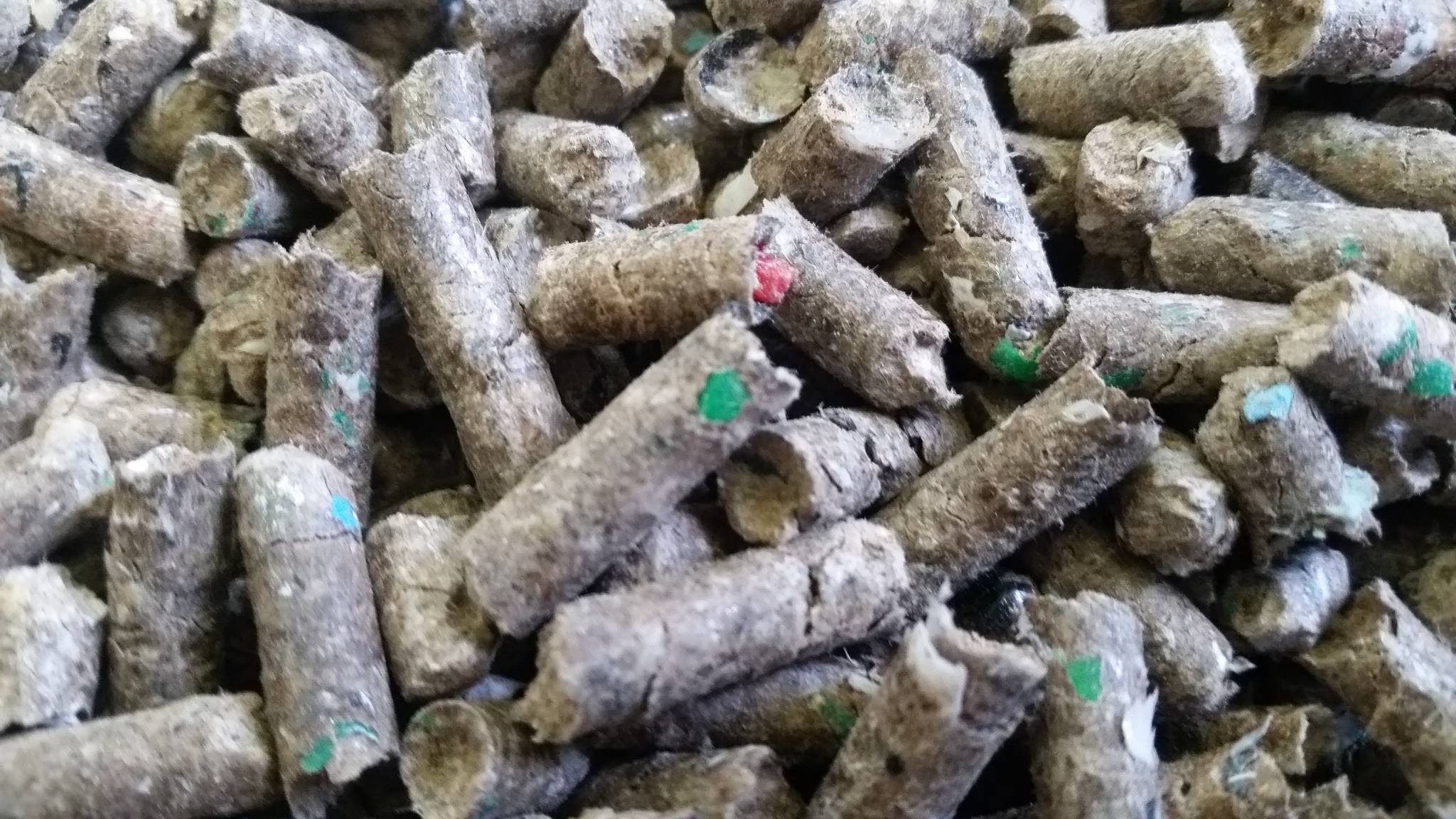

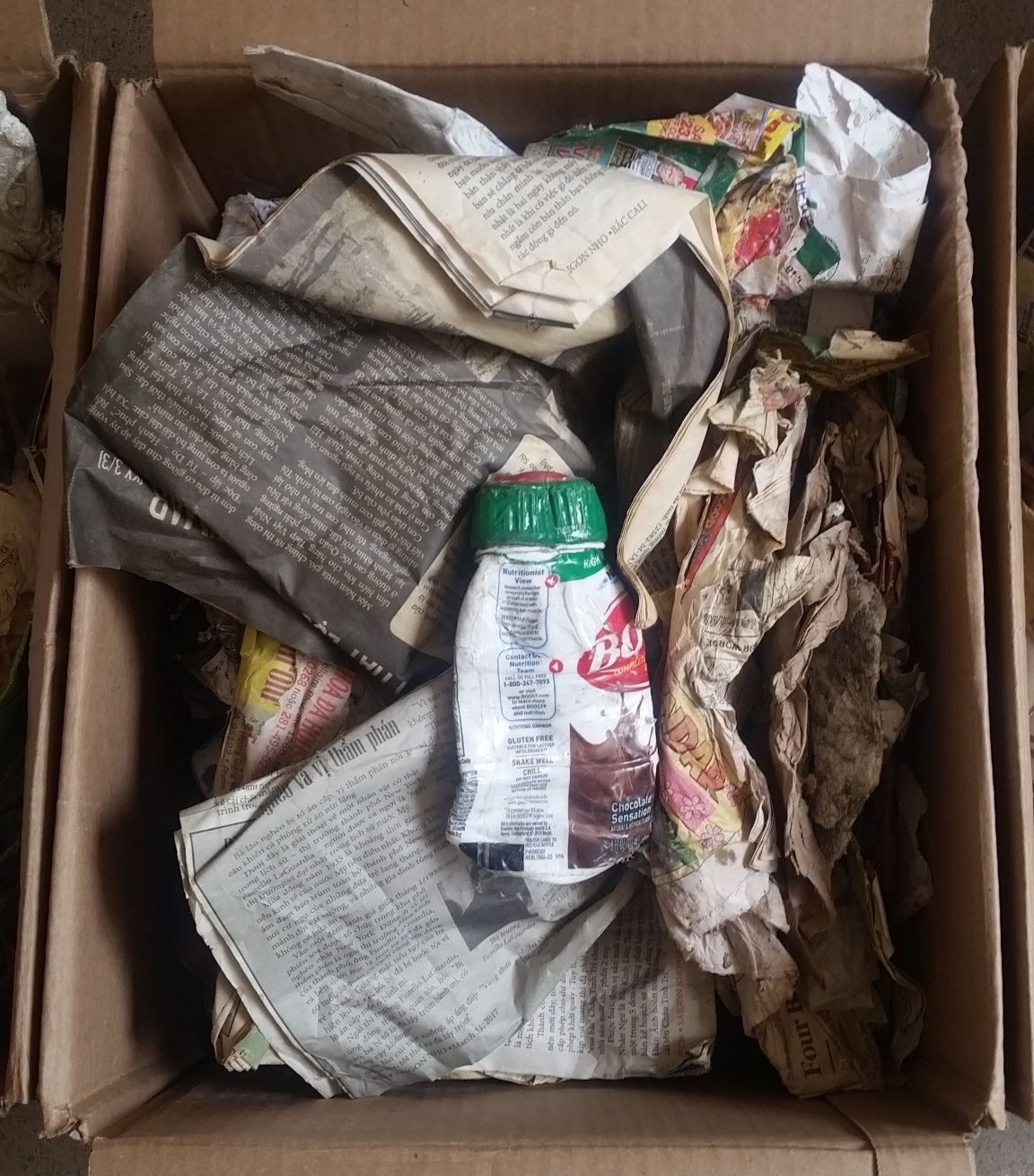

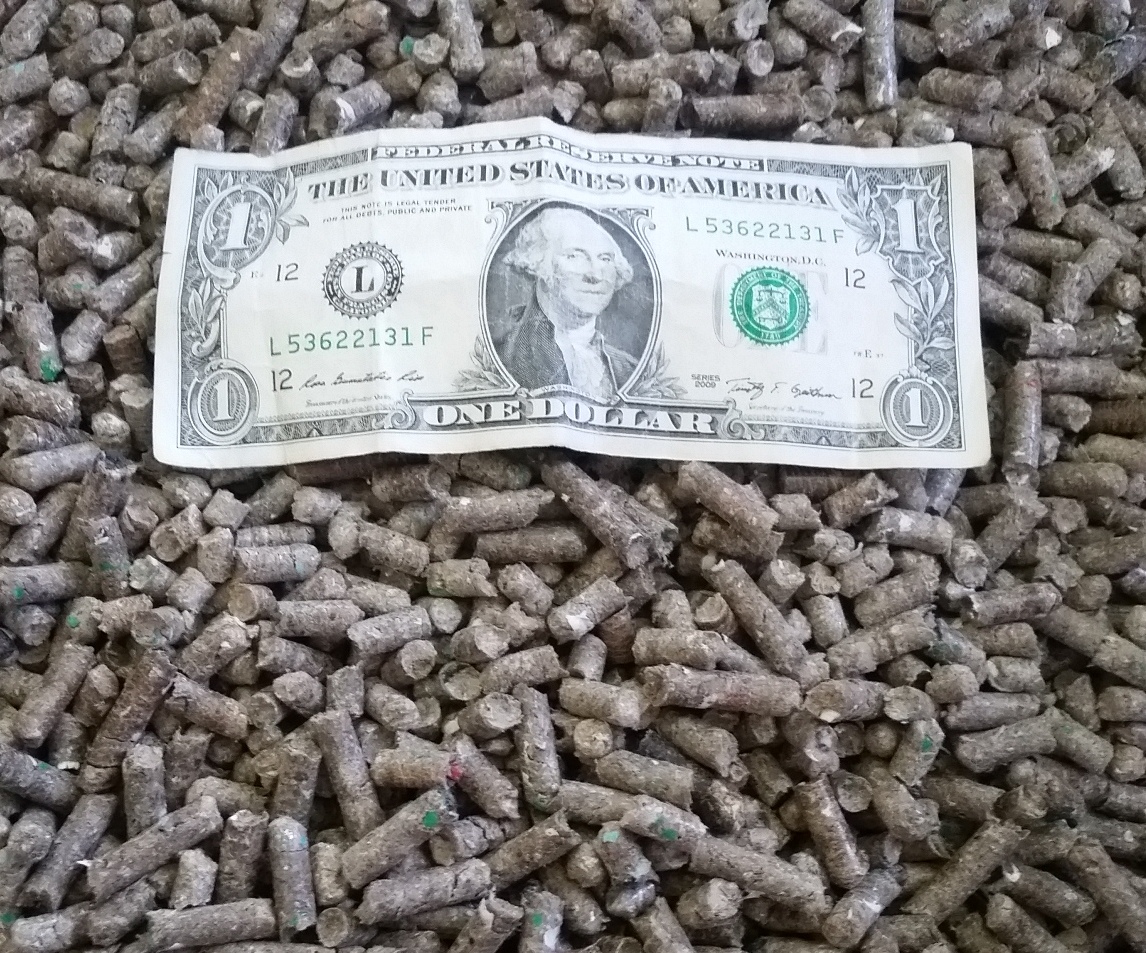

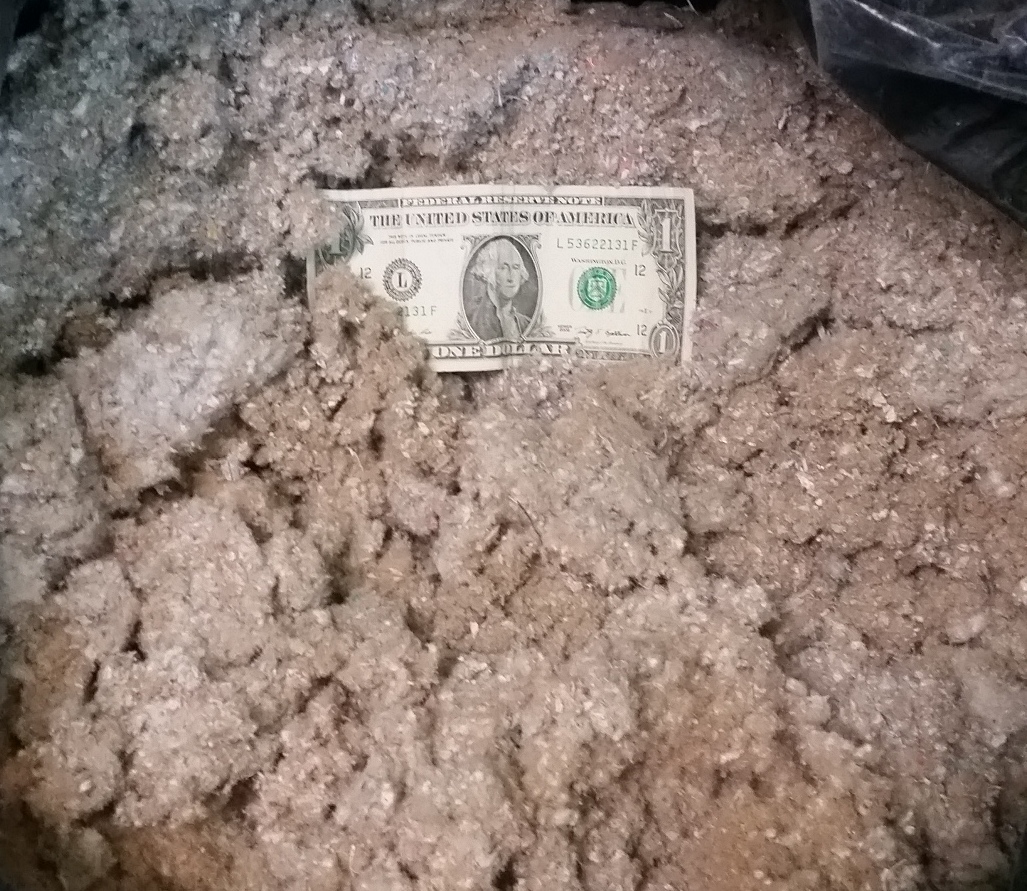

Hammer Milled Garbage sample run through a Red (wood) Pellet Mill. (garbagePM)

Garbage - Before	Garbage - Hammer Milled	Garbage Pellets	Garbage Pellets
Click here for a video of Hammer Milled Garbage through a Red (wood) Pellet Mill. Click here for a video of Hammer Milled Garbage through a Red (wood) Pellet Mill. Click here for a video of Hammer Milled Garbage through a Red (wood) Pellet Mill.

---

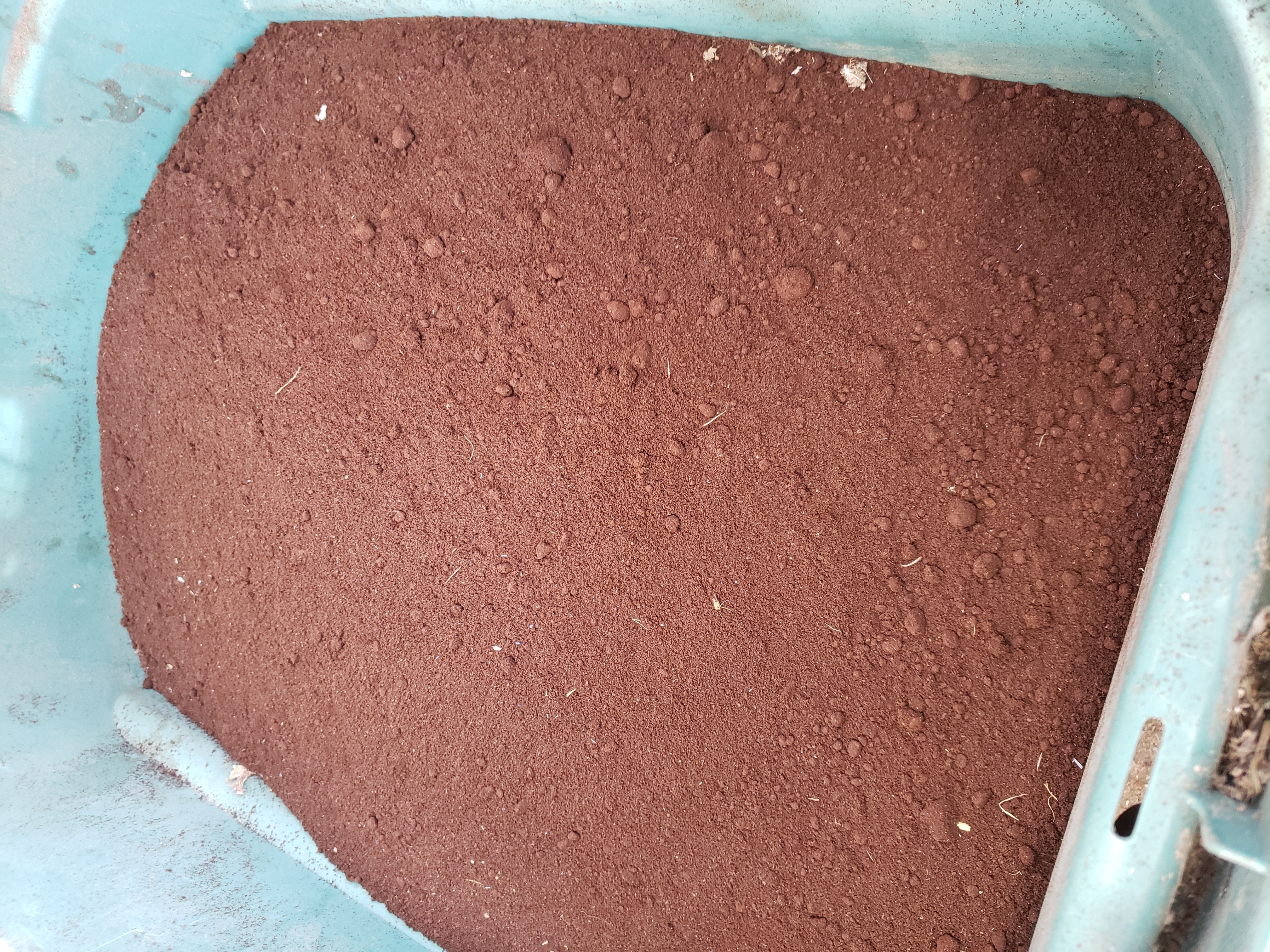

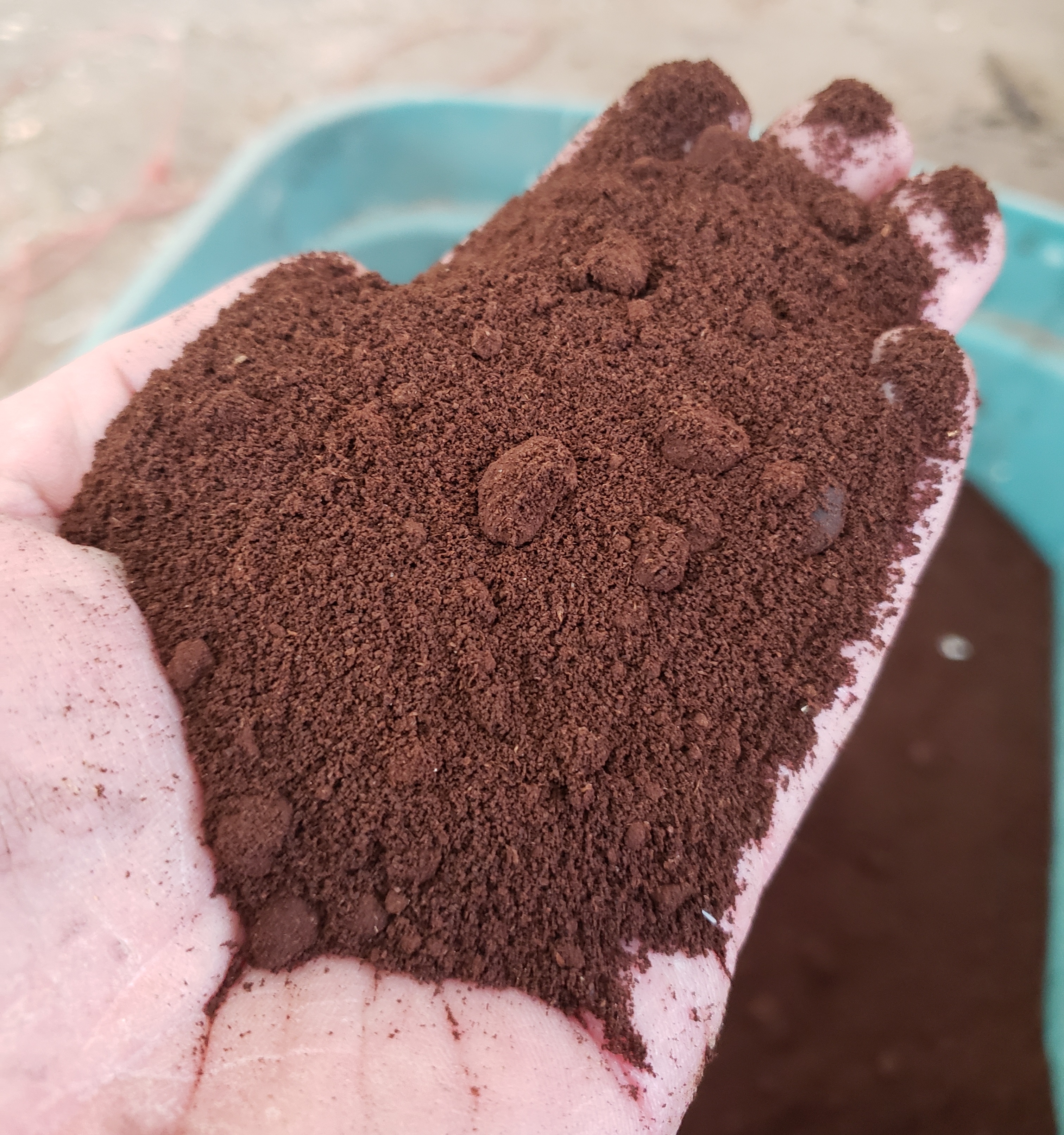

Coffee Grounds run through a 9" 10hp 220v Three Phase Electric Wood Pellet Mill . (coffeeGroundsPM)

Coffee Grounds- Before	Coffee Grounds Pellets	Coffee Grounds Pellets	Coffee Grounds Pellets
Click here for a video of Coffee Grounds through a Red (wood) Pellet Mill. Click here for a video of Coffee Grounds through a Red (wood) Pellet Mill. Click here for a video of Coffee Grounds through a Red (wood) Pellet Mill.

---

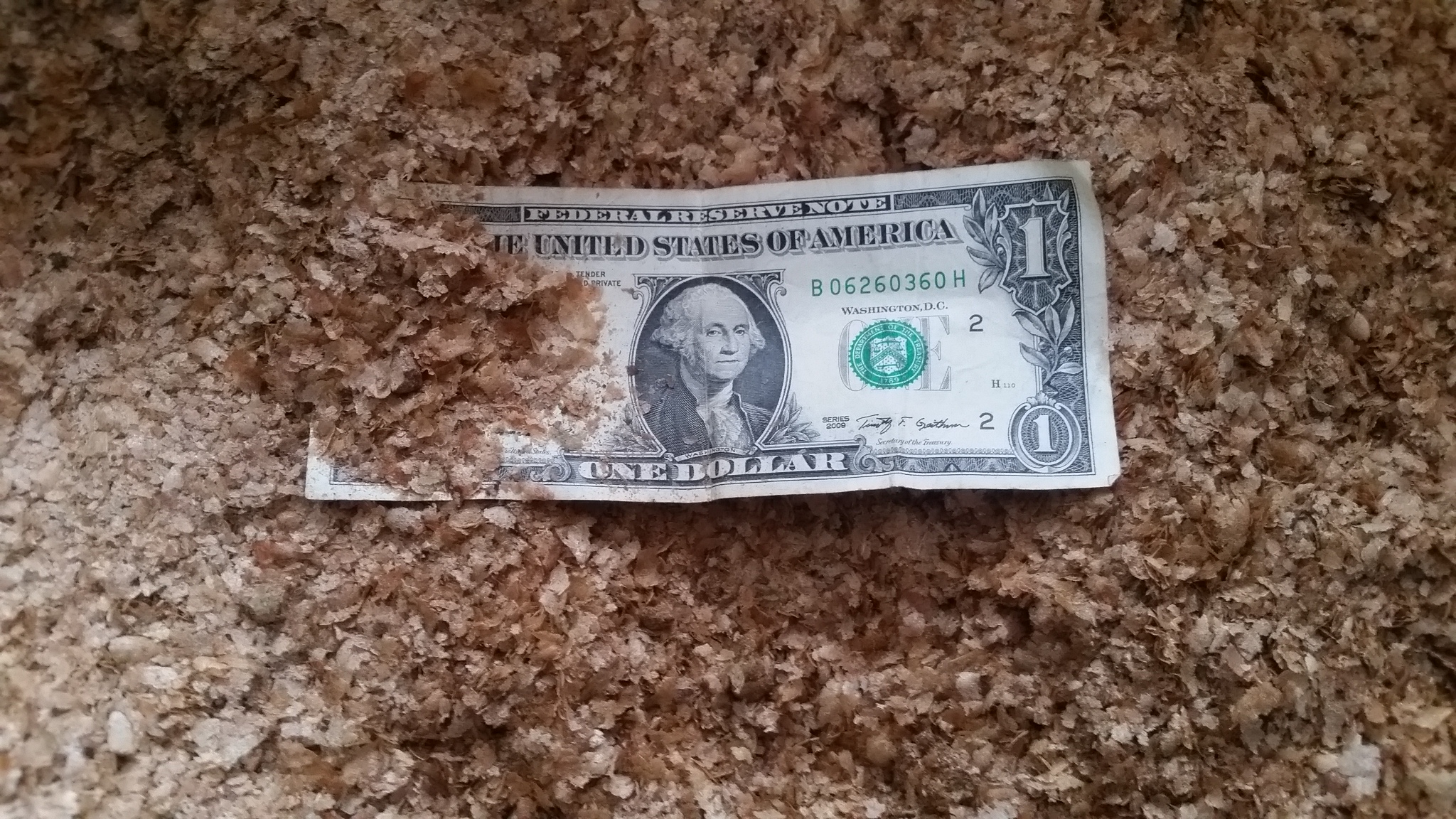

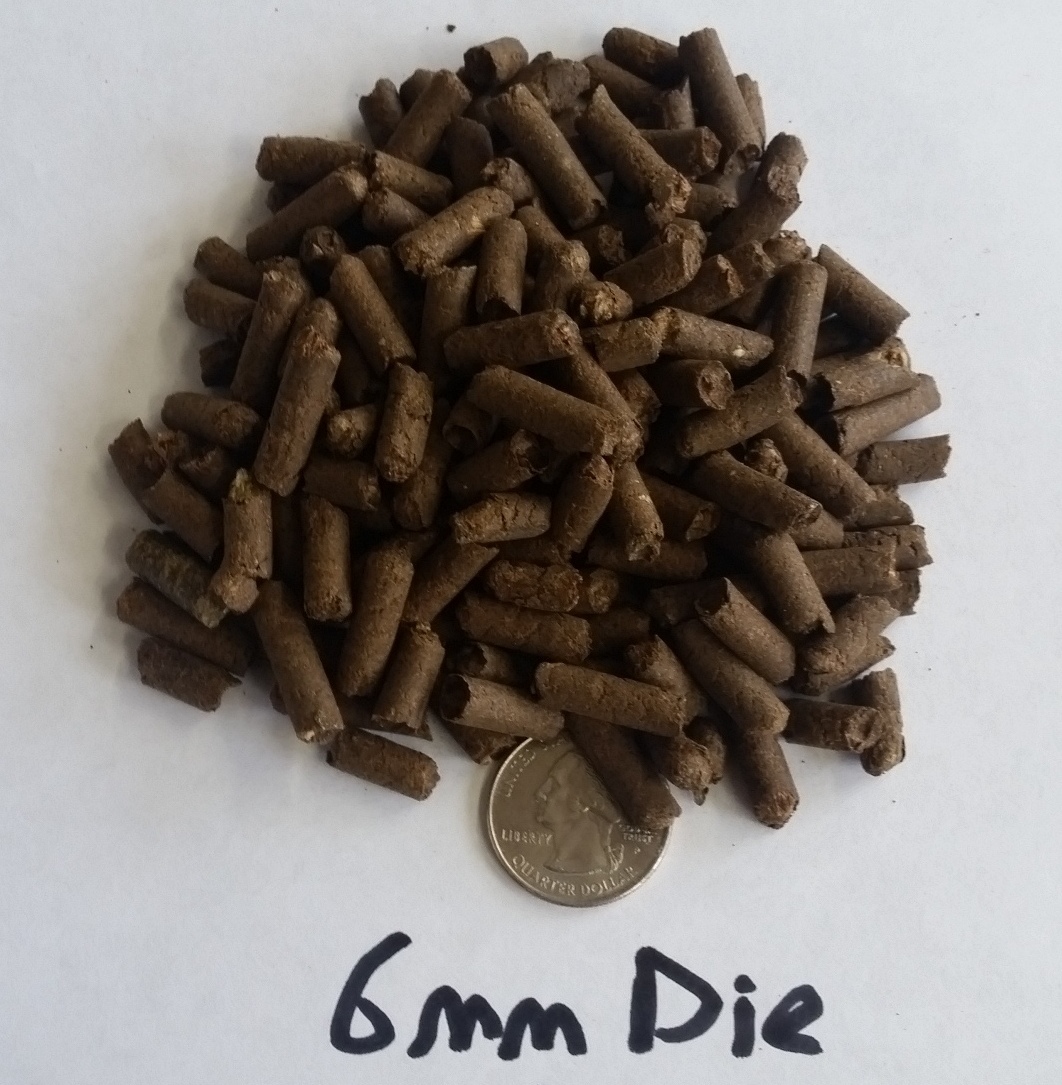

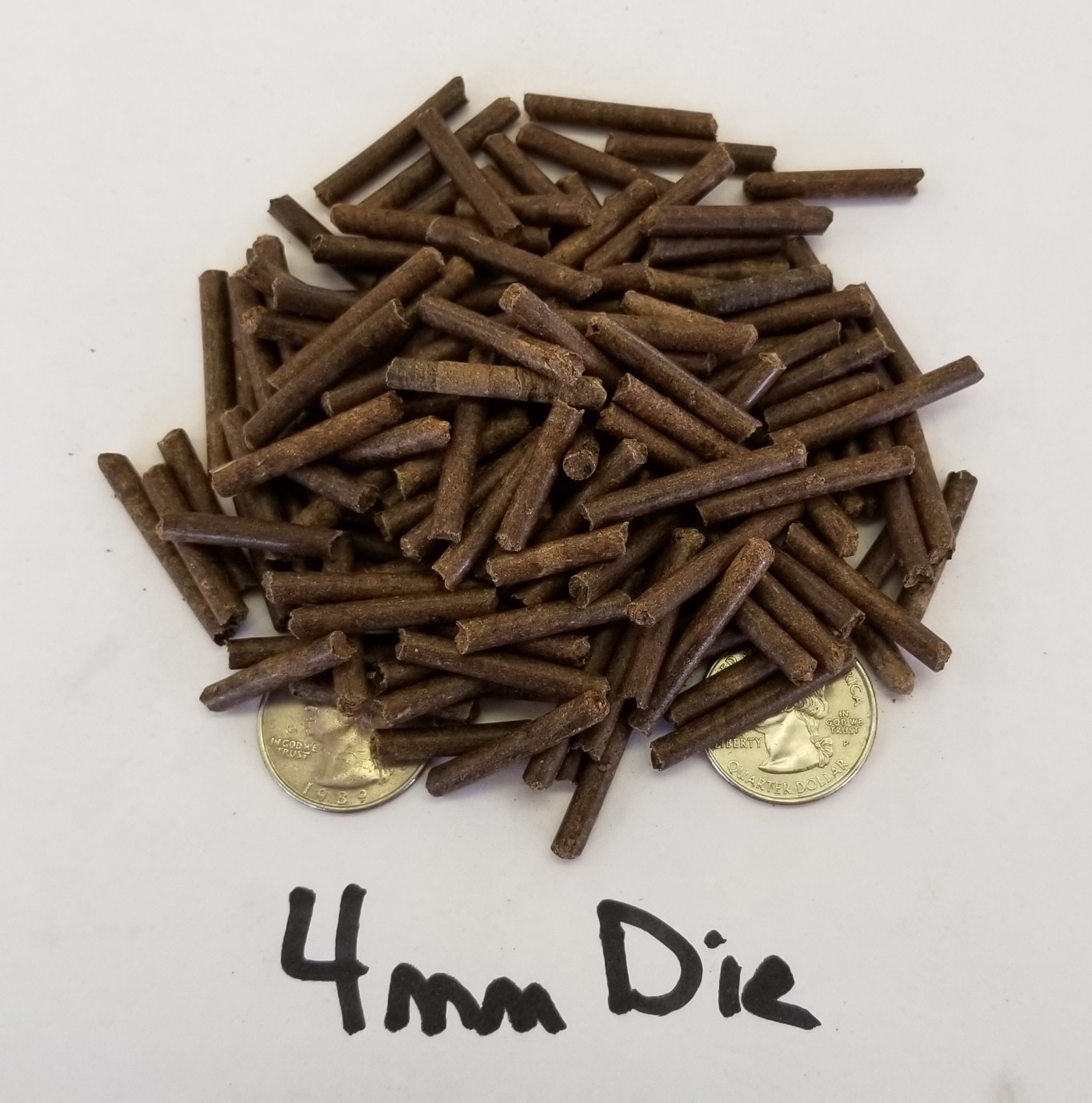

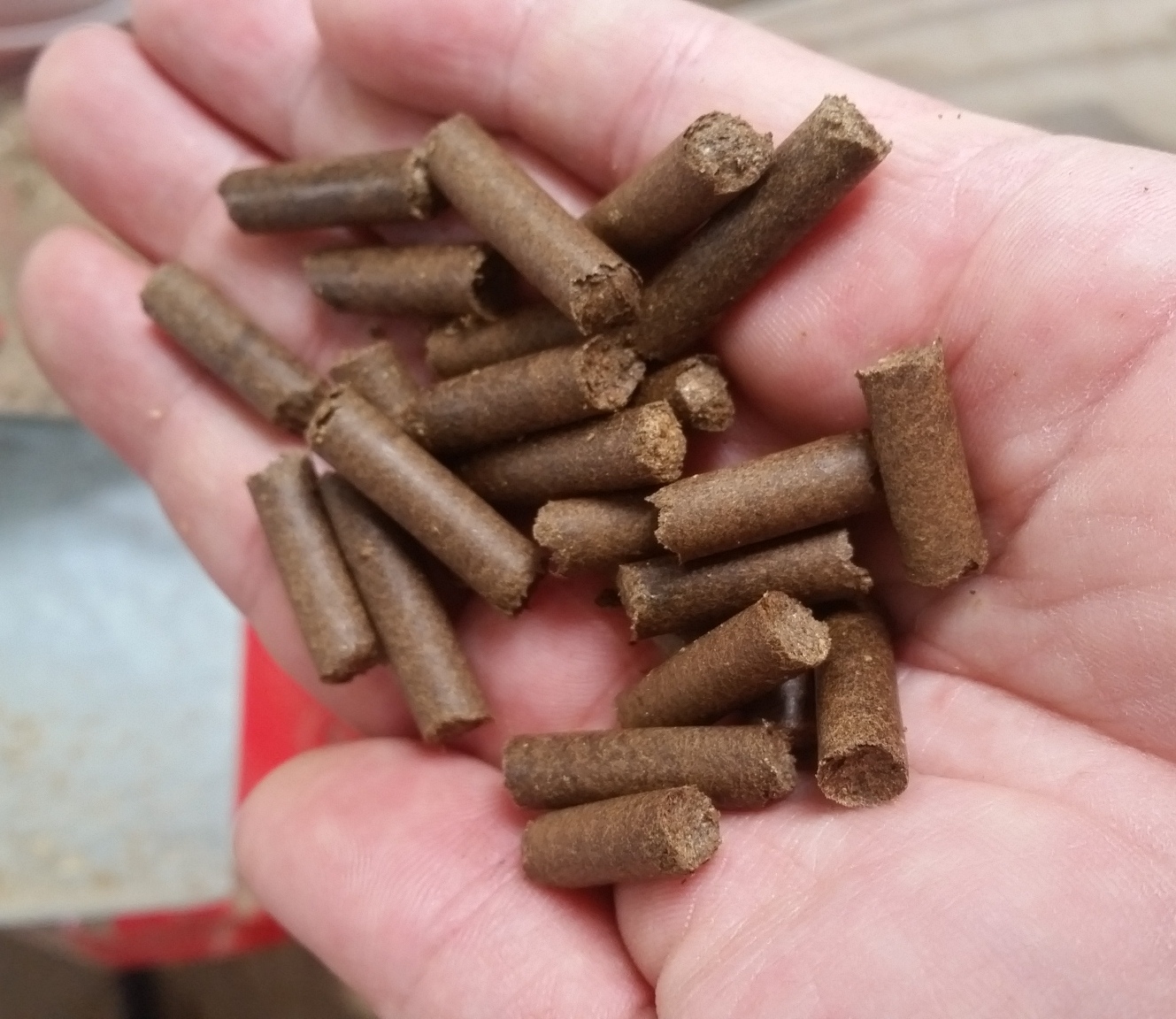

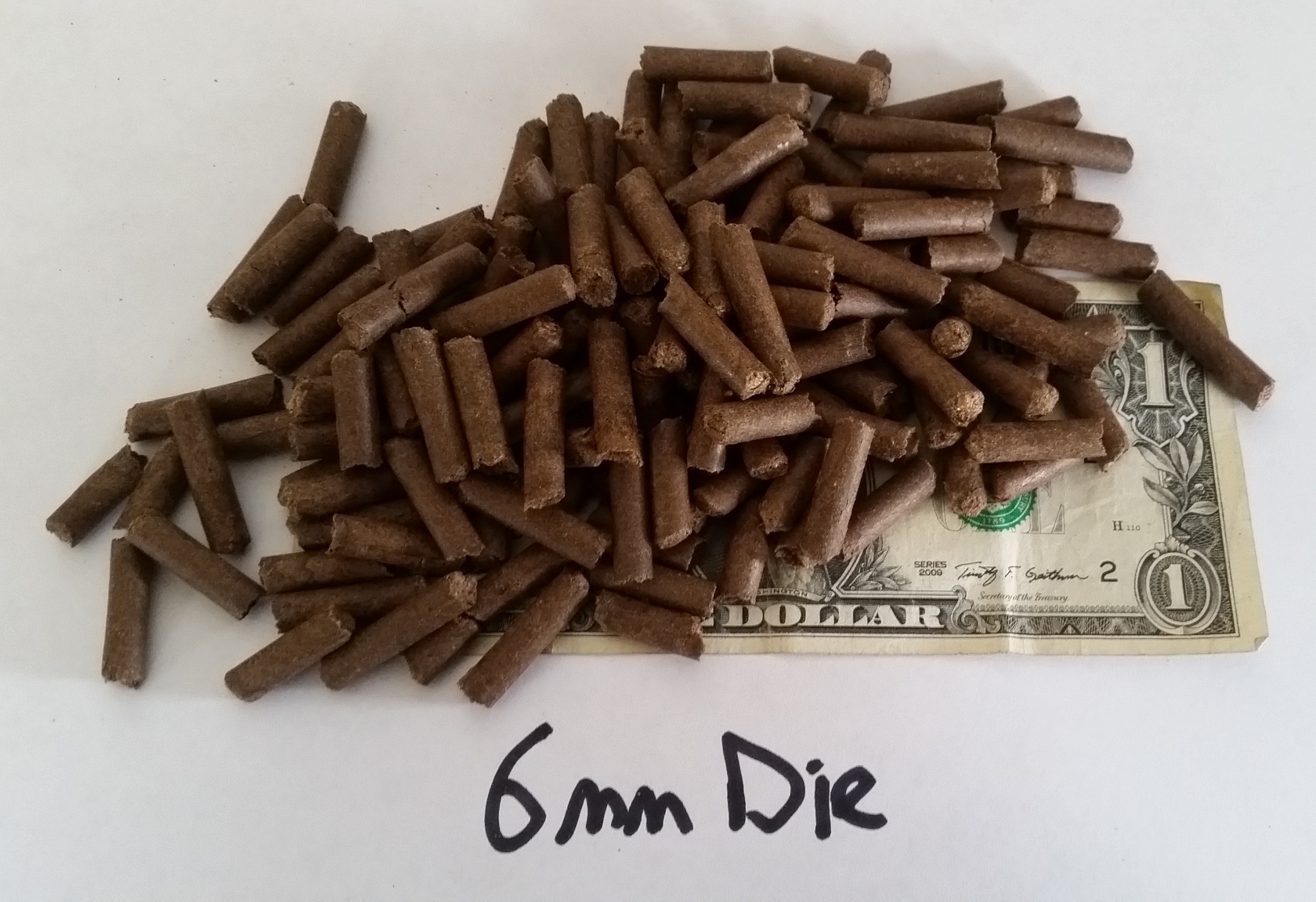

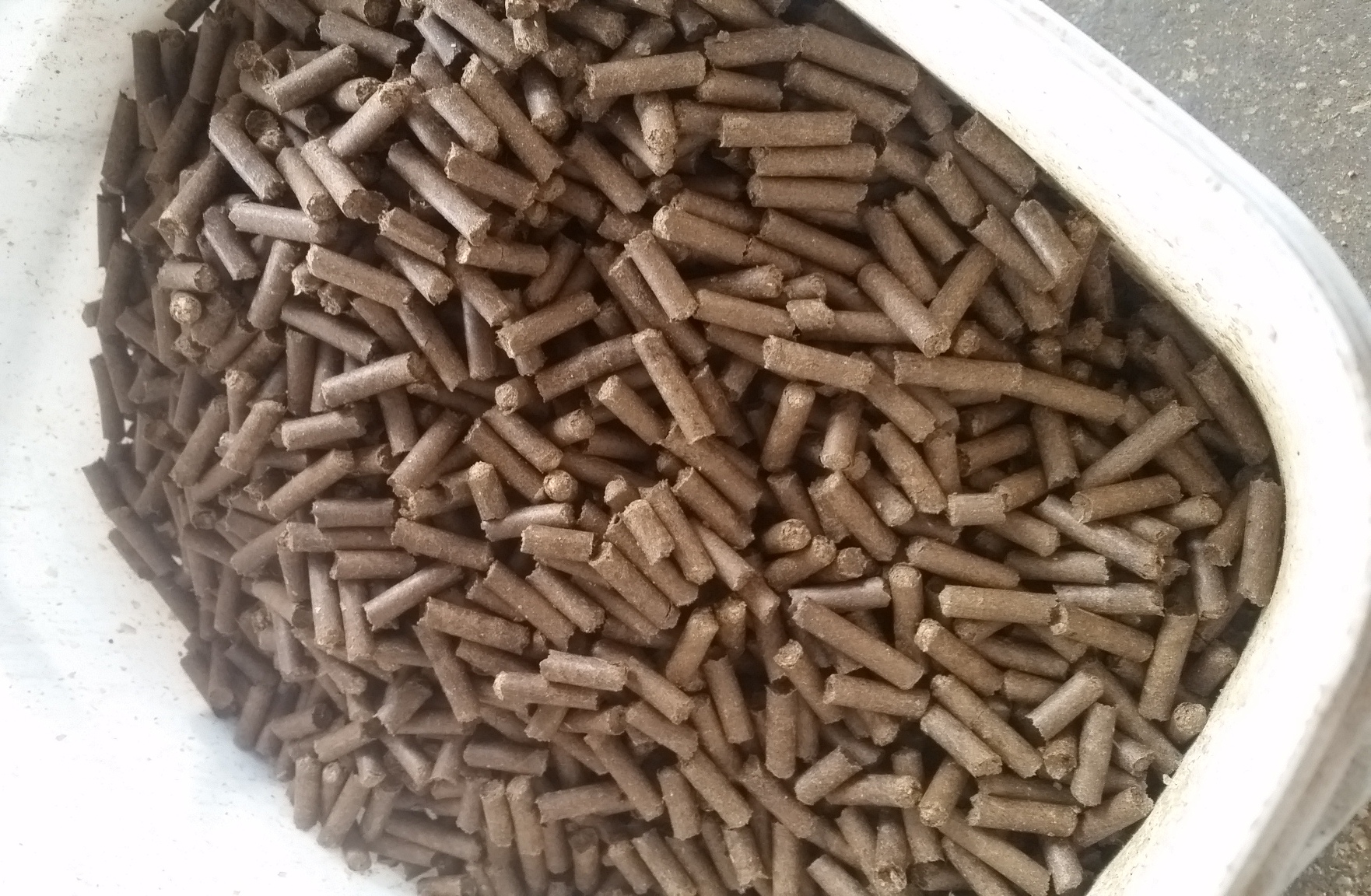

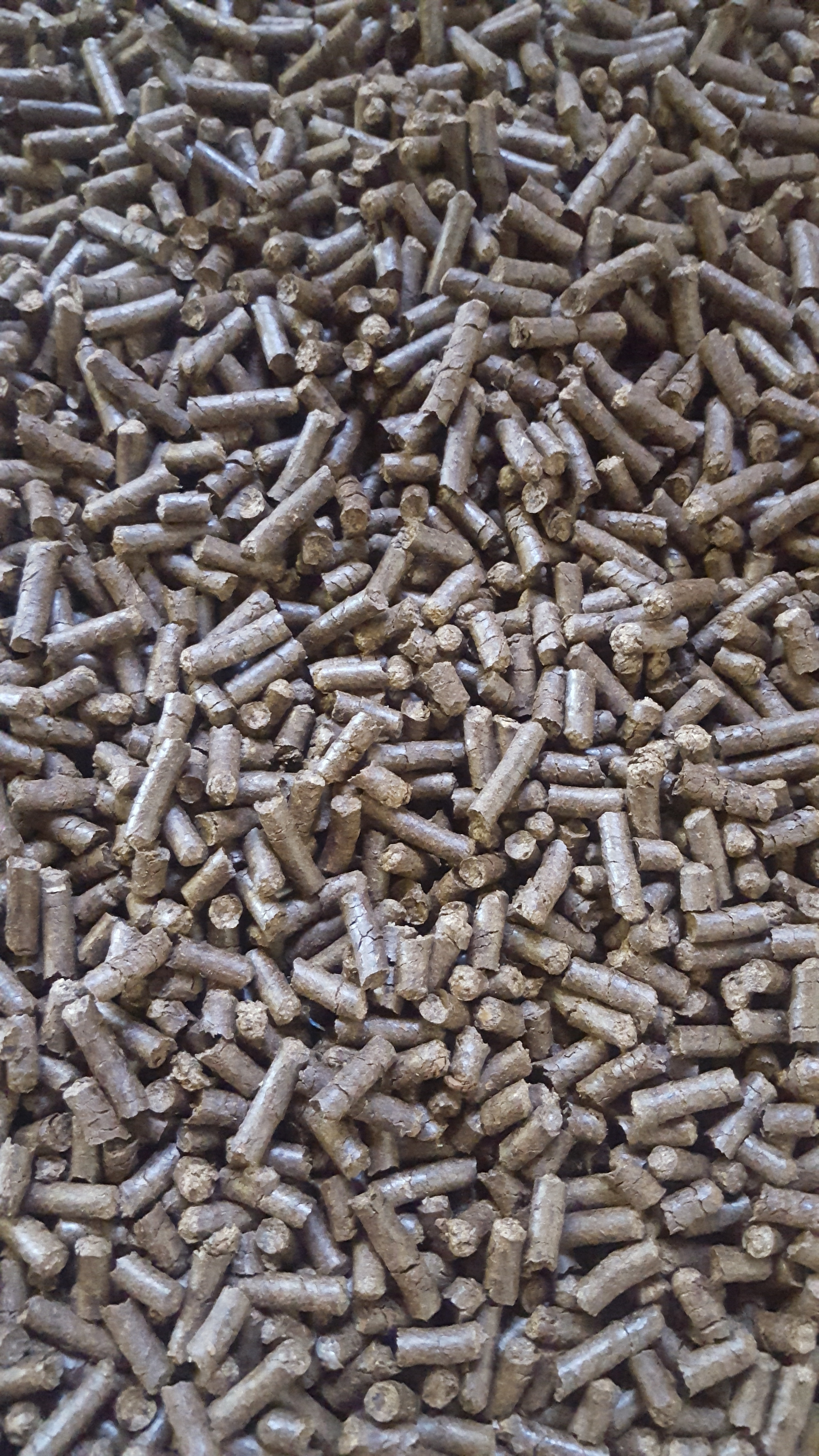

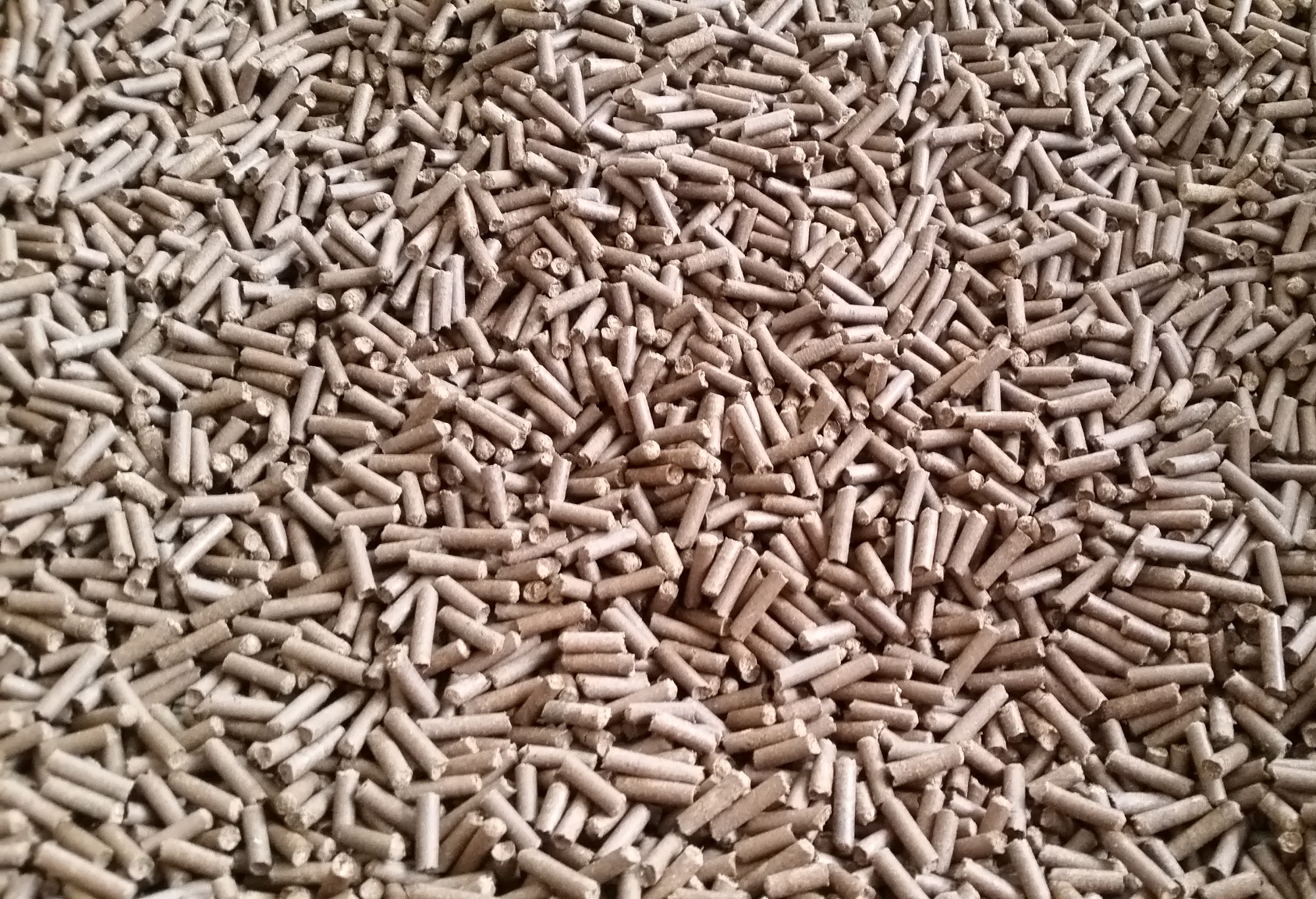

Coffee Chaff sample run through a Red (wood) Pellet Mill and Green (feed) Pellet Mill. (coffeechaffPM)

Coffee Chaff - Before Feed Mill - Chaff	Coffee Chaff Pellets Wood Mill - Chaff	Coffee Chaff Pellets Wood Mill - Chaff	Coffee Chaff Pellets Wood vs. Feed Mill
Click here for a video of Coffee Chaff through a Red (wood) Pellet Mill. Click here for a video of Coffee Chaff through a Green (feed) Pellet Mill.

---

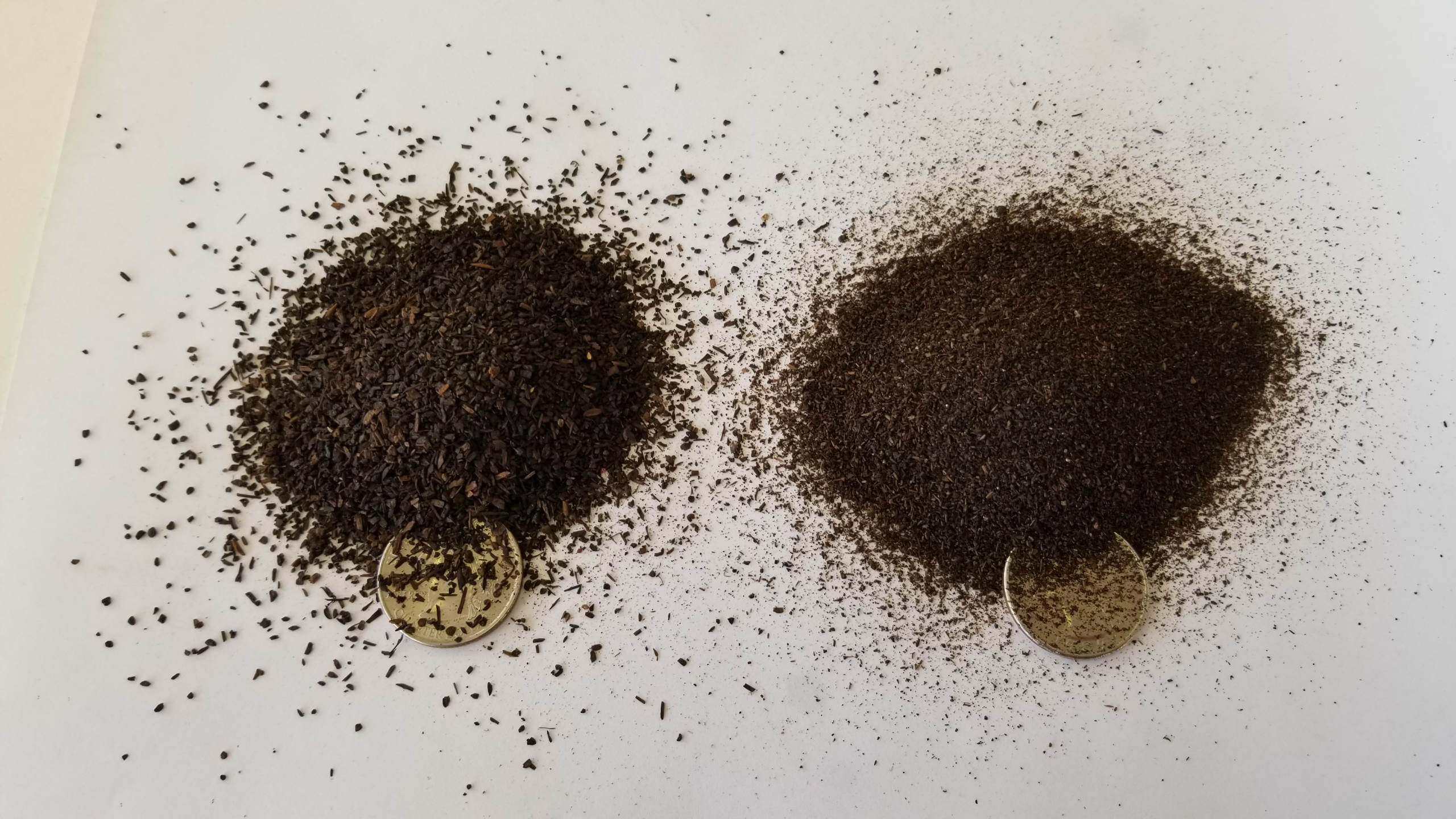

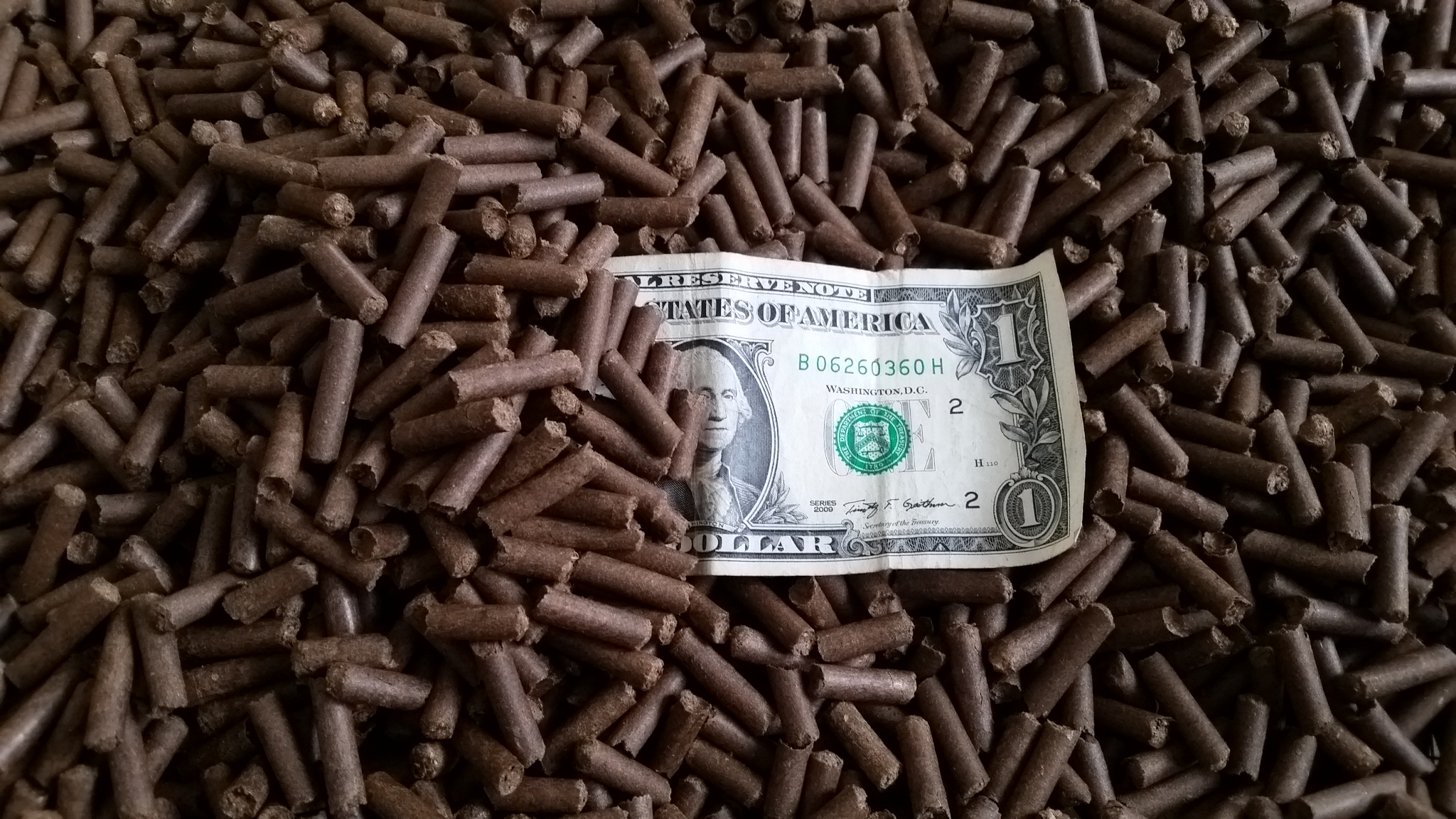

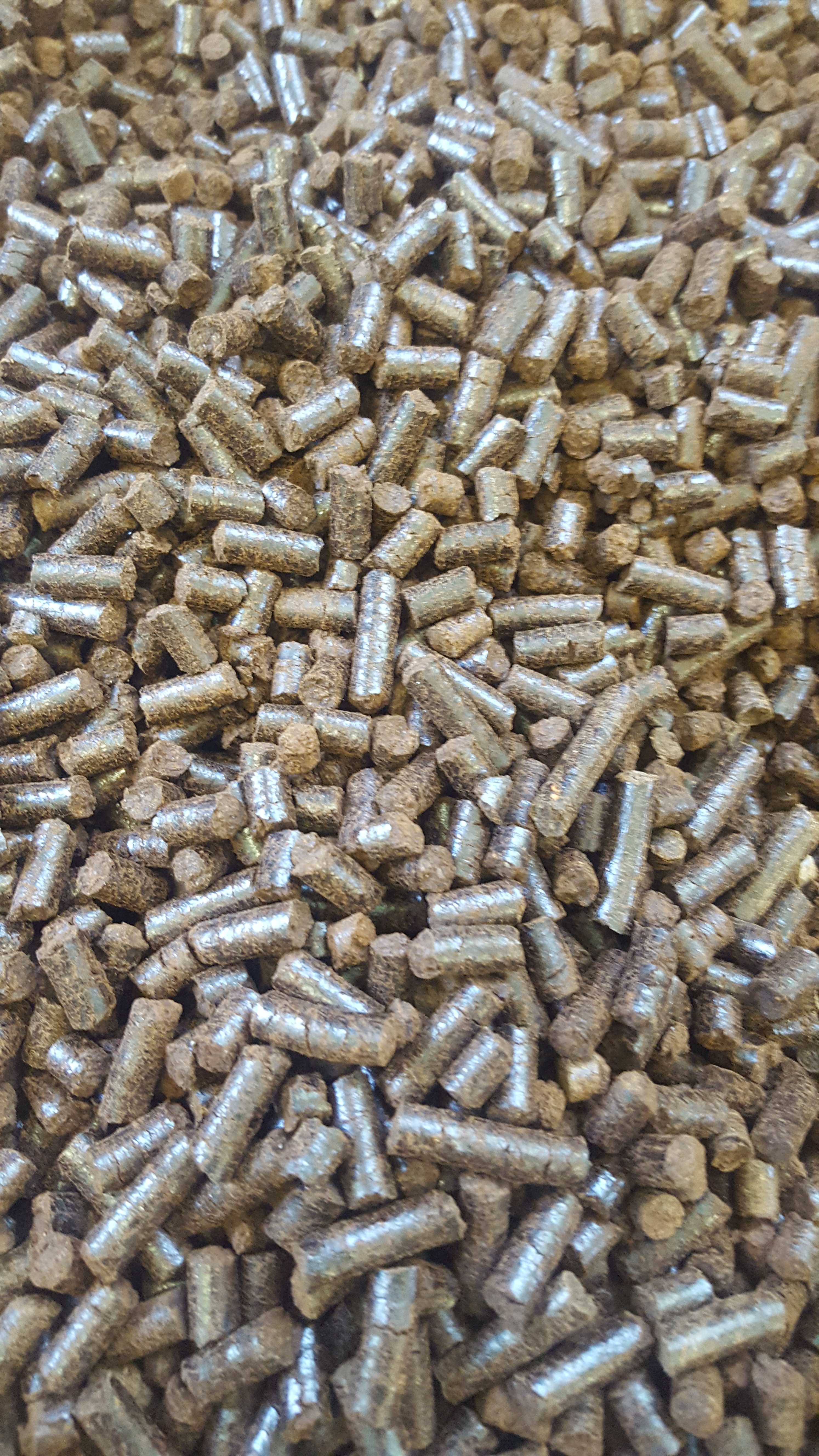

Examples of material run through the Red (wood) and Green (feed) Pellet Mills. (redgreen)

Red Mill - Coffee Chaff	Green Mill - Coffee Chaff	Red Mill - Tea	Green Mill - Coffee
All material run through a 6mm die. Some materials are more difficult to pelletize than others.

---

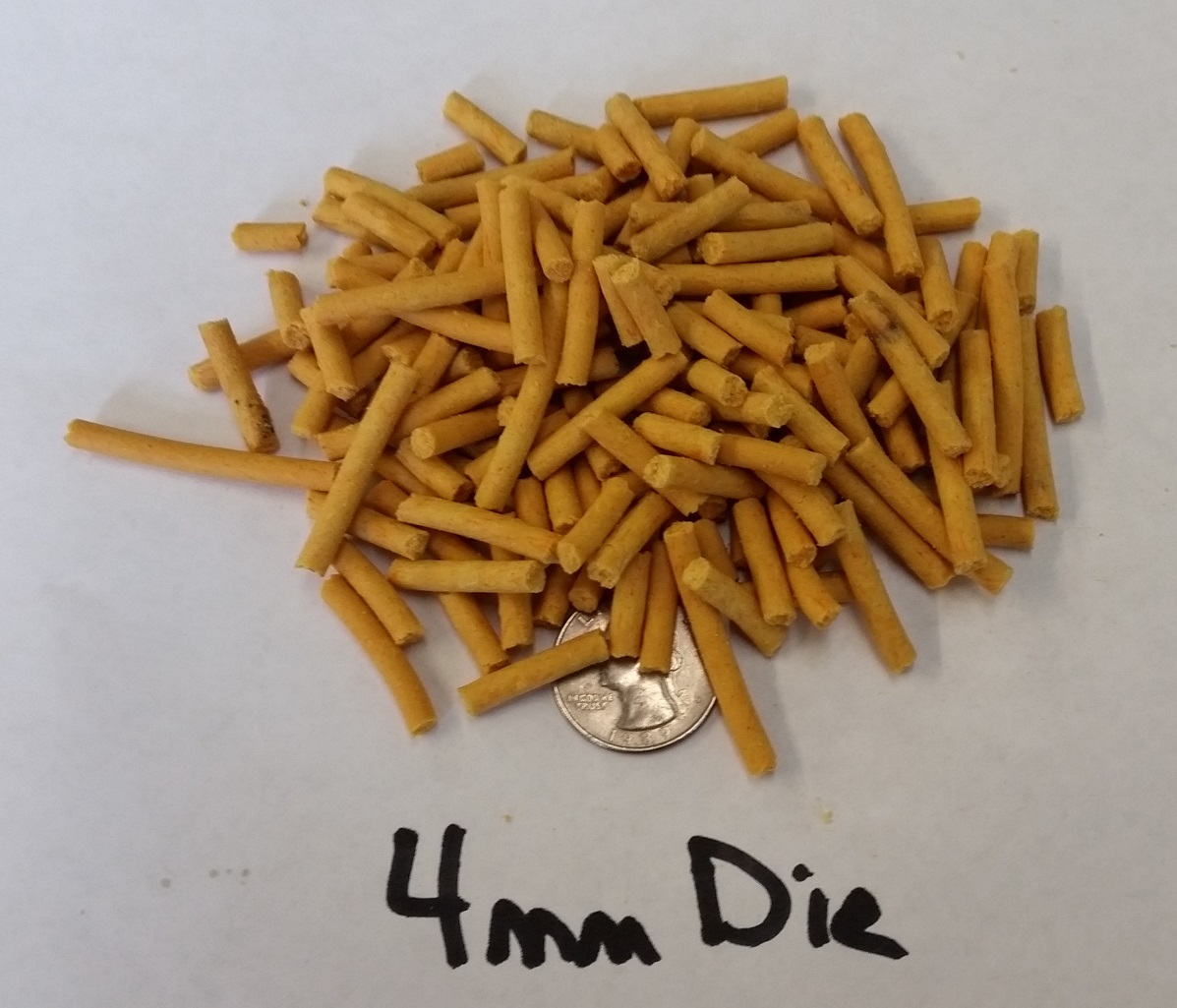

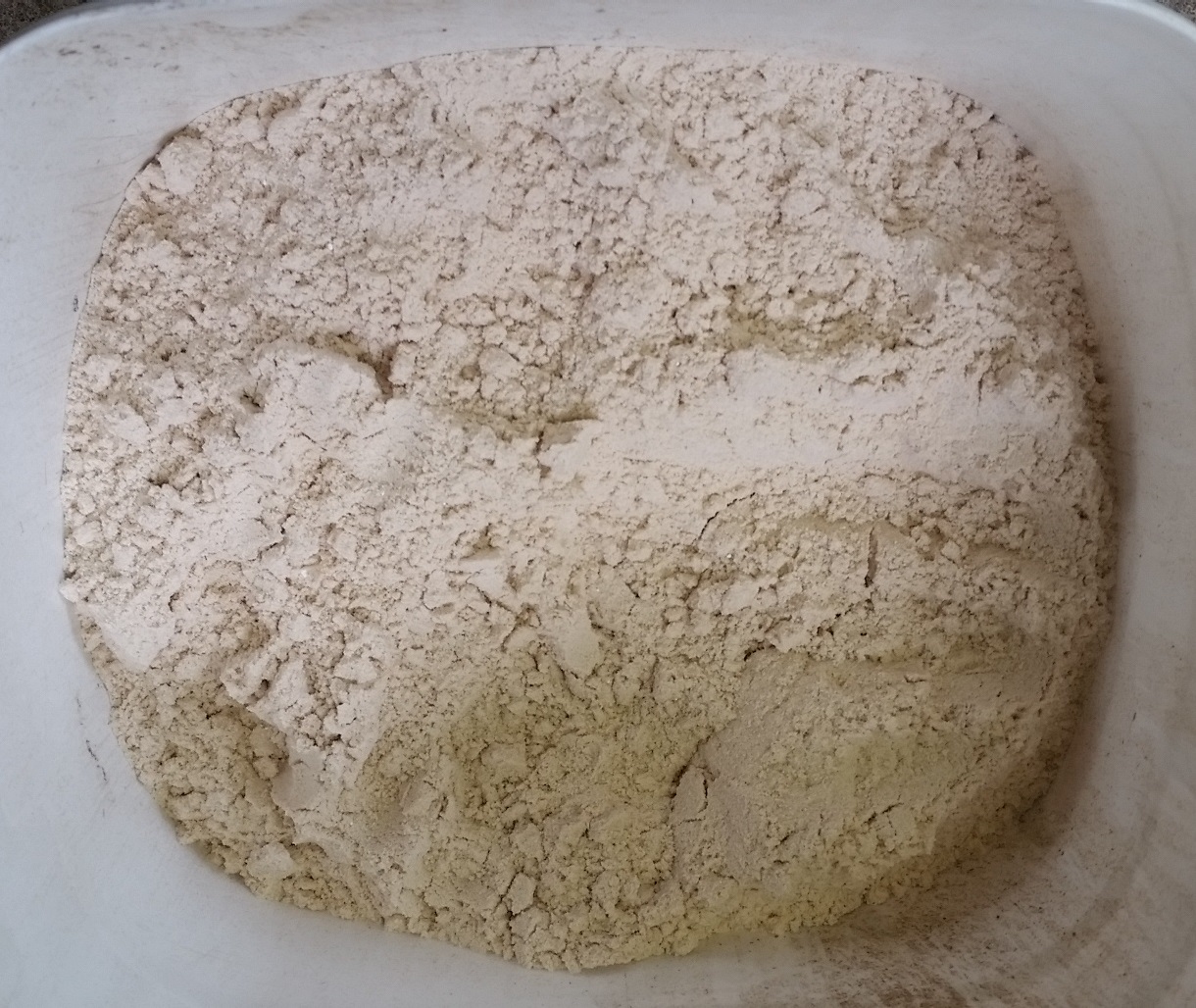

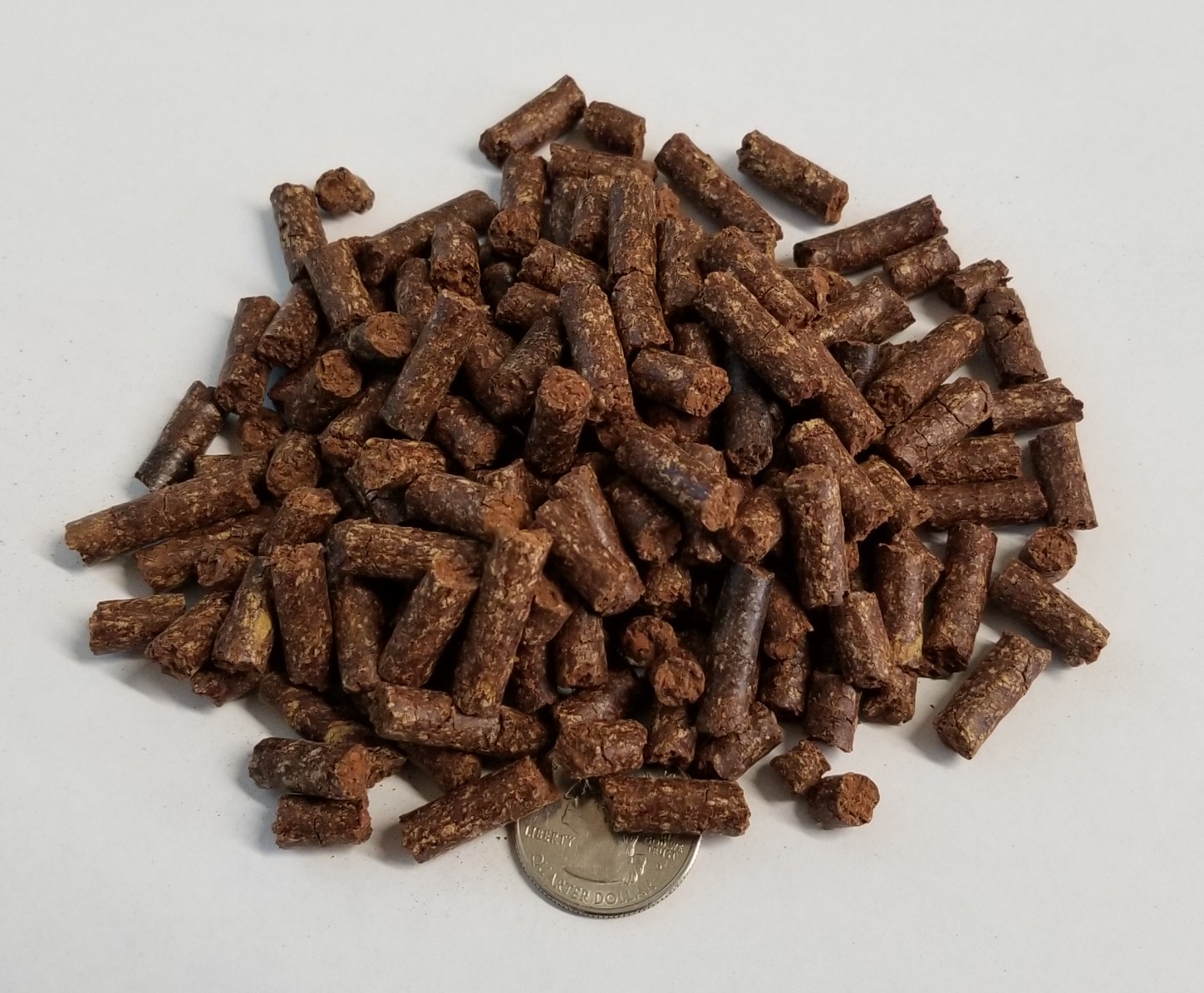

Examples of pet food material run through the Red (wood) Pellet Mills. (petfoodPM)

Red Pellet Mill	Pet Food - Before	Pet Food - Before	Pet Food - Pellets
Click here for a video of pet food material through a Red (wood) Pellet Mill. Click here for another video of pet food material through a Red (wood) Pellet Mill. Click here for another video of pet food material through a Red (wood) Pellet Mill.

---

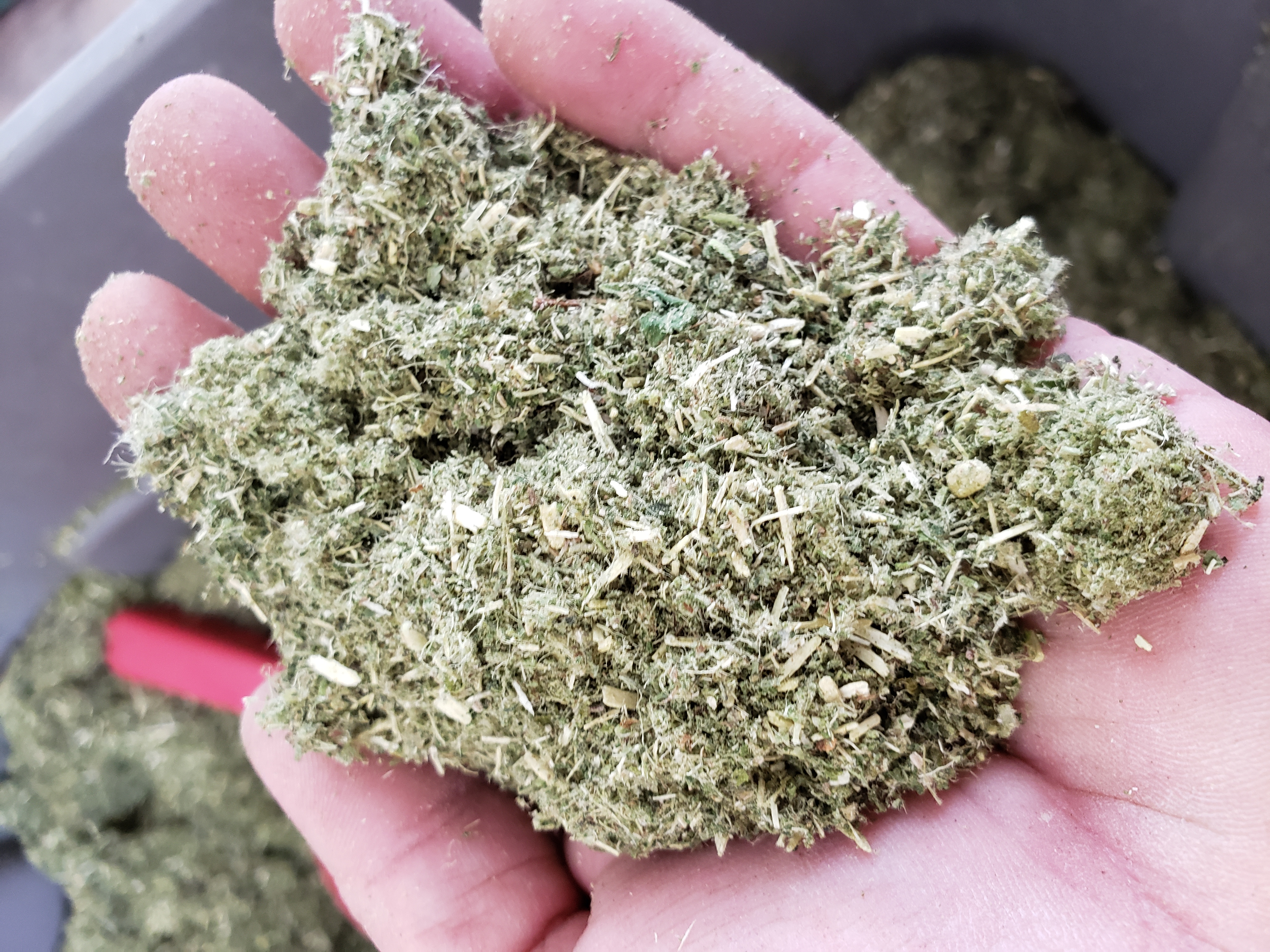

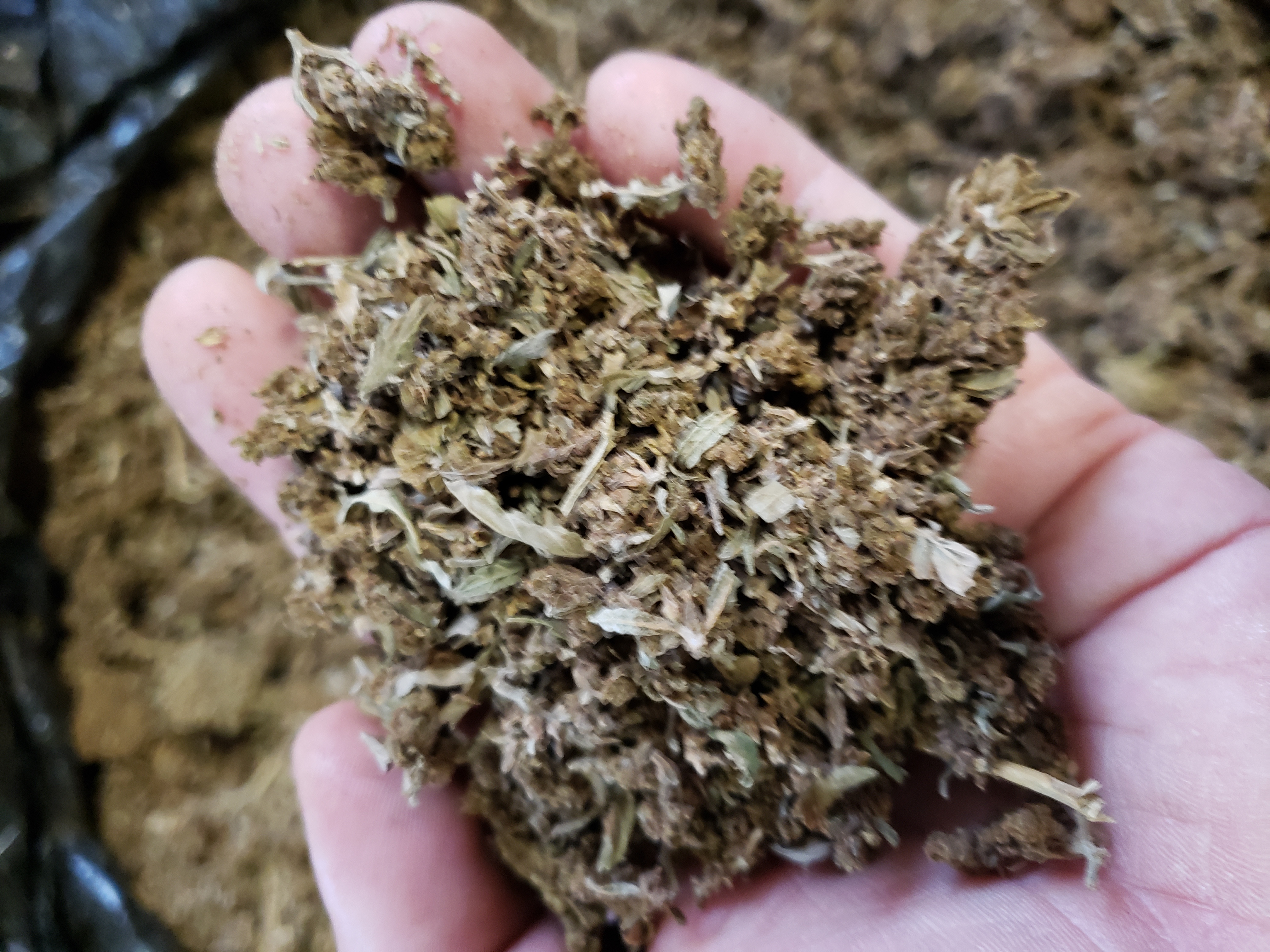

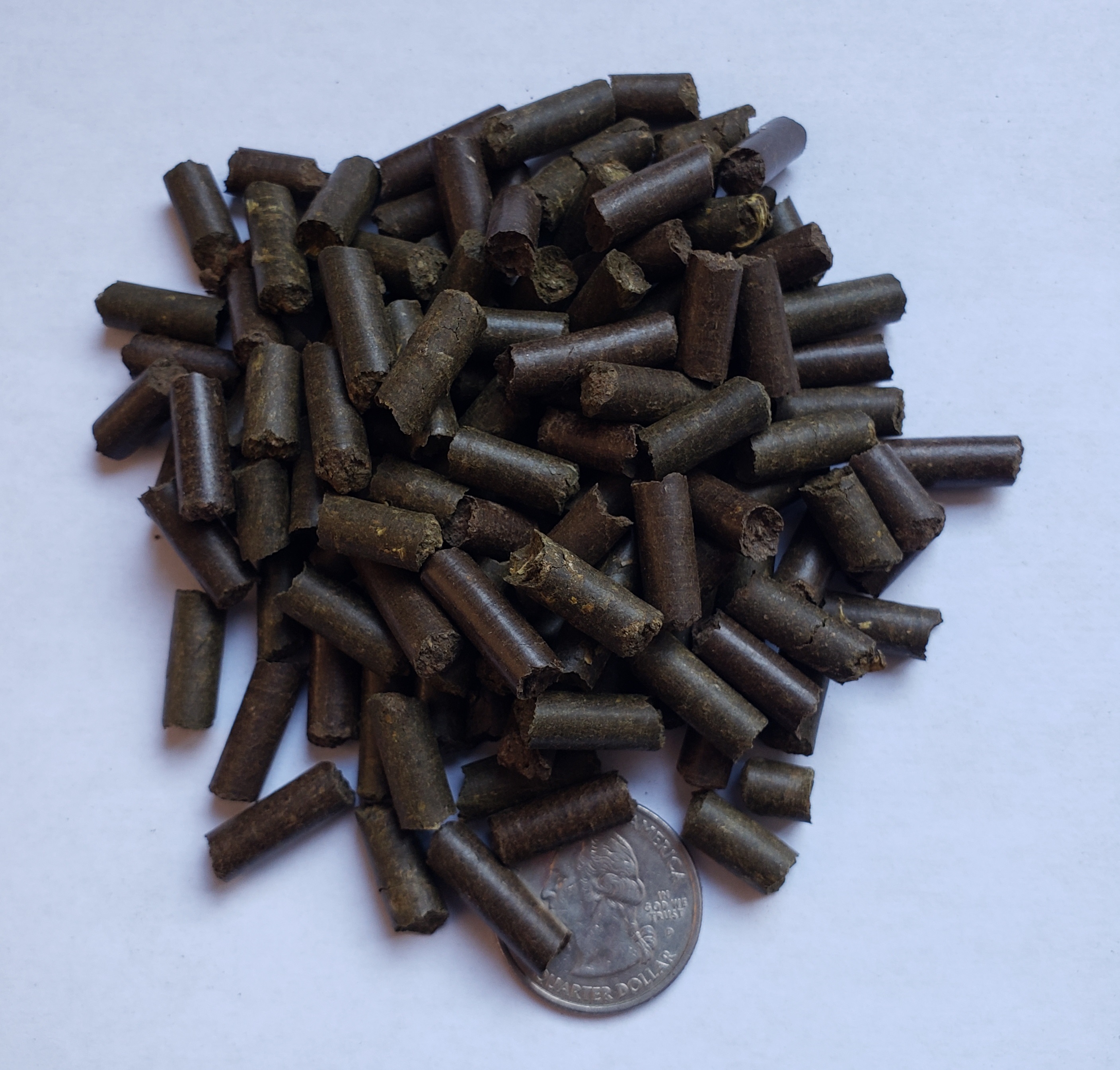

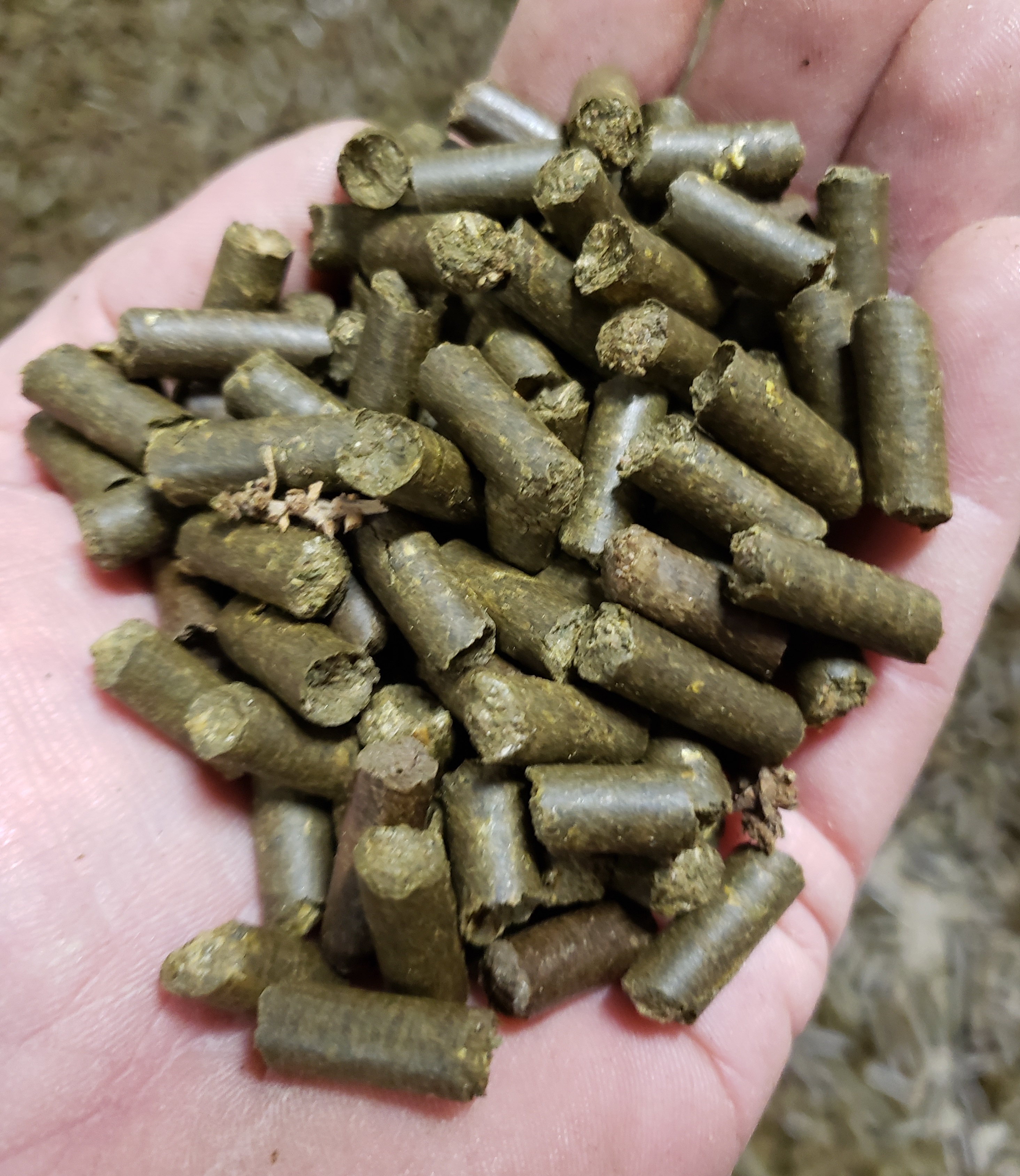

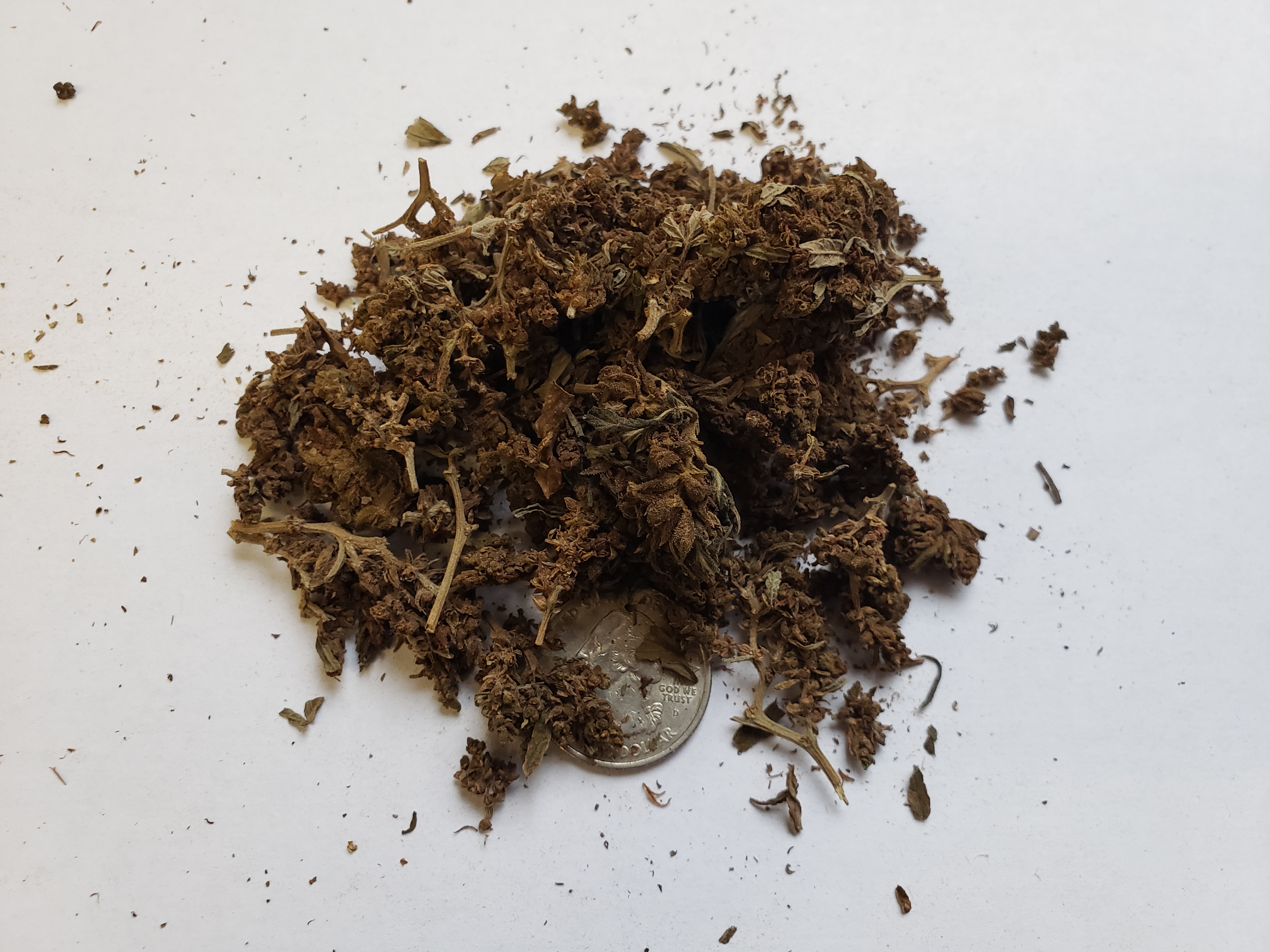

Example of Abundant Labs Hemp at around 10% moisture run through a
9" 2-Roller 10hp 220v Three Phase Electric Mill with 6mm Die. (#ALHemp)

Hemp - Before	Hemp - Before	Hemp - 6mm Pellets	Hemp - 6mm Pellets
* We ran 60 pounds of this material in around 10 minutes for a production rate of around 600 pounds an hour, which is triple the expected production rate of the machine (200 pounds per hour with difficult material like wood). * We almost always want to see the top of the roller shells moving around when adding material to the pellet mills. However, with the Abundant Labs Hemp we were able to load up the funnel and feed it as fast as it would take it. Click here for a video of Abundant Labs Hemp run through a Pellet Mill with a 6mm Die. Click here for a video of Abundant Labs Hemp run through a Pellet Mill with a 6mm Die. Click here for a video of Abundant Labs Hemp run through a Pellet Mill with a 6mm Die. Click here for a video of Abundant Labs Hemp run through a Pellet Mill with a 6mm Die. Click here for a video of Abundant Labs Hemp run through a Pellet Mill with a 6mm Die. Click here for a video of Abundant Labs Hemp run through a Pellet Mill with a 6mm Die. Click here for a video of Abundant Labs Hemp run through a Pellet Mill with a 6mm Die. Click here for a video of Abundant Labs Hemp run through a Pellet Mill with a 6mm Die. Click here for a video of Abundant Labs Hemp run through a Pellet Mill with a 6mm Die.

---

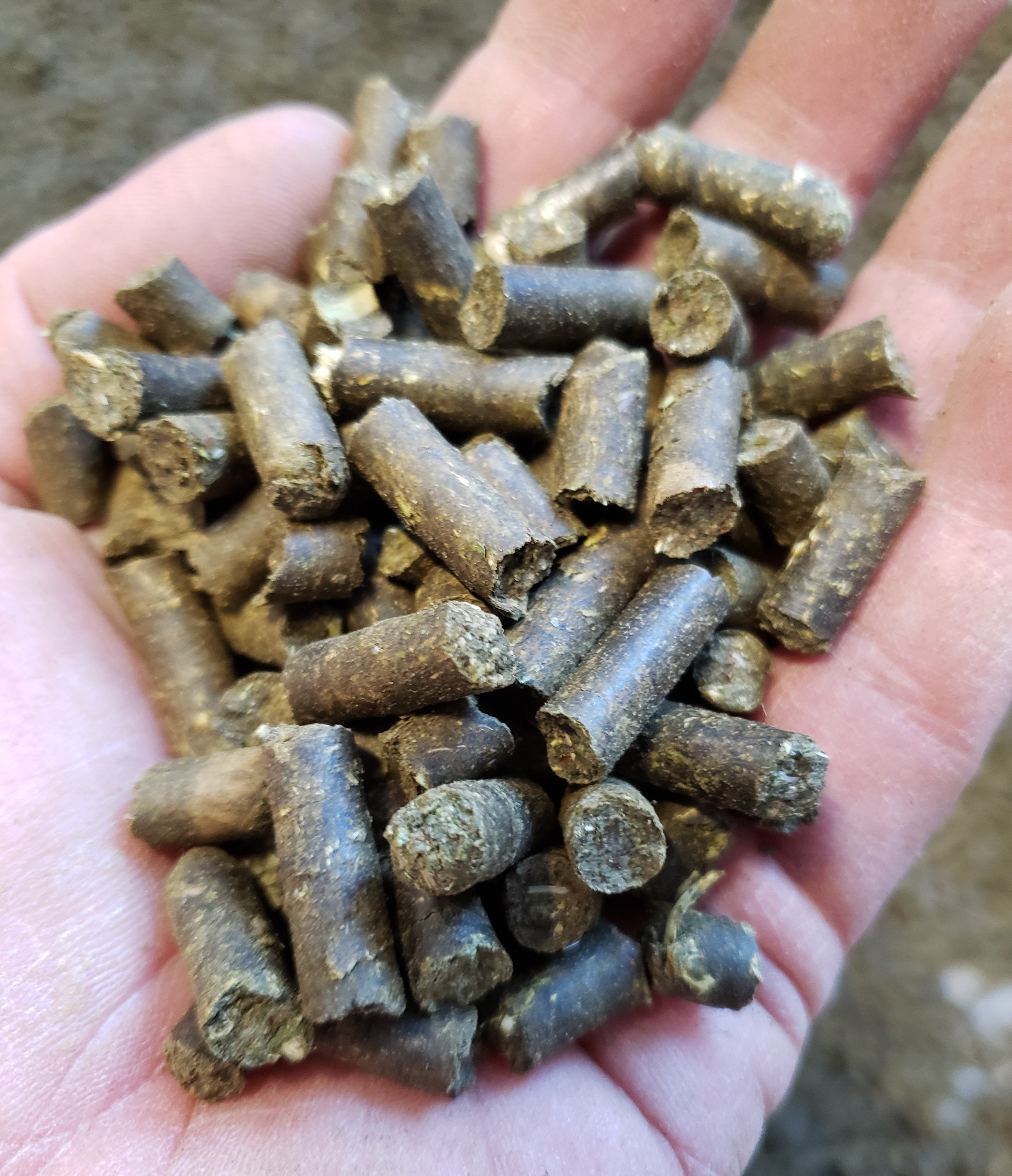

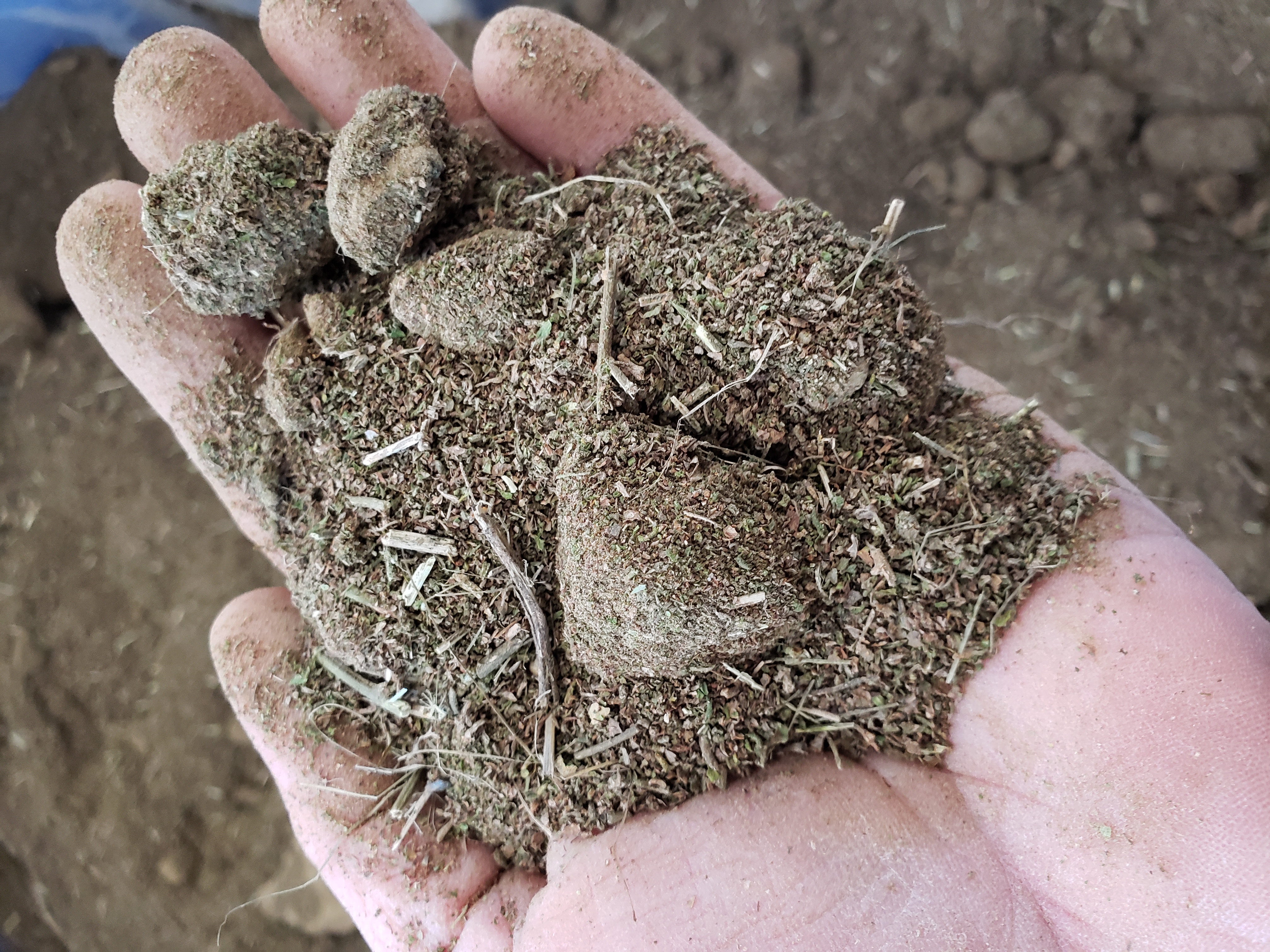

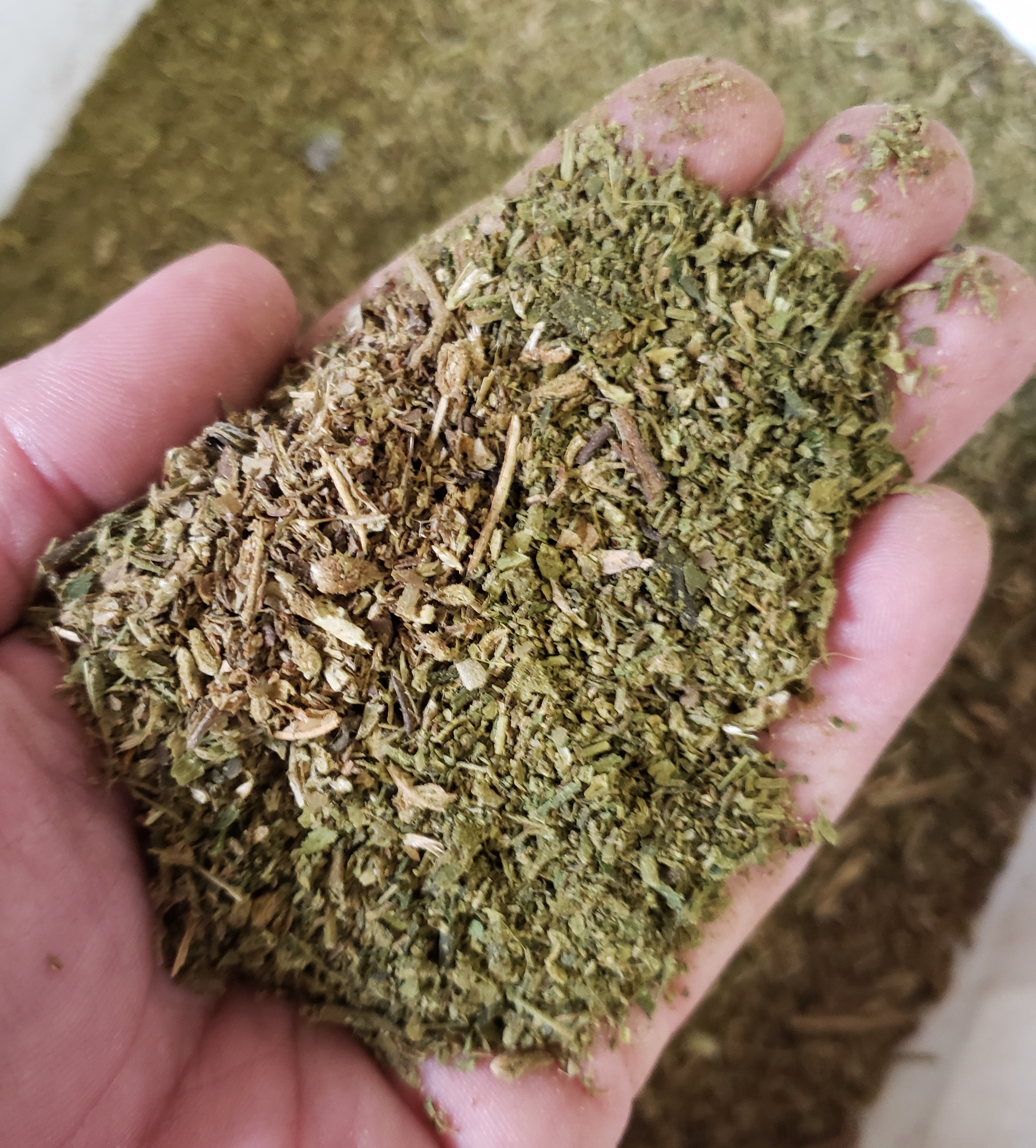

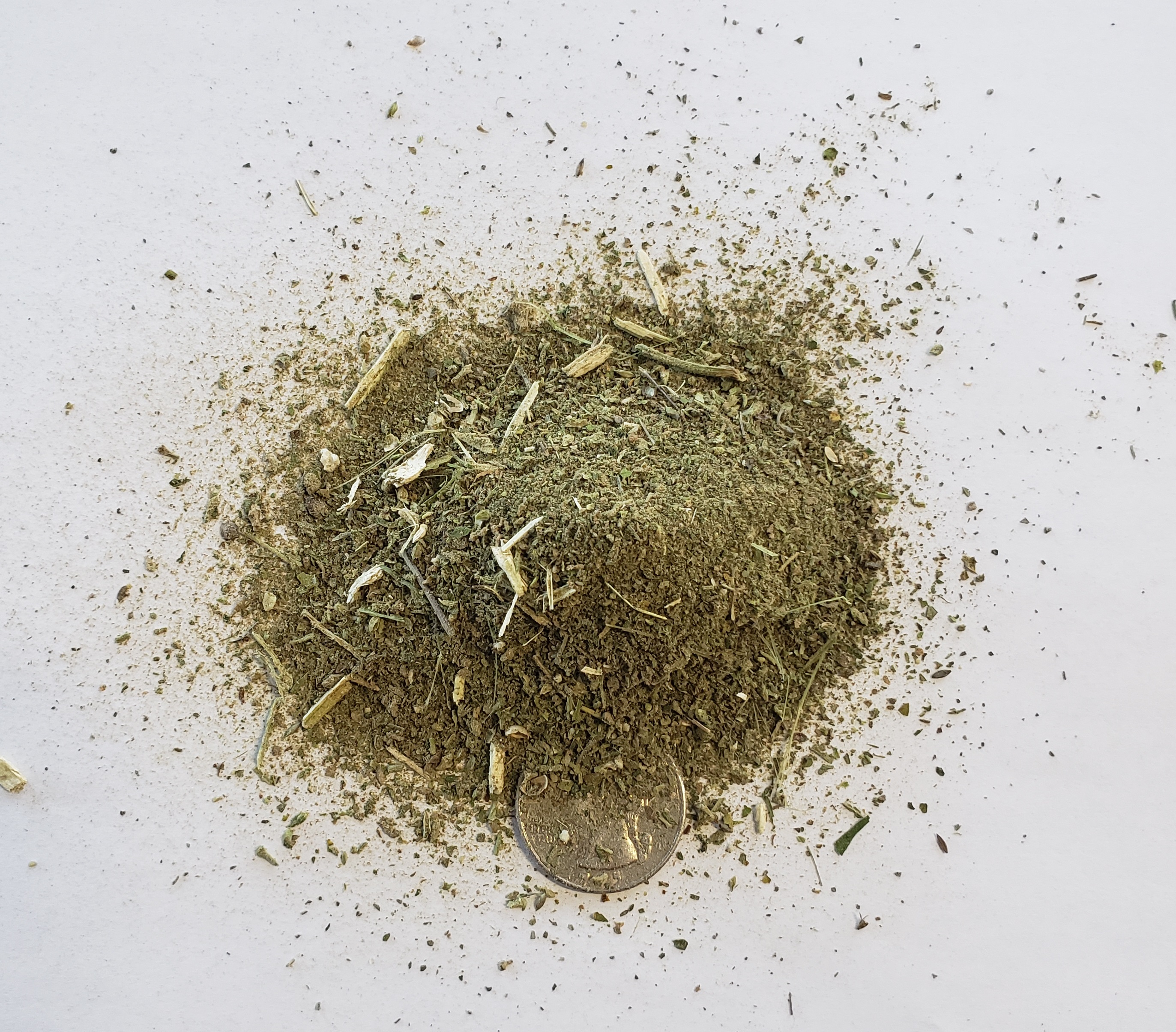

Example of Marijuana Hemp Cannabis at 10% moisture run through a
12" 2-Roller 20hp 220v Three Phase Electric Mill with 6mm Die. (#ZHemp52)

Hemp - Before	Hemp - Before	Hemp - 6mm Pellets	Hemp - 6mm Pellets
* We ran 40 pounds of this material in around 3 minutes for a production rate of almost 800 pounds an hour, which is double the production rate of the machine (400 pounds per hour with difficult material like wood). Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die.

---

Example of Marijuana Hemp Cannabis at 10% moisture run through a
12" 2-Roller 20hp 220v Three Phase Electric Mill with 6mm Die. (#ZHemp50)

Hemp - Before	Hemp - Before	Hemp - 6mm Pellets	Hemp - 6mm Pellets
* We ran 40 pounds of this material in around 3 minutes for a production rate of almost 800 pounds an hour, which is double the production rate of the machine (400 pounds per hour). Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die.

---

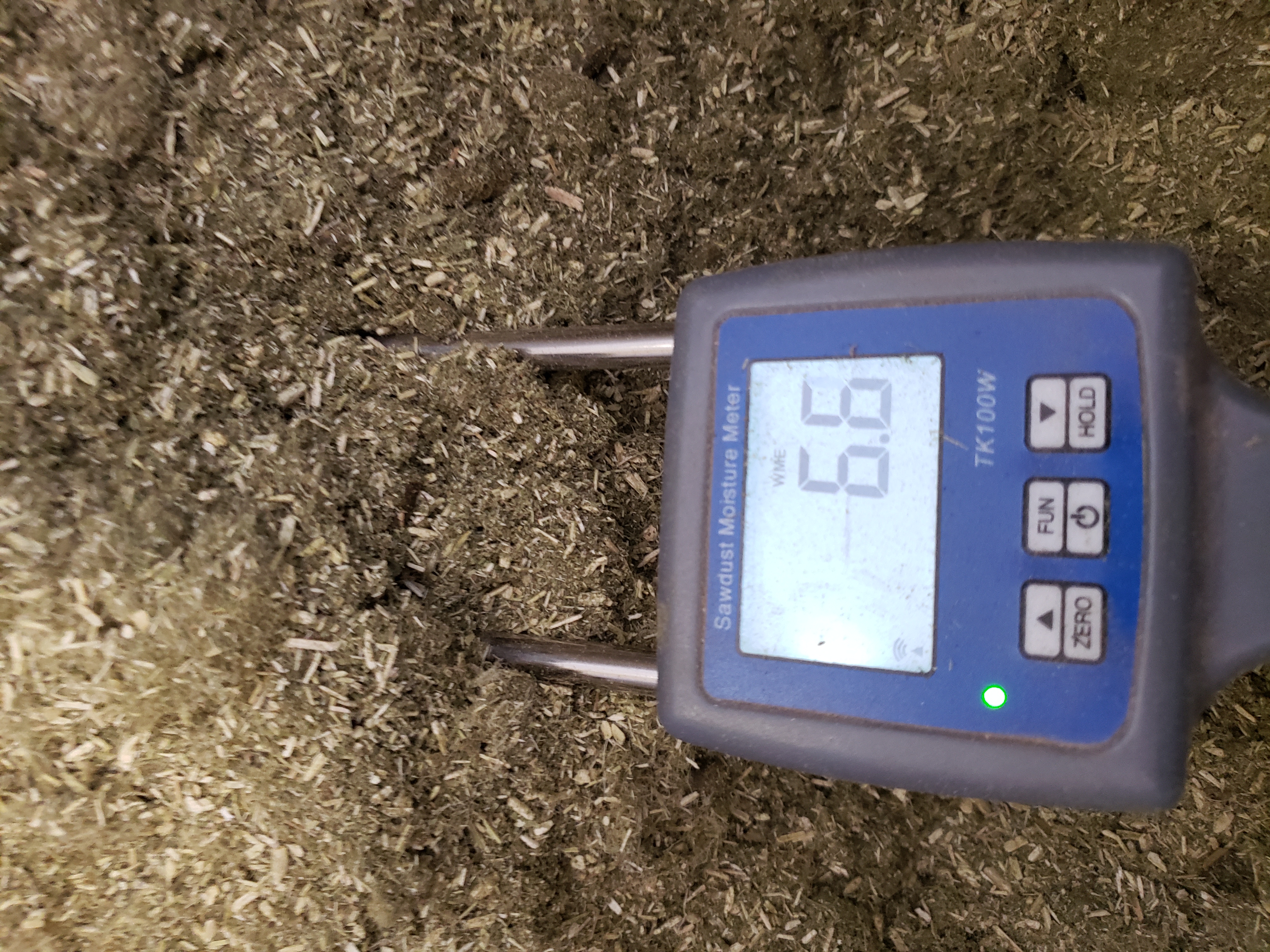

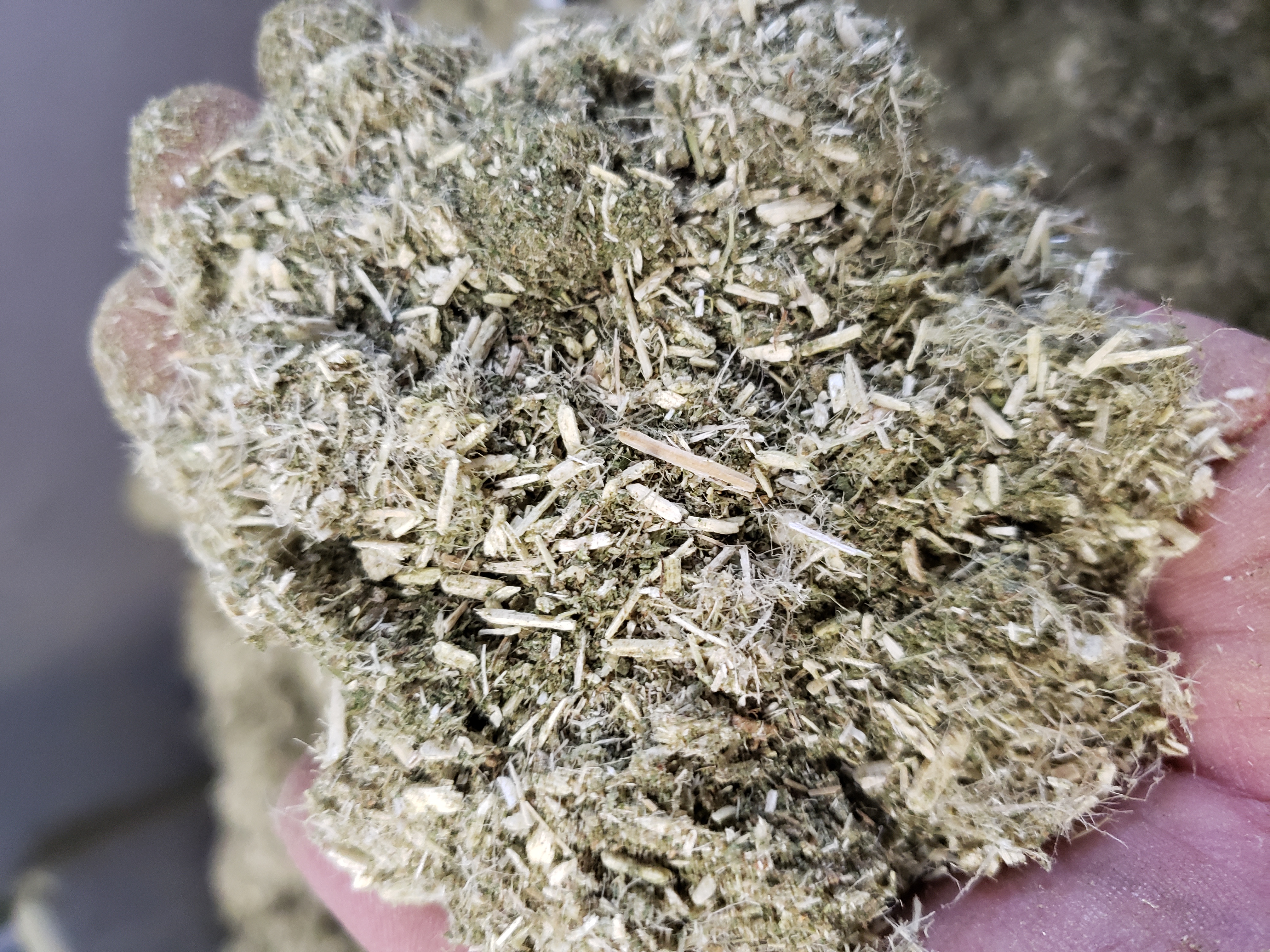

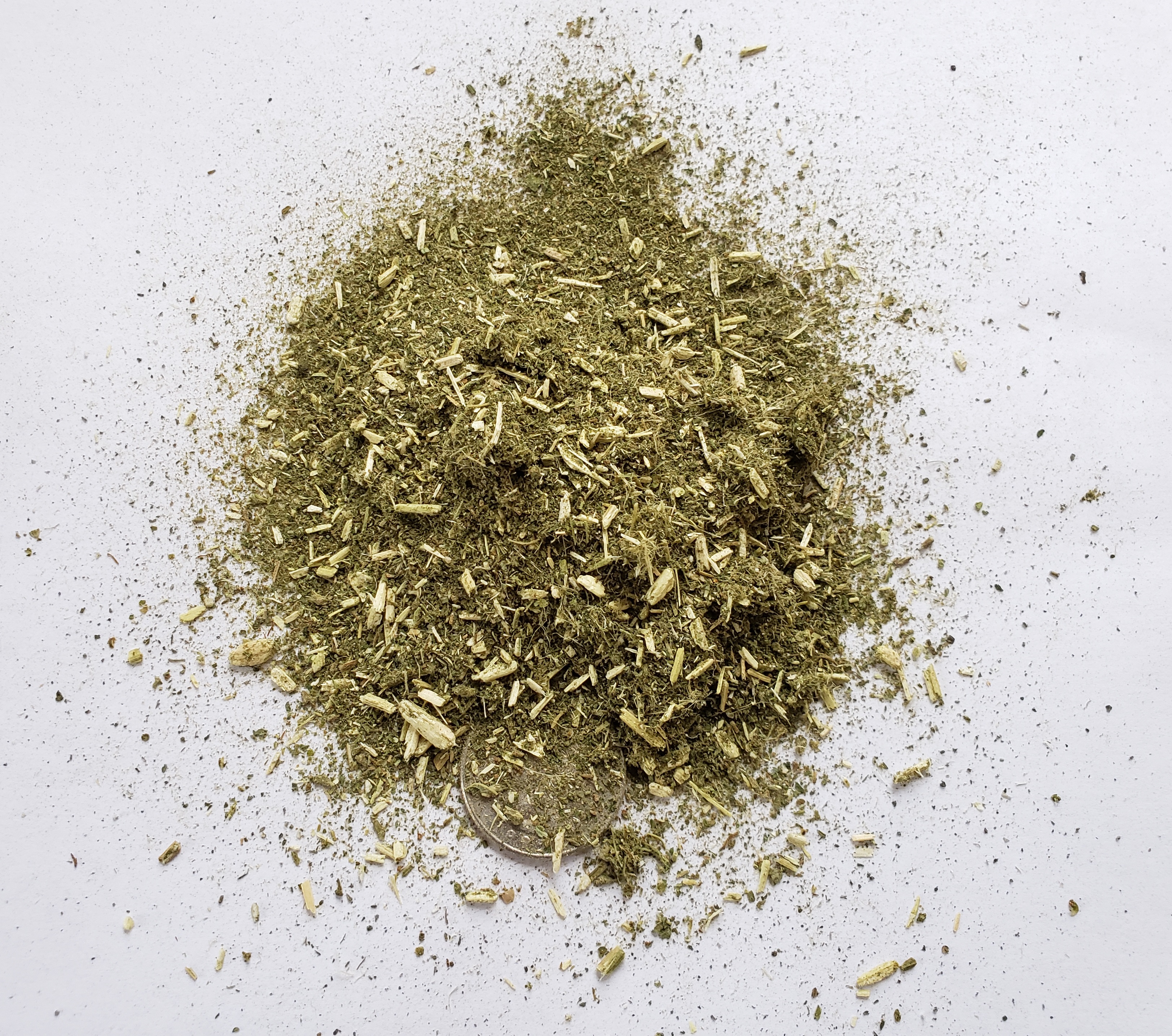

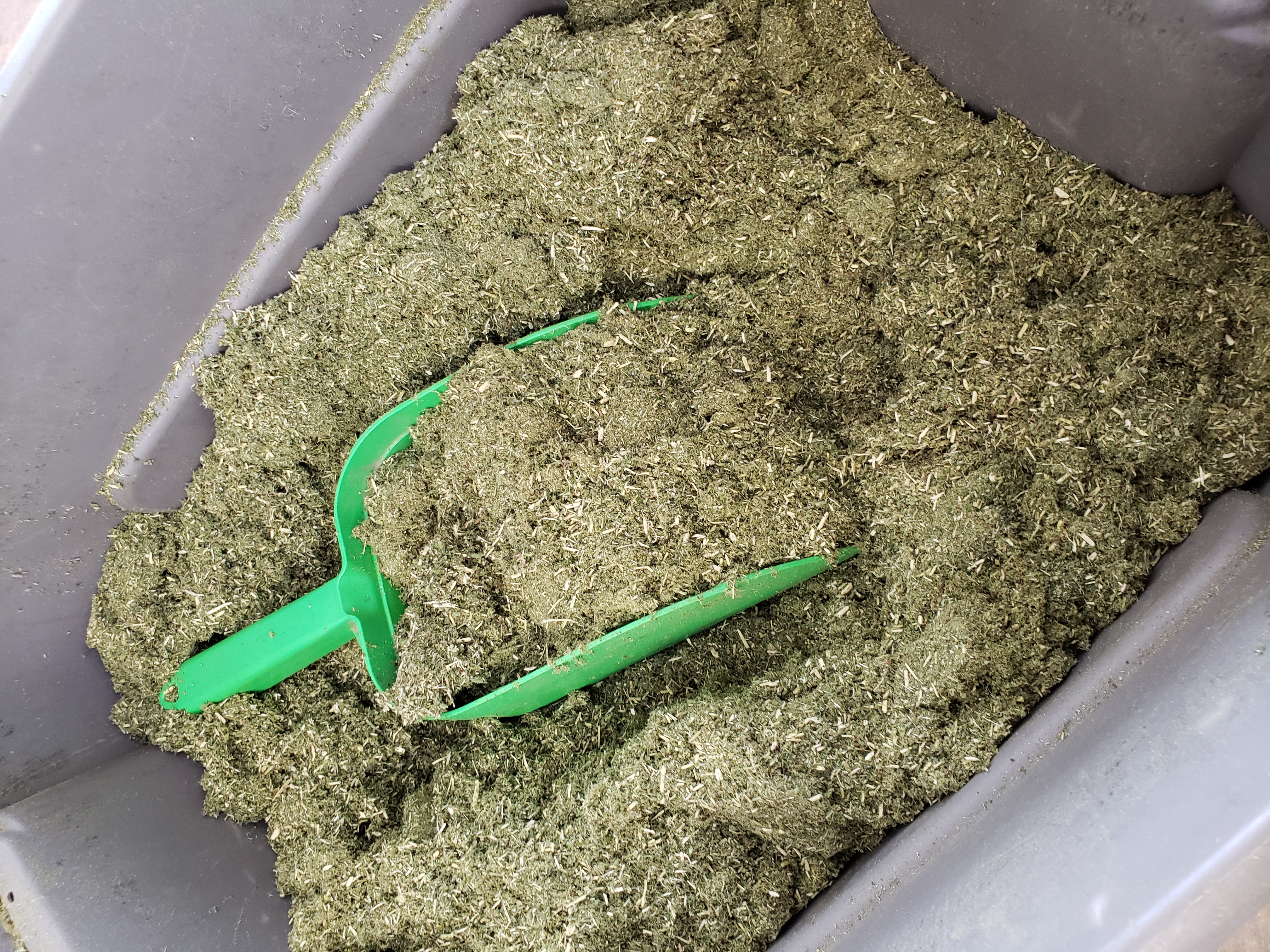

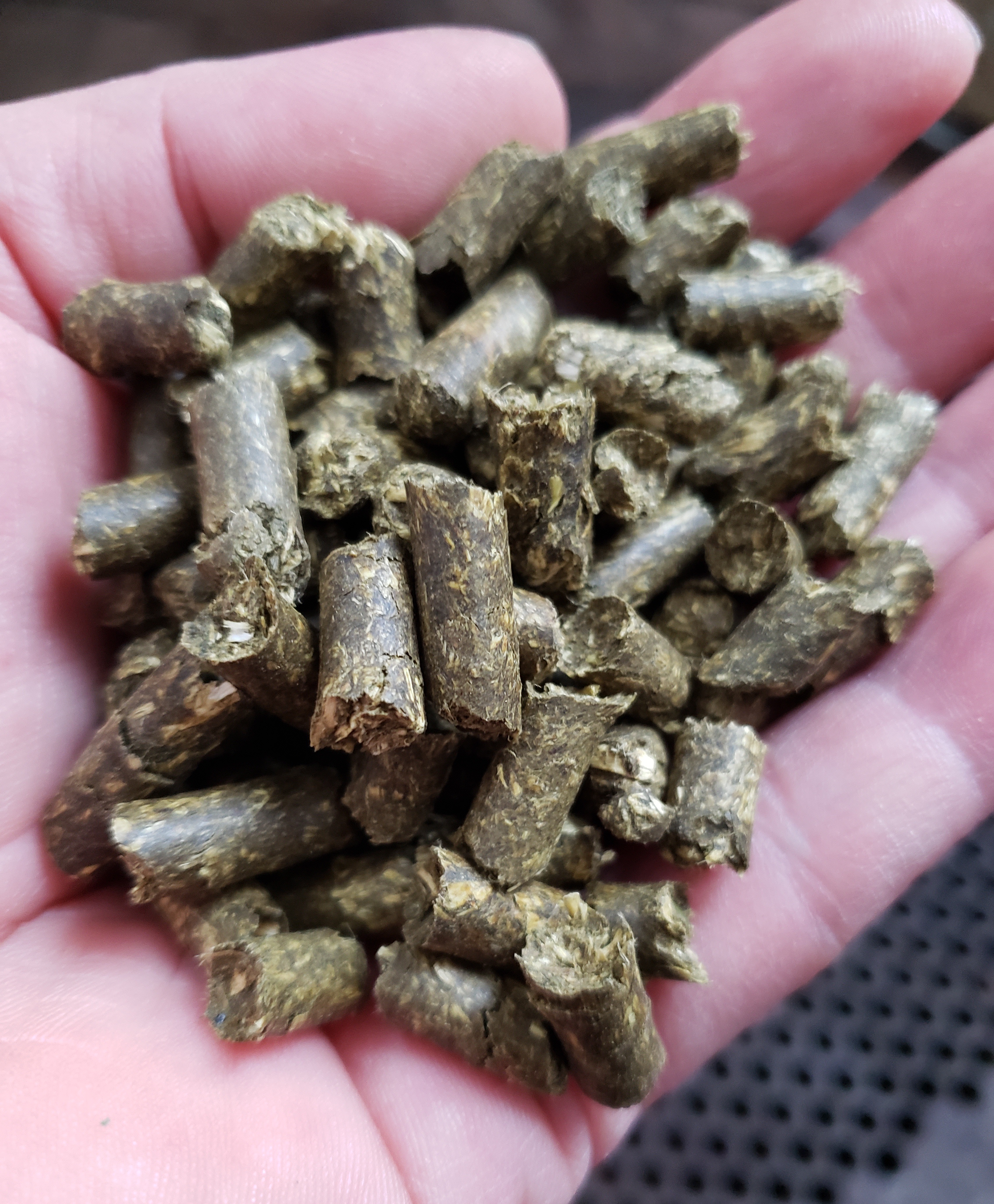

Example of Marijuana Hemp Cannabis with Stems at 6% moisture run through a
12" 2-Roller 20hp 220v Three Phase Electric Mill with 6mm Die. (HempPMstems)

Hemp - Before Hemp/Stems 6.6% Moisture	Hemp - Before Hemp/Stems - 6mm Pellets	Hemp/Stems - Before Hemp/Stems - 6mm Pellets	Hemp/Stems - Before Hemp/Stems - 6mm Pellets
* This material was too dry to make pellets so we had to add water/moisture as we were making pellets. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die. We first ran this material through a 6mm Screen on our Model 198 Hammer Mill.

---

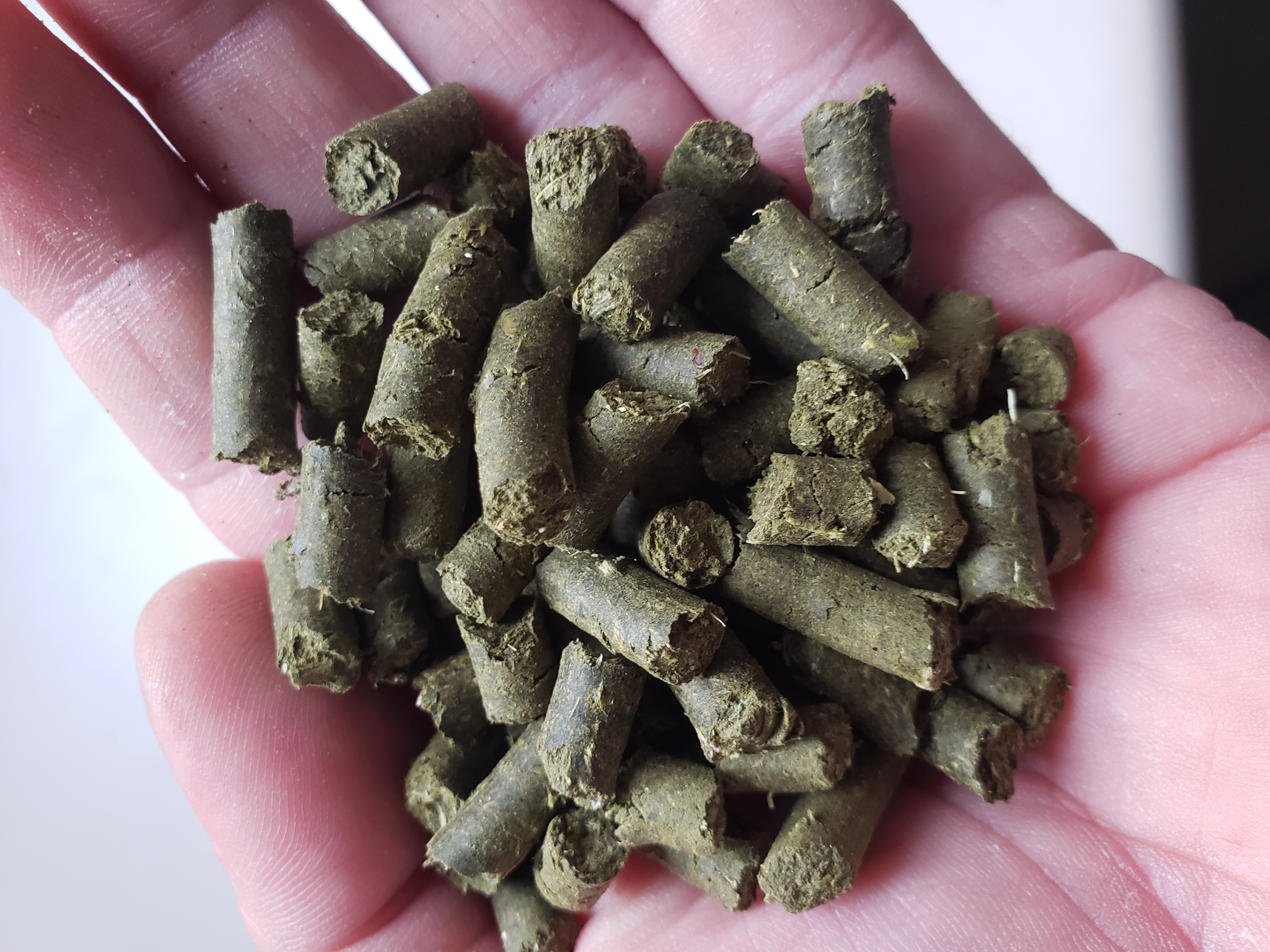

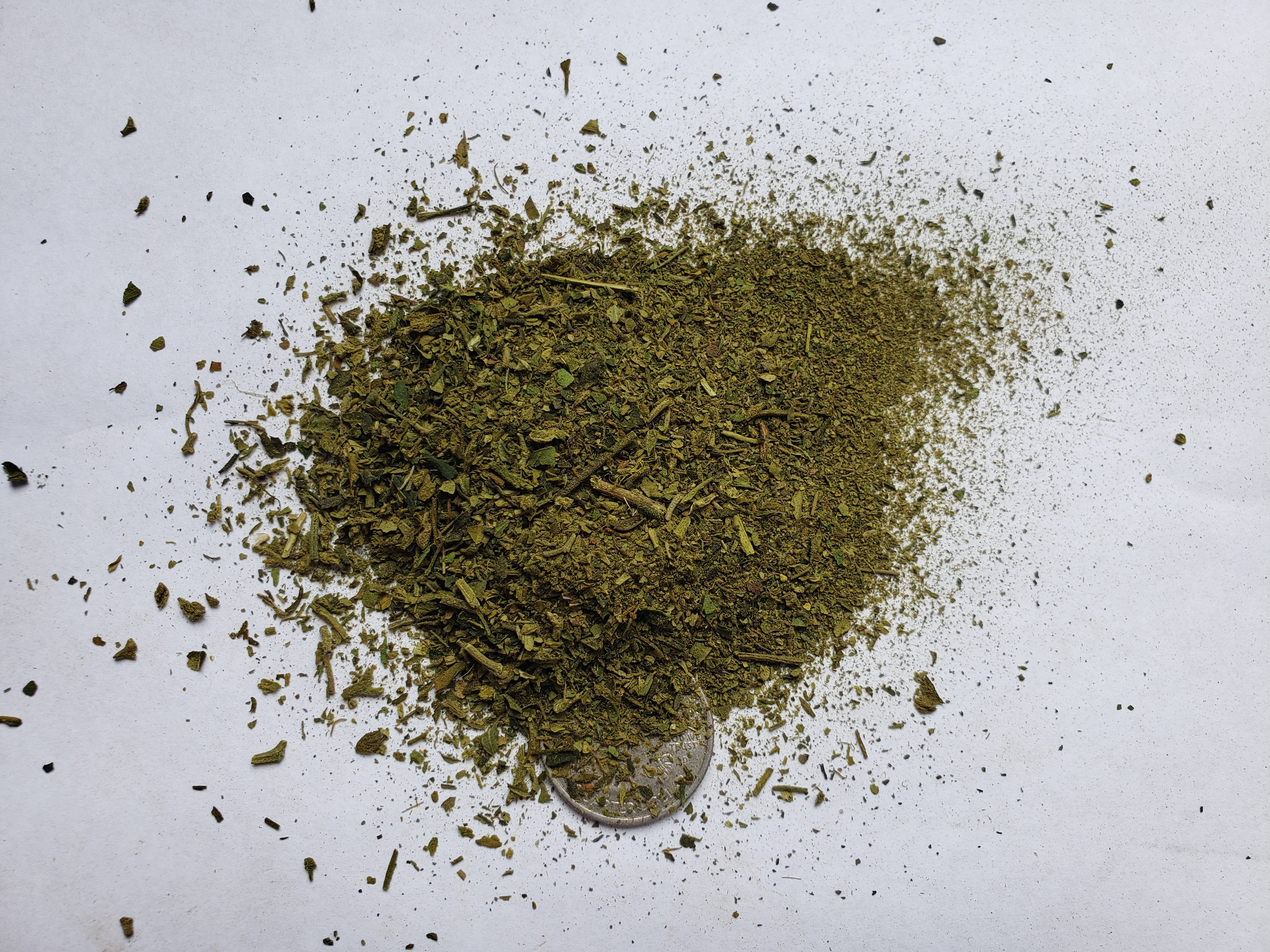

Example of Marijuana Hemp Cannabis at 20+% moisture run through a
6" 5.3hp 220v Three Phase Electric Feed and Fertilizer Mill with 6mm Die. (HempFF)

Hemp - Before	Hemp - Before	Hemp - 6mm Die	Hemp - 6mm Die
* This material was nearly too wet to make pellets so we had to run it through the machine three times. Every time material goes through the pellet mill, it dries out just a little due to the heat and steam released. This material could potentially benefit from running through the higher temperature wood pellet mill. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 6mm Die.

---

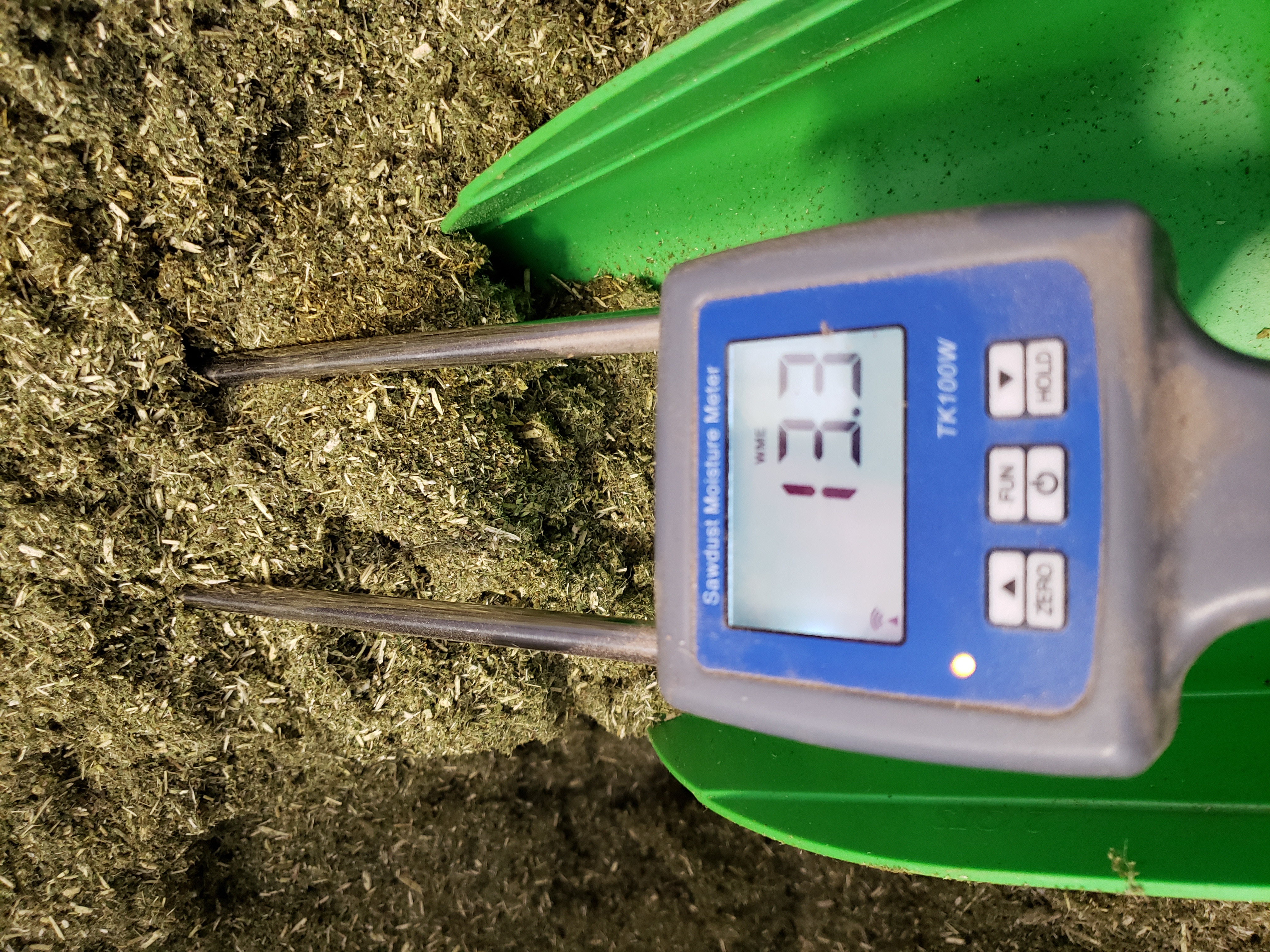

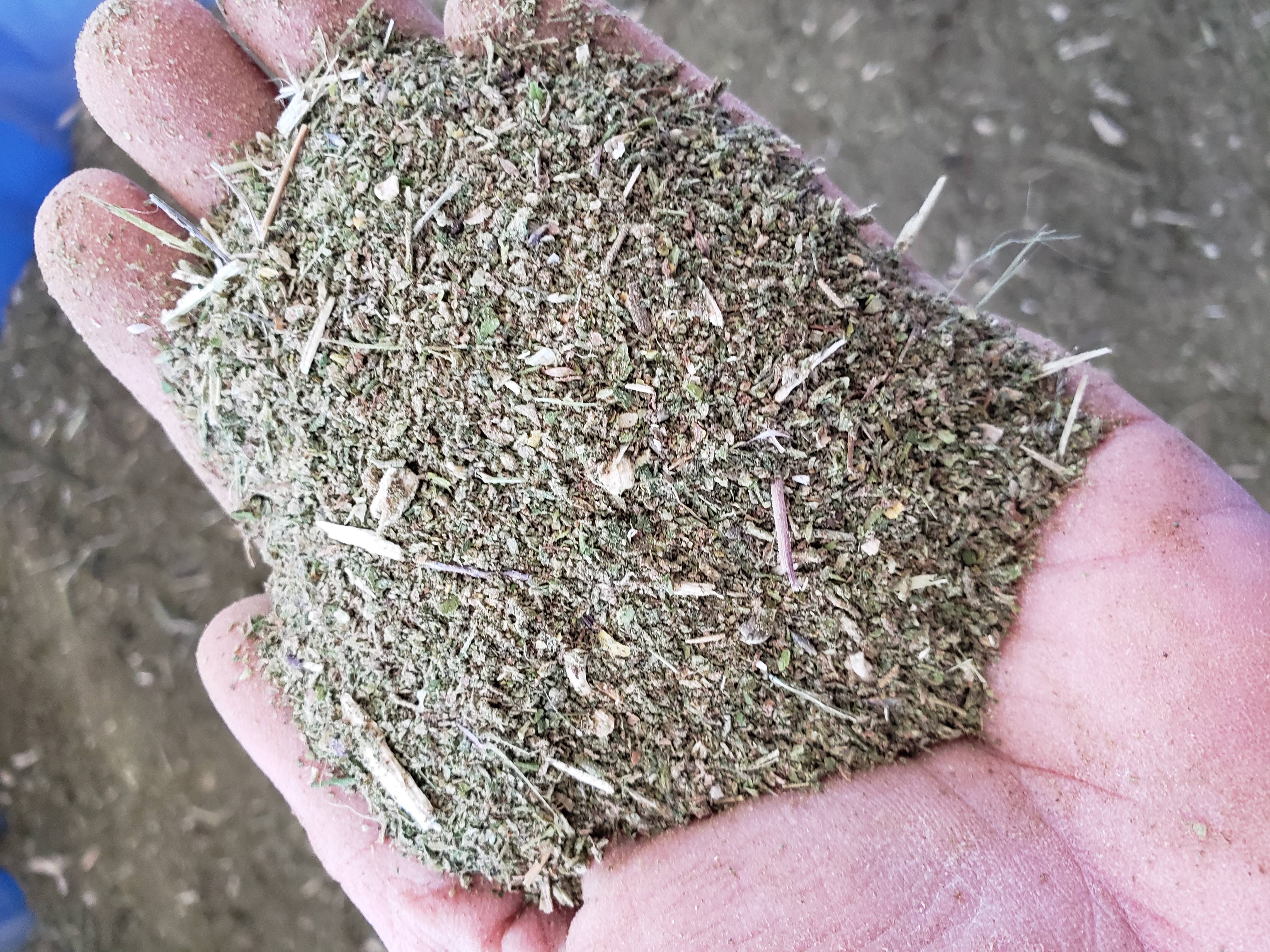

Example of Marijuana Hemp Cannabis with Stems at 13% moisture run through a
12" 2-Roller 20hp 220v Three Phase Electric Mill with 4mm Die. (HempPM13)

Hemp - Before Hemp - Before	Hemp - Before Hemp 13.3% Moisture	Hemp - Before Hemp - 4mm Pellets	Hemp - Before Hemp - 4mm Pellets
* This material was too wet to make high quality pellets, but we didn't have time to let the material dry before pelletizing. The pellets were very nice after cooling and drying for a few hours. This material was also very sticky and clumped up after Hammer Milling. A conditioner to "fluff" the materiel before pelltizing would have greatly increased production rate. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 4mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 4mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 4mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 4mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 4mm Die. Click here for a video of Marijuana Hemp Cannabis run through a Pellet Mill with a 4mm Die. We first ran this material through a 6mm Screen on our Model 198 Hammer Mill.

---

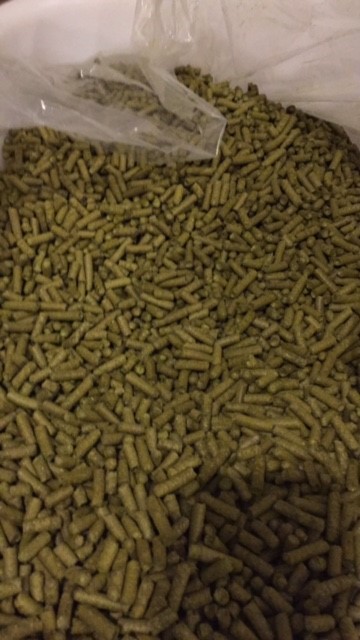

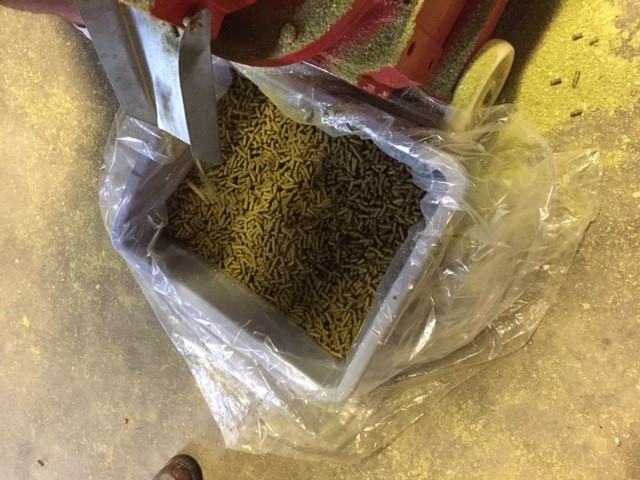

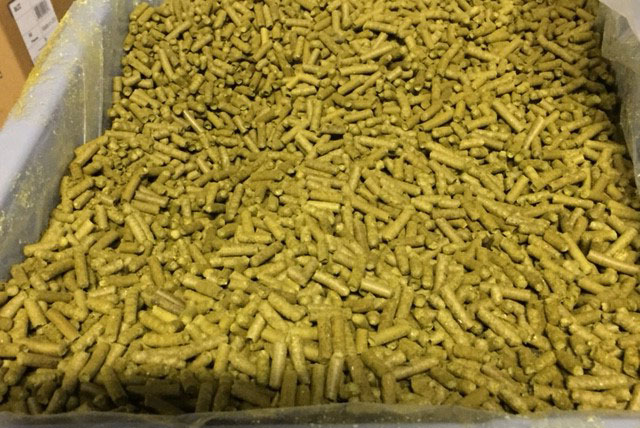

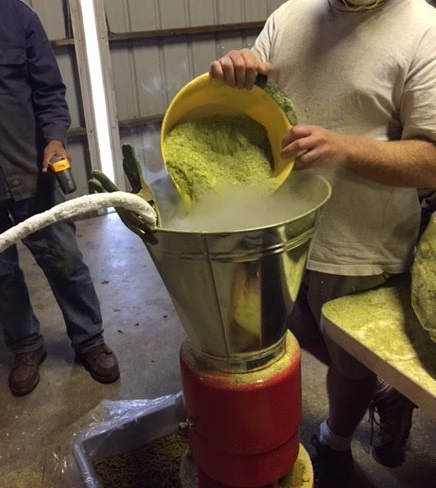

Examples of hops run through the Red (wood) Pellet Mill with a (VFD) Variable Frequency Drive. (hopsPM)

Pelletizing Hops	Hops - Pellets	Hops - Pellets	Hops - Pellets
Click here for customer information on pelletizing hops in a Red (wood) Pellet Mill. We first ran this material through our Model 158 3hp 220v Single Phase Hammer Mill.

---

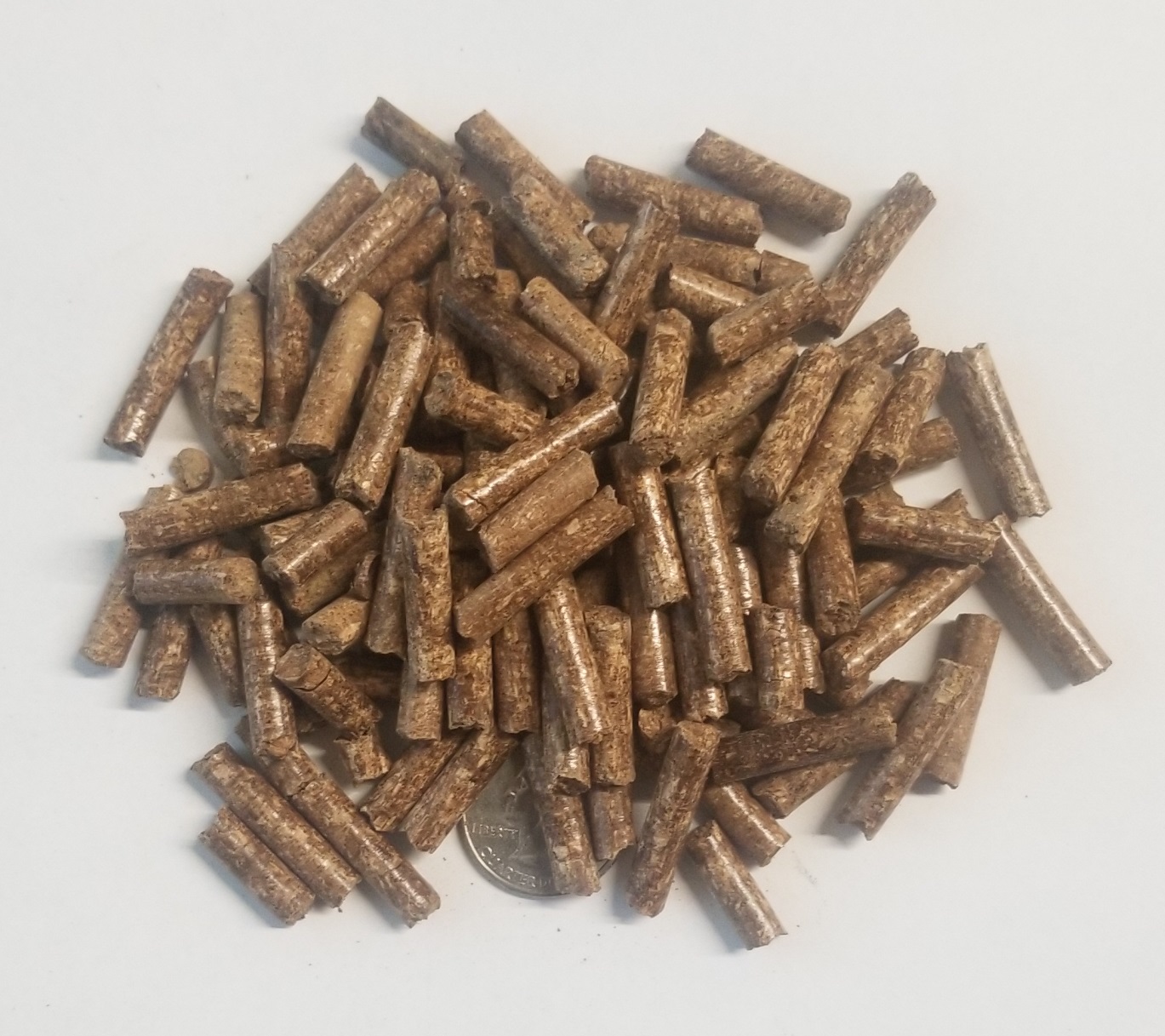

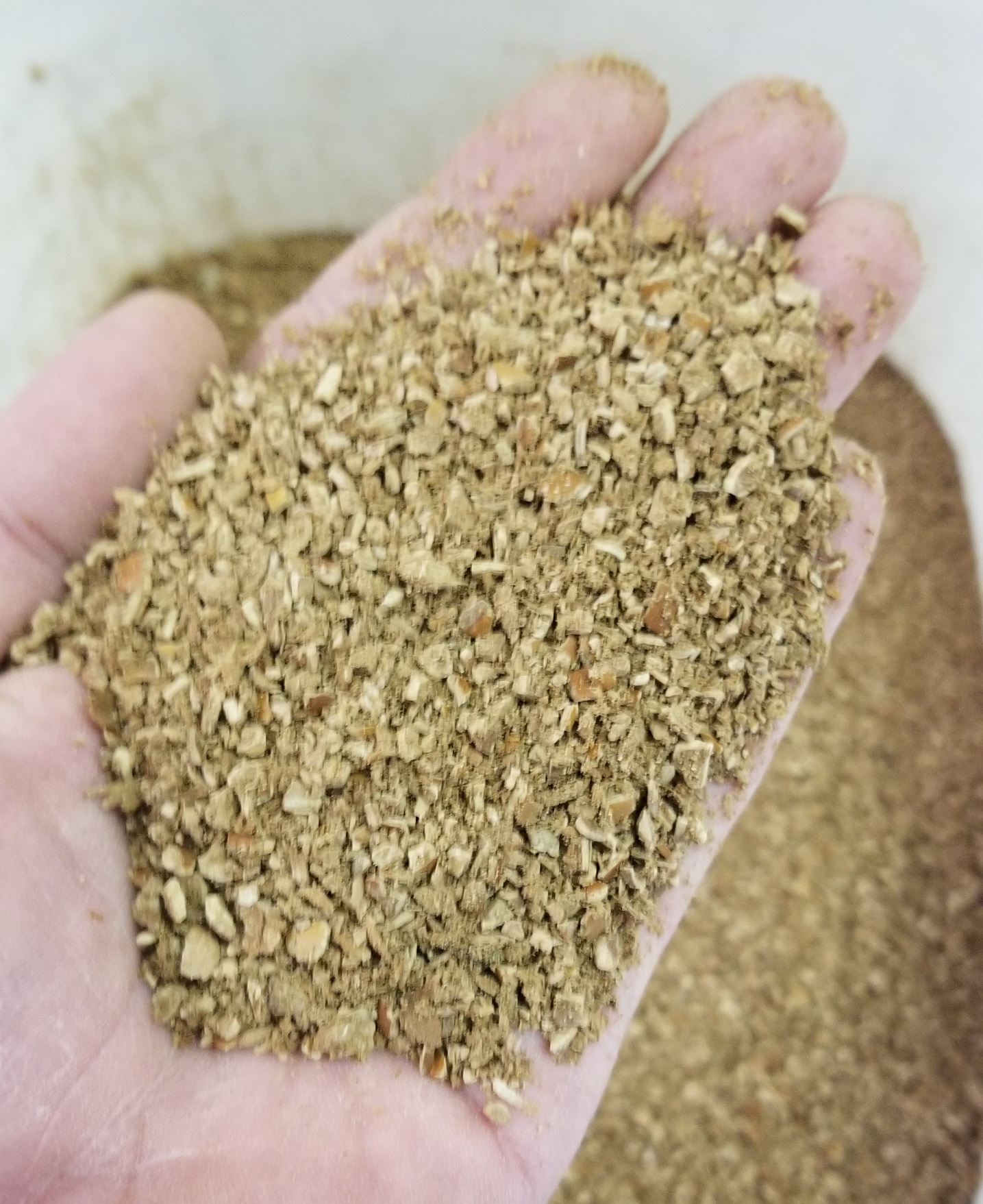

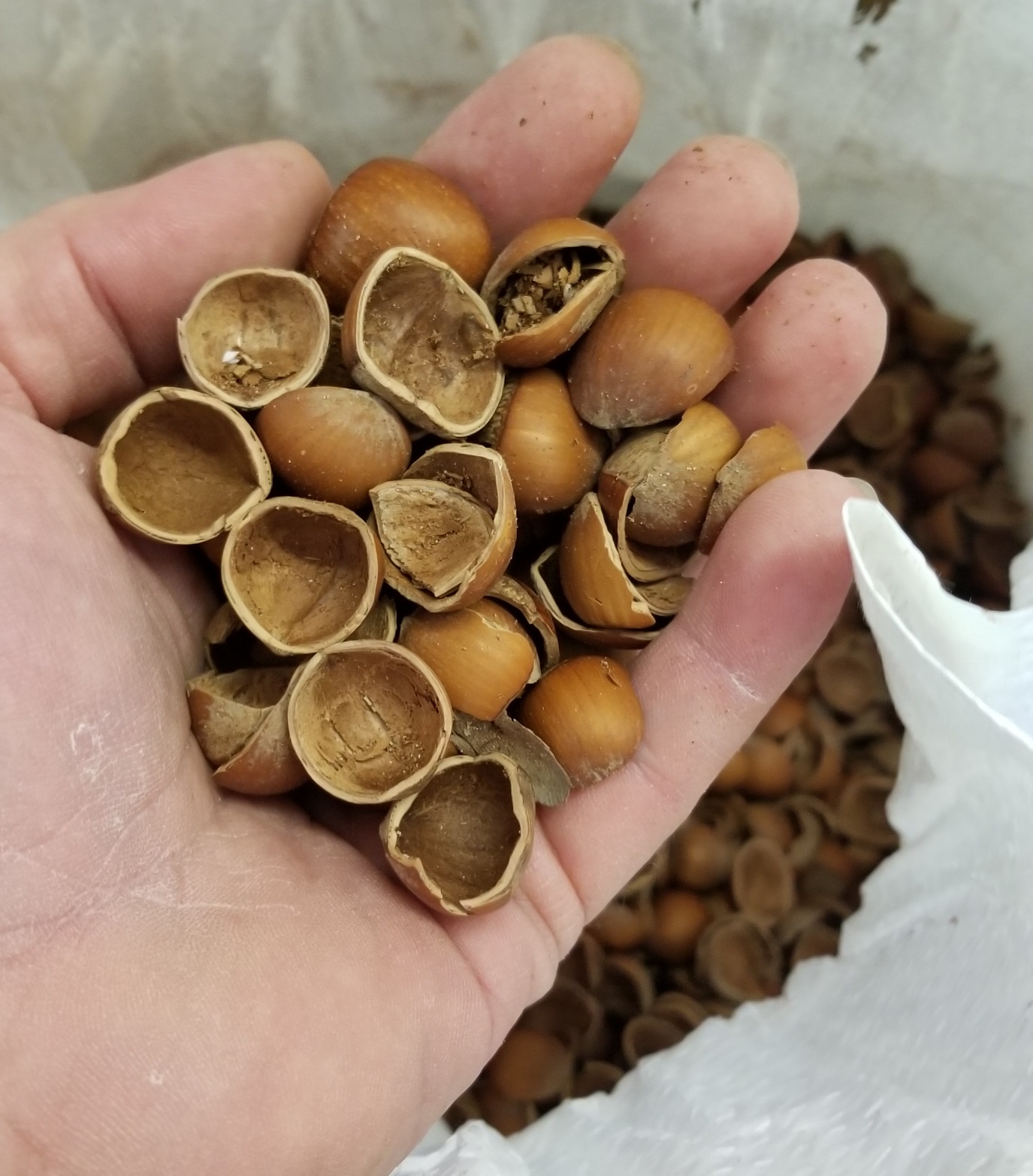

Examples of Hazelnut Shells run through the Red (wood) Pellet Mill with a 6mm die. (hazelnutPM)

Hazelnut Before	Hazelnut Before	Hazelnut - 6mm Screen	Hazelnut - 6mm Pellets
Click here for a video of Hazelnut Shells run through a Red (wood) Pellet Mill. Click here for another video of Hazelnut Shells run through a Red (wood) Pellet Mill. Click here for another video of Hazelnut Shells run through a Red (wood) Pellet Mill. We first ran this material through our Model 198 5.3hp 220v Single Phase Hammer Mill.

---

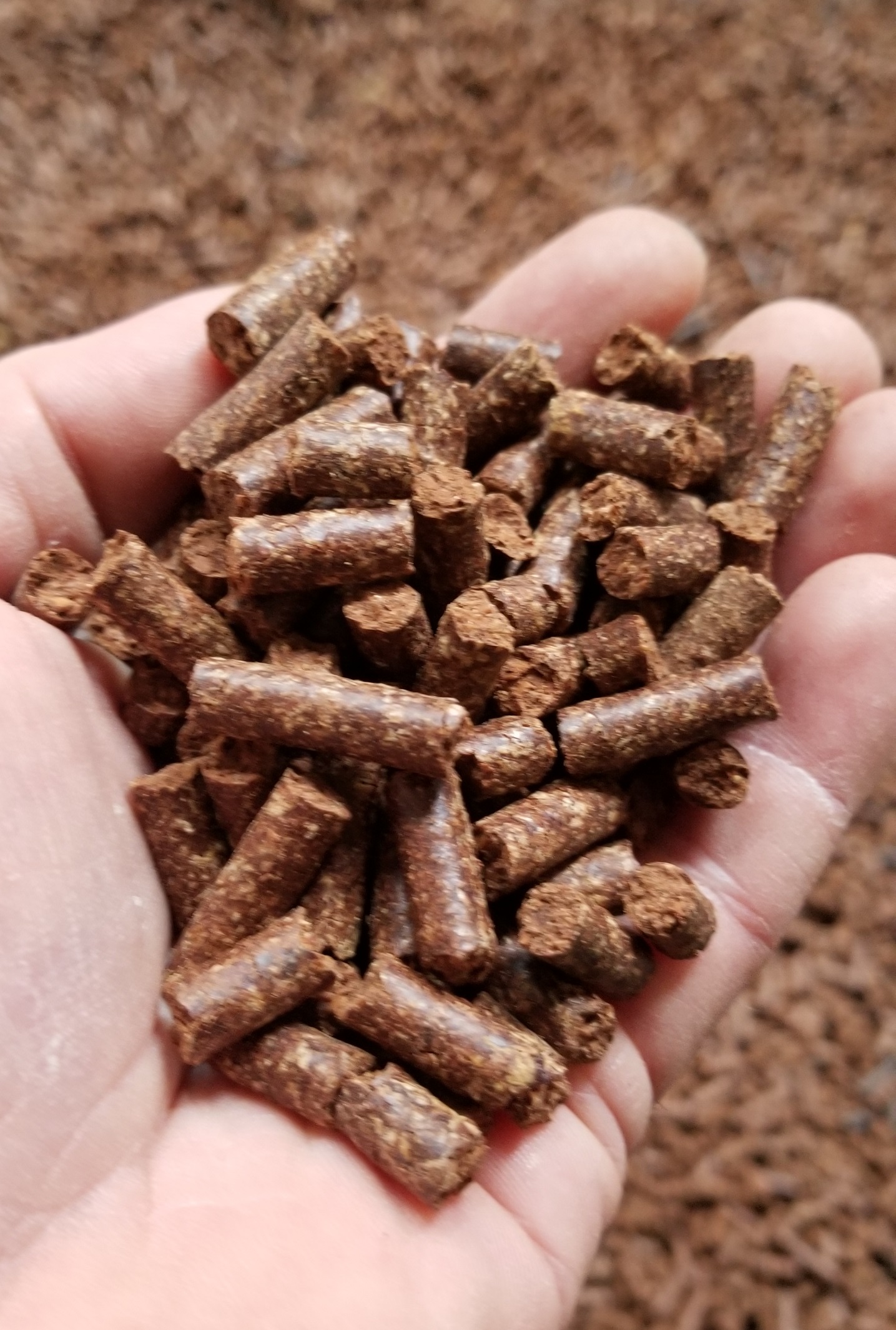

Examples of Pecan Shells run through the Red (wood) Pellet Mill with a 6mm die. (pecanPM)

Pecan Before	Pecan Before	Pecan - 6mm Pellets	Pecan - 6mm Pellets
Click here for a video of Pecan Shells run through a Red (Wood) Pellet Mill. Click here for another video of Pecan Shells run through a Red (Wood) Pellet Mill. Click here for another video of Pecan Shells run through a Red (Wood) Pellet Mill.

---

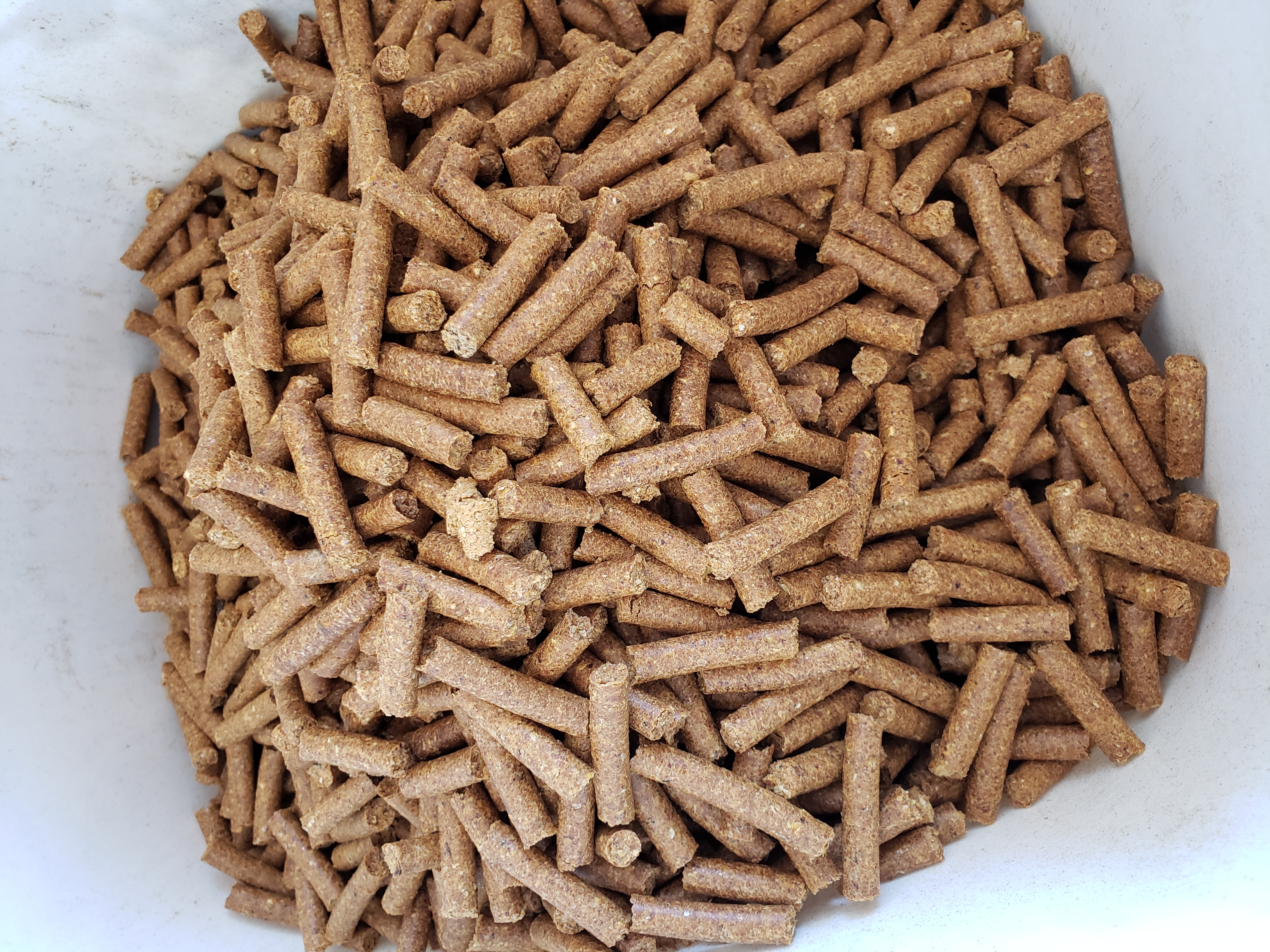

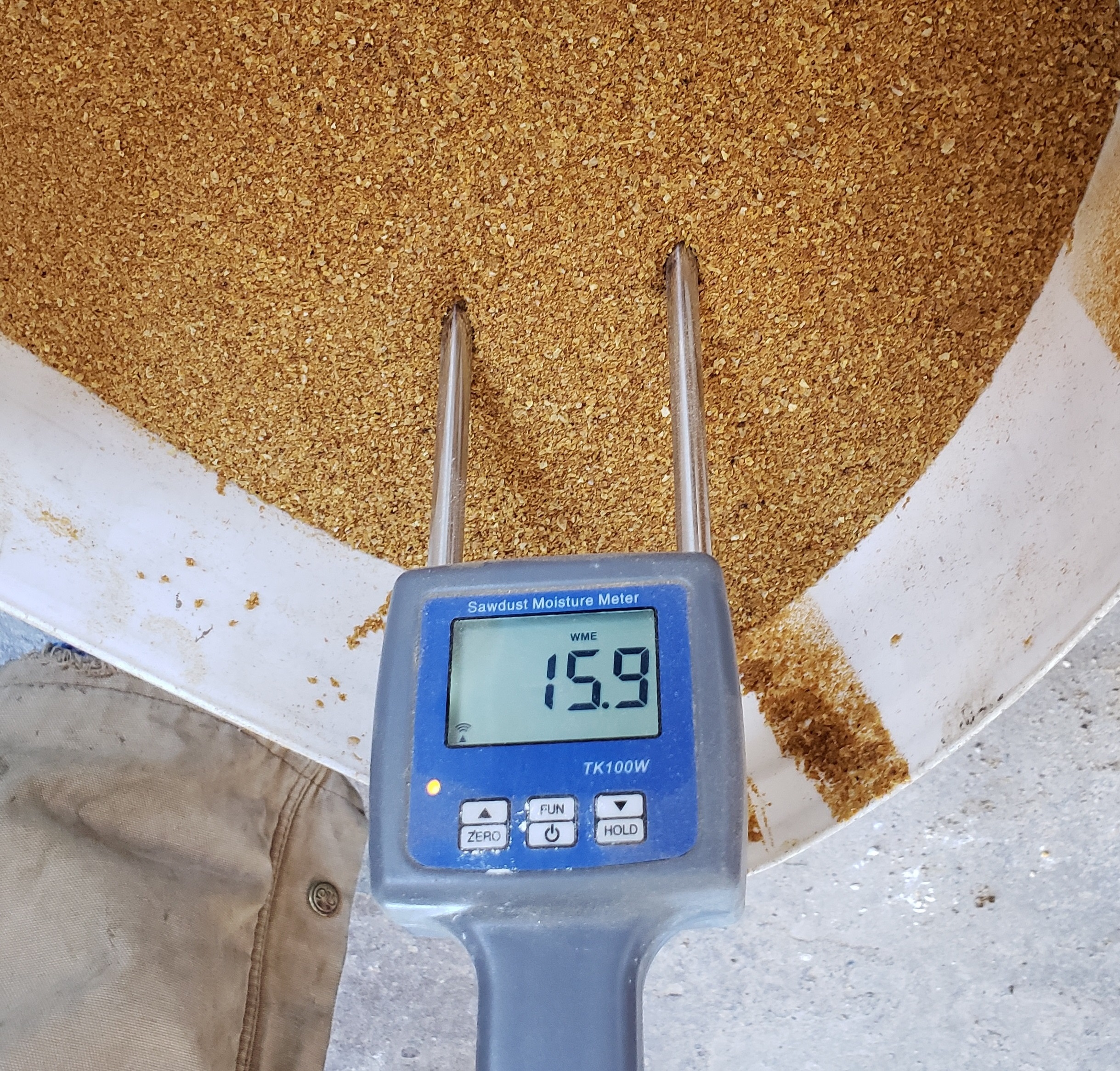

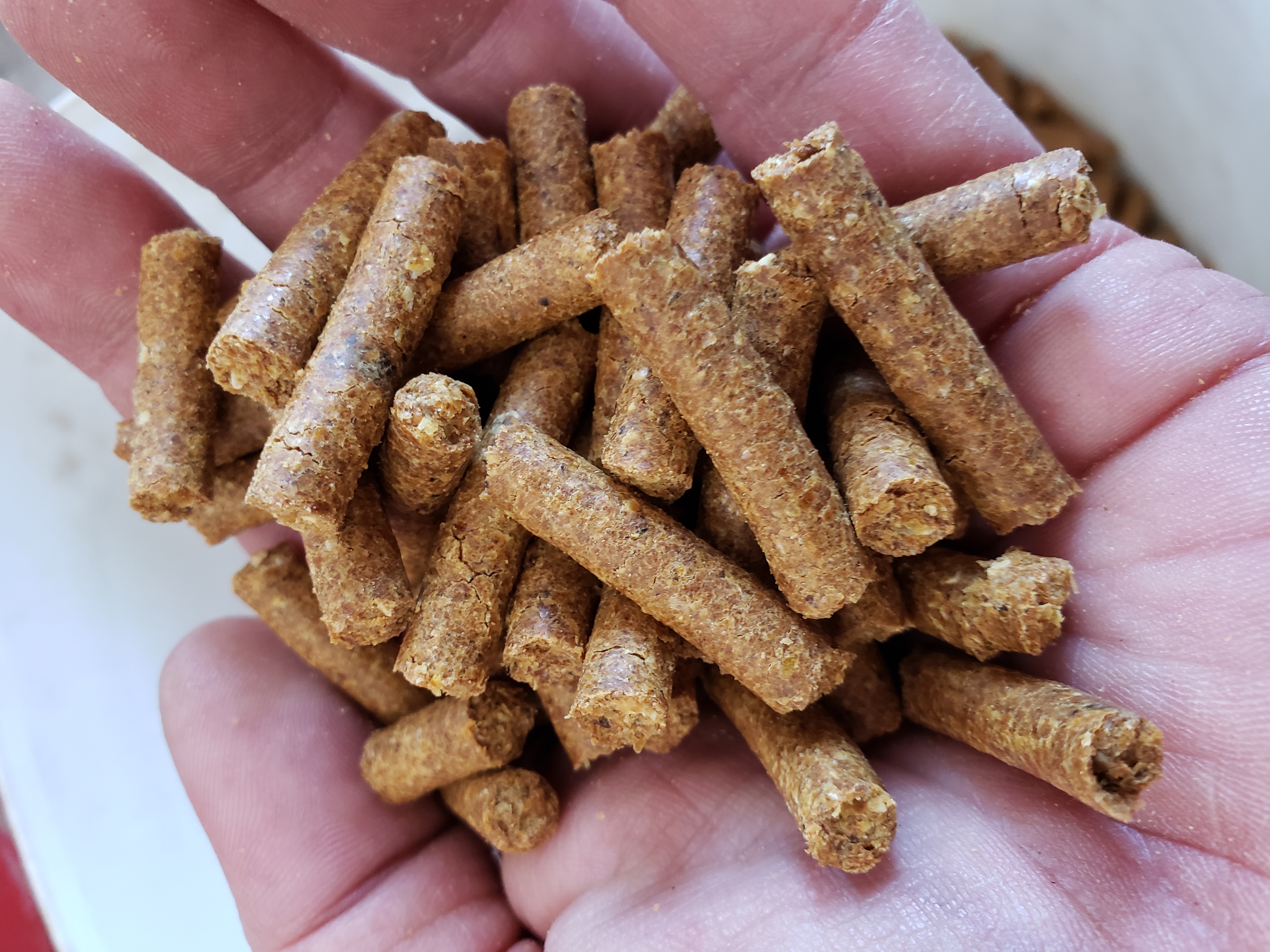

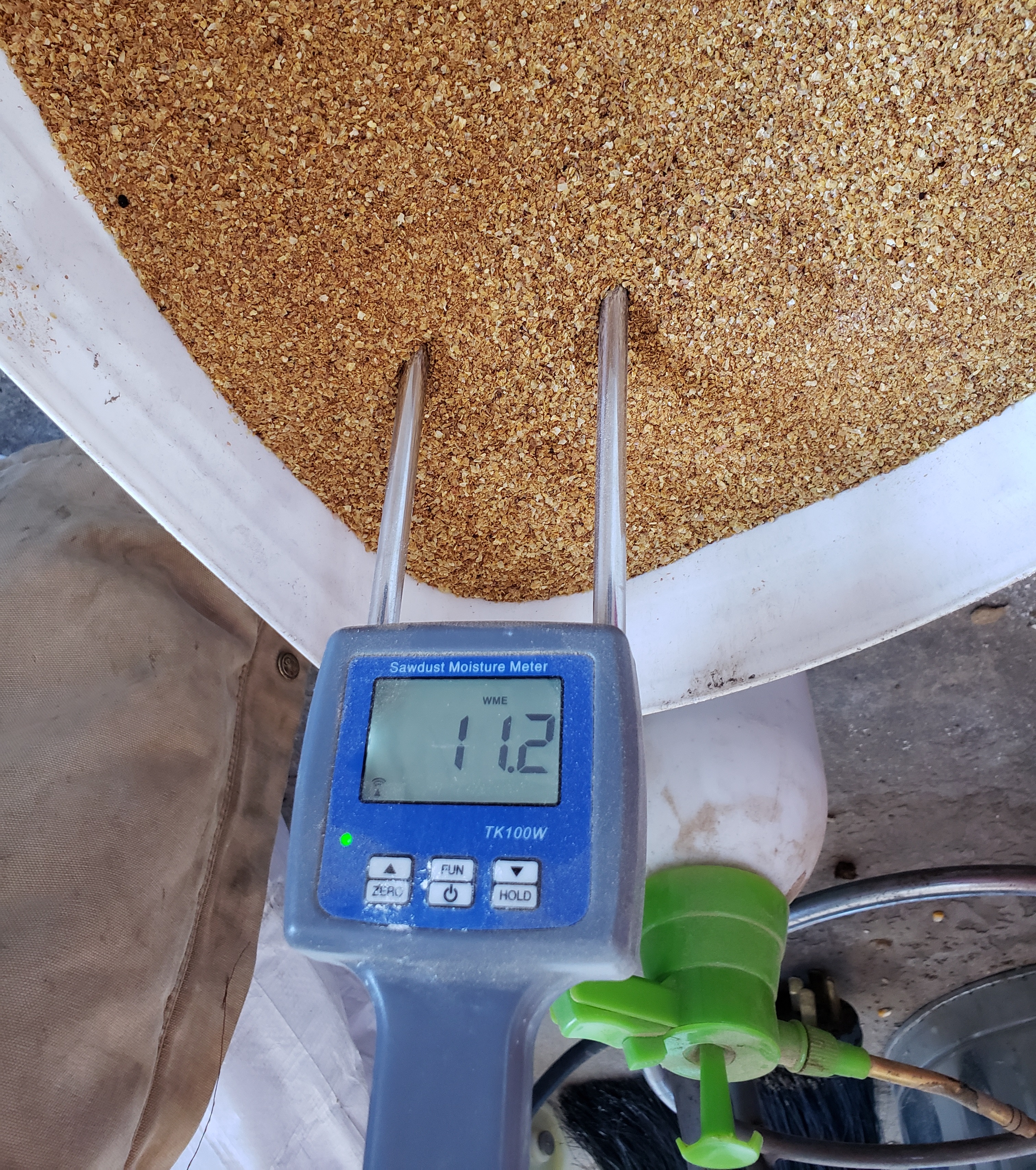

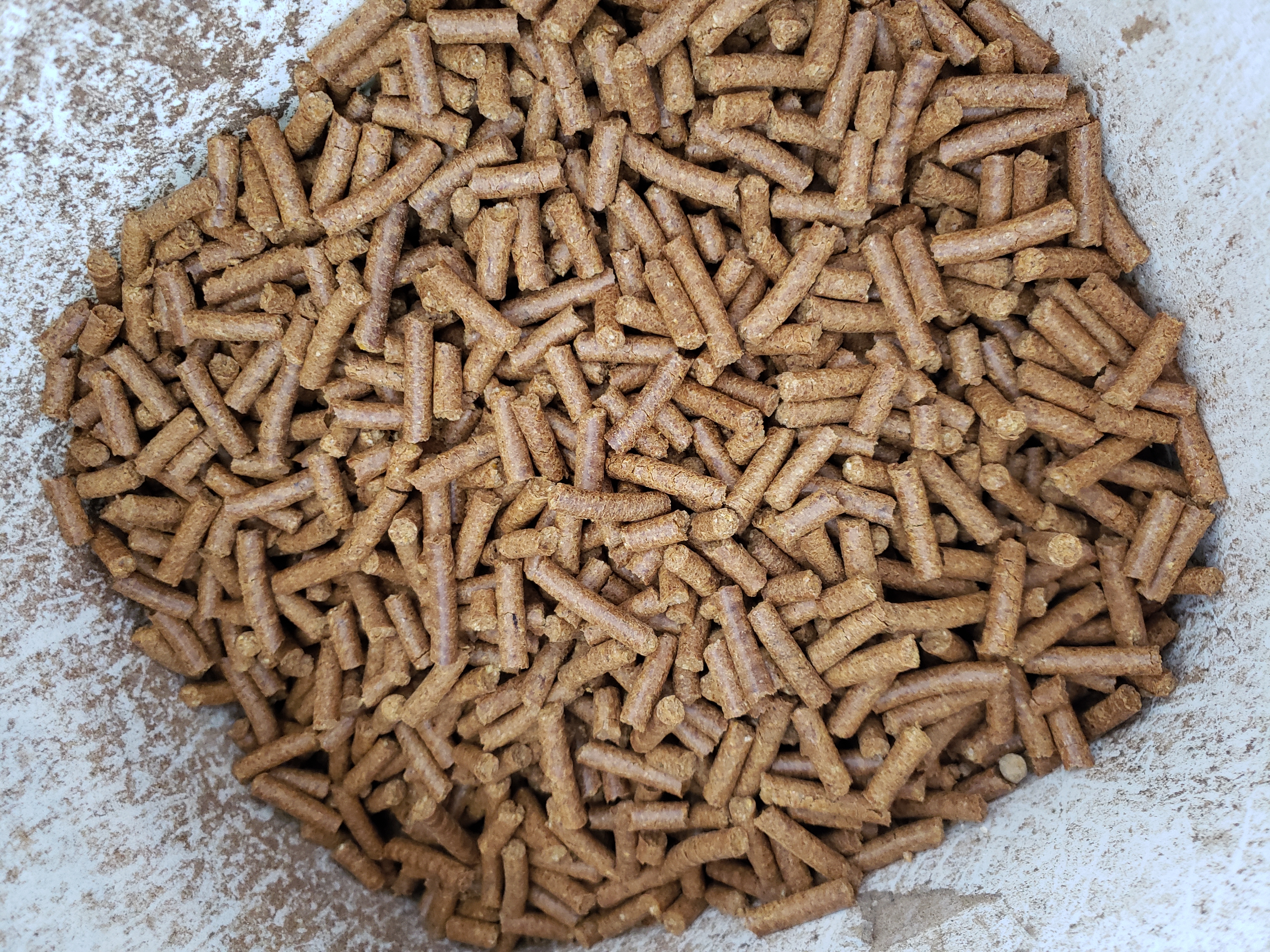

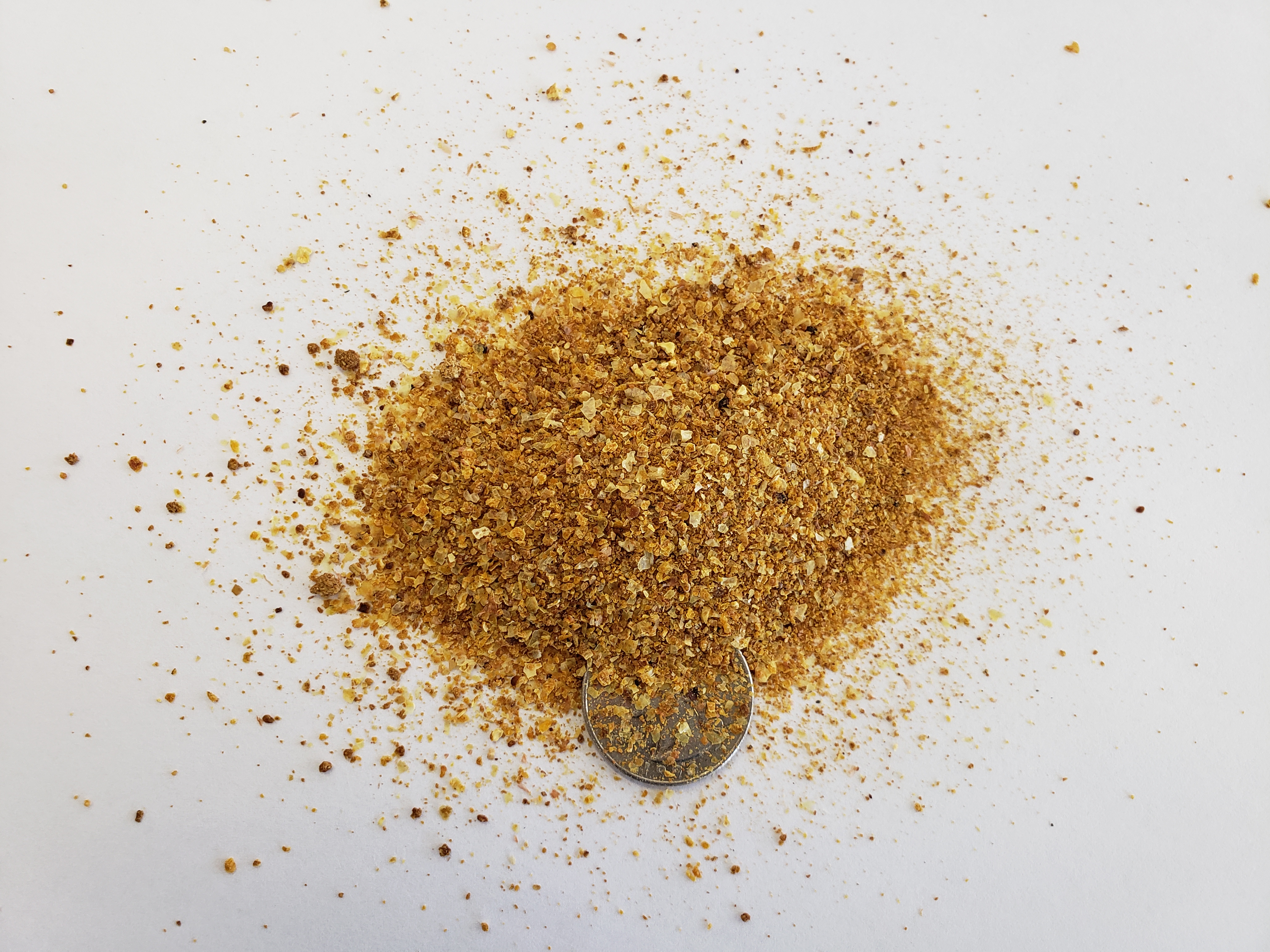

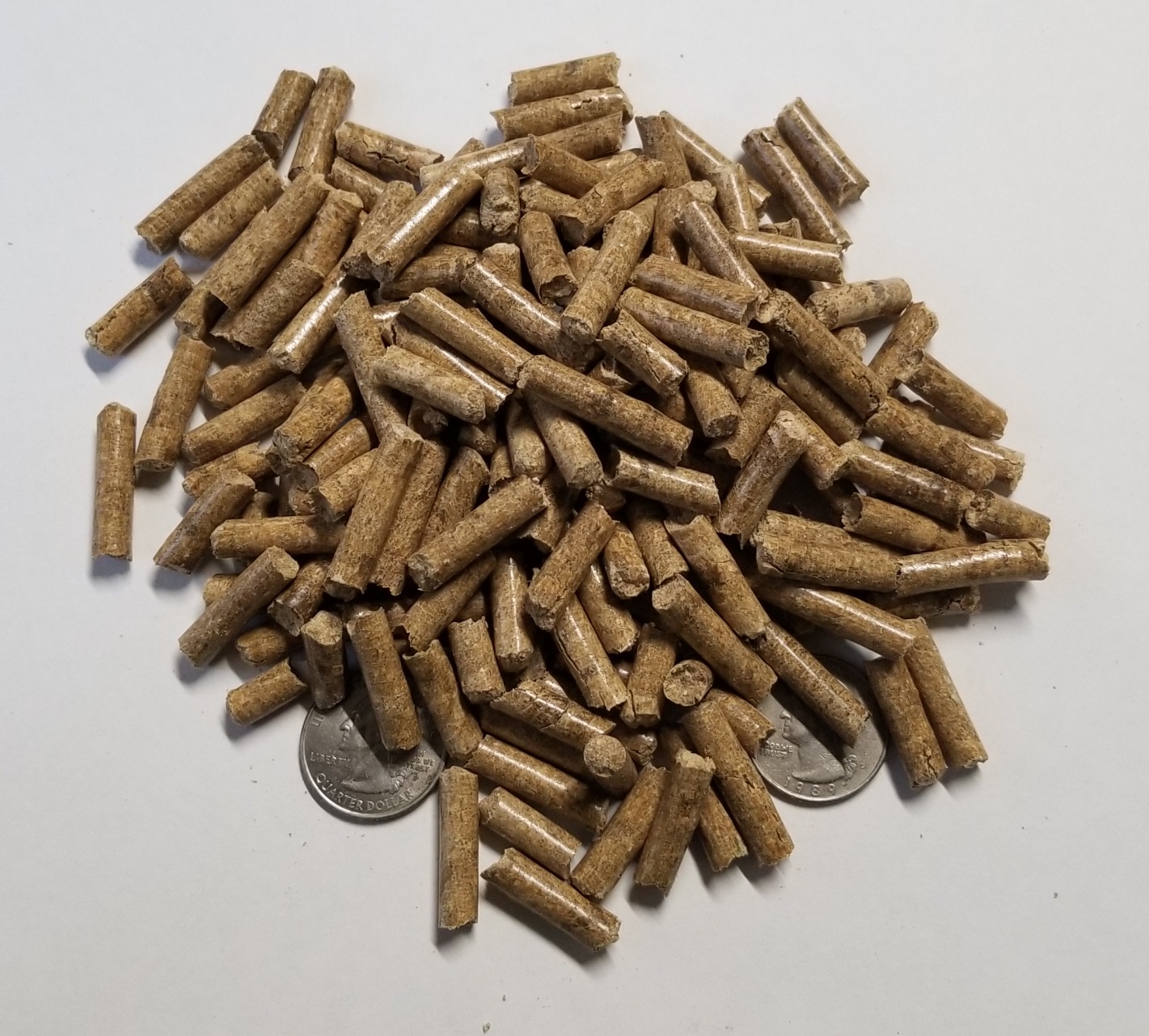

Examples of dry distiller grain (6% fat) run through the Red (Wood) Pellet Mill with a 6mm die. (DDGPM)

Dry Distiller Grain Distiller Grain - 11.2%	Dry Distiller Grain Distiller Grain - 11.2%	Distiller Grain - 11.2% Distiller Grain - 15.9%	Distiller Grain - 15.9% Distiller Grain - 15.9%
This material was just a little bit too dry at 11.2% moisture content during the initial run. We added water to bring the moisture content up to 15.9% for a higher quality pellet. Bringing the moisture content up also eliminated any dust discharged with the pellets. Click here for a video of dry distiller grain run through a Red (Wood) Pellet Mill. Click here for another video of dry distiller grain run through a Red (Wood) Pellet Mill. Click here for another video of dry distiller grain run through a Red (Wood) Pellet Mill.

---

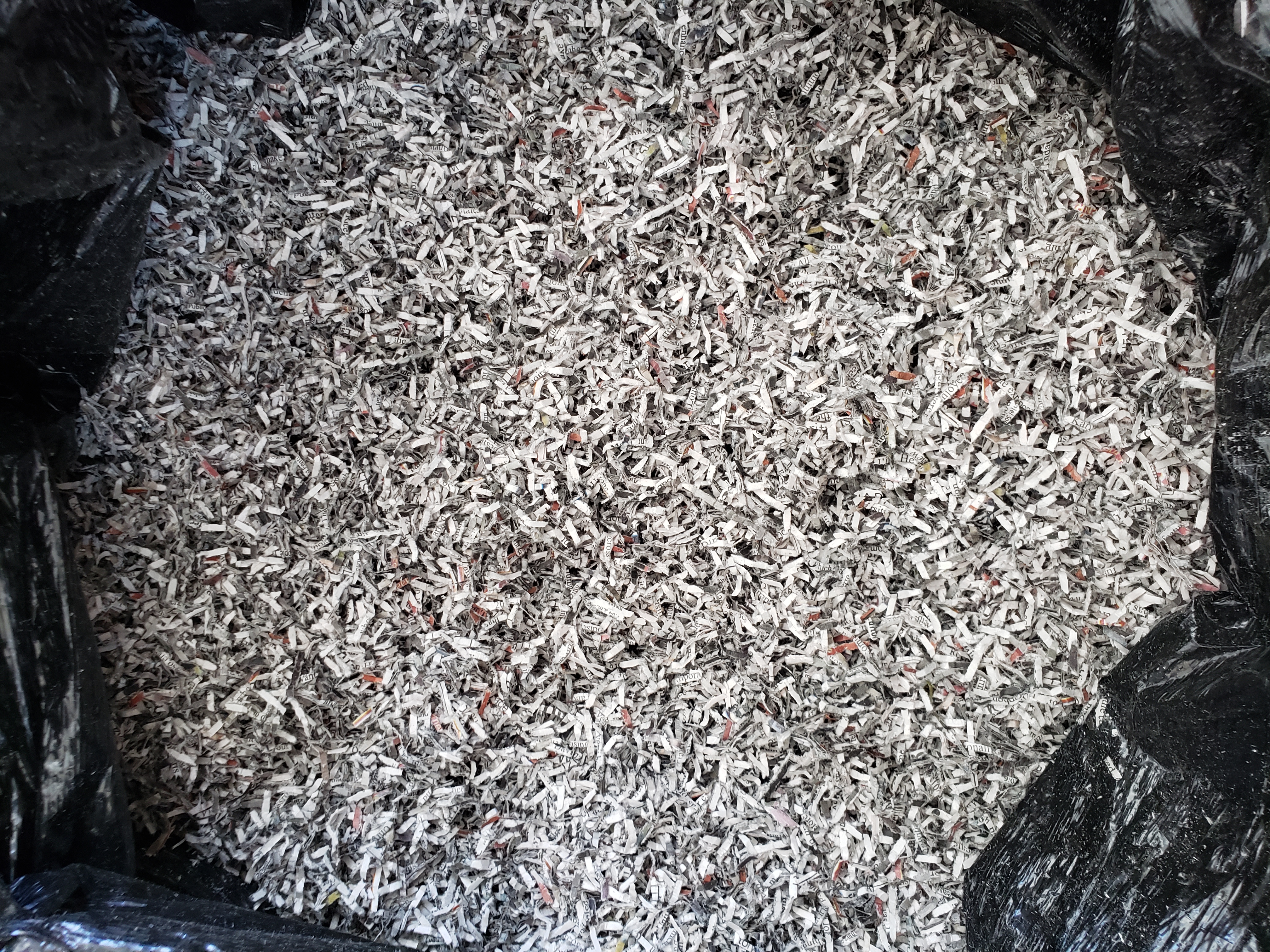

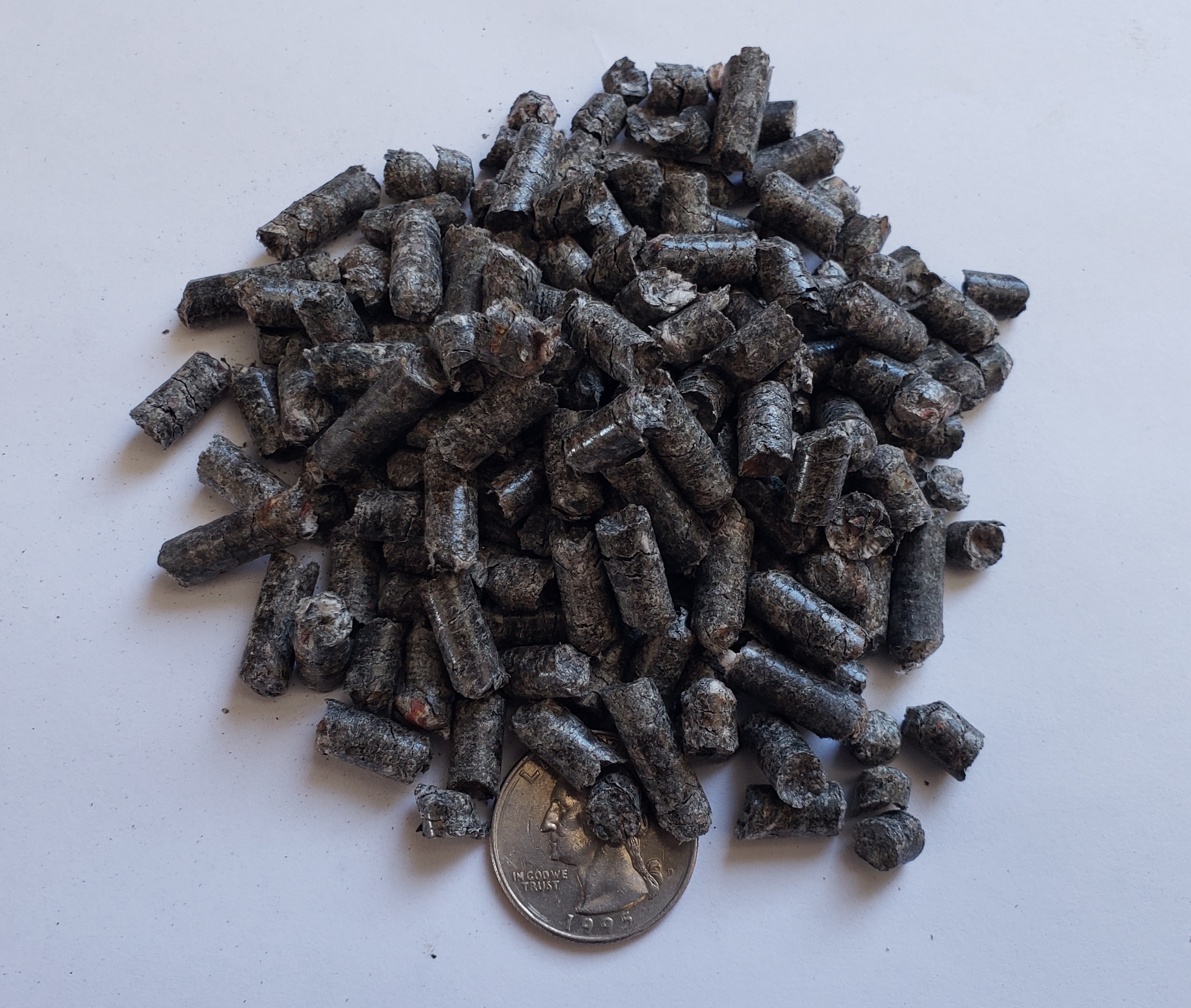

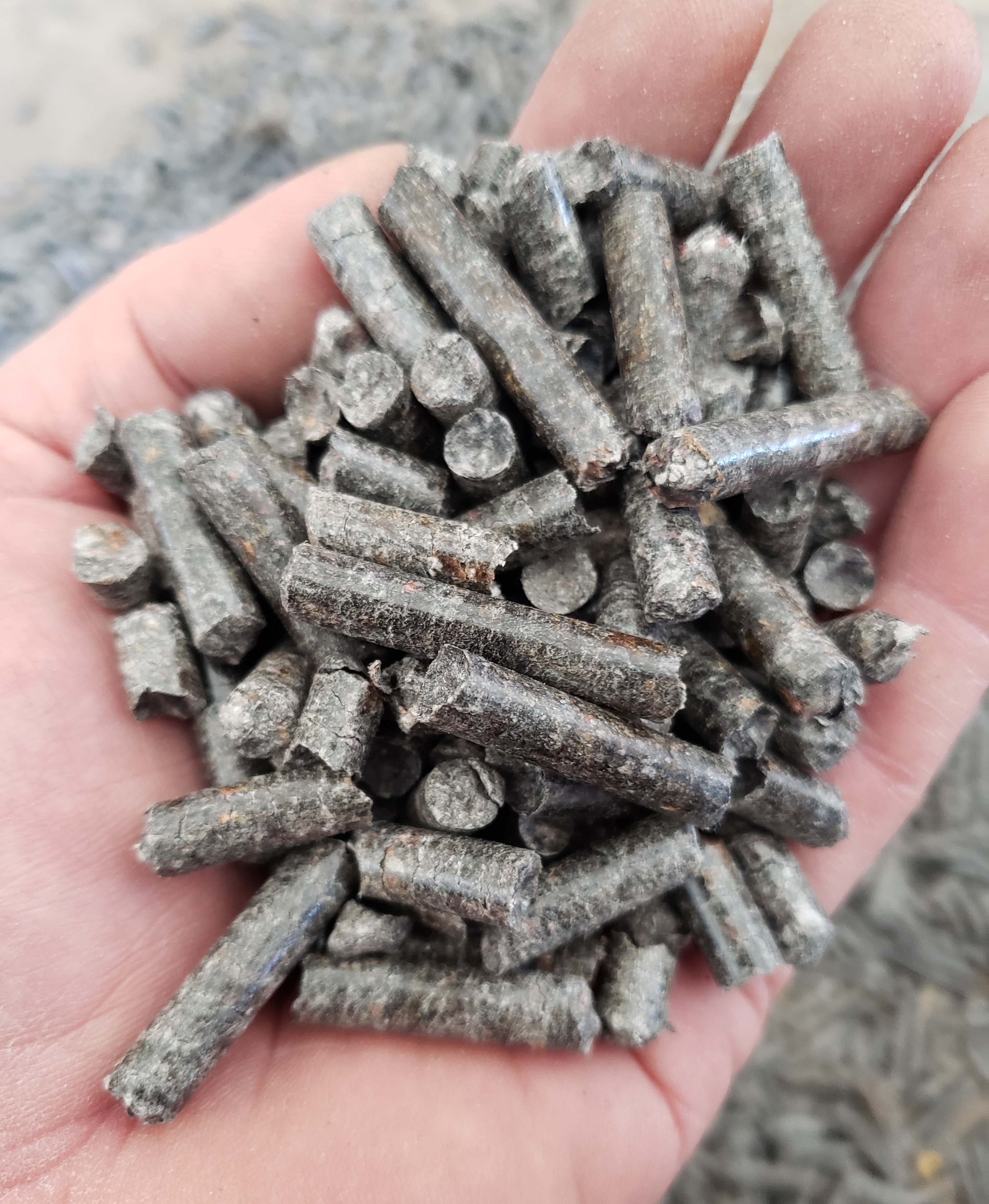

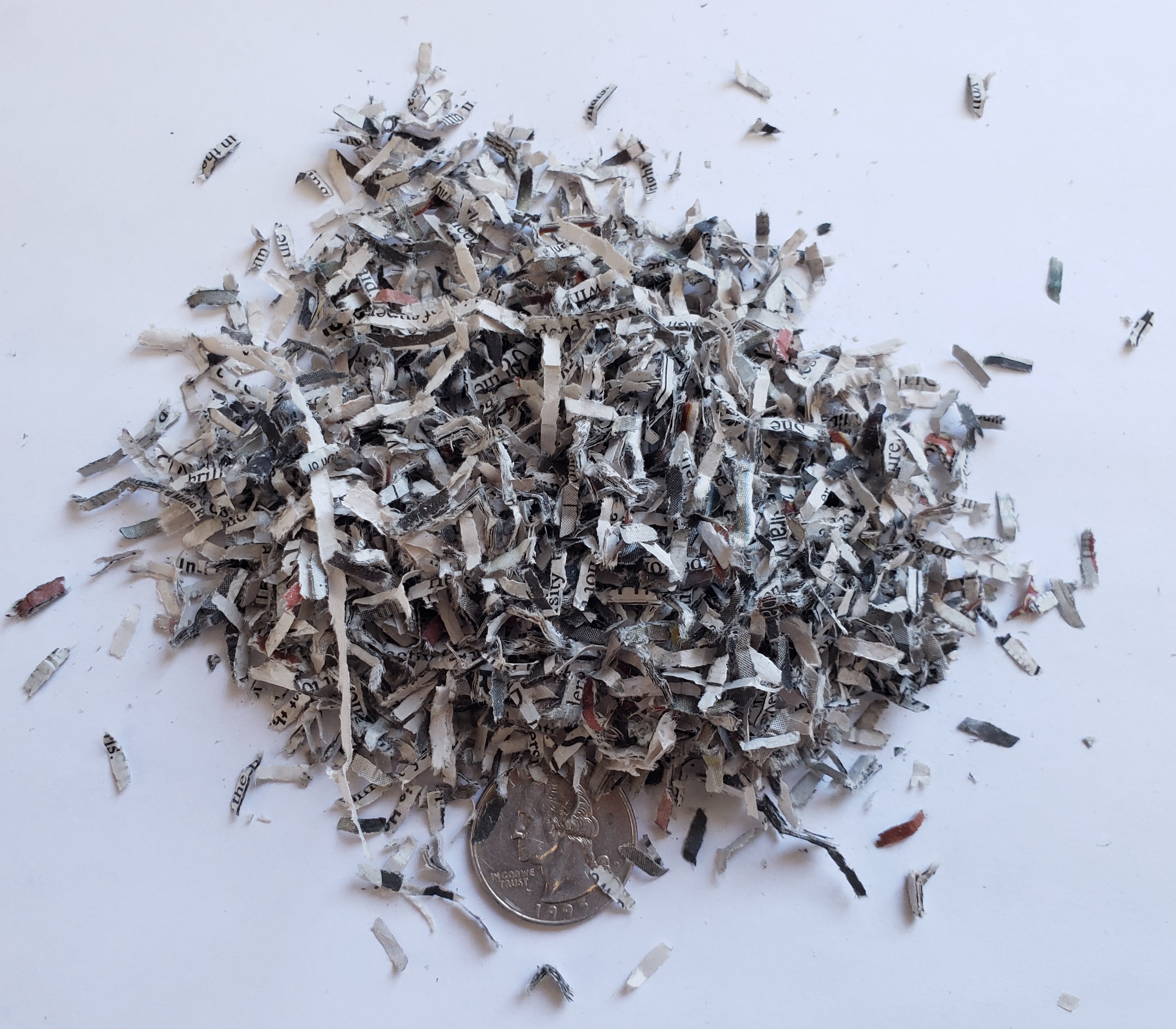

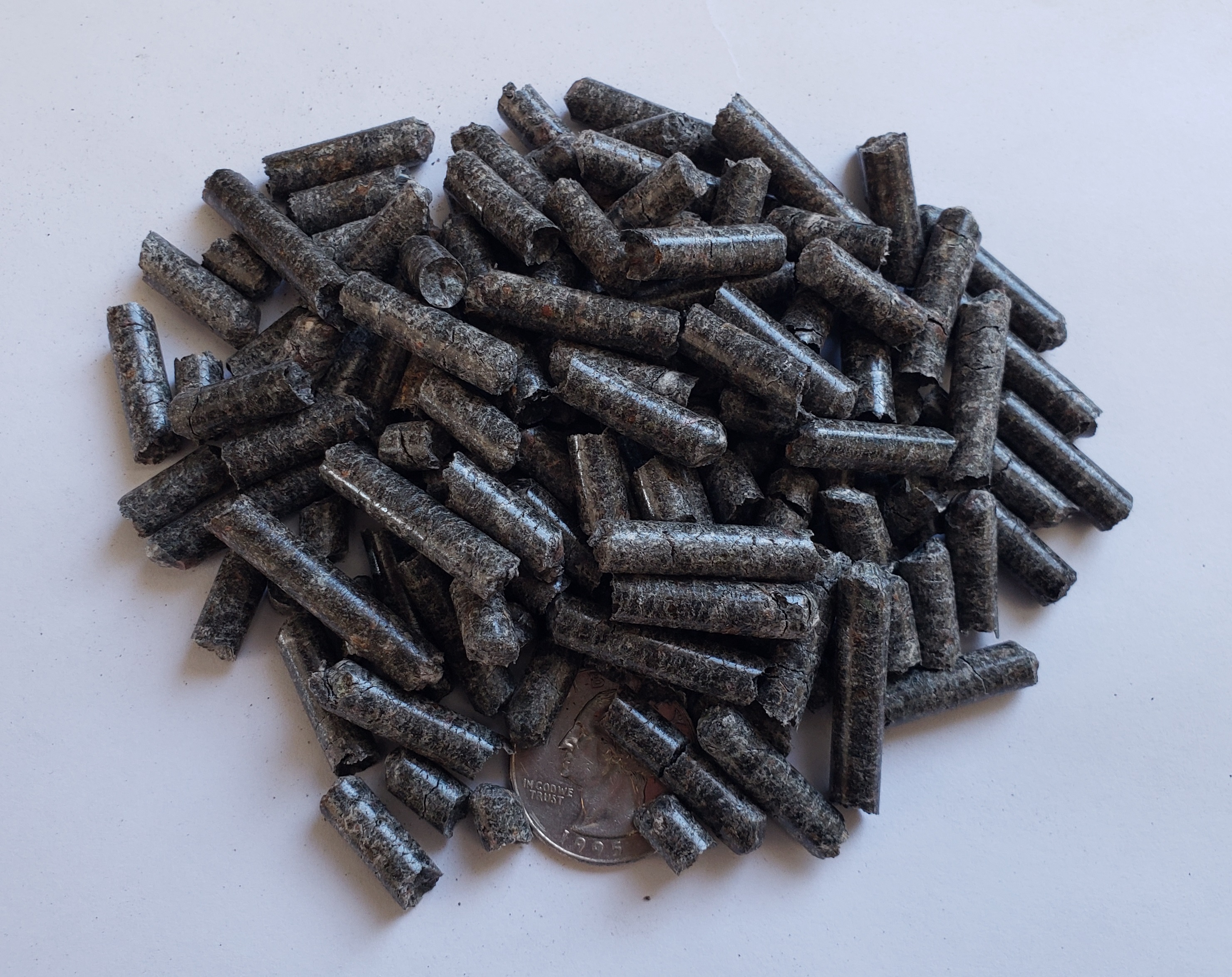

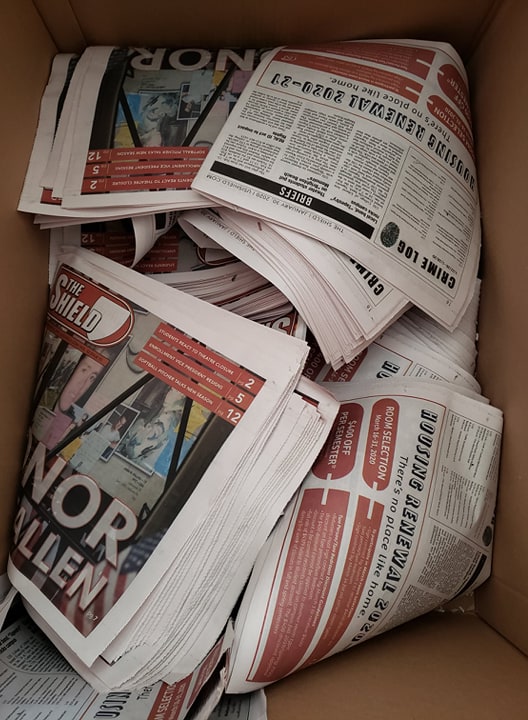

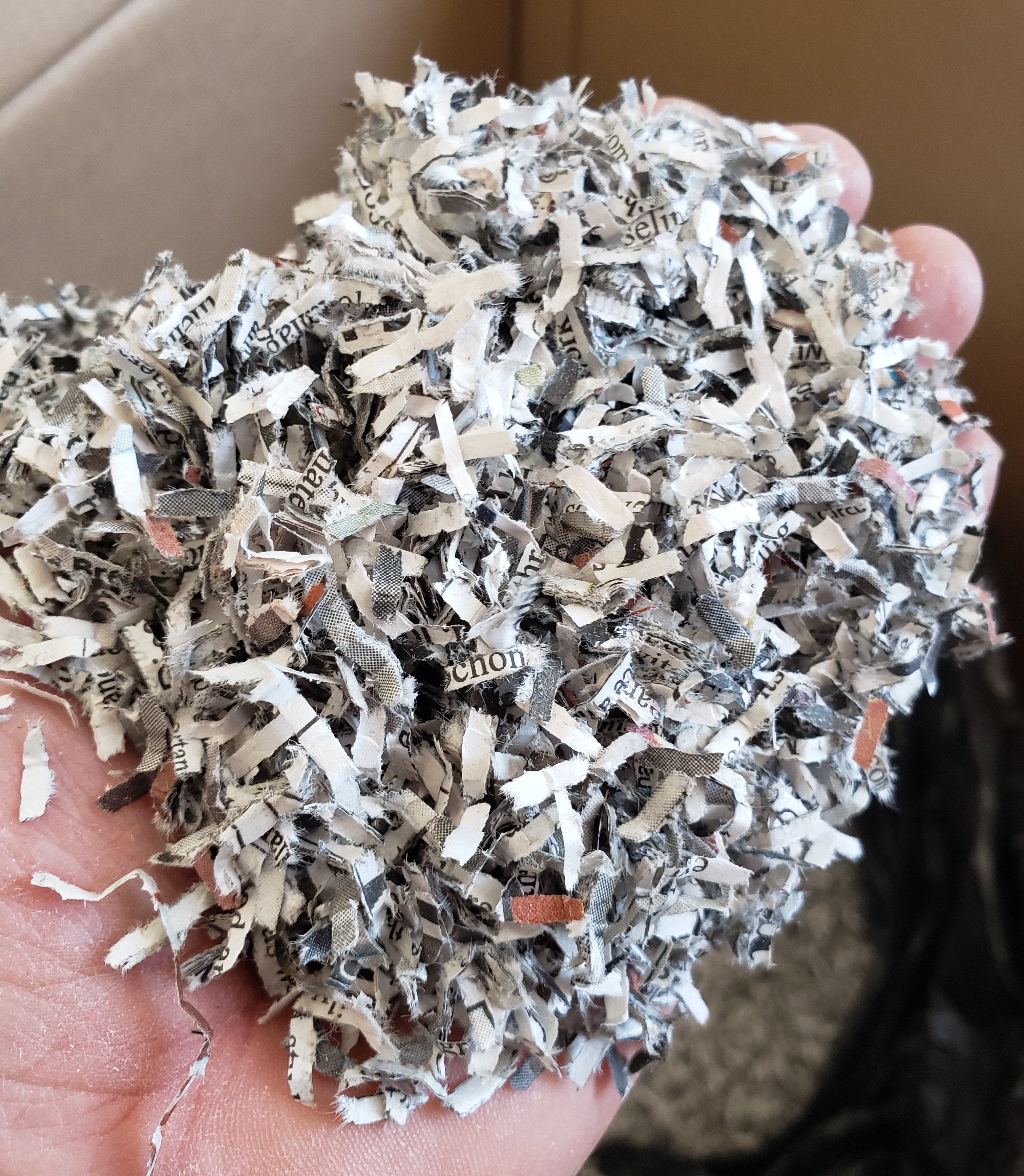

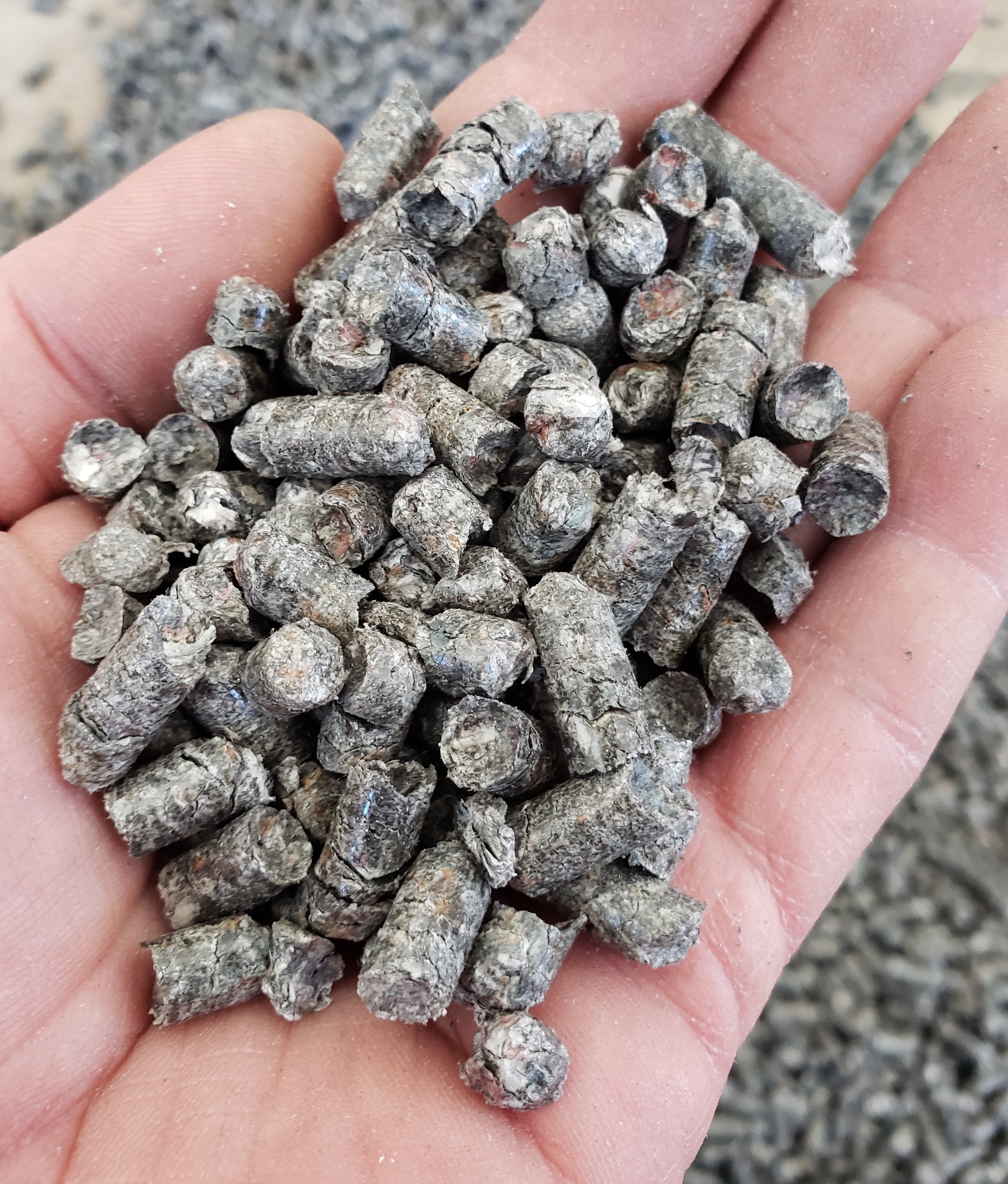

Examples of shredded newspaper run through Red (Wood) Pellet Mills with a 6mm die. (NewspaperPM)

Newspaper before Single Phase Machine	Newspaper Shredded Single Phase Machine	Newspaper Shredded Three Phase Machine	Newspaper Shredded Three Phase Machine
We didn't add any water to the shredded newspaper. It ran really well through the Single Phase macine. The pellets out of the Three Phase machine were shorter and would benefit from additional moisture or a binder. The Three Phase machine runs faster due to a 19:1 gearbox as compared with the 25:1 gearbox of the Single Phase machine. Click here for a video of shredded newspaper run through a Red (Wood) Single Phase Pellet Mill. Click here for another video of shredded newspaper run through a Red (Wood) Single Phase Pellet Mill. Click here for another video of shredded newspaper run through a Red (Wood) Single Phase Pellet Mill. Click here for another video of shredded newspaper run through a Red (Wood) Three Phase Pellet Mill.

---

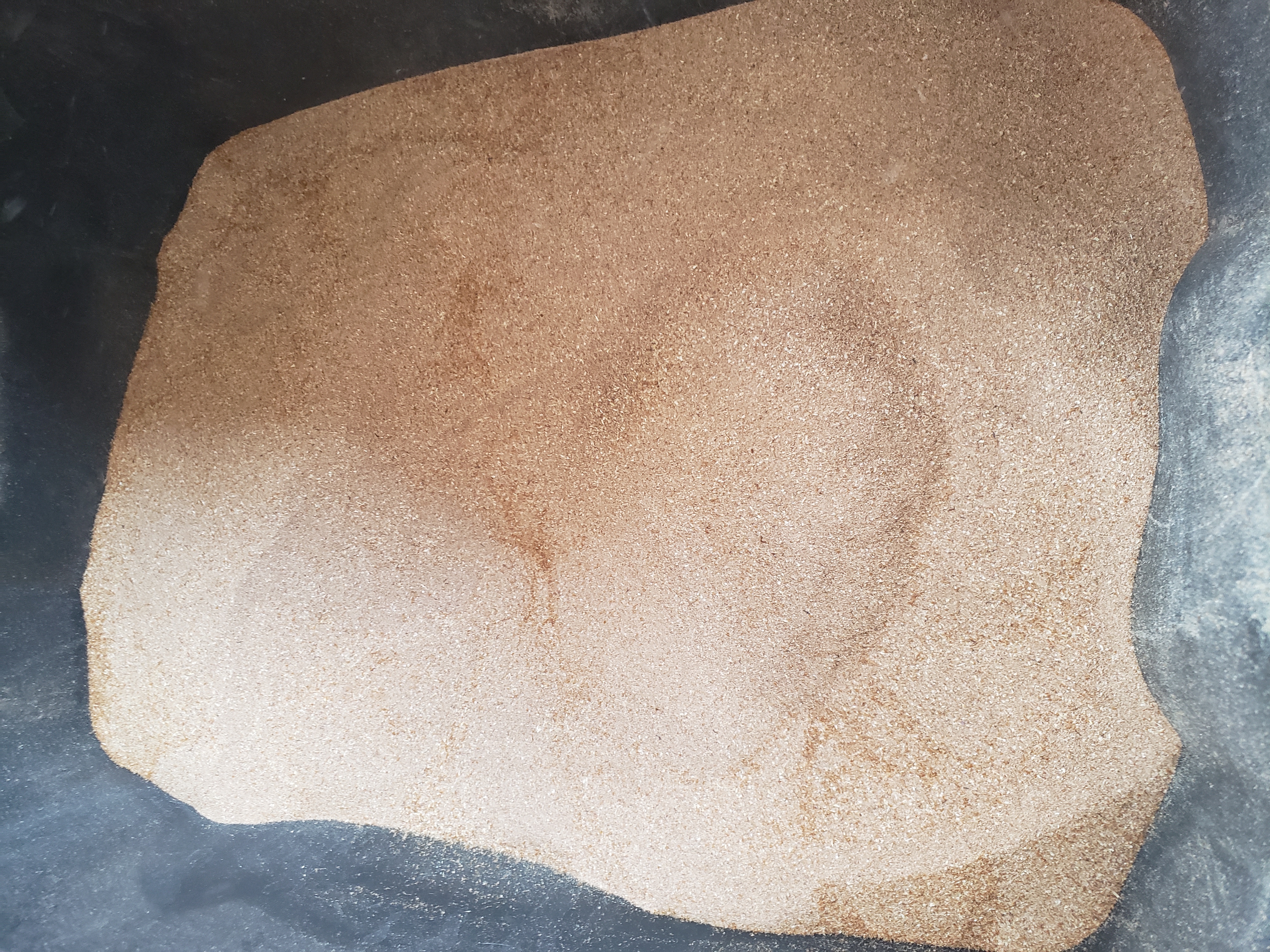

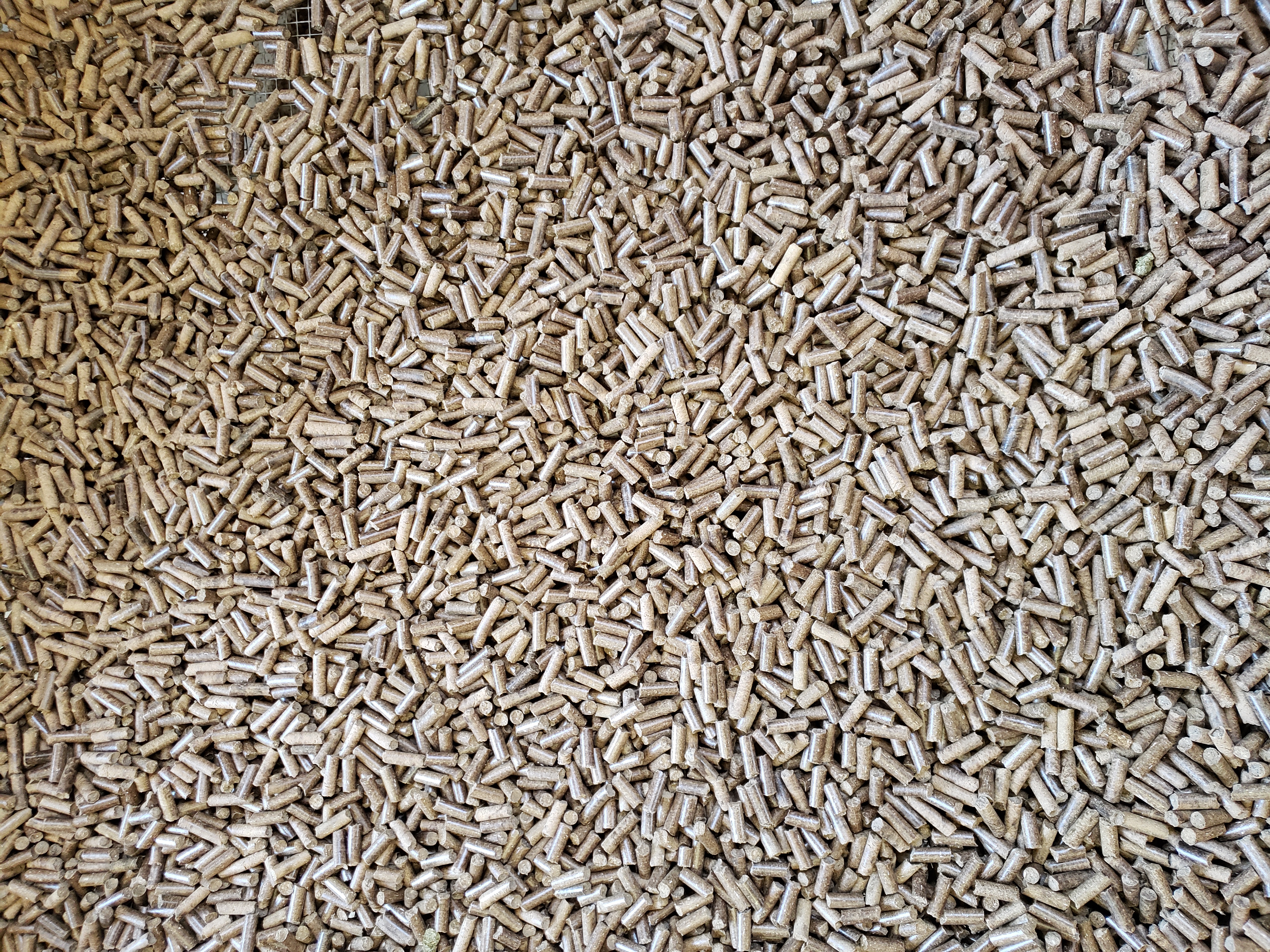

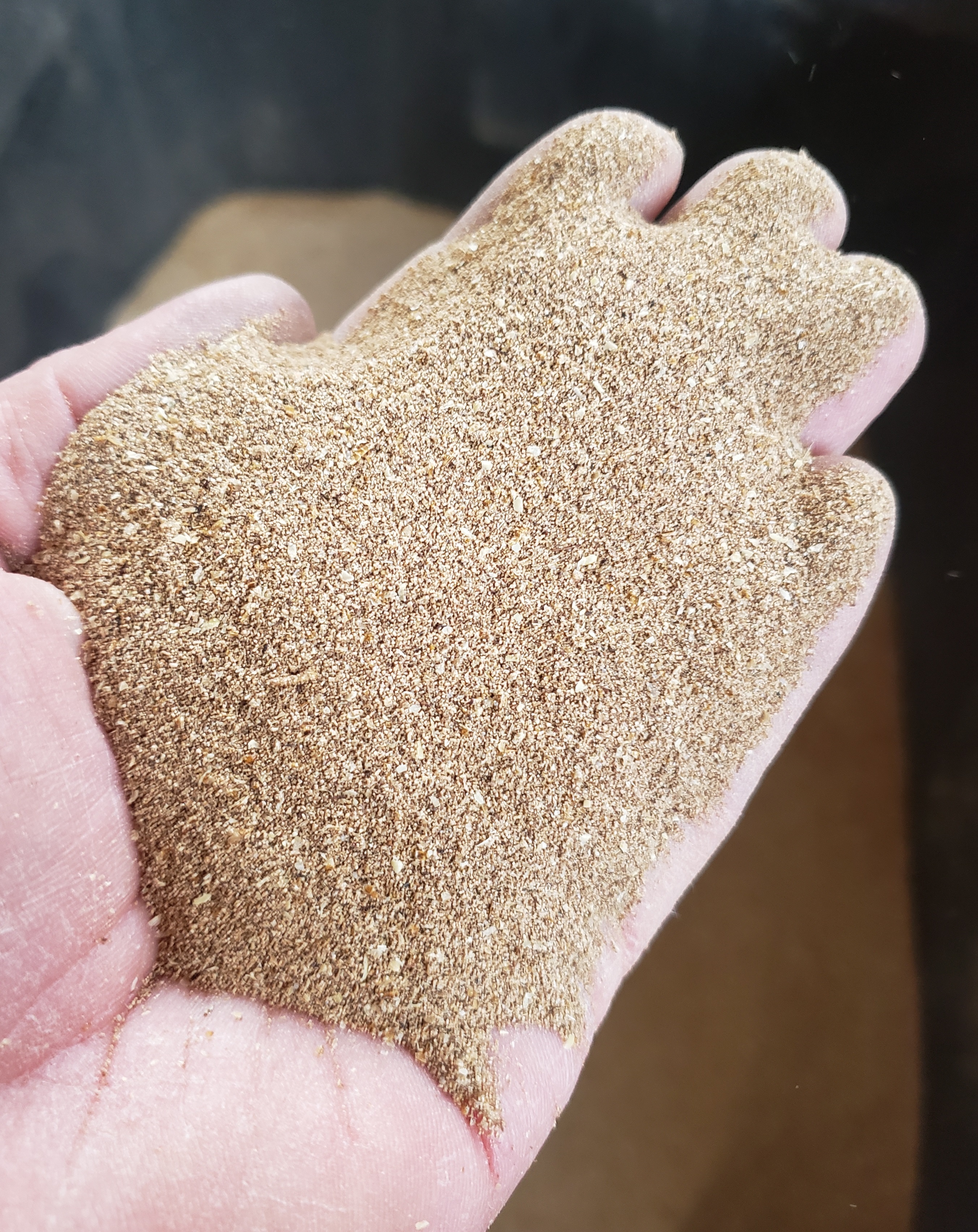

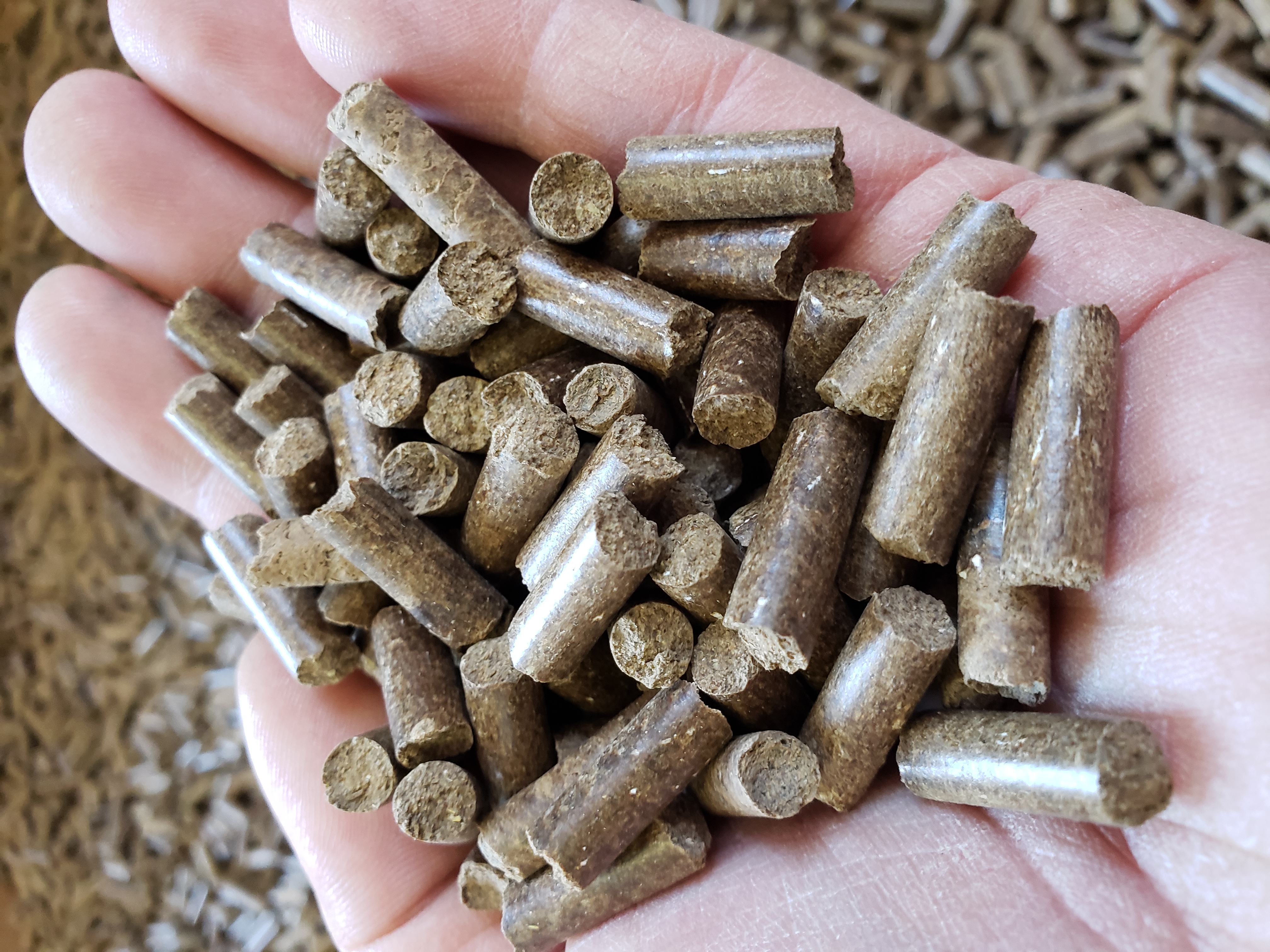

Examples of Cricket Castings run through Red (Wood) Pellet Mills with a 6mm die. (CricketPM)

Cricket Castings	Cricket Castings	Castings Pellets	Castings Pellets
Click here for a video of Cricket Castings run through a Red (Wood) Single Phase Pellet Mill. Click here for a video of Cricket Castings run through a Red (Wood) Single Phase Pellet Mill. Click here for a video of Cricket Castings run through a Red (Wood) Single Phase Pellet Mill. Click here for a video of Cricket Castings run through a Red (Wood) Three Phase Pellet Mill.

---

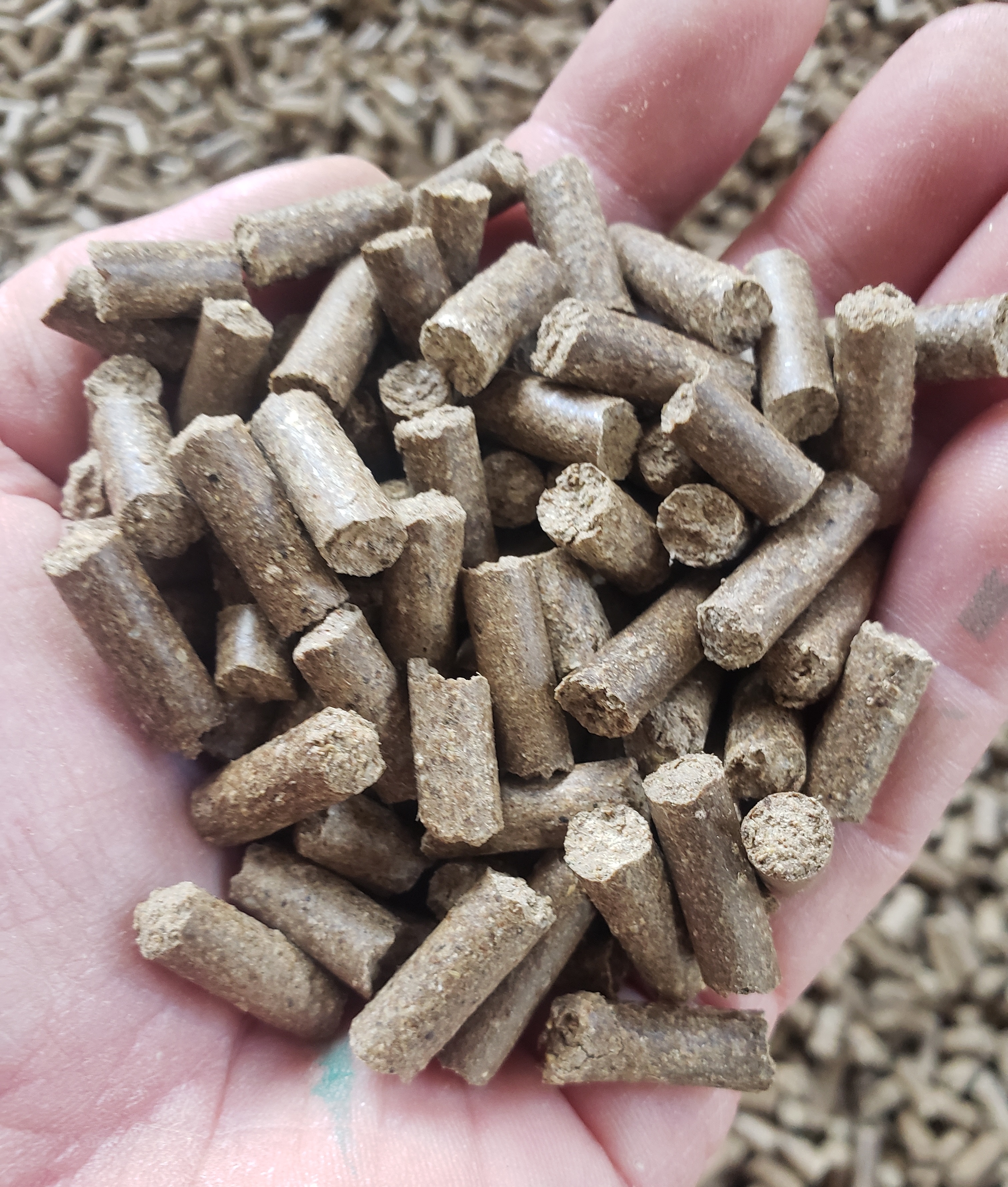

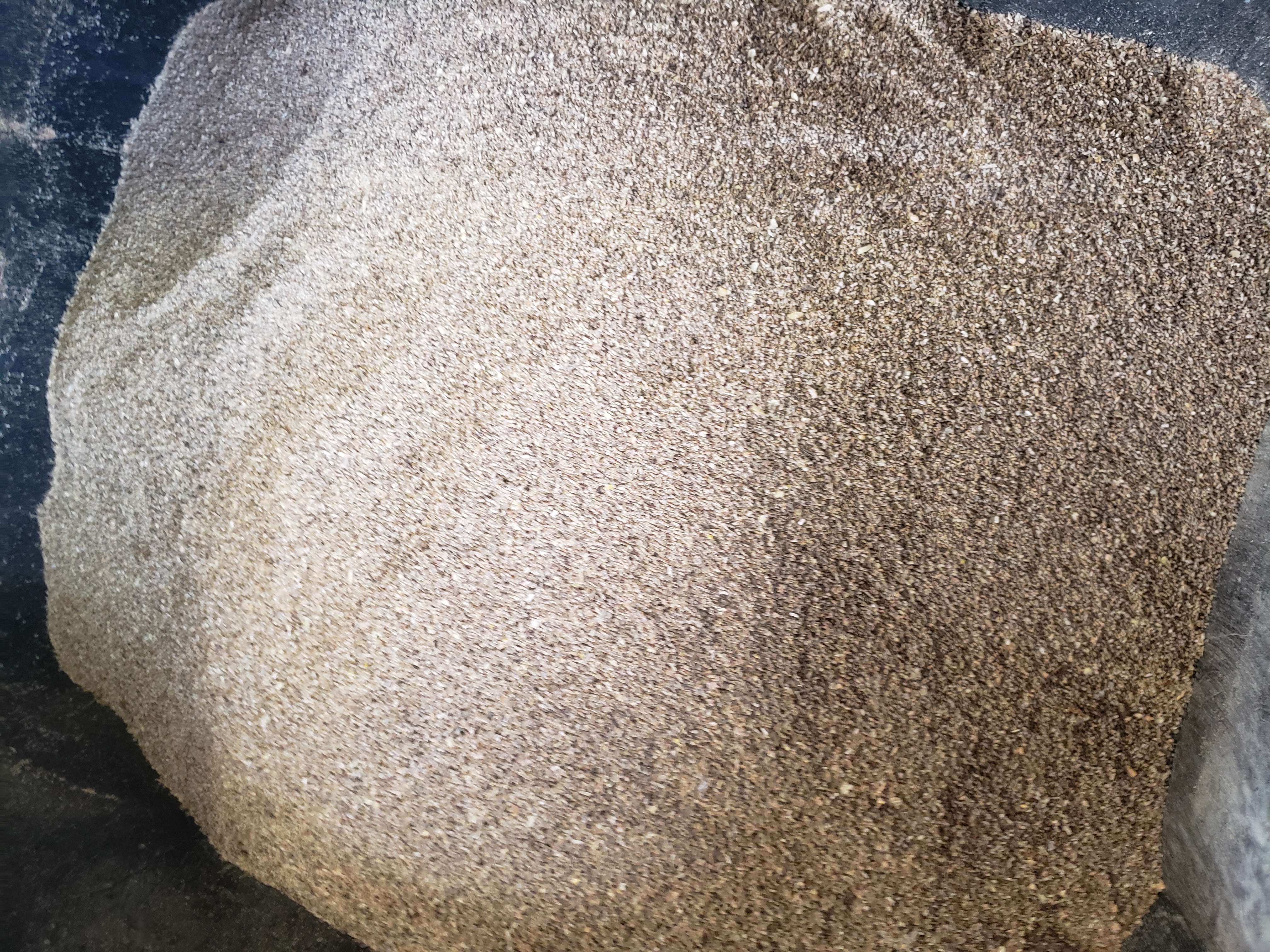

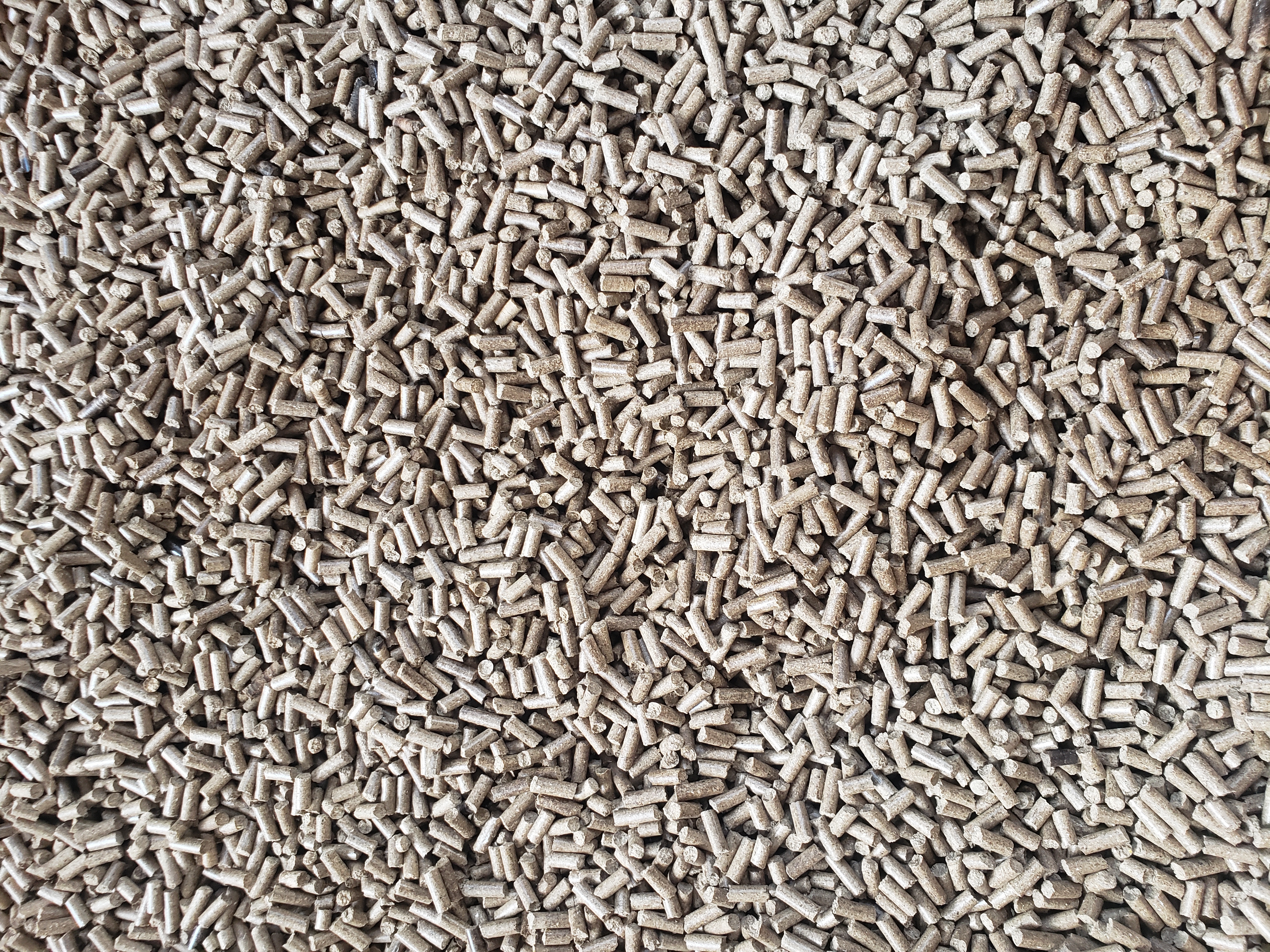

Examples of Mealworm Frass run through Red (Wood) Pellet Mills with a 6mm die. (MealwormPM)

Mealworm Frass	Mealworm Frass	Frass Pellets	Frass Pellets
Click here for a video of Mealworm Frass run through a Red (Wood) Single Phase Pellet Mill. Click here for a video of Mealworm Frass run through a Red (Wood) Single Phase Pellet Mill. Click here for a video of Mealworm Frass run through a Red (Wood) Single Phase Pellet Mill. Click here for a video of Mealworm Frass run through a Red (Wood) Three Phase Pellet Mill. Click here for a video of Mealworm Frass run through a Red (Wood) Three Phase Pellet Mill.

---

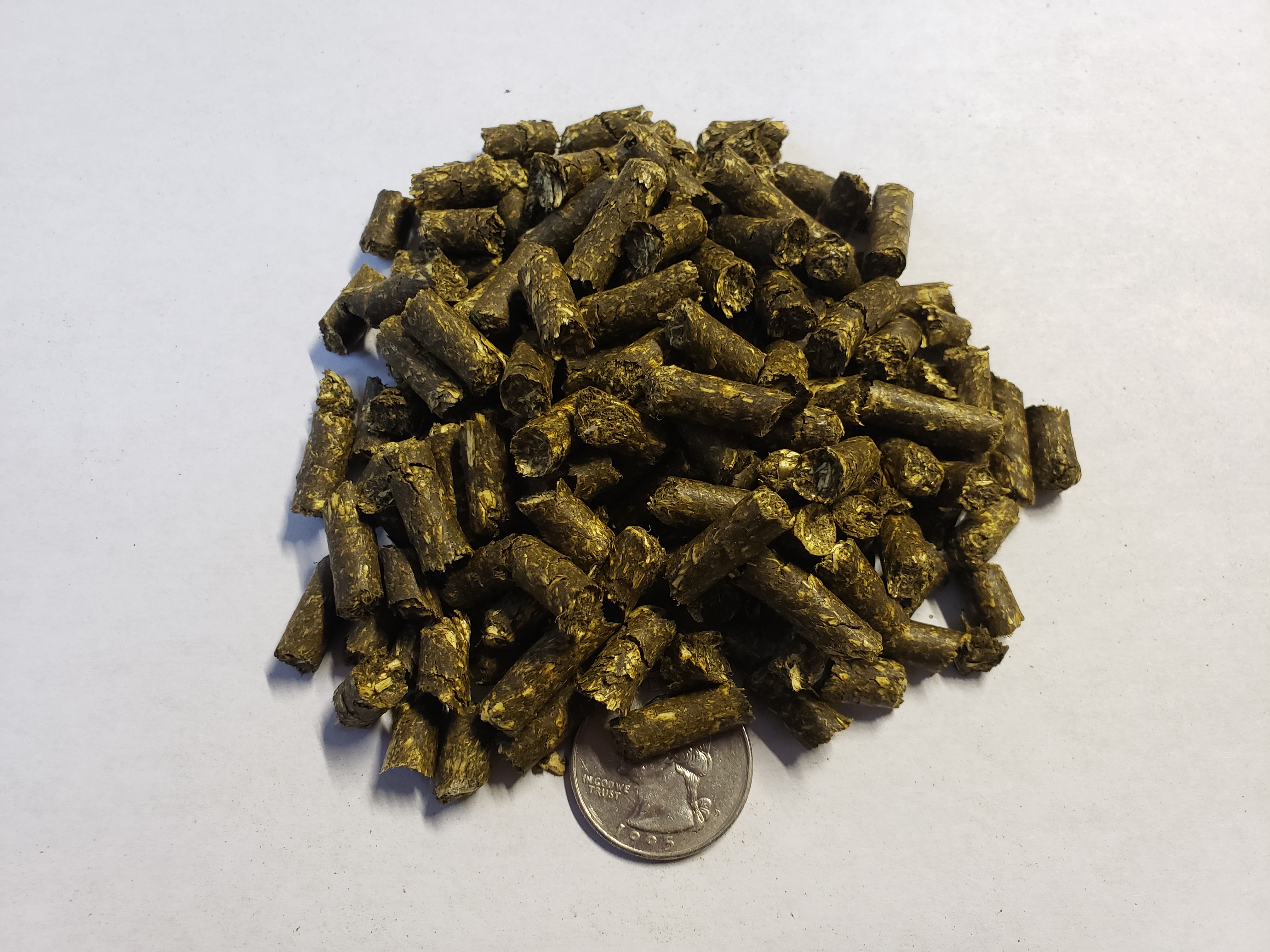

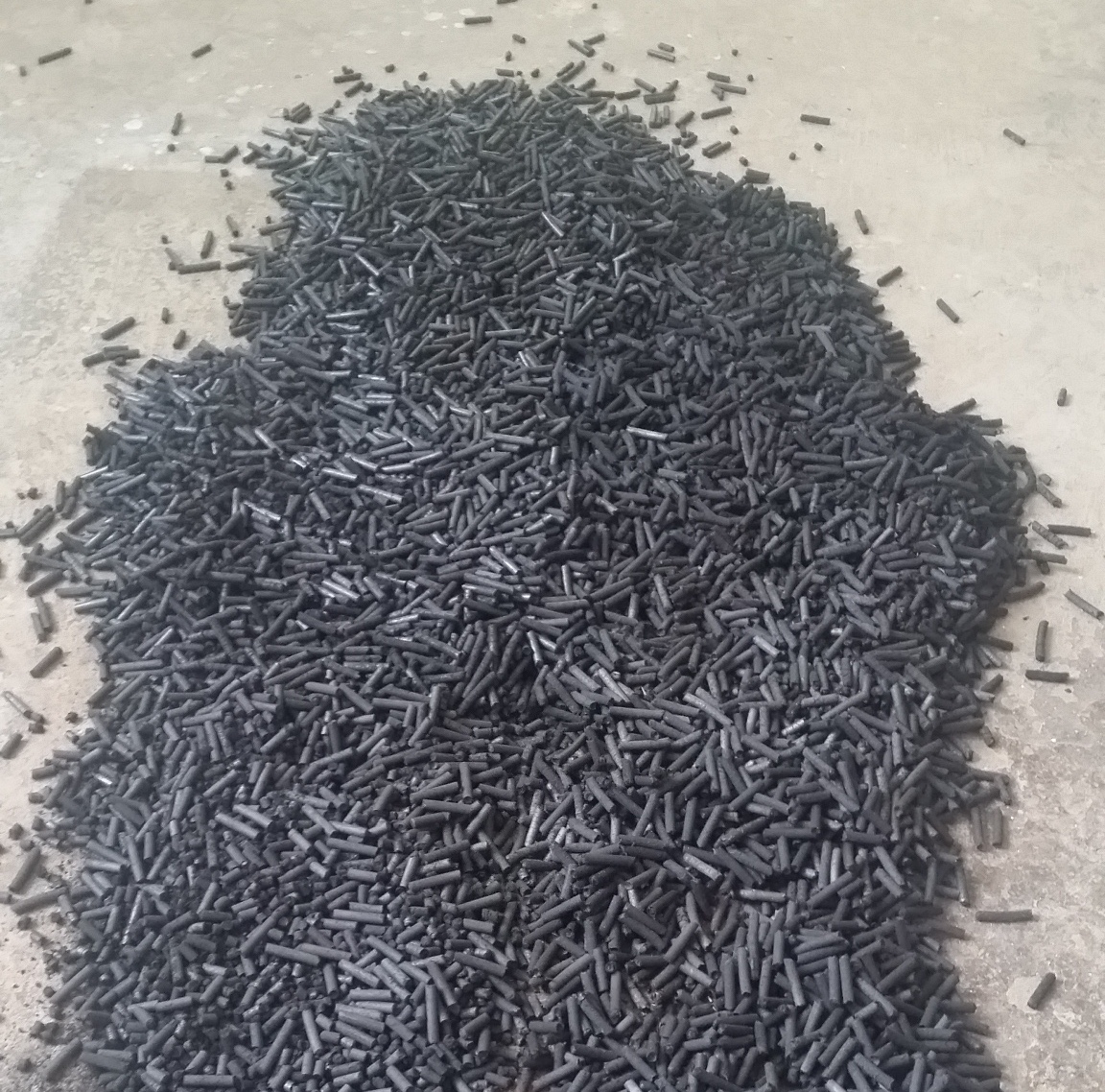

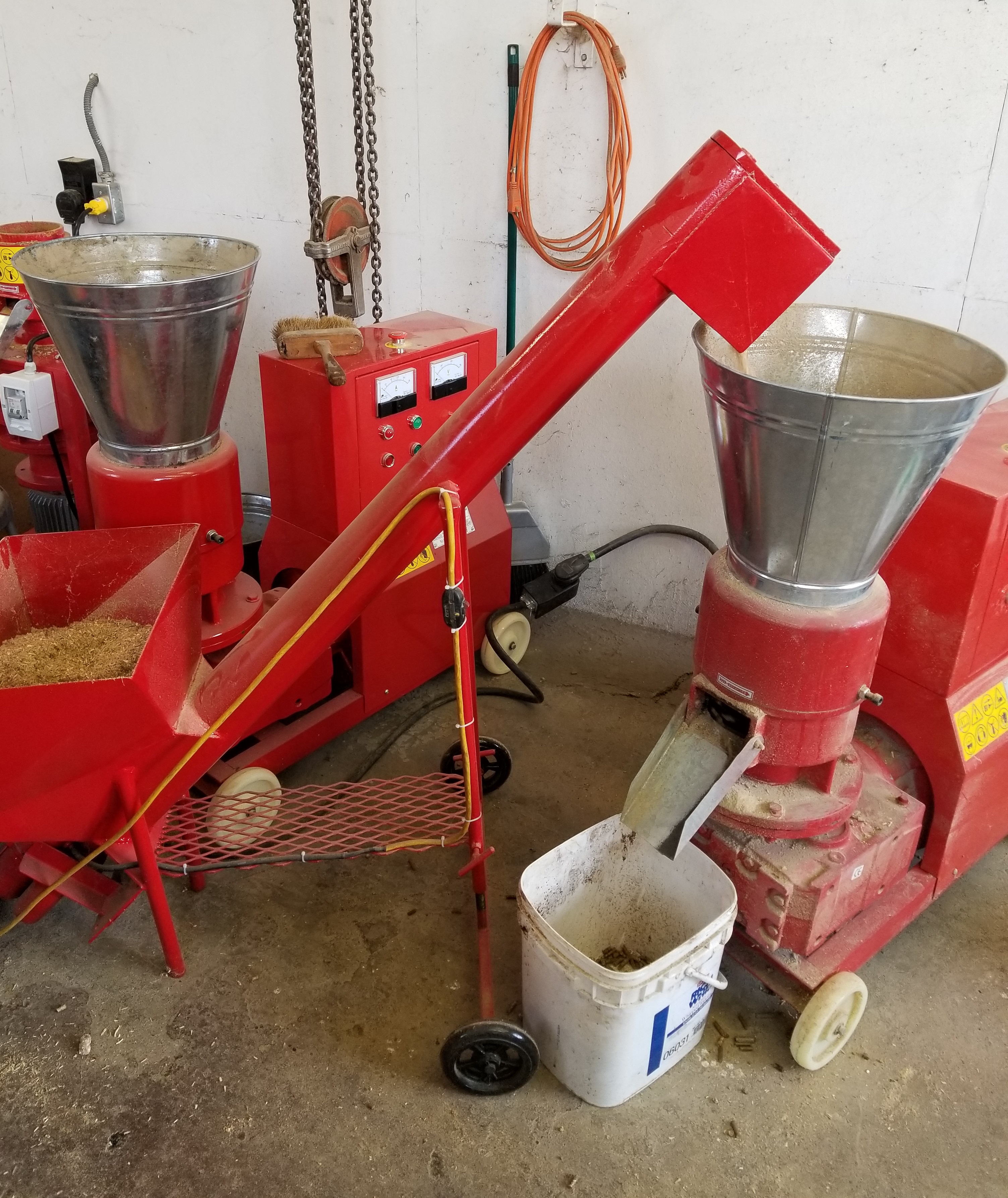

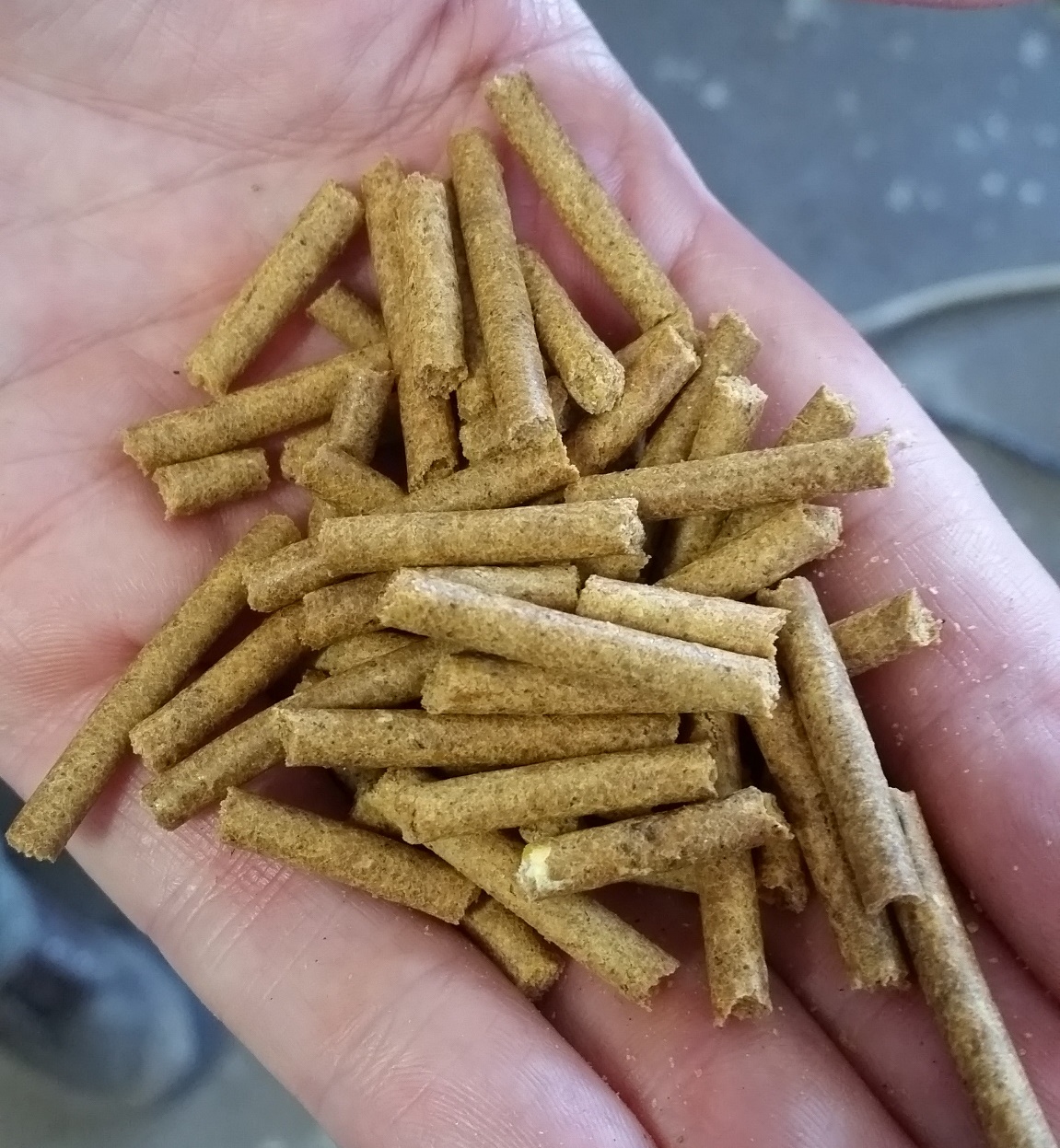

Examples of different materials and die sizes. (diesizes)

Wood Mill with Auger	Wood Mill - Carbon Fiber	Wood Mill - 4mm Die	Wood Mill - 8mm die

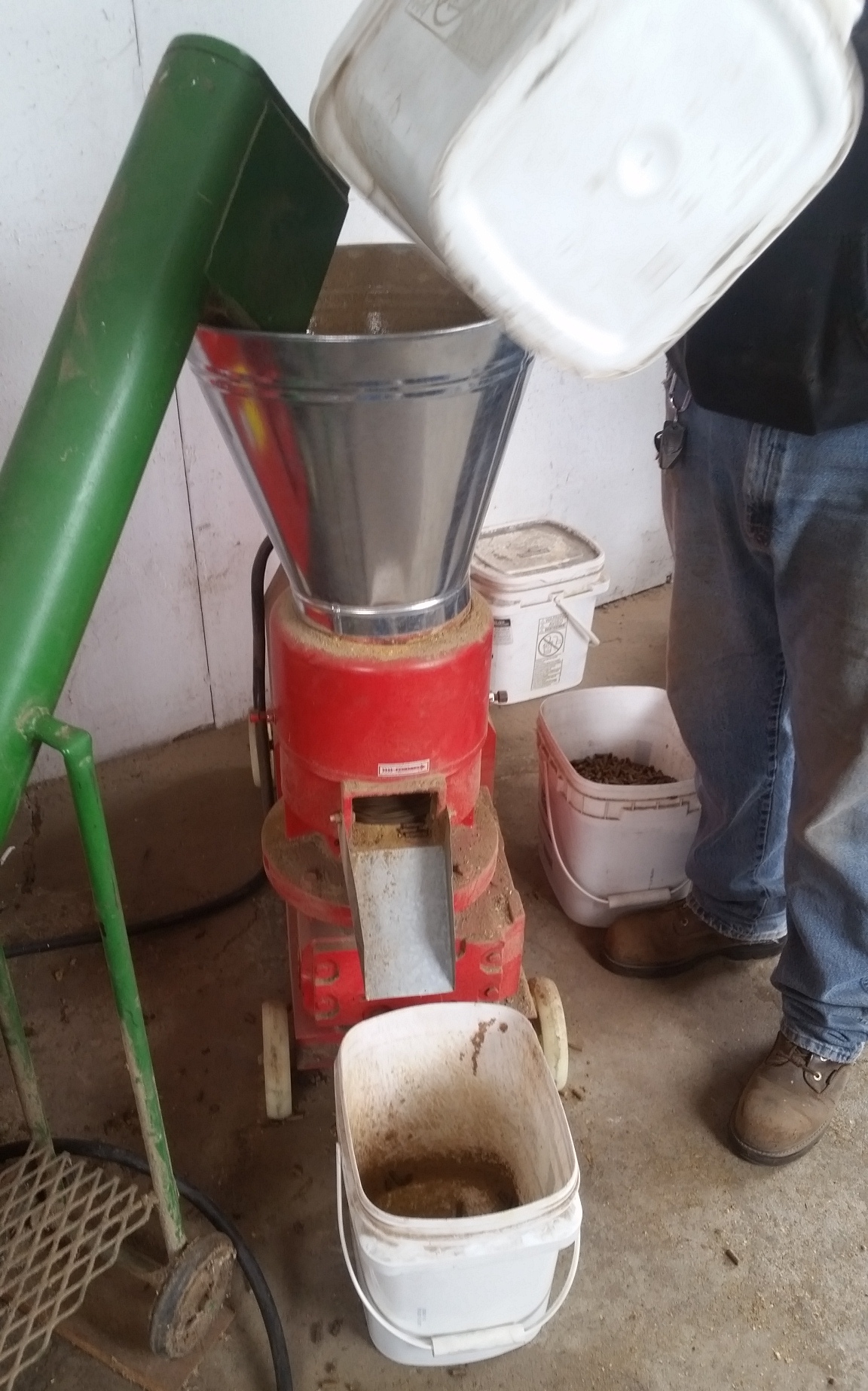

Click here for a video an Auger feeding a Red (wood) Pellet Mill.

Back to Menu
